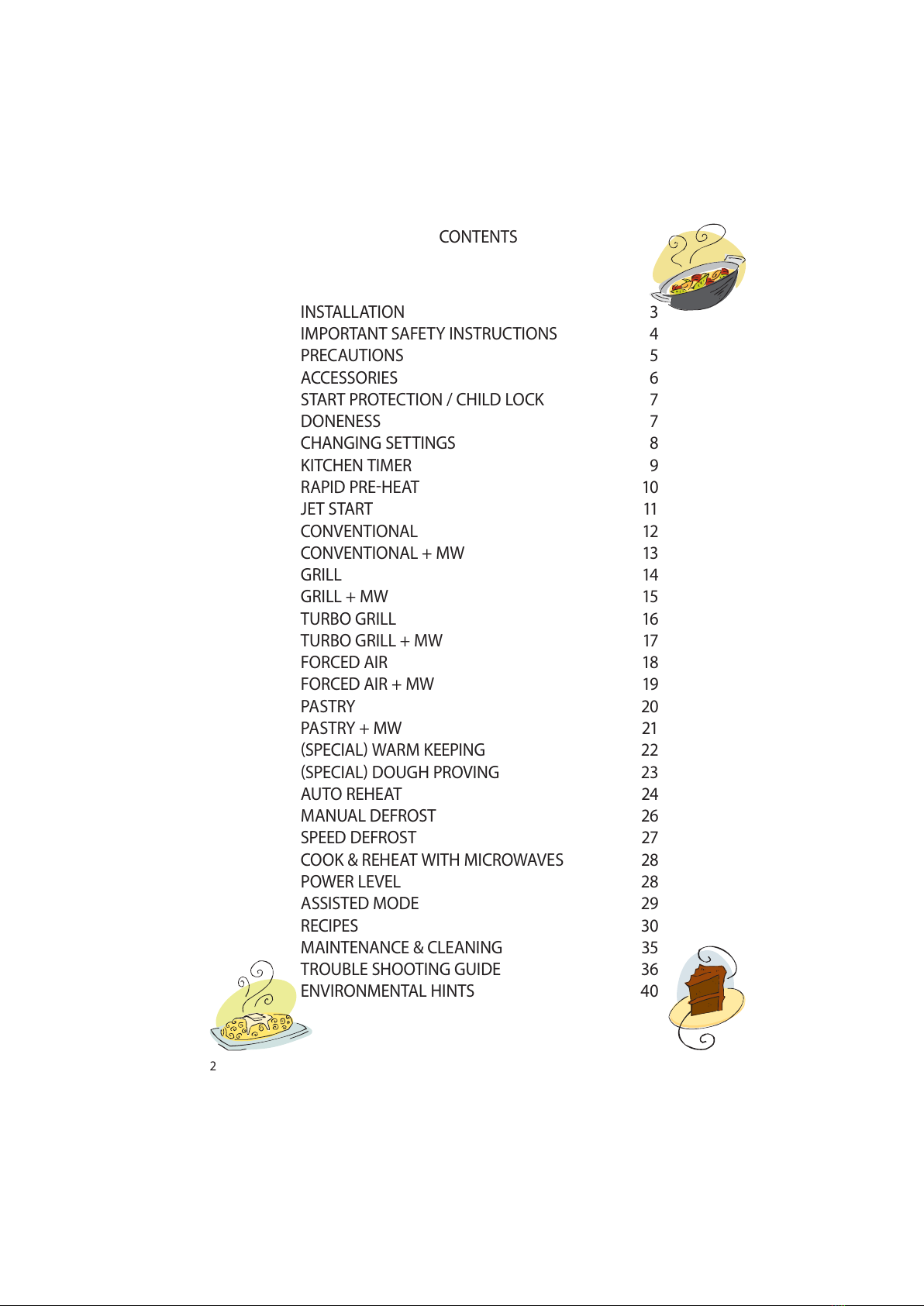

CONTENTS

INSTALLATION 3

IMPORTANT SAFETY INSTRUCTIONS 4

PRECAUTIONS 5

ACCESSORIES 6

START PROTECTION / CHILD LOCK 7

DONENESS 7

CHANGING SETTINGS 8

KITCHEN TIMER 9

RAPID PREHEAT 10

JET START 11

CONVENTIONAL 12

CONVENTIONAL + MW 13

GRILL 14

GRILL + MW 15

TURBO GRILL 16

TURBO GRILL + MW 17

FORCED AIR 18

FORCED AIR + MW 19

PASTRY 20

PASTRY + MW 21

SPECIAL WARM KEEPING 22

SPECIAL DOUGH PROVING 23

AUTO REHEAT 24

MANUAL DEFROST 26

SPEED DEFROST 27

COOK & REHEAT WITH MICROWAVES 28

POWER LEVEL 28

ASSISTED MODE 29

RECIPES 30

MAINTENANCE & CLEANING 35

TROUBLE SHOOTING GUIDE 36

ENVIRONMENTAL HINTS 40

All manuals and user guides at all-guides.com

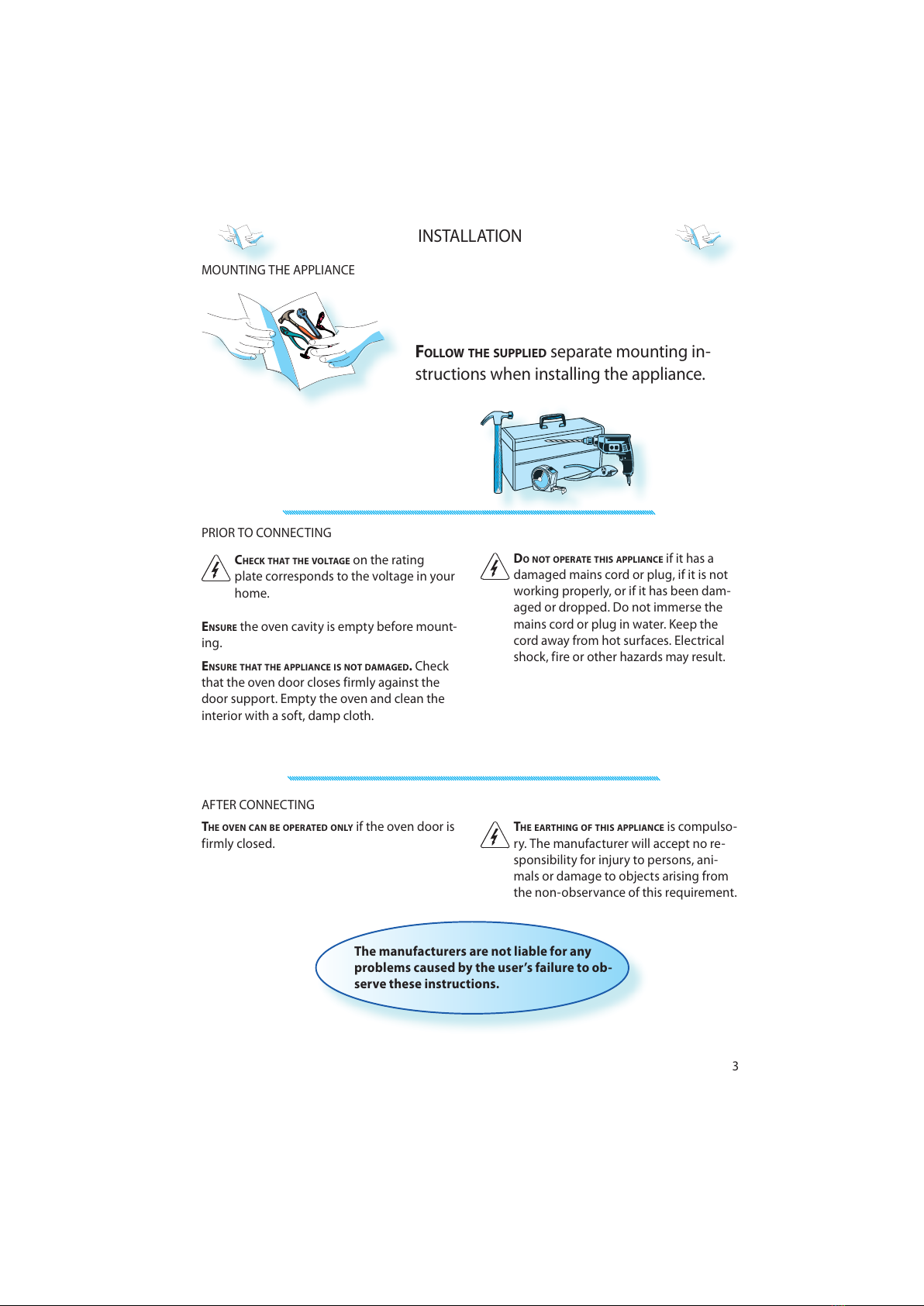

INSTALLATION

PRIOR TO CONNECTING

ENSURE THAT THE APPLIANCE IS NOT DAMAGED. Check

that the oven door closes firmly against the

door support. Empty the oven and clean the

interior with a soft, damp cloth.

AFTER CONNECTING

THE EARTHING OF THIS APPLIANCE is compulso-

ry. The manufacturer will accept no re-

sponsibility for injury to persons, ani-

mals or damage to objects arising from

the non-observance of this requirement.

The manufacturers are not liable for any

problems caused by the user’s failure to ob-

serve these instructions.

DONOT OPERATE THIS APPLIANCE if it has a

damaged mains cord or plug, if it is not

working properly, or if it has been dam-

aged or dropped. Do not immerse the

mains cord or plug in water. Keep the

cord away from hot surfaces. Electrical

shock, fire or other hazards may result.

ENSURE the oven cavity is empty before mount-

ing.

CHECK THAT THE VOLTAGE on the rating

plate corresponds to the voltage in your

home.

THE OVEN CAN BE OPERATED ONLY if the oven door is

firmly closed.

MOUNTING THE APPLIANCE

FOLLOW THE SUPPLIED separate mounting in-

structions when installing the appliance.

All manuals and user guides at all-guides.com

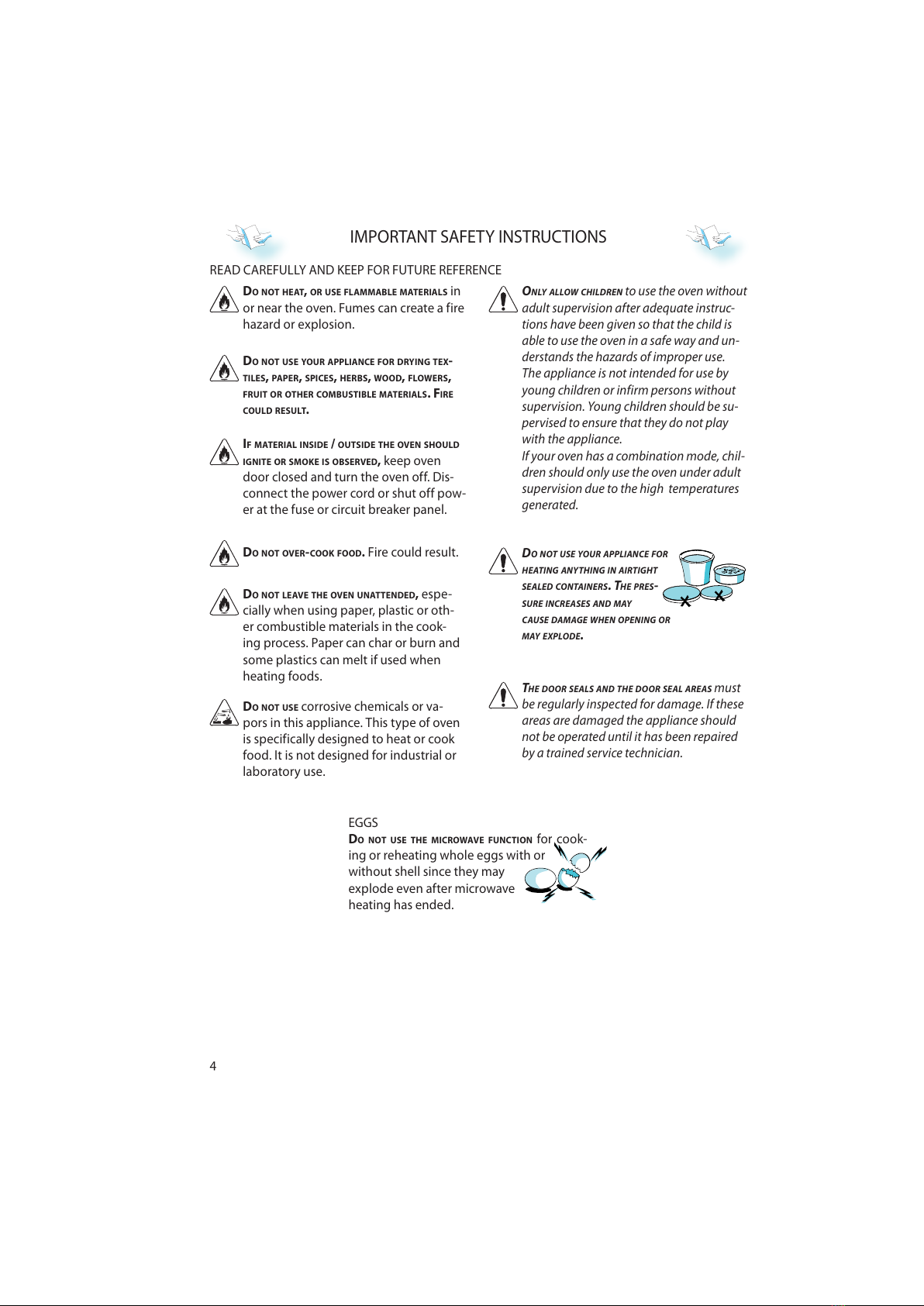

IMPORTANT SAFETY INSTRUCTIONS

DONOT HEAT, OR USE FLAMMABLE MATERIALS in

or near the oven. Fumes can create a fire

hazard or explosion.

DONOT USE YOUR APPLIANCE FOR DRYING TEX-

TILES, PAPER, SPICES, HERBS, WOOD, FLOWERS,

FRUIT OR OTHER COMBUSTIBLE MATERIALS. FIRE

COULD RESULT.

DONOT OVER-COOK FOOD. Fire could result.

DONOT LEAVE THE OVEN UNATTENDED, espe-

cially when using paper, plastic or oth-

er combustible materials in the cook-

ing process. Paper can char or burn and

some plastics can melt if used when

heating foods.

IFMATERIAL INSIDE / OUTSIDE THE OVEN SHOULD

IGNITE OR SMOKE IS OBSERVED, keep oven

door closed and turn the oven off. Dis-

connect the power cord or shut off pow-

er at the fuse or circuit breaker panel.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

ONLY ALLOW CHILDREN to use the oven without

adult supervision after adequate instruc-

tions have been given so that the child is

able to use the oven in a safe way and un-

derstands the hazards of improper use.

The appliance is not intended for use by

young children or infirm persons without

supervision. Young children should be su-

pervised to ensure that they do not play

with the appliance.

If your oven has a combination mode, chil-

dren should only use the oven under adult

supervision due to the high temperatures

generated.

DONOT USE YOUR APPLIANCE FOR

HEATING ANYTHING IN AIRTIGHT

SEALED CONTAINERS. THE PRES-

SURE INCREASES AND MAY

CAUSE DAMAGE WHEN OPENING OR

MAY EXPLODE.

EGGS

DONOT USE THE MICROWAVE FUNCTION for cook-

ing or reheating whole eggs with or

without shell since they may

explode even after microwave

heating has ended.

THE DOOR SEALS AND THE DOOR SEAL AREAS must

be regularly inspected for damage. If these

areas are damaged the appliance should

not be operated until it has been repaired

by a trained service technician.

DONOT USE corrosive chemicals or va-

pors in this appliance. This type of oven

is specifically designed to heat or cook

food. It is not designed for industrial or

laboratory use.

All manuals and user guides at all-guides.com

GENERAL

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY!

THE APPLIANCE SHOULD NOT BE OPERATED without food

in the oven when using microwaves. Operation in

this manner is likely to damage the appliance.

IFYOU PRACTICE OPERATING the oven, put a glass

of water inside. The water will absorb the mi-

crowave energy and the oven will not be dam-

aged.

REMOVE WIRE TWIST-TIES from paper or

plastic bags before placing bag in

the oven.

DEEPFRYING

DONOT USE YOUR APPLIANCE FOR DEEP-FRYING, BE-

CAUSE THE OIL TEMPERATURE CANNOT BE CON-

TROLLED.

LIQUIDS

E.G. BEVERAGES OR WATER. Overheating the liquid

beyond boiling point can occur

without evidence of bubbling.

This could result in a sudden

boil over of the hot liquid.

To prevent this possibility the

following steps should be taken:

1. Avoid using straight-sided containers with

narrow necks.

2. Stir the liquid before placing the container

in the oven and let the teaspoon remain

in the container.

3. After heating, allow standing for a short

time, stirring again before carefully re-

moving the container from the oven.

CAREFUL

DONOT USE THE MICROWAVE FUNCTION when cook-

ing or reheating food that contains alcohol.

AFTER HEATING BABY FOOD or liquids in a

baby bottle or in a baby food

jar, always stir and check the

temperature before serving.

This will ensure that the heat is evenly distributed

and the risk of scalding or burns can be avoided.

Ensure the Lid and the Teat is removed be-

fore heating!

PRECAUTIONS

USE HOT PADS OR OVEN MITTS to prevent

burns, when touching containers, oven

parts, and pan after cooking.

DONOT USE THE CAVITY for any storage purposes.

All manuals and user guides at all-guides.com

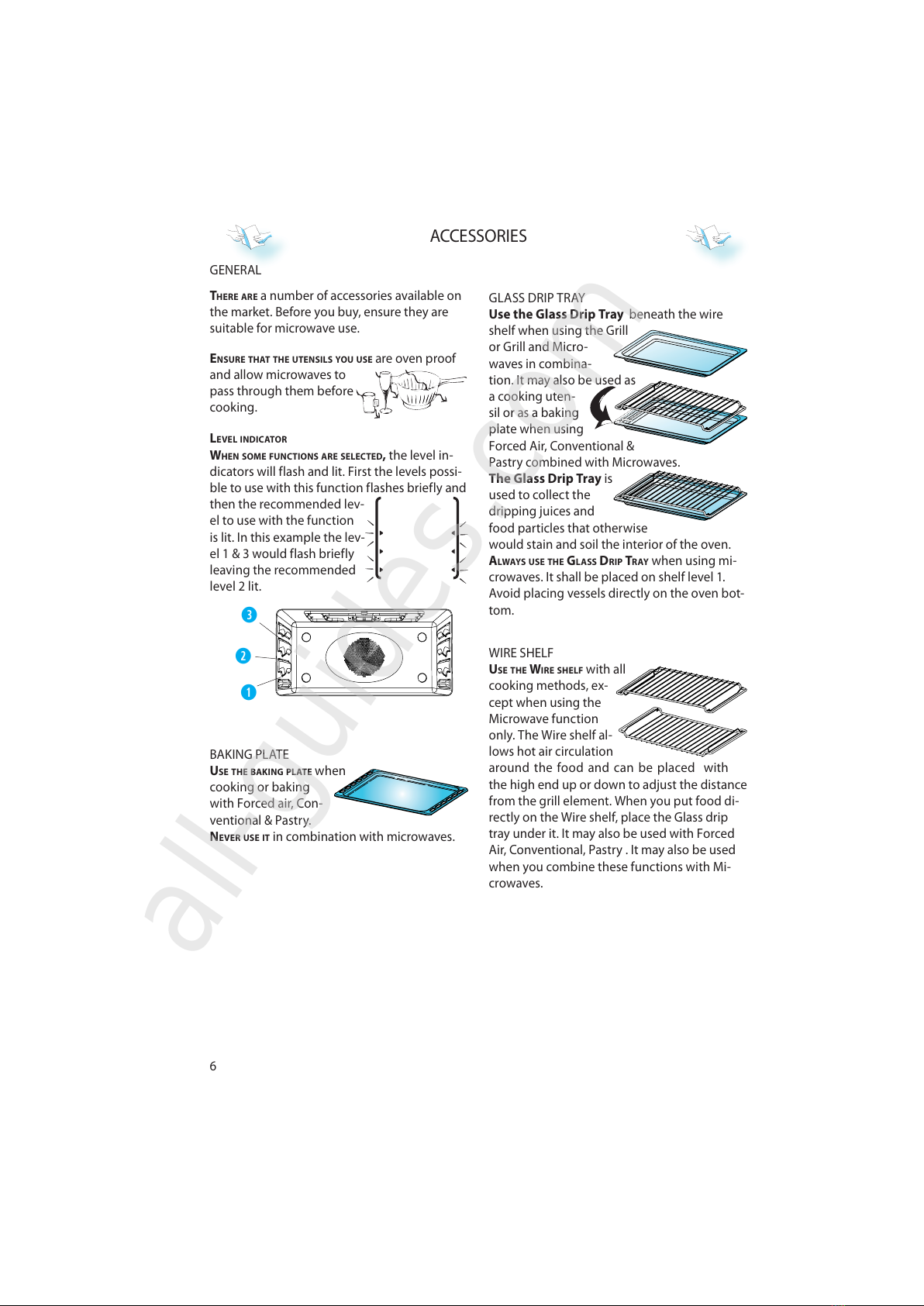

ACCESSORIES

GENERAL

ENSURE THAT THE UTENSILS YOU USE are oven proof

and allow microwaves to

pass through them before

cooking.

THERE ARE a number of accessories available on

the market. Before you buy, ensure they are

suitable for microwave use.

BAKING PLATE

USE THE BAKING PLATE when

cooking or baking

with Forced air, Con-

ventional & Pastry.

NEVER USE IT in combination with microwaves.

GLASS DRIP TRAY

Use the Glass Drip Tray beneath the wire

shelf when using the Grill

or Grill and Micro-

waves in combina-

tion. It may also be used as

a cooking uten-

sil or as a baking

plate when using

Forced Air, Conventional &

Pastry combined with Microwaves.

The Glass Drip Tray is

used to collect the

dripping juices and

food particles that otherwise

would stain and soil the interior of the oven.

ALWAYS USE THE GLASS DRIP TRAY when using mi-

crowaves. It shall be placed on shelf level 1.

Avoid placing vessels directly on the oven bot-

tom.

WIRE SHELF

USE THE WIRE SHELF with all

cooking methods, ex-

cept when using the

Microwave function

only. The Wire shelf al-

lows hot air circulation

around the food and can be placed with

the high end up or down to adjust the distance

from the grill element. When you put food di-

rectly on the Wire shelf, place the Glass drip

tray under it. It may also be used with Forced

Air, Conventional, Pastry . It may also be used

when you combine these functions with Mi-

crowaves.

LEVEL INDICATOR

WHEN SOME FUNCTIONS ARE SELECTED, the level in-

dicators will flash and lit. First the levels possi-

ble to use with this function flashes briefly and

then the recommended lev-

el to use with the function

is lit. In this example the lev-

el 1 & 3 would flash briefly

leaving the recommended

level 2 lit.

All manuals and user guides at all-guides.com

all-guides.com

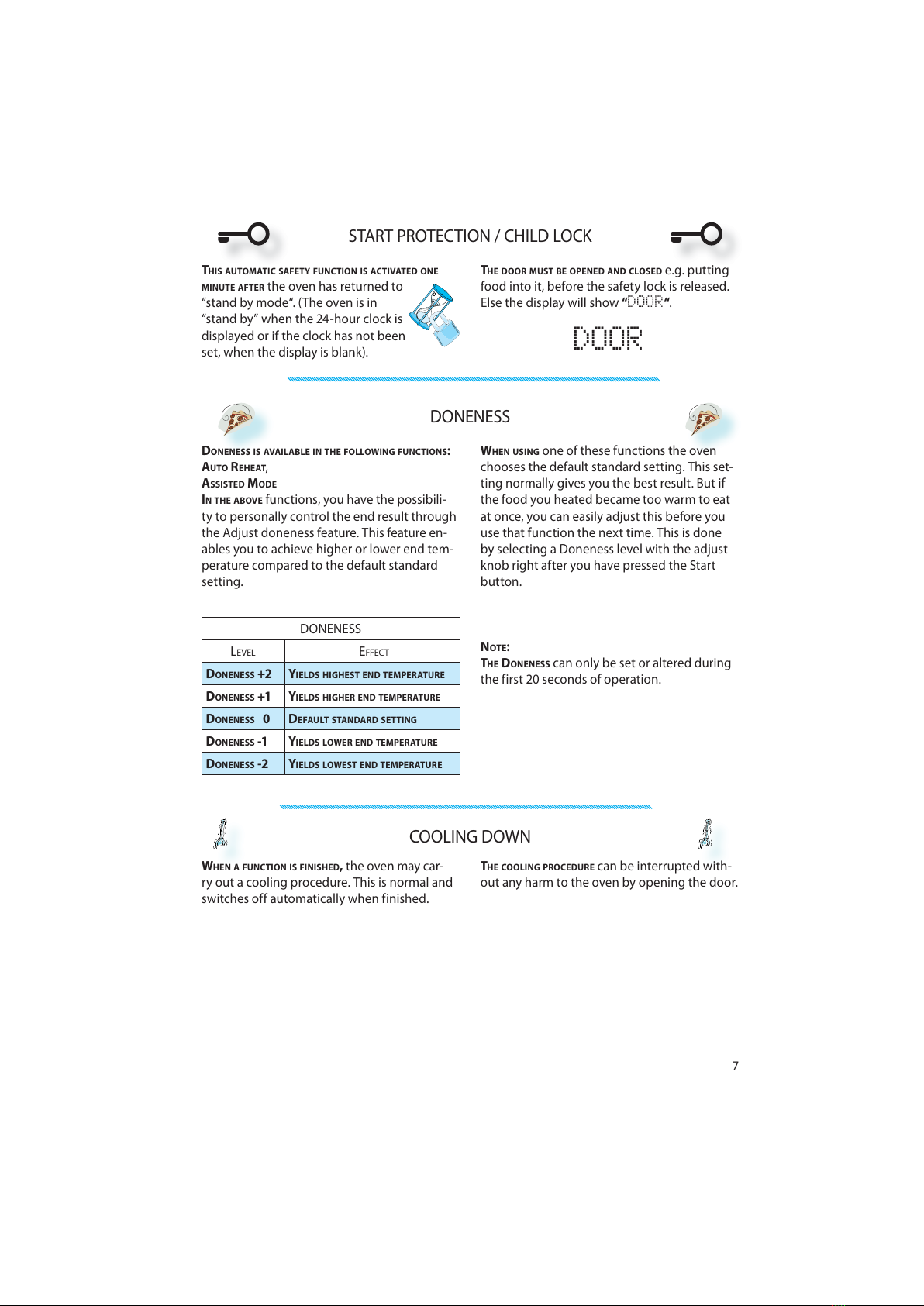

START PROTECTION / CHILD LOCK

THIS AUTOMATIC SAFETY FUNCTION IS ACTIVATED ONE

MINUTE AFTER the oven has returned to

“stand by mode“. (The oven is in

“stand by” when the 24-hour clock is

displayed or if the clock has not been

set, when the display is blank).

THE DOOR MUST BE OPENED AND CLOSED e.g. putting

food into it, before the safety lock is released.

Else the display will show “DOOR“.

DOOR

DONENESS

DONENESS IS AVAILABLE IN THE FOLLOWING FUNCTIONS:

AUTO REHEAT,

ASSISTED MODE

INTHE ABOVE functions, you have the possibili-

ty to personally control the end result through

the Adjust doneness feature. This feature en-

ables you to achieve higher or lower end tem-

perature compared to the default standard

setting.

WHEN USING one of these functions the oven

chooses the default standard setting. This set-

ting normally gives you the best result. But if

the food you heated became too warm to eat

at once, you can easily adjust this before you

use that function the next time. This is done

by selecting a Doneness level with the adjust

knob right after you have pressed the Start

button.

NOTE:

THE DONENESS can only be set or altered during

the first 20 seconds of operation.

COOLING DOWN

WHEN AFUNCTION IS FINISHED, the oven may car-

ry out a cooling procedure. This is normal and

switches off automatically when finished.

THE COOLING PROCEDURE can be interrupted with-

out any harm to the oven by opening the door.

DONENESS

LEVEL EFFECT

DONENESS +2 YIELDS HIGHEST END TEMPERATURE

DONENESS +1 YIELDS HIGHER END TEMPERATURE

DONENESS 0 DEFAULT STANDARD SETTING

DONENESS -1 YIELDS LOWER END TEMPERATURE

DONENESS -2 YIELDS LOWEST END TEMPERATURE

All manuals and user guides at all-guides.com

CHANGING SETTINGS

WHEN THE APPLIANCE IS FIRST PLUGGED IN it will ask

you to set the Language & Clock.

AFTER APOWER FAILURE the Clock will flash and

needs to be reset.

YOUR OVEN HAS a number of functions which can

be adjusted to your personal taste.

1. TURN THE MULTIFUNCTION KNOB to the setting po-

sition.

2. USE THE ADJUST KNOB to choose one of the fol-

lowing settings to adjust.

LANGUAGE

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to choose one of the

available languages.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

CLOCK

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the correct time

of day (or press the Stop button to remove

the clock from the display).

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SETTING

-/+ TO CHANGE

ENGLISH

OK -/+

SET LANGUAGE

OK -/+

SET CLOCK

OK -/+

SET CLOCK

OK -/+

BUZZER

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to turn the buzzer on

or off.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET BUZZER

OK -/+

SET BUZZER

-/+ ON OK

All manuals and user guides at all-guides.com

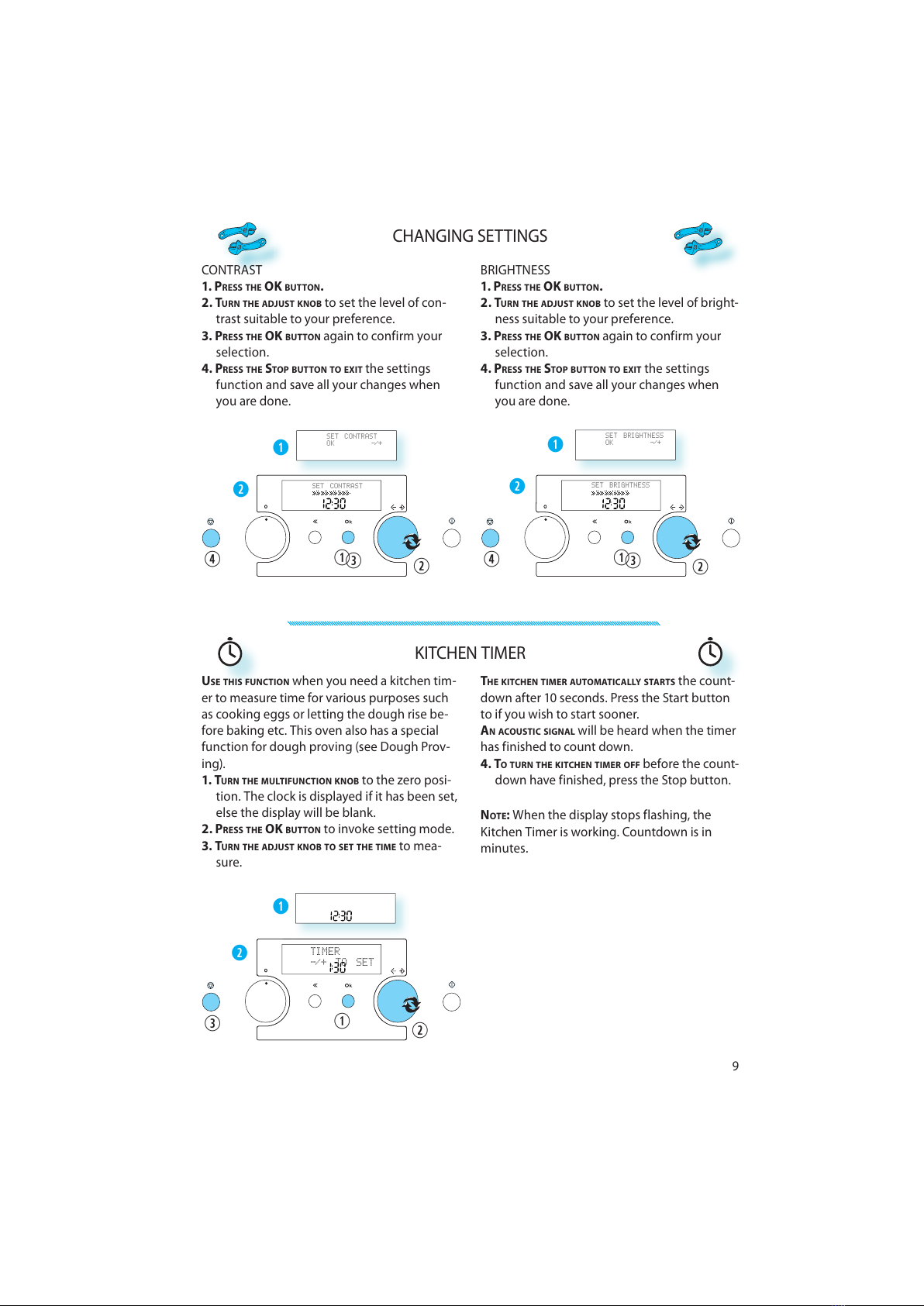

CONTRAST

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the level of con-

trast suitable to your preference.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET CONTRAST

OK -/+

SET CONTRAST

KITCHEN TIMER

USE THIS FUNCTION when you need a kitchen tim-

er to measure time for various purposes such

as cooking eggs or letting the dough rise be-

fore baking etc. This oven also has a special

function for dough proving (see Dough Prov-

ing).

1. TURN THE MULTIFUNCTION KNOB to the zero posi-

tion. The clock is displayed if it has been set,

else the display will be blank.

2. PRESS THE OK BUTTON to invoke setting mode.

3. TURN THE ADJUST KNOB TO SET THE TIME to mea-

sure.

THE KITCHEN TIMER AUTOMATICALLY STARTS the count-

down after 10 seconds. Press the Start button

to if you wish to start sooner.

ANACOUSTIC SIGNAL will be heard when the timer

has finished to count down.

4. TOTURN THE KITCHEN TIMER OFF before the count-

down have finished, press the Stop button.

TIMER

-/+ TO SET

CHANGING SETTINGS

BRIGHTNESS

1. PRESS THE OK BUTTON.

2. TURN THE ADJUST KNOB to set the level of bright-

ness suitable to your preference.

3. PRESS THE OK BUTTON again to confirm your

selection.

4. PRESS THE STOP BUTTON TO EXIT the settings

function and save all your changes when

you are done.

SET BRIGHTNESS

OK -/+

SET BRIGHTNESS

NOTE: When the display stops flashing, the

Kitchen Timer is working. Countdown is in

minutes.

rqw

All manuals and user guides at all-guides.com

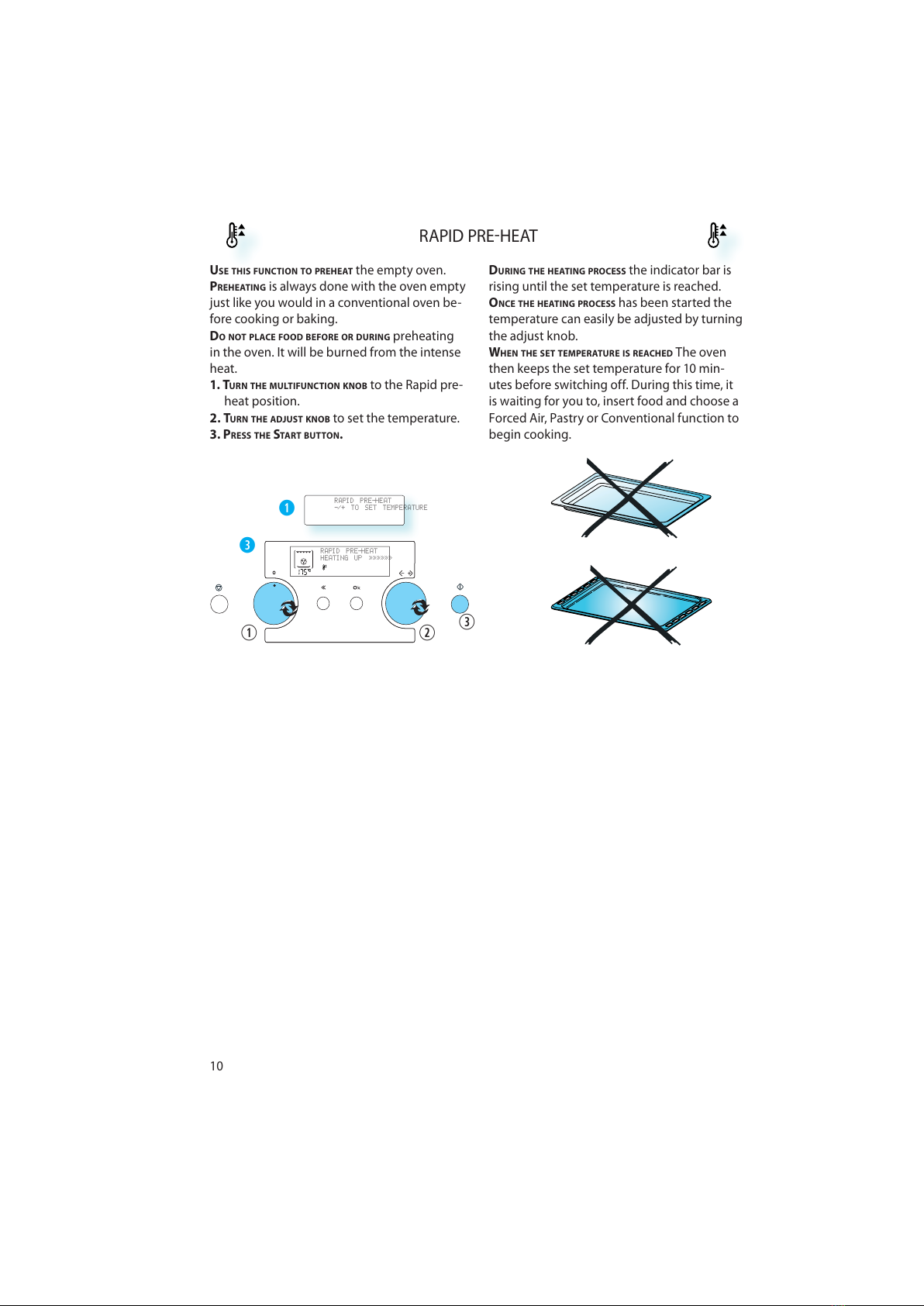

RAPID PREHEAT

USE THIS FUNCTION TO PREHEAT the empty oven.

PREHEATING is always done with the oven empty

just like you would in a conventional oven be-

fore cooking or baking.

DONOT PLACE FOOD BEFORE OR DURING preheating

in the oven. It will be burned from the intense

heat.

1. TURN THE MULTIFUNCTION KNOB to the Rapid pre-

heat position.

2. TURN THE ADJUST KNOB to set the temperature.

3. PRESS THE START BUTTON.

DURING THE HEATING PROCESS the indicator bar is

rising until the set temperature is reached.

ONCE THE HEATING PROCESS has been started the

temperature can easily be adjusted by turning

the adjust knob.

WHEN THE SET TEMPERATURE IS REACHED The oven

then keeps the set temperature for 10 min-

utes before switching off. During this time, it

is waiting for you to, insert food and choose a

Forced Air, Pastry or Conventional function to

begin cooking.

RAPID PRE- HEAT

-/+ TO SET TEMPERATURE

RAPID PRE- HEAT

HEAT IN G U P »»»»»»

All manuals and user guides at all-guides.com

Altri manuali per AMW 595 IX

Indice

Altri manuali Whirlpool Forno

Whirlpool

Whirlpool Minerva Manuale utente

Whirlpool

Whirlpool AKP 619/IX/01 Manuale utente

Whirlpool

Whirlpool RM288PXP Manuale utente

Whirlpool

Whirlpool AKG 644 Manuale utente

Whirlpool

Whirlpool AKZM 6540 Manuale utente

Whirlpool

Whirlpool OAS KC8V1 BLG Manuale utente

Whirlpool

Whirlpool 786804 Manuale utente

Whirlpool

Whirlpool YGSC278 Manuale utente

Whirlpool

Whirlpool W7 OS4 4S2 H BL Manuale utente

Whirlpool

Whirlpool OMSK58RU1SB Manuale utente

Whirlpool

Whirlpool AMW 9607/IX Guida all'installazione

Whirlpool

Whirlpool AKP 620/WH Manuale utente

Whirlpool

Whirlpool OMR58RR1X Manuale utente

Whirlpool

Whirlpool W10045010 Manuale utente

Whirlpool

Whirlpool GBD277PR Manuale utente

Whirlpool

Whirlpool 1319999/868842 Manuale utente

Whirlpool

Whirlpool AKP 237 IX Manuale utente

Whirlpool

Whirlpool AKZ 232 Istruzioni operative

Whirlpool

Whirlpool GBS307PRSS Manuale utente

Whirlpool

Whirlpool AKZ9 6290 NB Manuale di installazione e funzionamento

Whirlpool

Whirlpool AKZ104IX01 Manuale utente

Whirlpool

Whirlpool AKZM 756 Manuale utente

Whirlpool

Whirlpool W10777365B Manuale utente

Whirlpool

Whirlpool RM235PXK Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
