Whirlpool AKP 237 IX Manuale utente

SERVICE Whirlpool Europe

Customer Services

Model AKP 237 IX

Version 8577 237 01010 Page

Technical data 2

Spare part list 3

Exploded view 4

Wiring diagram 5 - 6

Service Manual

Built-in oven

AKP 237 IX

This documentation is only intended for qualiﬁed technicians who are aware of the respec-

tive safety regulations.

Date: 07.07.2003 Subject to modiﬁcation

Document-No.: 4812 725 17221

SERVICE

07.07.2003 / Page 2 AKP 237 IX Whirlpool Europe

Doc. No: 4812 725 17221 8577 237 01010 Customer Service

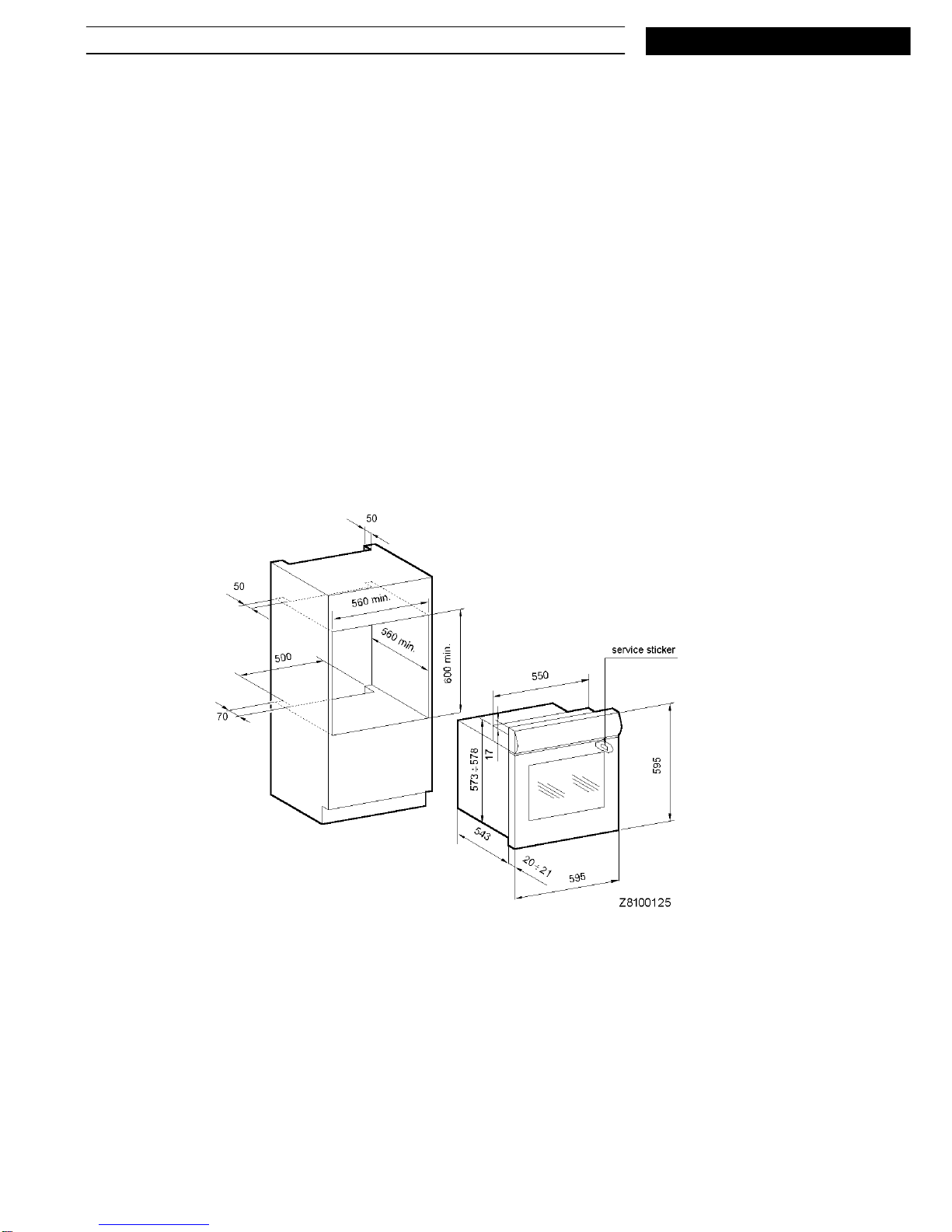

Technical data

Electrical connection

Rated voltage 230 V ~

Main connection 230 V 1N~ 50 Hz

Total connected load 2500 W

Upper heating element / Grill 900/2500 W

Lower heating element 1150 W

Electrical components

Auto timer Electronic timer

Accessories

Fat pan enameled 375 x 445,5 mm

Grid chrome 446,5 x 340 mm

SERVICE Whirlpool Europe AKP 237 IX 07.07.2003 / Page 3

Customer Service 8577 237 01010 Doc. No: 4812 725 17221

Spare part list

Model AKP 237 IX

Service No. 857723701010

Version 857723701010

Pos. No. 12NC Code Description

022 1 4812 460 79059 Trim, side

040 0 4812 417 19143 Hinge

047 0 4812 417 19137 Hinge run.mech.

110 0 4812 498 18245 Door handle

110 1 4819 462 48456 Rubber ring

121 0 4812 440 39326 Door, inner + glass

121 3 4812 460 78913 Proﬁle

121 4 4812 460 98069 Deﬂector

141 0 4812 450 58773 Oven glass + proﬁle

191 0 4812 466 88684 Gasket

201 0 4819 442 38092 Panel, rear

245 0 4819 458 19991 Oven shelf

247 0 4819 418 38367 Tray, leak

301 0 4812 452 48733 Panel, control

301 4 4819 453 59373 Glass panel timer

332 0 4812 410 28677 Button, push

334 0 4812 412 78933 Knob

351 0 4819 134 48424 Pilot lamp

354 0 4819 462 79749 Lens red

354 3 4812 404 38607 Guide

440 0 4812 361 18399 Motor, fan

441 0 4812 361 18393 Ventilator cooling

441 1 4819 468 18387 Gasket border

443 0 4819 515 48065 Fan wheel

452 0 4812 259 98422 Heating element upper/grill

456 0 4812 259 98421 Heating element lower 1150 W

490 1 4812 290 68255 Clamp, cable

491 0 4812 290 68273 Connection block

500 0 4812 282 19534 Timer

554 0 4812 282 08627 Thermostat

557 0 4812 282 28271 Temper. limiter

620 0 4812 273 28151 Switch, oven

651 0 4819 134 88153 Lamp, oven

652 0 4819 255 18237 Holder, lamp rear

656 0 4819 450 69844 Lamp screen rear

915 0 4819 505 18145 Nut

993 0 4812 310 48185 Mounting kit

993 1 4812 460 79072 Trim, kit

SERVICE

07.07.2003 / Page 4 AKP 237 IX Whirlpool Europe

Doc. No: 4812 725 17221 8577 237 01010 Customer Service

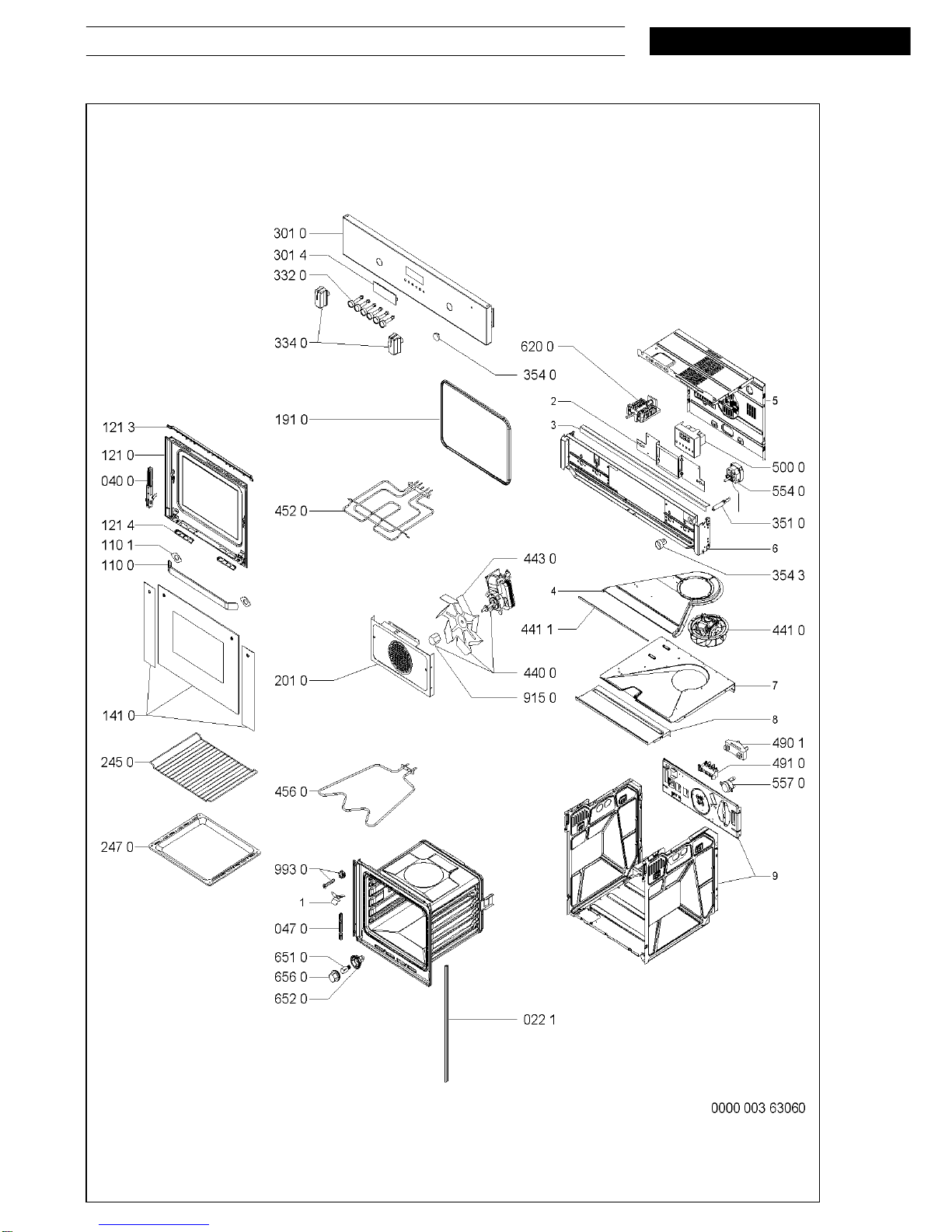

Exploded view

SERVICE Whirlpool Europe AKP 237 IX 07.07.2003 / Page 5

Customer Service 8577 237 01010 Doc. No: 4812 725 17221

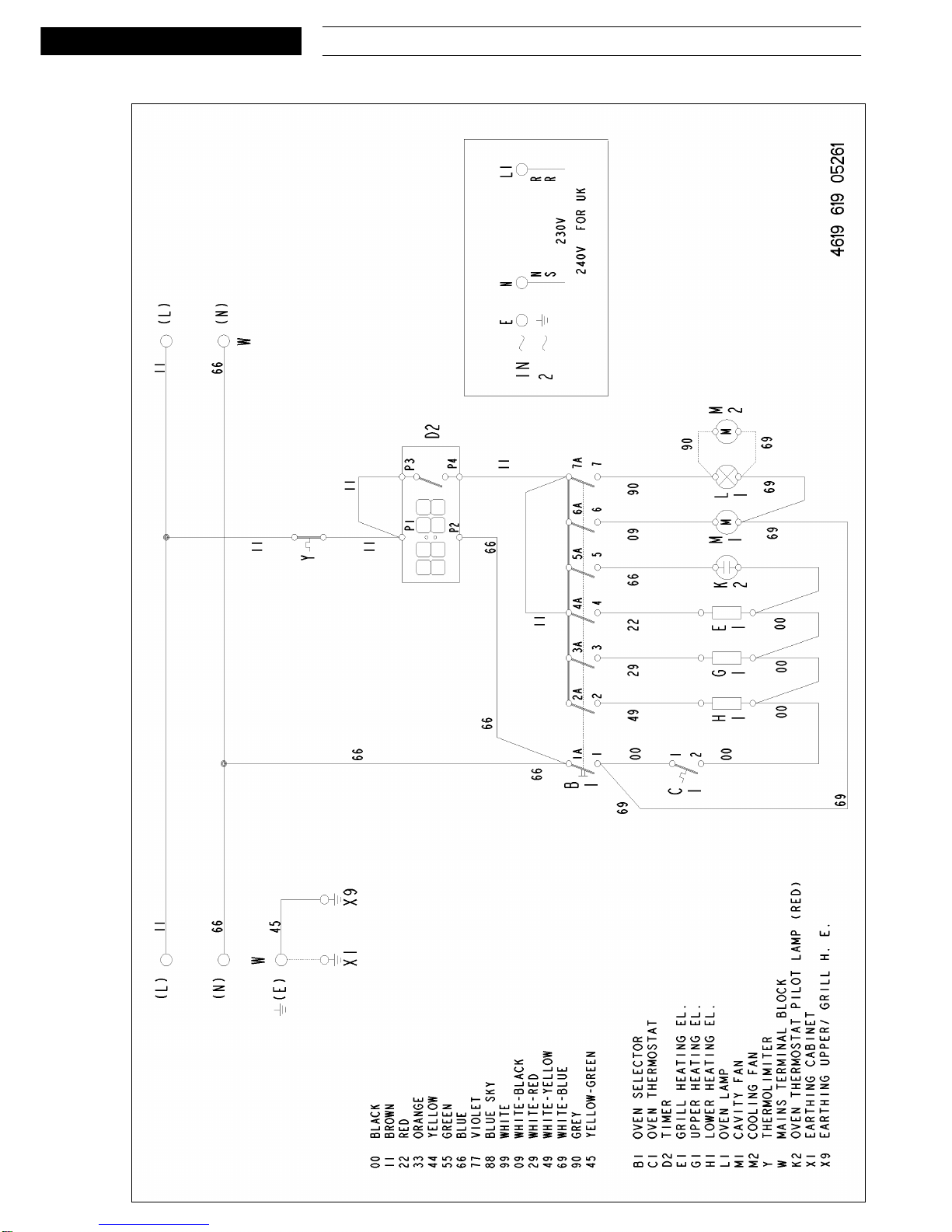

Wiring diagram

SERVICE

07.07.2003 / Page 6 AKP 237 IX Whirlpool Europe

Doc. No: 4812 725 17221 8577 237 01010 Customer Service

Wiring diagram
