Whirlpool BES450WB2 Manuale utente
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.

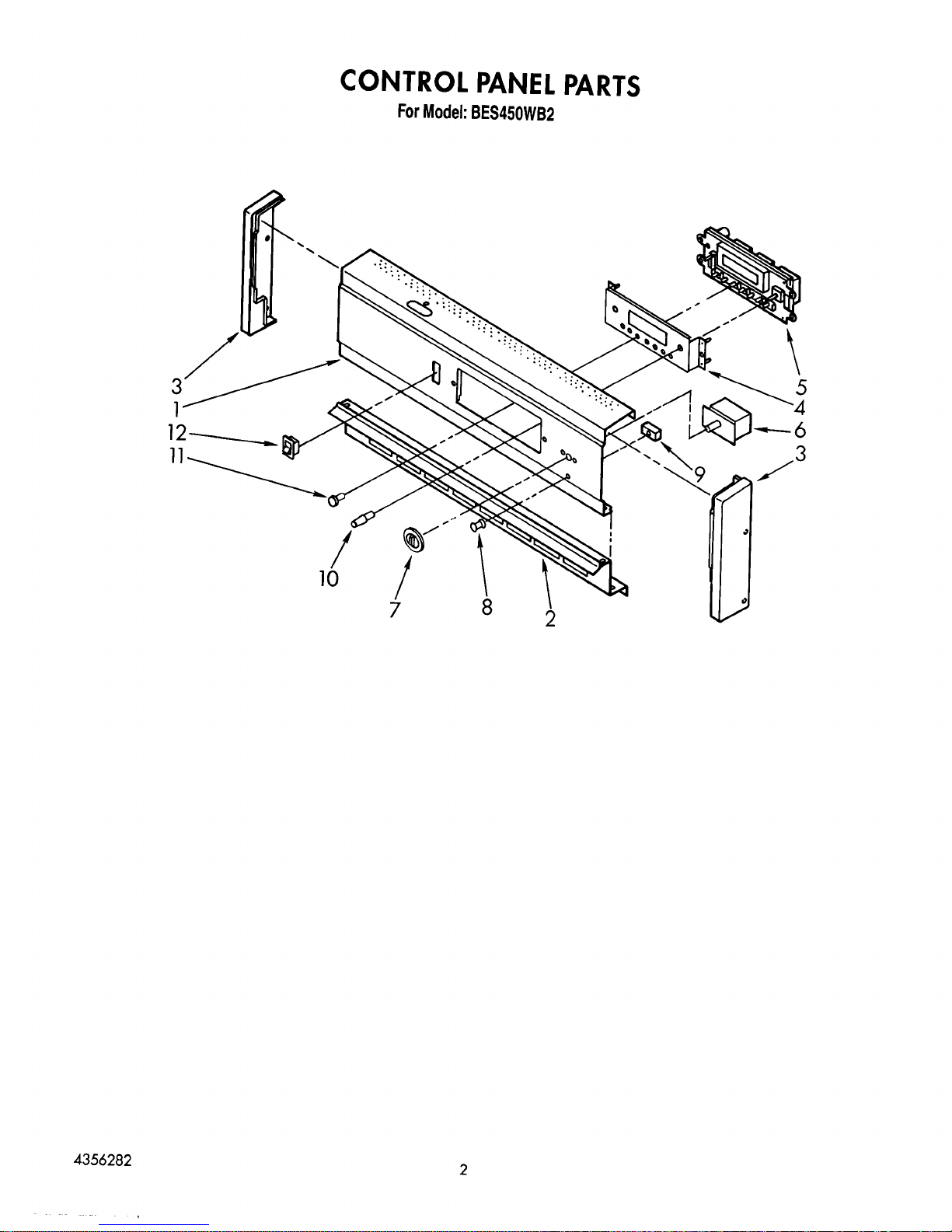

1 3180707 Panel, Control
2 3180643 Insert, Control Panel
3 End Cap
3180677 Left
3180678 Right
4173601 Screw, Black (6)
4 3180746 Lens, Clock
5 3180745 Control, Upper Oven
3181004 Nut (4)
4173601 Screw (2)
6 3178284 Thermostat, Lower Oven
3178002 Screw (2)
7 3180949 Knob, Thermostat
8 3180920 Lens, Indicator
9 314031 Indicator, Light
10 3149784 Knob, Bit Generator
11 3149780 Set Button, Knob
12 3148564 Switch, Rocker
LITERATURE PARTS
LIT4356282 Repair Parts List
LIT3180719 Tech Sheet
LIT3180938 Installation Instructions
LIT3177069 Use & Care Guide
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.

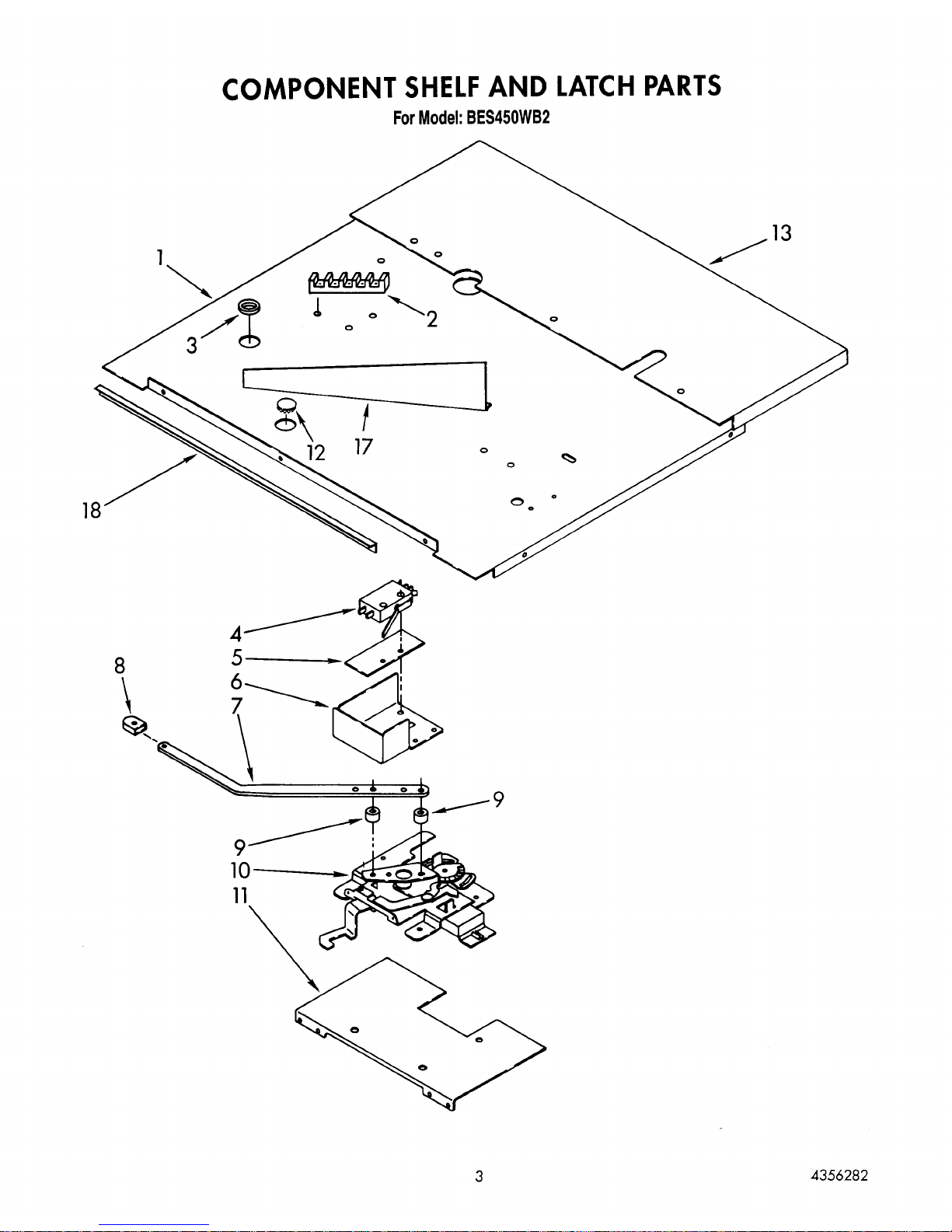

1 3178090 Shelf, Component
3148443 Screw (7)
2 258076 Block, Terminal
3 4159035 Bushing
4 3178670 Switch, Latch
98106 Screw (2)
5 3178185 Insulator, Switch
6 3177662 Guard, Latch
3177991 Screw (1)
254225 Screw (2)
7 3177969 Handle, Latch
3179950 Screw (2)
8 3183293 Knob, Latch Handle
3183294 Screw
9 3177986 Spacer, Handle
10 3178410 Latch, Mechanism
3177991 Screw (3)
11 3177496 Plate, Mounting
3148443 Screw (8)
3179116 Screw (2)
12 3179777 Button, Plug
13 3178133 Extension, Shelf
3177991 Screw (8)
112432 Nut, Hex
17 3180693 Baffle, Air
3177991 Screw (2)
18 3180690 Shield, Heat
3177991 Screw (3)
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
2 3177545 Bracket, Conduit
3148443 Screw (2)
3 3177624 Cabinet, Back
3148443 Screw (14)
4 Baffle, End Cap
3181961 Left Hand
3181962 Right Hand
254225 Screw (4)
5 3181758 Baffle, Control Back
3177991 Screw (2)
6 3178139 Cabinet, Top
3148443 Screw (5)
7 3177437 Top, Module
3148443 Screw (8)
8 3177440 Side, Cabinet (R.H. & L.H.)
3148443 Screw (I0)
9 3181699 Tube, Vent
3179117 Screw (3)
10 3150505 Oven Light Assy.
12 311255 Bulb, Oven Light
13 313382 Clip, Thermostat Bulb
14 3177705 Frame, Front
15 3179814 Seal, Door
16 3179848 Clip, Oven Seal
19 3177622 Bottom, Module
20 3179220 Rail, Support (2)
3148443 Screw (4)
22 3177434 Support, Oven
3148443 Screw (2)
23 3178612 Shield, Radiation
3148443 Screw (2)
24 3177433 Bracket, Hinge
3179795 Screw (6)
3148443 Screw (2)
25 3177572 Side, Module (R.H. & L.H.)
3148443 Screw (4)
26 3177558 Back, Module
3148443 Screw (8)
27 3177491 Liner, Oven
28 3178298 Hinge, Door (2)
3179795 Screw (4)
33 3179587 Retainer, Seal
4168863 Screw
3179776 Screw (8)
34 3182118 Vent, Middle Trim
3180022 Screw (4)
35 3179922 Vent, Tube (Upper, Female)
36 3179924 Vent, Tube (Upper, Male)
3148443 Screw (3)
38 3178133 Extension, Shelf
3177991 Screw (8)
39 4168203 Cover, Cap Tube
4159445 Screw
40 3182286 Insert, Middle Vent Trim
4173601 Screw (2)
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
3177865 Insulation, Wrap
3177870 Insulation, Back
NOTE: The screws and nuts required to attach a part are listed immediately
following that part.
3 3183747 Top, Module
3148443 Screw (8)
4 3181700 Tube, Vent
3179117 Screw (3)
5 3177491 Liner, Oven
6 3177572 Side, Module (R.H. & L.H.)
3148443 Screw (4)
7 311255 Bulb, Oven Light
9 3150505 Oven Light Assy.
10 313382 Clip, Bulb (2)
12 3177704 Frame, Door
13 3179814 Seal, Door
16 3177552 Bottom, Oven
17 3179220 Rail, Support (2)
3148443 Screw (4)
18 3177433 Bracket, Hinge (2)
3179795 Screw (6)
3148443 Screw (2)
19 3177622 Bottom, Module
20 3178612 Shield, Radiation
3148443 Screw (2)
21 3177434 Support, Oevn
3148443 Screw (2)
22 3177559 Back, Module
3148443 Screw (8)
23 3180126 Cover, Latch Mtg.
3179117 Screw (2)
24 3179848 Clip, Seal (3)
25 3178298 Hinge, Door (2)
3179795 Screw (4)
26 3185108 Button, Plug
27 3185109 Button, Plug
28 3179945 Tube, Vent
3148443 Screw (3)
29 3181964 Tube, Vent
32 3179587 Retainer, Seal
4159450 Screw
34 3177784 Trim, Lower Vent
35 4168203 Cover, Cap Tube
4159445 Screw
FOLLOWING PARTS NOT ILLUSTRATED
INSULATION
3177865 Insulation, Wrap
3177870 Insulation, Back
