Whirlpool RBD275PRB00 Manuale utente

LOWER OVEN PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

24" BUILT−IN ELECTRIC

DOUBLE OVEN

STD−CLEAN LOWER

SELF−CLEAN UPPER

6−06 Litho in U.S.A. (cre) Part No. 8186428 Rev.A

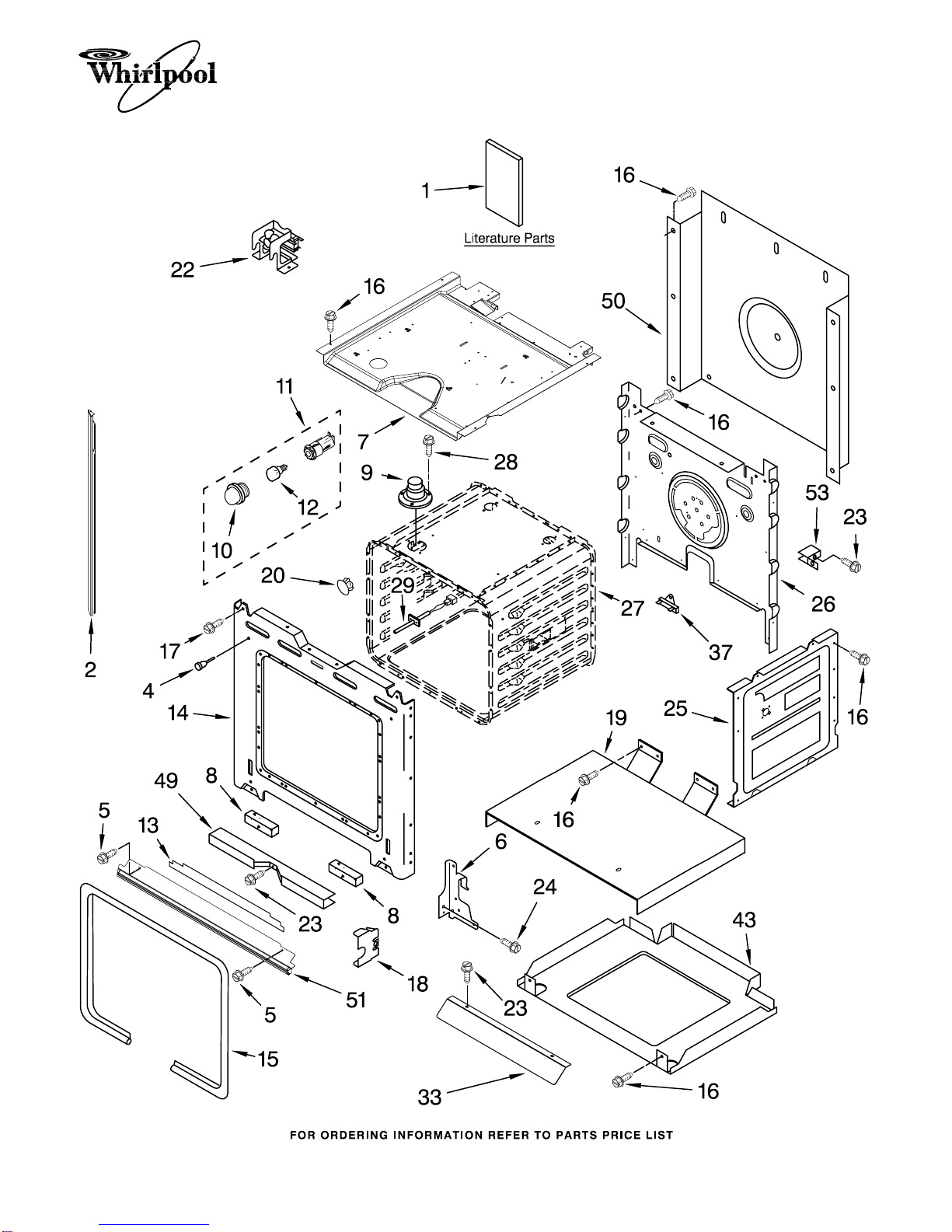

LOWER OVEN PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303648 Installation

Instructions

8303870 Use & Care Guide

(Oven)

8302068 Tech Sheet

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

8302917 RH Black

8302919 RH White

8302921 RH Biscuit

8303210 RH Stainless

8302918 LH Black

8302920 LH White

8302922 LH Biscuit

8303209 LH Stainless

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

6 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

7 4455864 Top Chassis

8 4452490 Spacer, Foam

9 4452159 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452336 Insulation,

Bottom Vent

14 4455611 Frame, Front

15 4450492 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

(Bottom Vent)

19 4451477 Support, Insulation

20 4450935 Plug, Door

22 4451664 Fan & Bracket Assy

23 4449154 Screw

24 4449743 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

28 3196176 Screw

26 4452233 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

33 9760676 Deflector, Vent

37 4451354 Fuse−Thermal

43 4455529 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302937 Black

8302938 White

8302939 Biscuit

8302940 Stainless

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

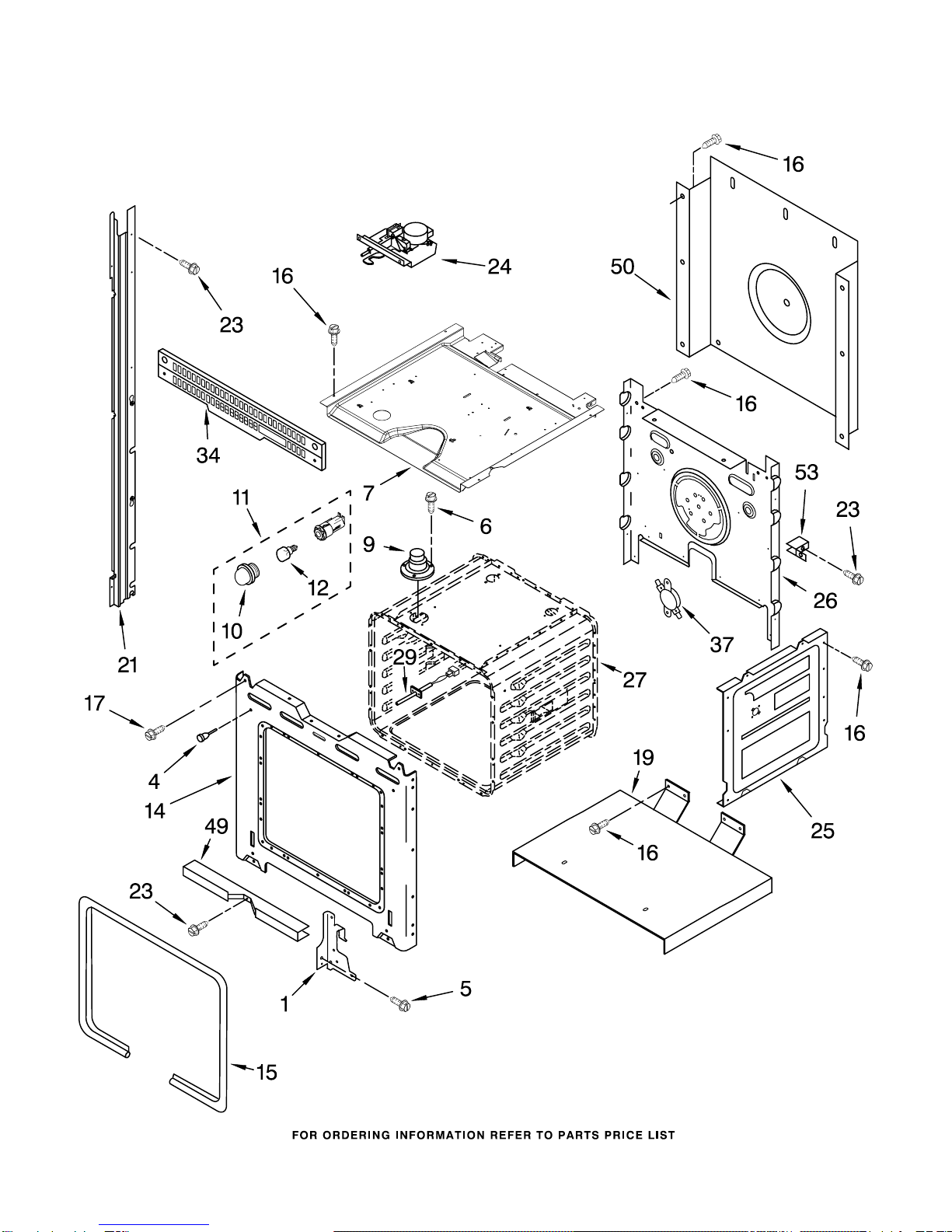

UPPER OVEN PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

UPPER OVEN PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION

1 Receiver, Hinge

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4449743 Screw

6 3196176 Screw

7 4455864 Top Chassis

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 4455611 Frame, Front

15 4455381 Gasket, Door

16 4449809 Screw

17 4449040 Screw

19 4451477 Support, Insulation

21 Rail, Side

8302793 Right Side

8302794 Left Side

4448444 Grommet

23 4449154 Screw

24 9759525 Latch Assy

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452233 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

34 4452266 Vent, Center

37 9759243 Thermostat (TOD)

(Temp.) SPST

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

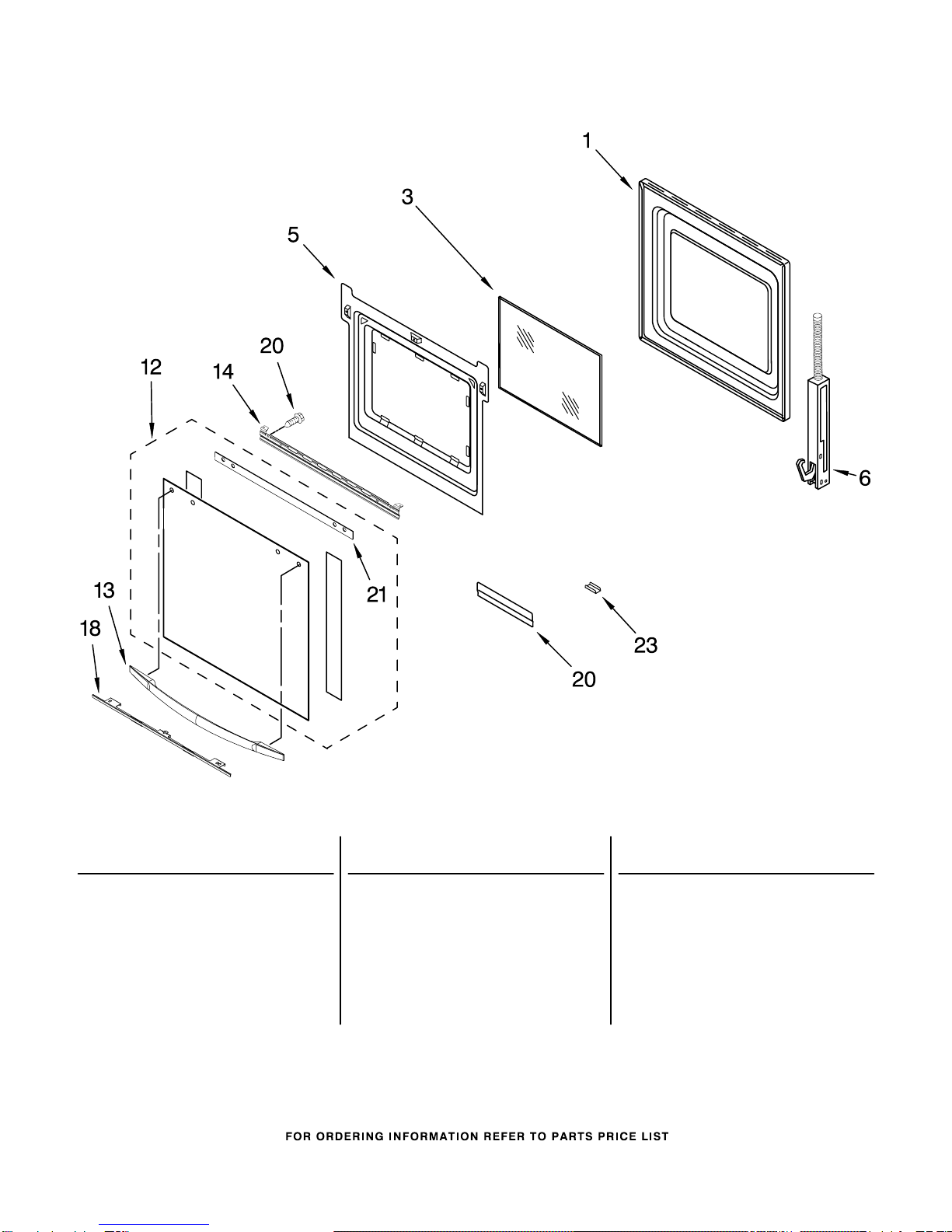

LOWER OVEN DOOR PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303699 Liner, Door

3 4449253 Glass, Inner

5 4457131 Retainer, Glass

6 Hinge, Door

9760563 Right Side

9760564 Left Side

(SS Model Only)

9760565 Left side

9760566 Right side

12 Door Glass, Assy

8303320 Black

8303338 White

8303341 Biscuit

8303313 Stainless

13 Door Handle

8302810 Black

8302811 White

8302812 Biscuit

14 8303166 Bracket, Handle

18 Retainer, Door

8303388BL

Black

8303388WH

White

8303388BT

Biscuit

20 4451040 Screw

21 8303877 Seal, Door

23 4450863 Retainer, Clip

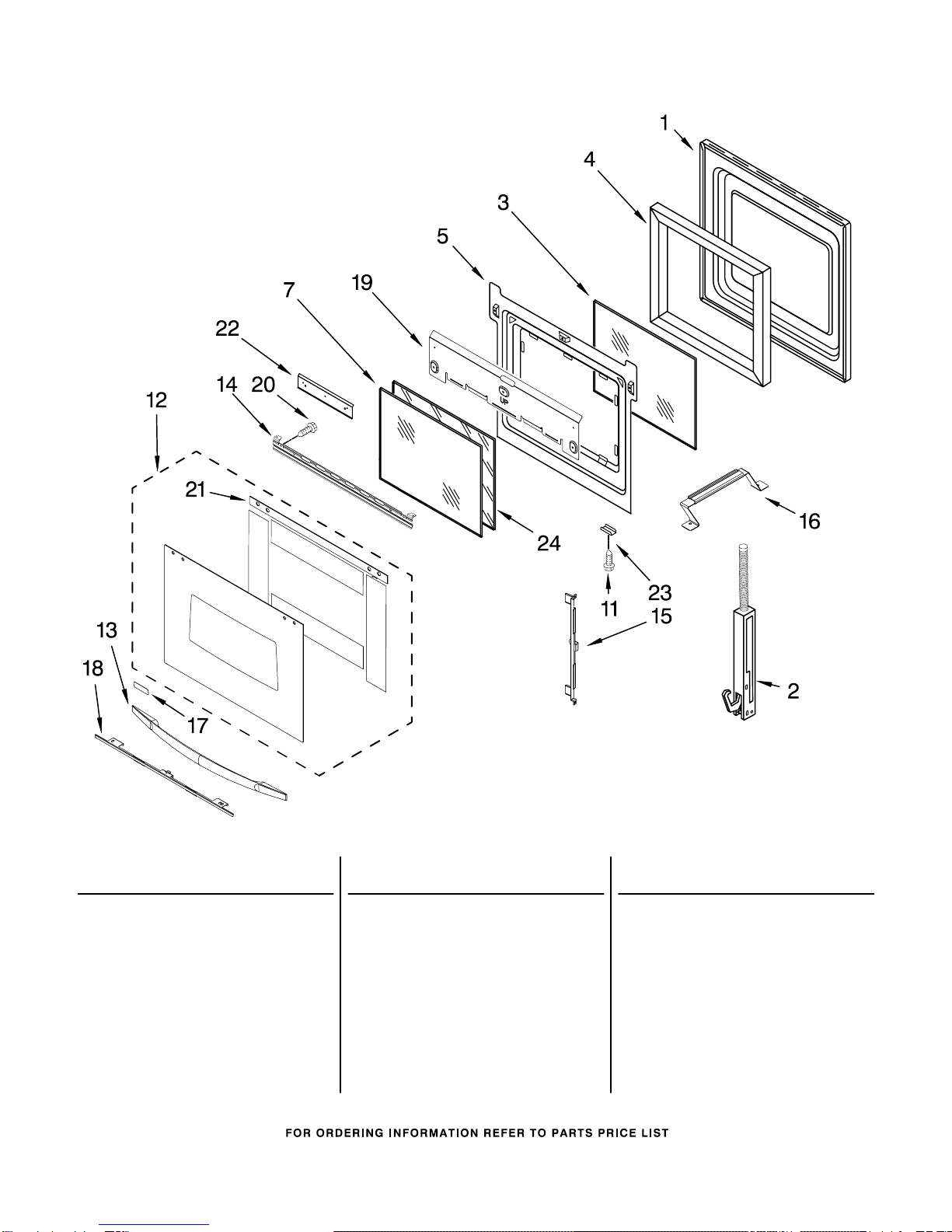

UPPER OVEN DOOR PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303699 Liner, Door

2 Hinge, Door

9760569 Right Side

9760570 Left Side

(SS Model Only)

9760572 Left Side

9760571 Right Side

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4457131 Retainer, Glass

7 9759224 Glass, Inner

11 3400832 Screw

12 Door Glass, Assy

8303320 Black

8303338 White

8303341 Biscuit

8303313 Stainless

13 Door Handle

8302810 Black

8302811 White

8302812 Biscuit

14 8303166 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 8303811 Nameplate

18 Retainer, Door

8303388BL

Black

8303388WH

White

8303388BT

Biscuit

19 4457102 Shield, Heat

20 4451040 Screw

22 4457113 Shield, Heat (Btm)

23 4451432 Retainer, Clip

24 9759227 Glass, Inner

21 8303877 Seal, Door

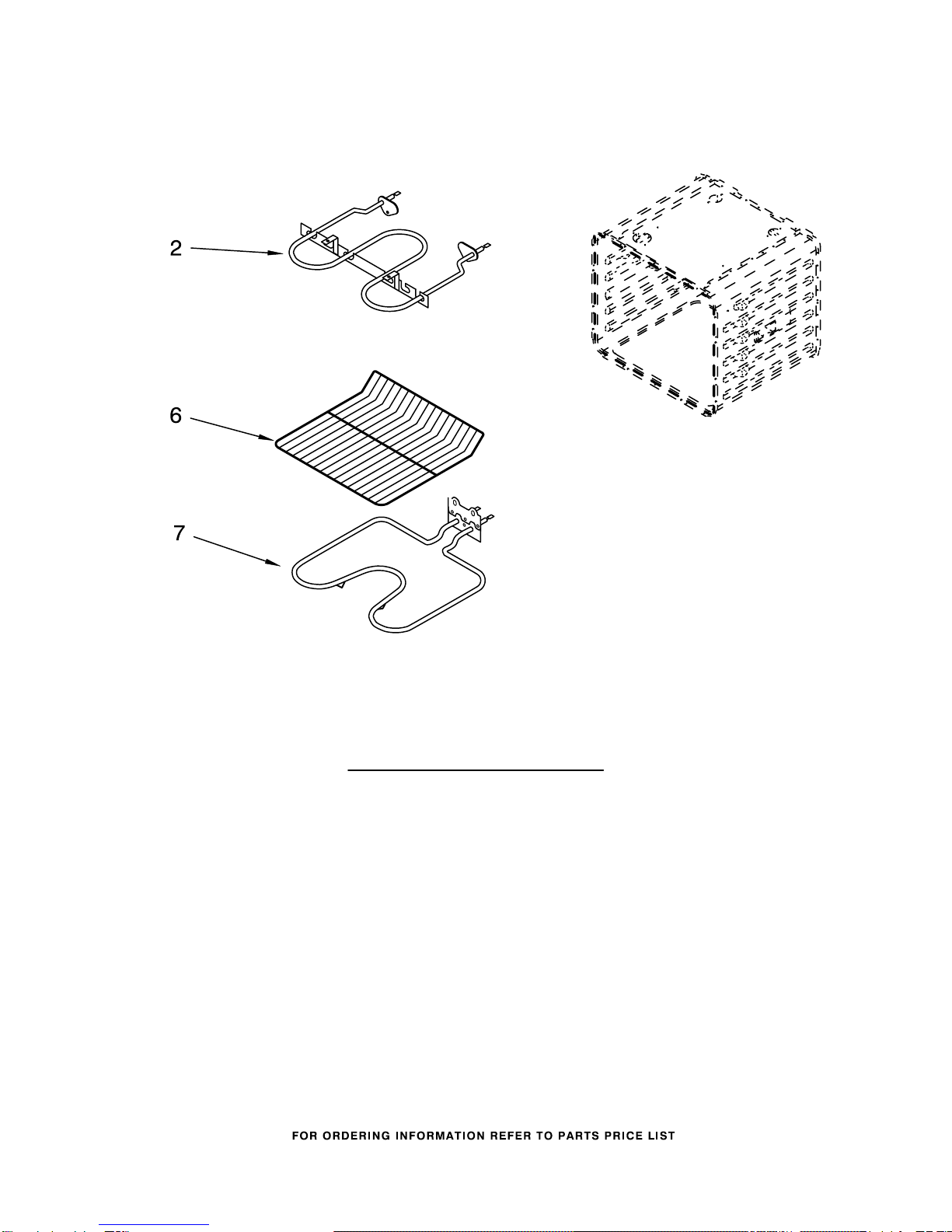

INTERNAL OVEN PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

6 4448715 Rack, Oven (4)

7 4452153 Element, Bake

4449154 Screw

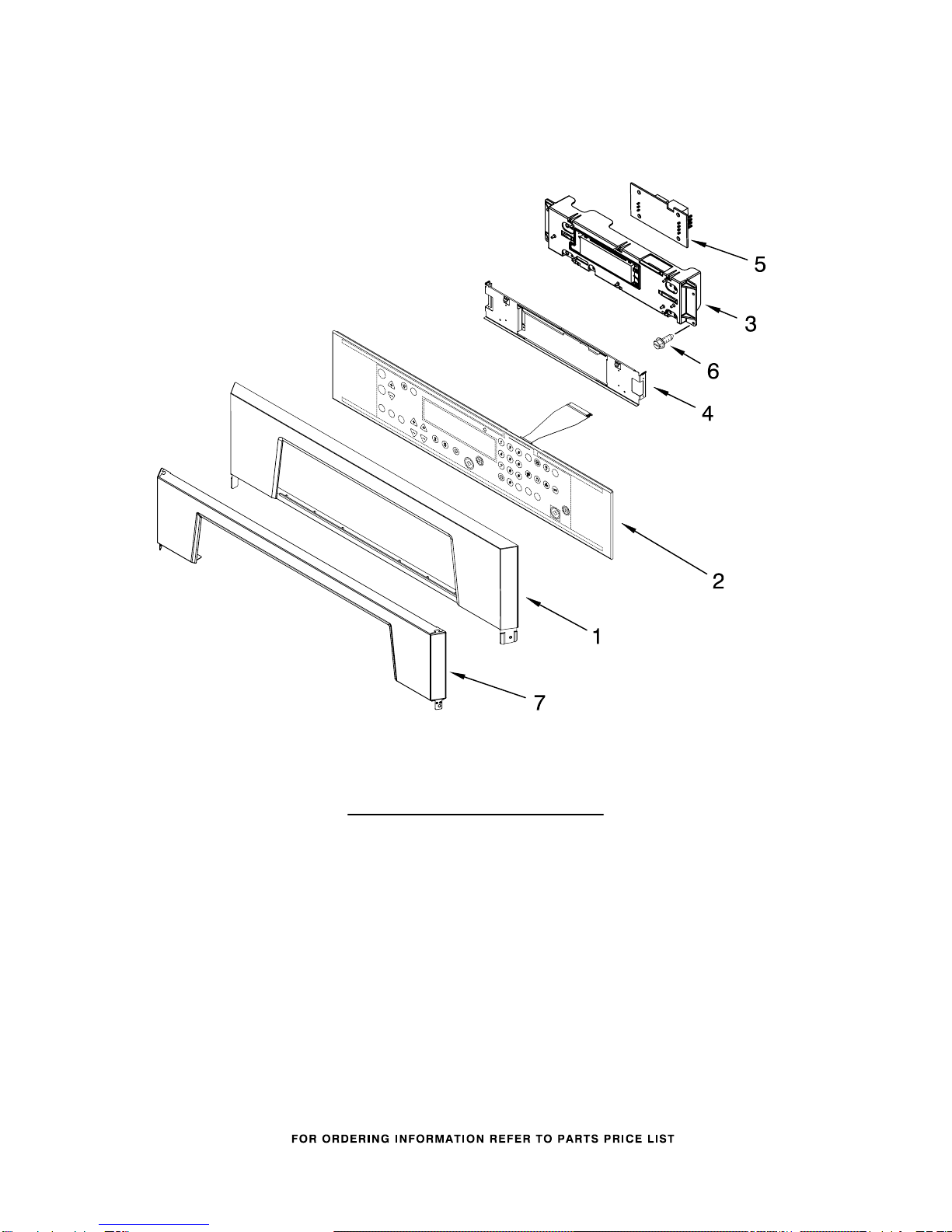

CONTROL PANEL PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302844 Black

8302845 White

8302846 Biscuit

2 Membrane Switch

8304248 Black

8304249 White

8304250 Biscuit

3 8303883 Microcomputer

4 8304162 Bracket, Control

5 8301848 Board, Mtrzd Latch

6 4449745 Screw

7 8302878 Trim−Panel

(Use on S.Steel

model only)

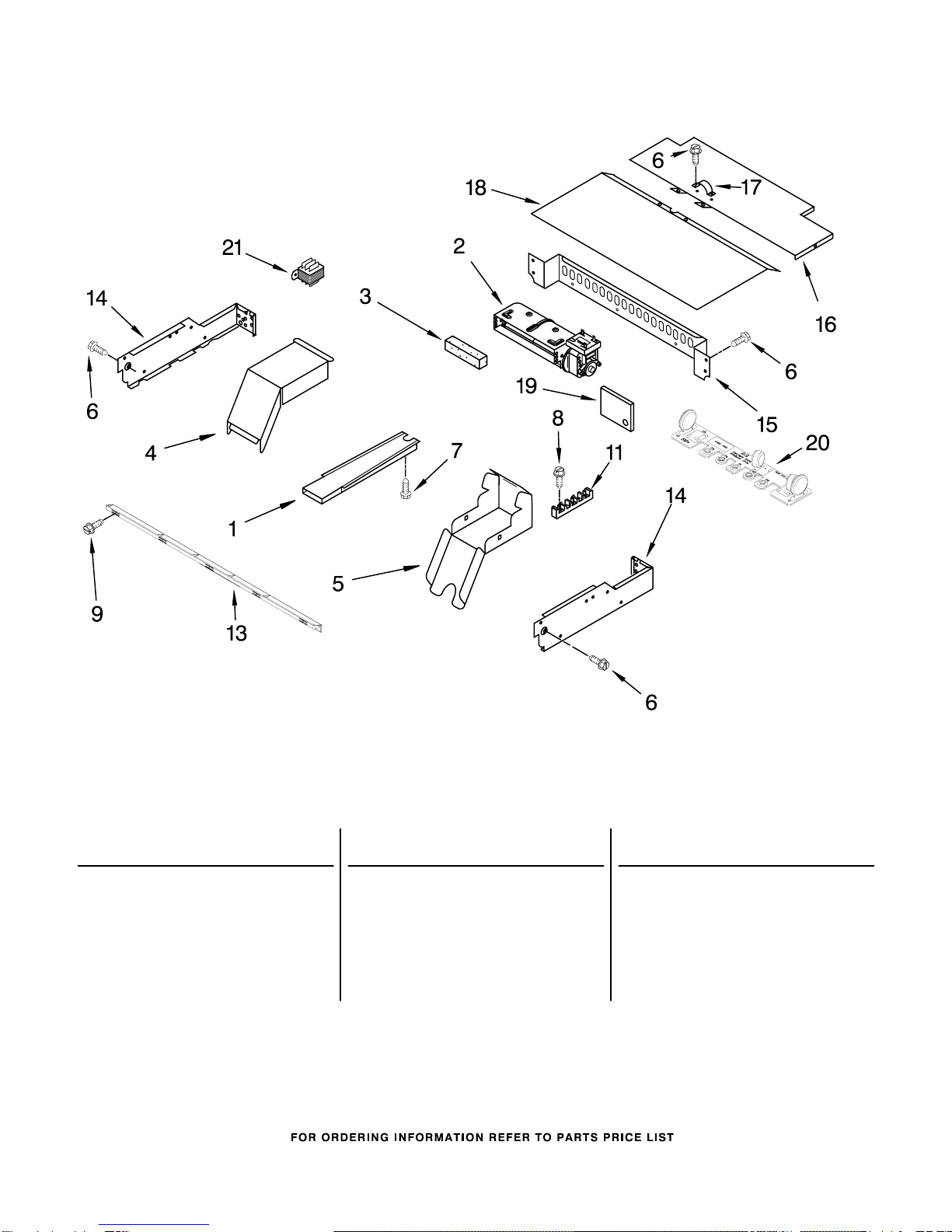

TOP VENTING PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4457289 Blower

3 4451758 Foam, Block

4 4455178 Elbow, Vent−Top

5 4455177 Elbow, Vent−Bottom

6 4449809 Screw

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

11 4449868 Block, Terminal

13 8303498 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450550 Cover, Top Rear

17 4448664 Clamp

18 4452366 Cover, Top Front

19 4454943 Plate, Fan

20 8302143 Suppressor

21 8300642 Transformer,

Single Control

OPTIONAL PARTS

For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00

(Black) (Designer White) (Biscuit) (Stainless Steel)

8186428

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8302154 Harness, Wire STD

(Main)

8301878 Stainless Model

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

Miscellaneous

4448950 Screw, Install.

8−14 x 1" (4)

814381 Pin Hinge Kit

4396923 Broiler Pan Assy
