Whirlpool GMC305PRB01 Manuale utente

OVEN PARTS

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

30" BUILT−IN ELECTRIC

COMBO

SENSOR/SC

(GOLD LINE)

7−07 Litho in U.S.A. (cre) Part No. 8186419 Rev.C

OVEN PARTS

28186419

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8303655 English

8303780 French

Use & Care Guide

(Microwave)

8304078 English

8304082 French

Use & Care Guide

(Oven)

8304077 English

8304081 French

8304173 Tech Sheet (Oven)

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

2 Trim, Side

8302927 RH Black

8302929 RH White

8302931 RH Biscuit

8302928 LH Black

8302930 LH White

8302932 LH Biscuit

8303217 RH S.steel

8303218 LH S.Steel

3 Hinge, Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

6 4452490 Spacer, Foam

7 8303099 Top, Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 8300791 Bracket, Combo

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 3400832 Screw

17 3196176 Screw

18 4452152 Bracket, Mounting

19 4451478 Support, Insulation

21 Rail, Side

8303117 Right Side

8303118 Left Side

22 4449040 Screw

23 4449743 Screw

24 4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not Serviceable)

29 4455636 Sensor

30 4449845 Bracket, Support

31 4450038 Screw

32 8300154 Insulation,

Bottom Vent

33 9760677 Deflector, Vent

34 8302592 Vent, Center

35 4449906 Ext−Filler

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

8302947 Black

8302948 White

8302949 Biscuit

8302950 S.Steel

52 8303502 Vent, Control

53 4451756 Chassis, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

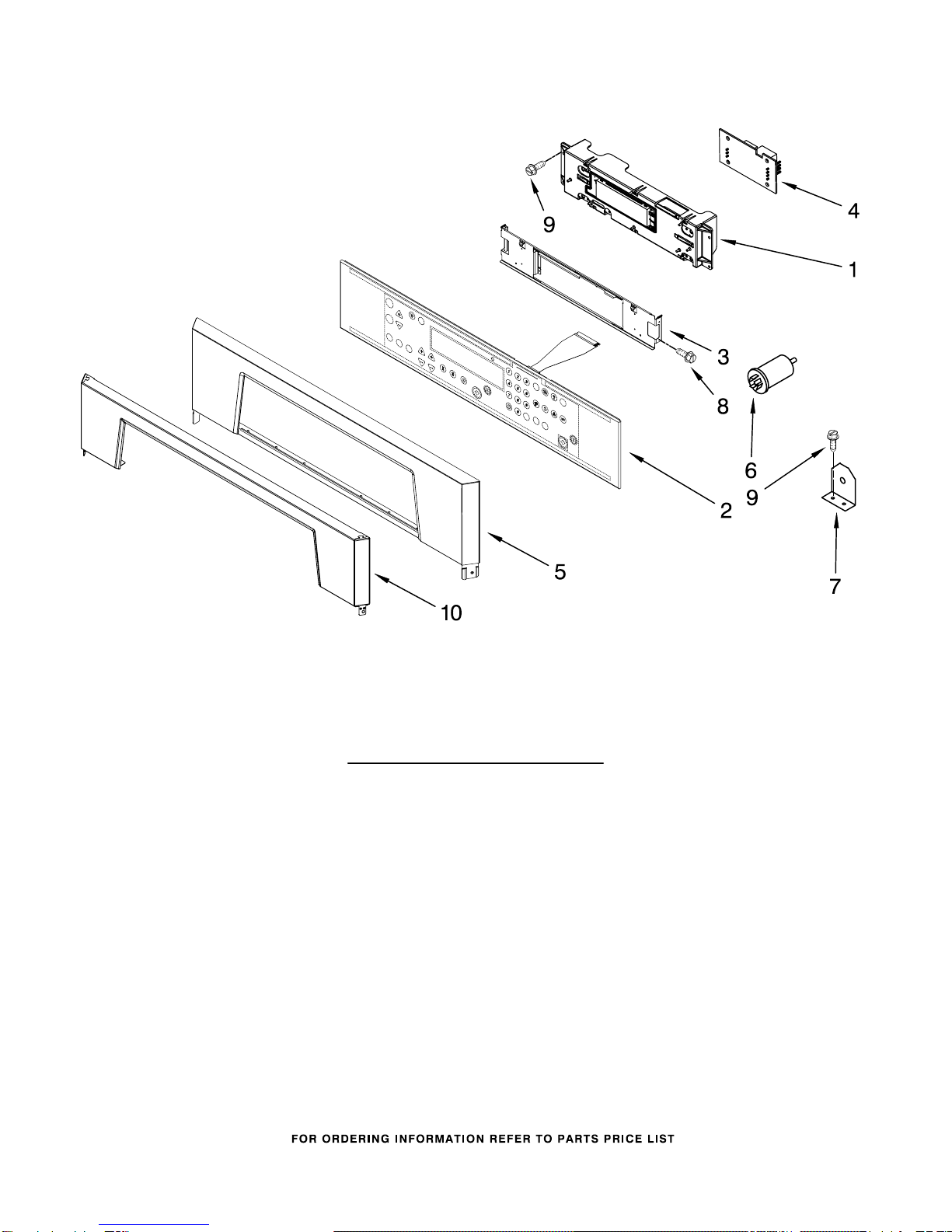

CONTROL PANEL PARTS

8186419

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

Illus. Part

No. No. DESCRIPTION

1 8303819 Assy, Control

2 Assy, Switch

8303948 Black

8303949 White

8303950 Biscuit

8304152 Silver

3 8304161 Backer, Control

4 8301848 Board, Mtrzd Latch

5 Control Panel

8302848 Black

8302849 White

8302850 Biscuit

8304153 Apollo Gray

6 4451592 Filter

7 4451632 Bracket, Filter

8 4449745 Screw

9 4449809 Screw

10 8302877 Trim−Panel

(Use on S.Steel

model only)

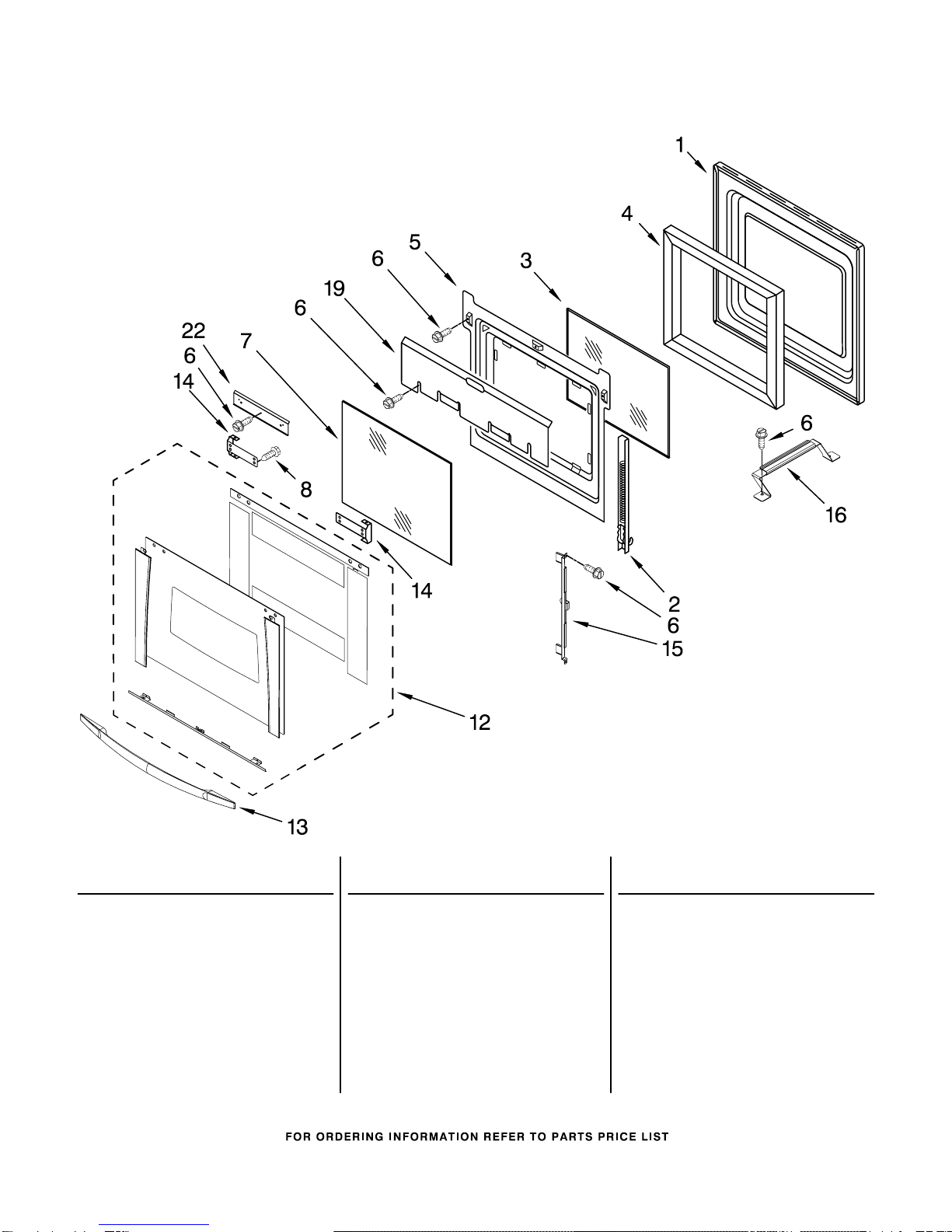

OVEN DOOR PARTS

48186419

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Door Liner

2 Hinge, Door

9760577 R.Hand (Yellow)

9760578 L.Hand (Yellow)

9760579 RH (S.Steel Only)

9760580 LH (S.Steel Only)

3 4449259 Glass, Inner

4 4451722 Insulation, Door

And Bottom Door

5 4457132 Retainer, Glass

6 4449809 Screw

7 9759225 Glass, Inner

8 4451040 Screw

12 Door Glass

8303301 Black Model

8303307 White Model

8303289 Black Stainless

8303311 Biscuit

8304178 Silver

13 Handle, Door

8302813 Black

8302814 White

8302815 Biscuit

8303164 S.Steel

14 8303167 Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

19 4457103 Shield, Heat

22 4457114 Shield, Heat (Btm)

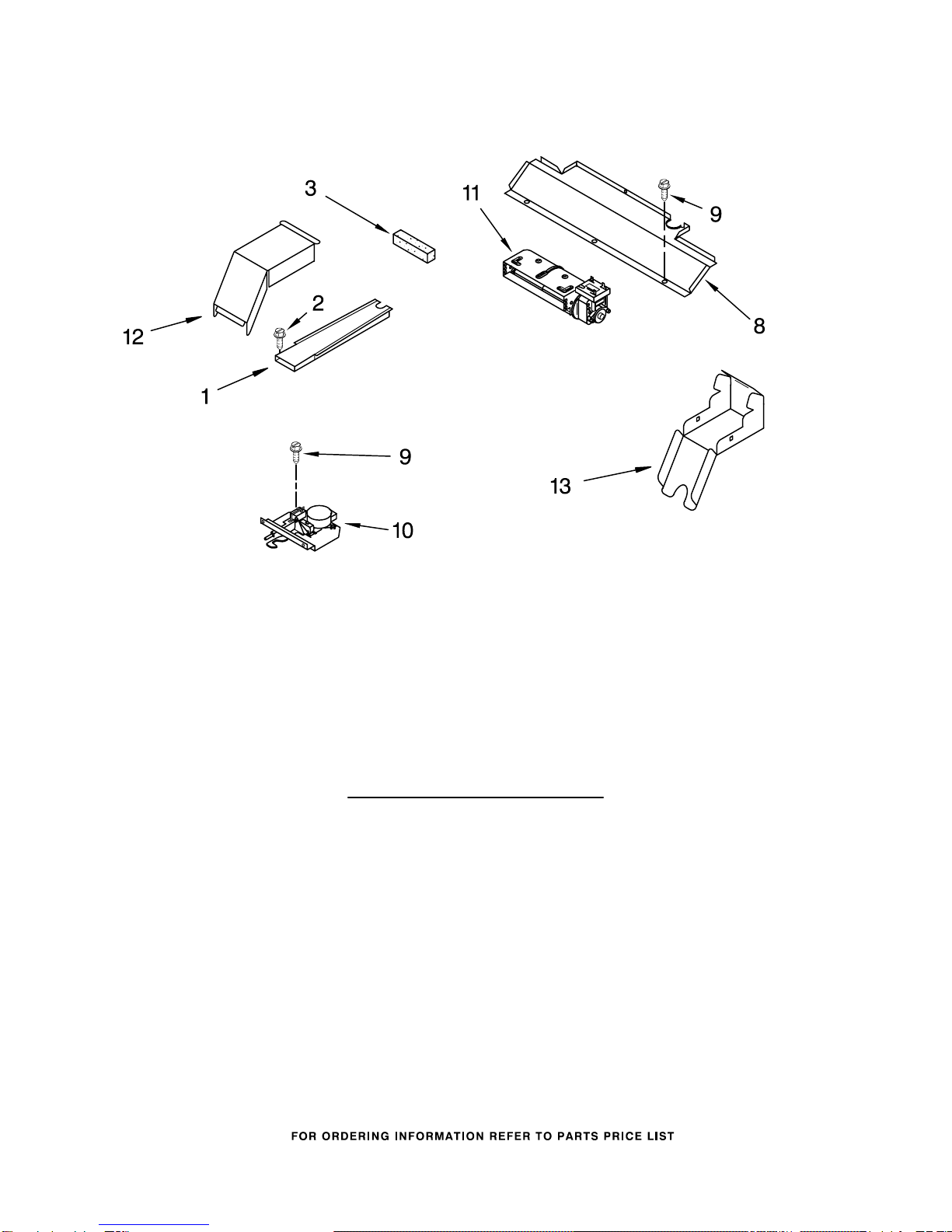

LATCH PARTS

8186419

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4449040 Screw

3 4451758 Seal, Foam

8 4450408 Baffle, Rear

9 4449154 Screw

10 9759525 Latch, Motorized

11 4452003 Blower

12 4455178 Vent, Top

13 4455177 Vent, Bottom

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

INTERNAL OVEN PARTS

8186419

Illus. Part

No. No. DESCRIPTION

1 4456103 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

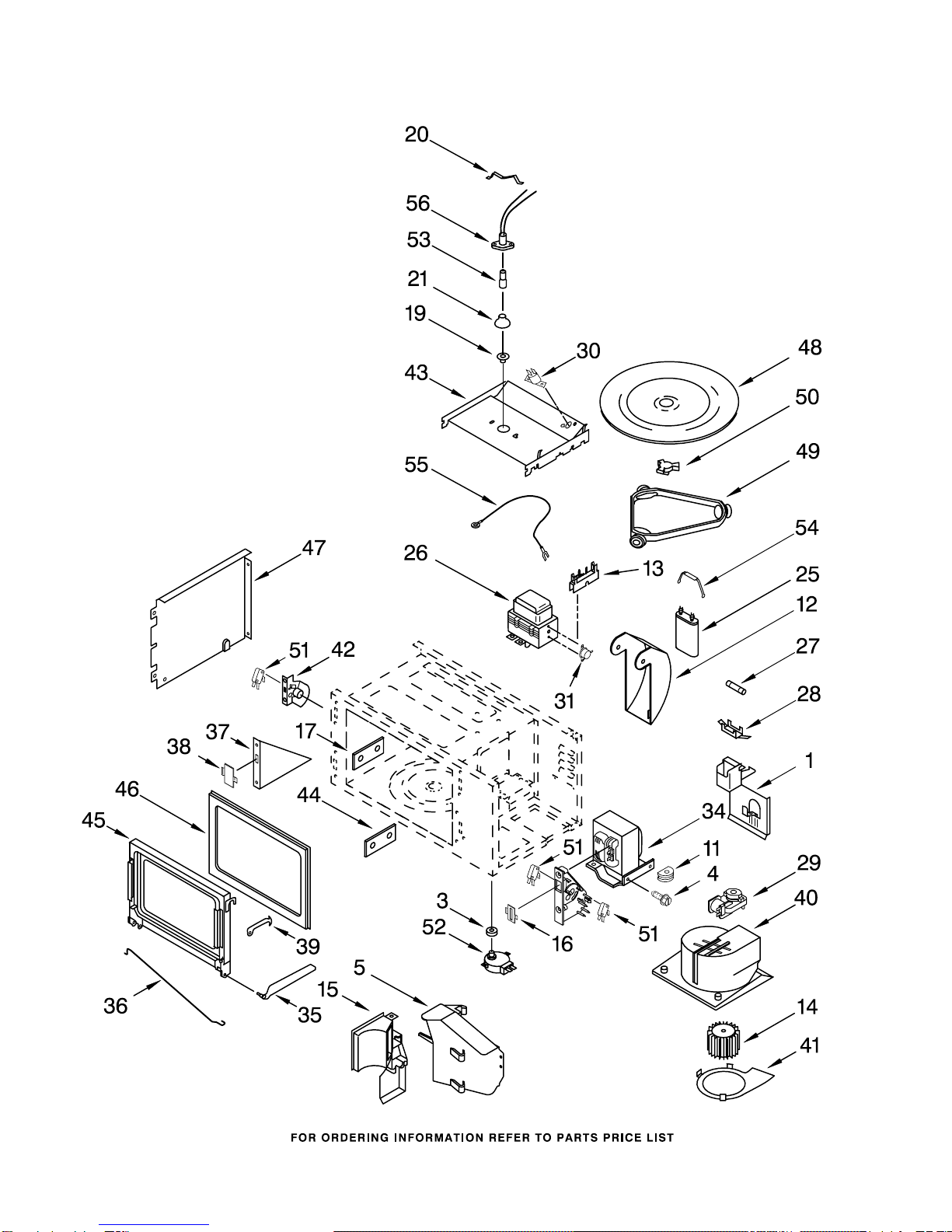

CABINET AND STIRRER PARTS

8186419

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

CABINET AND STIRRER PARTS

88186419

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375299 Bracket, Capacitor

3 4375037 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct,

Magnetron

11 4375315 Damper

12 4375260 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375264 Block, Side

17 4375248 Cover Plate, Upper

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

25 4375020 Capacitor

26 4375072 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375079 Thermostat

34 4375286 Transformer

35 Hinge, Door

4375323 Left

4375324 Right

36 4451009 Torison Spring

37 Bracket, Hinge

4375327 Left

4375328 Right

38 4375329 Inlet

39 4375330 Door Strap

40 4375333 Fan Cap

41 4375334 Fan Cap Bottom

42 Switch Holder

4375335 Left

4375336 Right

43 4375337 Isolation Plate

44 4375338 Cover Plate

45 4375339 Door Plate

46 4375340 Inner Frame

47 Side Plate

4375341 Left

4375342 Right

48 4455915 Turntable

49 4375344 Ring Assembly

50 4375345 Shaft

51 4375346 Switch

52 4375347 Motor, Turntable

53 4375348 Lamp

54 4375349 Rectifier

55 4375350 Cable

56 4375351 Lamp Holder

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

MICROWAVE COMPARTMENT PARTS

8186419

Illus. Part

No. No. DESCRIPTION

5 Support Rails

4452551 Right Side

4452552 Left Side

6 4449809 Screw

7 4452548 Rear Channel

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

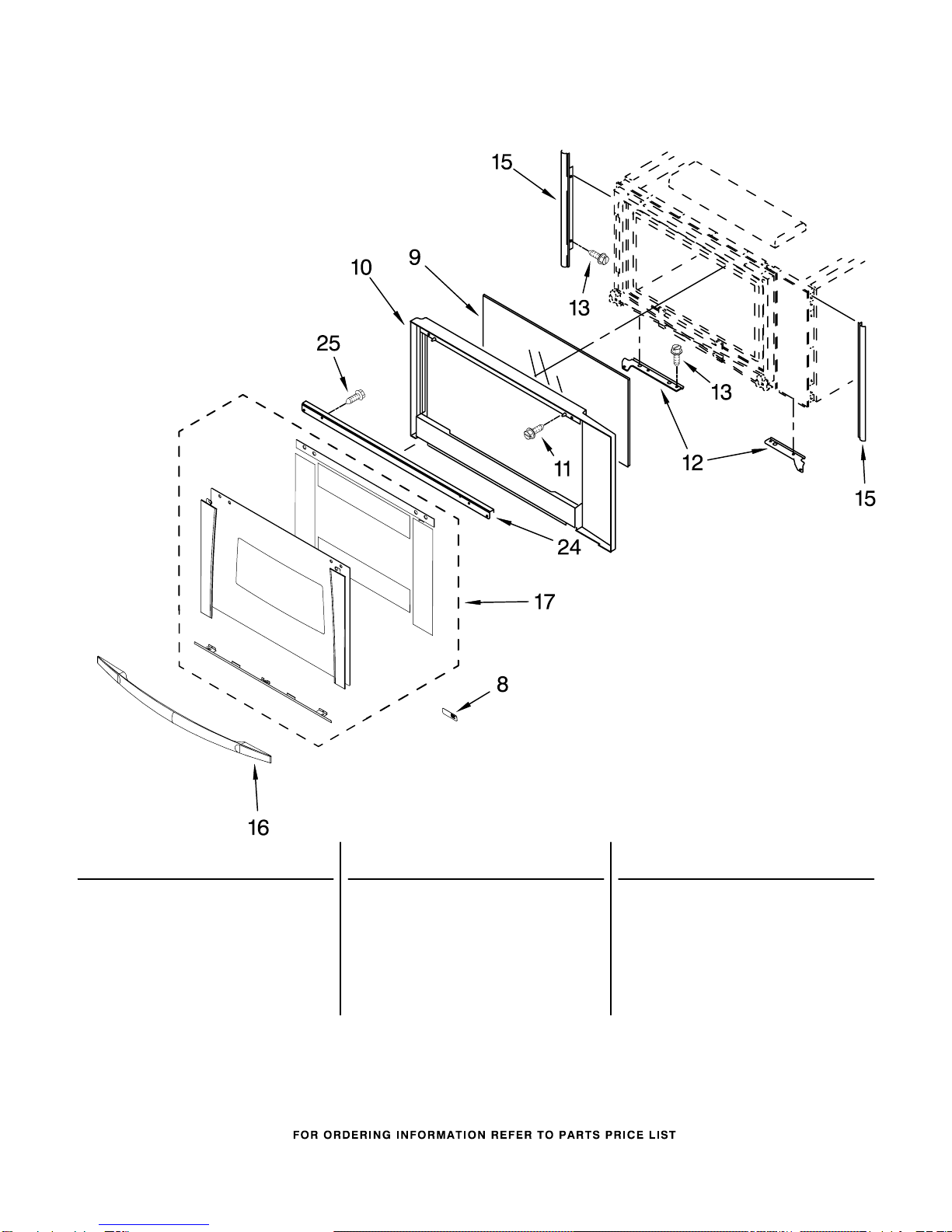

MICROWAVE DOOR PARTS

10 8186419

For Models: GMC305PRB01, GMC305PRQ01, GMC305PRT01, GMC305PRS01, GMC305PRY01

(Black) (White) (Biscuit) (S.Steel) (Universal Silver)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8 8303810 Nameplate

9 4450834 Glass, Middle

10 8303556 Frame, Door

11 4450038 Screw

12 Bracket, Mounting

4449141 Right Side

4449142 Left Side

13 4449809 Screw

15 Filler, Side

4449083 Right Side

4449086 Left Side

16 Handle, Door

8302813 Black

8302814 White

8302815 Biscuit

8303164 S.Steel

17 Glass, Outer

8303265 Black

8303273 White

8303249 Black Stainless

8303279 Biscuit

8304181 Silver

24 8303169 Bracket, Handle

25 4451040 Screw
