COOKTOP PARTS

6−08 Litho in U.S.A. (cre) (mek) Part No. W10204125 Rev. B

30" Slide−In

Electric Range

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10203741

Use & Care Guide

W10203740

Installation

Instructions

2 Cooktop

W10170209

White

W10170210

Black

W10170211

Biscuit

W10170212

S.Steel

3 12001676 Kit, Hardware

4 74008897 Element (LR)

5 74008568 Element (LF,RR)

6 74005759 Tube, Vent Upper

W10116760

Screw

8 74003072 Support,Element

9 74011799 Light, Indicator

10 74008919 Element (RF)

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

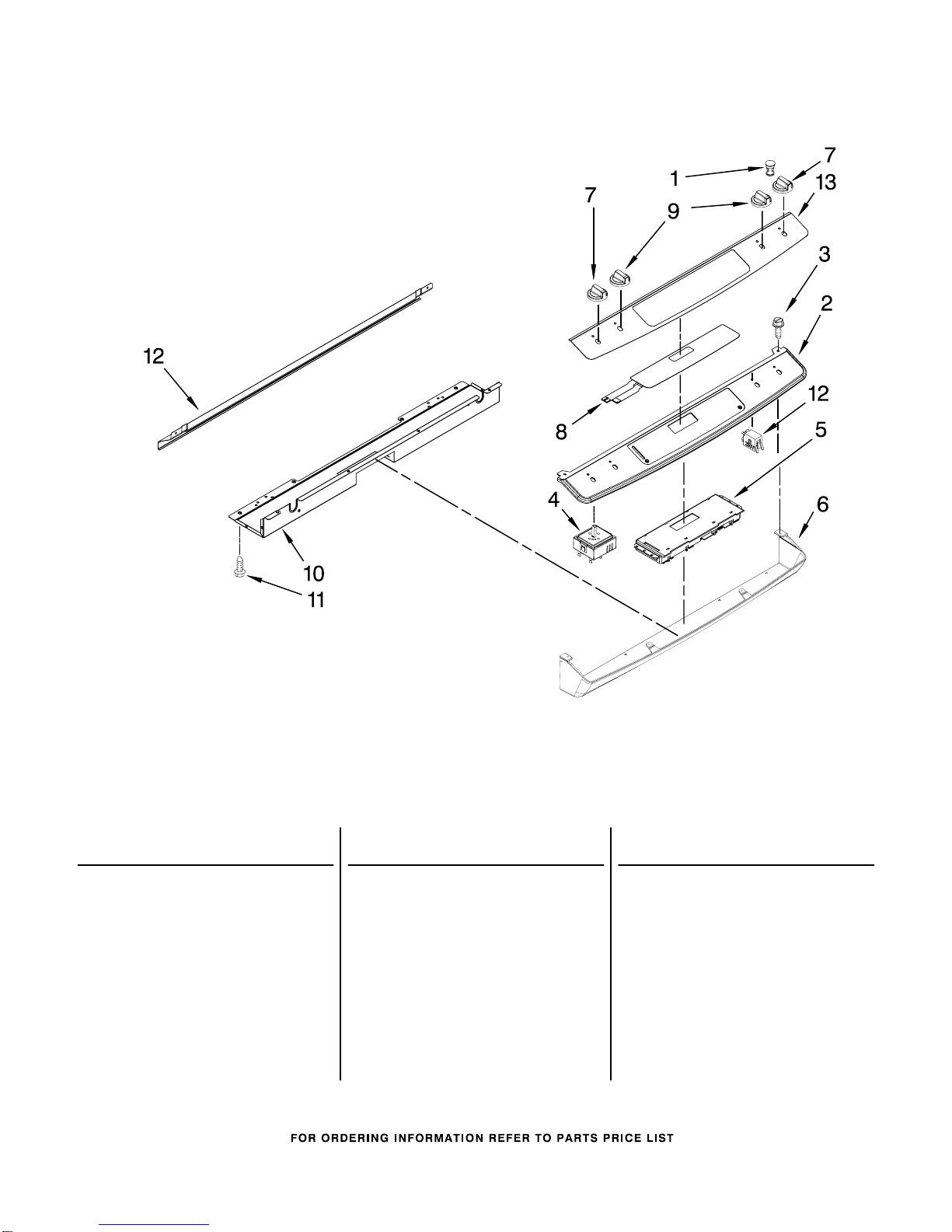

CONTROL PANEL PARTS

2W10204125

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

1 74005769 Lens

2 Panel, Control

7720P535−60

Black

7720P536−60

White

7720P537−60

Biscuit

W10182766

S.Steel

7101P309−60

Screw

4 Switch, Infinte

74010824 8" (RF,LR)

7403P238−60

6" (LF,RR)

W10203701

Control

6 Panel,Control(lwr)

W10185606

Black

W10185607

White

W10185609

Biscuit

7 Knob (LF,RR)

7737P414−60

Black

7737P415−60

White

7737P416−60

Biscuit

8 Switch, Membrane

7450P117−60

Black

W10177224

White

W10177226

Biscuit

9 Knob (RF,LR)

7737P417−60

Black

7737P418−60

White

7737P419−60

Biscuit

W10203695

Support,

Control Panel

11 Y700502 Screw

12 74004153 Light, Indicator

W10187161

Overlay

(S.Steel Mdl Only)

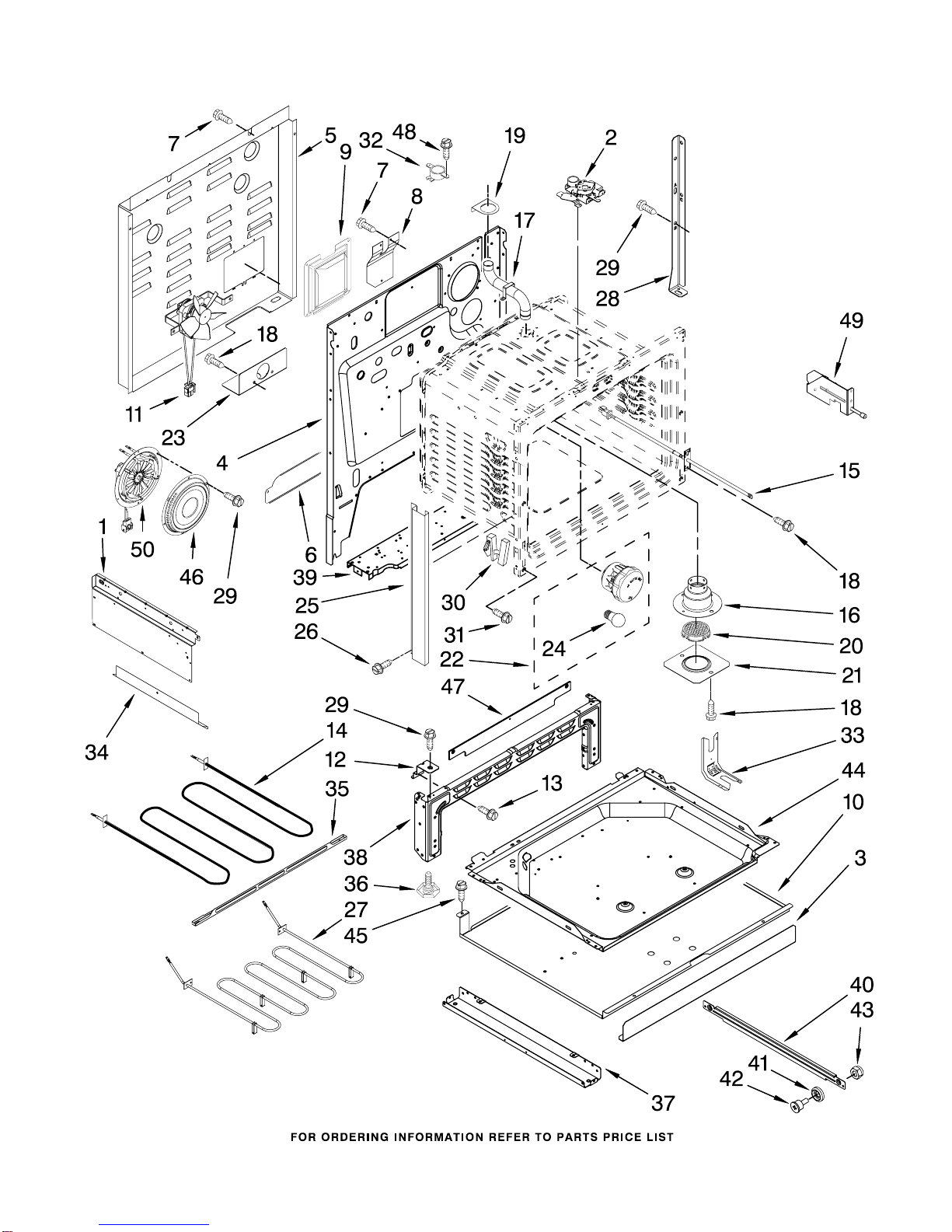

CHASSIS PARTS

W10204125

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

CHASSIS PARTS

4W10204125

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Shield

74010821 Left

74010822 Right

2 74010819 Latch Assembly

3 74010807 Cover, Front

4 74011465 Main Back

W10203736

Cover, Main Wire

6 74010815 Extension, Back

7 Y700502 Screw

8 74006364 Insulator, Cord

9 74010814 Retainer, Insul.

W10177095

Shield, Warmer

11 74010823 Fan, Cooling

12 74010812 Support,Oven Btm

7101P124−60

Screw

14 74003040 Element, Broil

15 74004943 Sensor, Oven

W10165722

Tube, Vent Lower

17 74010816 Tube, Vent Upper

W10116760

Screw

19 74010817 Holder, Vent Tube

20 74008597 Smoke Eliminator

21 74010809 Plate, Smoke Elm.

22 74010885 Light Assembly

23 74004180 Bracket,Pwr Supply

7407P103−60

Bulb, Oven

25 Trim, Side

74010832 White (2)

74010831 Black (2)

26 71001394 Screw

27 74010811 Element, Bake

28 74010884 Support, Oven Rear

29 71001394 Screw

30 74011142 Hinge (2)

31 4159193 Screw, Hinge (4)

32 74010818 Switch, Hi−Limit

33 74005564 Bracket,Anti−Tip

34 74010820 Extention, Shield

35 74003386 Support, Element

36 74010805 Leg, Leveling

37 74010899 Pedestal, Bottom

38 74010882 Pedestal, Front

39 74007129 Support

40 74003565 Runner, Drawer (2)

41 74004078 Roller, Drawer (2)

42 74005231 Shaft, Roller (2)

43 74005230 Nut, Lock (2)

44 74006522 Retainer, Bottom

W10116760

Screw

46 74008315 Cover,Conv.Fan

W10159823

Trim, Front

W10116760

Screw

W10171550

Switch, Light

50 74011094 Fan, Convect

INSULATION

74010987 Insulation, Wrap

W10165725

Insulation, Back

74010986 Insulation,

Oven Bottom

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

DOOR PARTS

W10204125

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Door Top

W10165729

Black

W10165726

White

W10177497

Biscuit

W10168887

S.Steel

W10163951

Screw, Handle (2)

3 74011457 Baffel, Retainer

4 74001530 Screw 8AB 1/2

5 74003645 Glass, Inner (2)

6 74005546 Spacer, Rubber

7 74001574 Nut, Snap (4)

8 74011456 Lining, Door

9 74011458 Bracket, Glass (2)

10 74003647 Insulation, Door

11 Y700502 Screw

12 Bracket, Handle

74009699 Left

74009698 Right

13 74004224 Tape, White

14 Trim, Door Side

74009693 Black, Left

74009695 White, Left

74009697 Biscuit, Left

74009692 Black, Right

74009694 White, Right

74009696 Biscuit, Right

15 Tape, Double Sided

74009014 White

74009025 Black

16 Trim, Door Bottom

74009687 White

74009686 Black

74009688 Biscuit

17 Screw, Trim

74009540 White

74009539 Black

74009541 Biscuit

74009268 S.Steel

W10162384

Seal, Door

19 Glass, Door

W10170228

White

W10170229

Black

W10170230

Biscuit

W10170231

S.Steel

(Order Items 13 &

21 When Replacing

Door Glass)

20 Handle, Door

W10118430

White

W10118431

Black

W10118432

Biscuit

W10144883

S.Steel

21 74003664 Tape, Foil

22 8303810 Nameplate, Logo

23 74010267 Spacer, Rubber

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

DRAWER AND RACK PARTS

6W10204125

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74011813 Rack, Oven (2)

2 74008333 Drawer, Storage

3 74004310 Screw, Panel

4 74010896 Bracket, Drawer

5 Panel, Drawer

74003407 White

74003701 Black

74004966 Biscuit

W10160943

S.Steel

6 Screw, Panel

74009540 White

74009539 Black

74009541 Biscuit

74009538 S.Steel

7 74005230 Nut, Lock

2404F030−51

Lining, Drawer

9 74005546 Spacer, Rubber

10 74004078 Roller, Drawer (2)

11 74005231 Shaft, Roller (2)

7103P082−60

Nut

13 74009589 Rack, Half

14 74009587 Insert, Rack

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)

OPTIONAL PARTS (NOT INCLUDED)

W10204125

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

74010849 Harness, Sensor

W10204629

Harness, Top

74011549 U3, Harness (RT)

74011572 Coil,Harness (Lt)

5171P976−60

Harness, Main

74006811 Clip, Wire

For Models: GY399LXUQ0, GY399LXUB0, GY399LXUT0, GY399LXUS0

(White) (Black) (Biscuit) (S.Steel)
