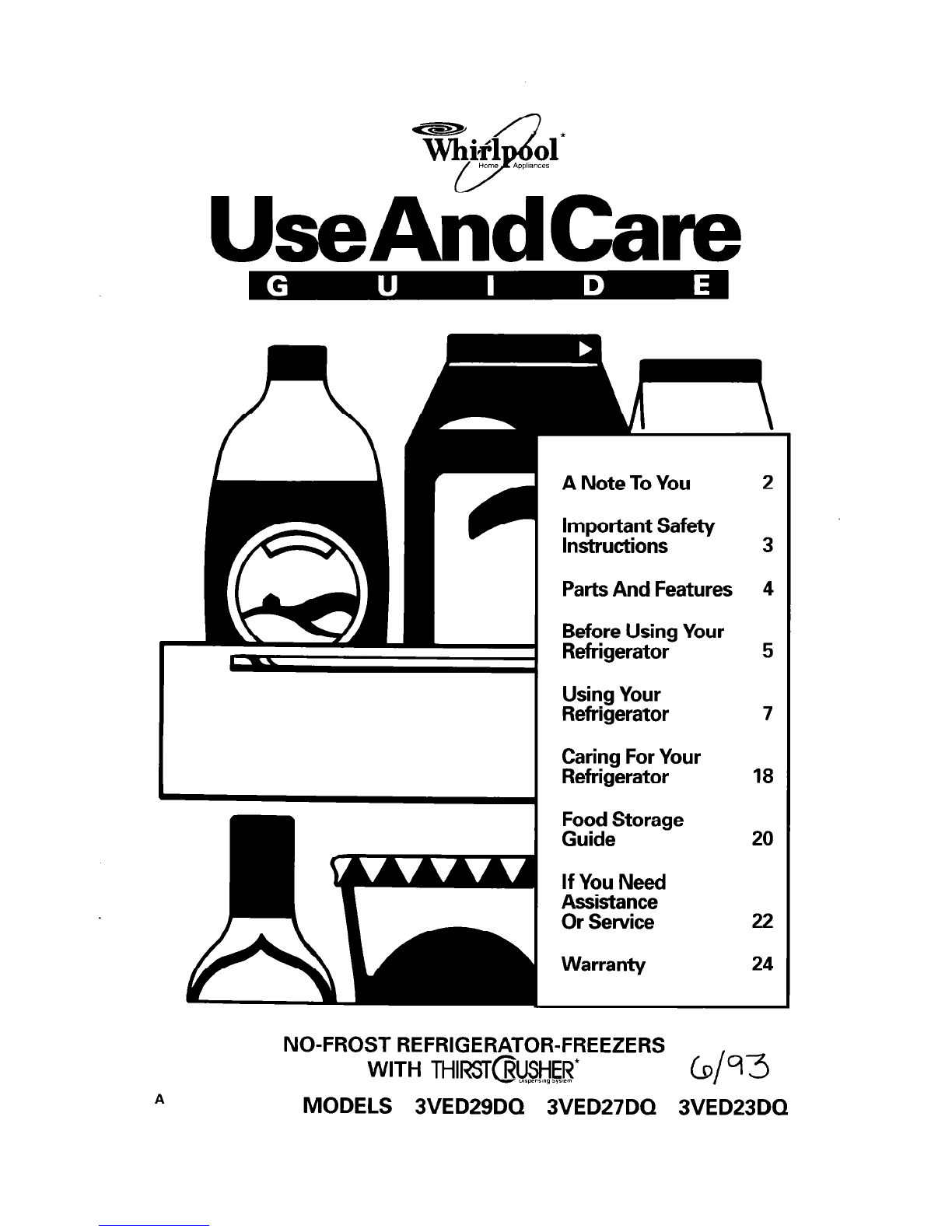

Whirlpool 3VED29DQ Manuale utente

%itil 01’

HOme

Appliances

UseAndCare

A Note To You

Important Safety

Instructions

Parts And Features

Before Using Your

Refrigerator

Using Your

Refrigerator

Caring For Your

Refrigerator

Food Storage

Guide

If You Need

Assistance

Or Service

Warranty

NO-FROST REFRIGERATOR-FREEZERS

WlTH THIRs-m!i%R’

b/93

A MODELS 3VED29DQ 3VED27DQ 3VED23DQ

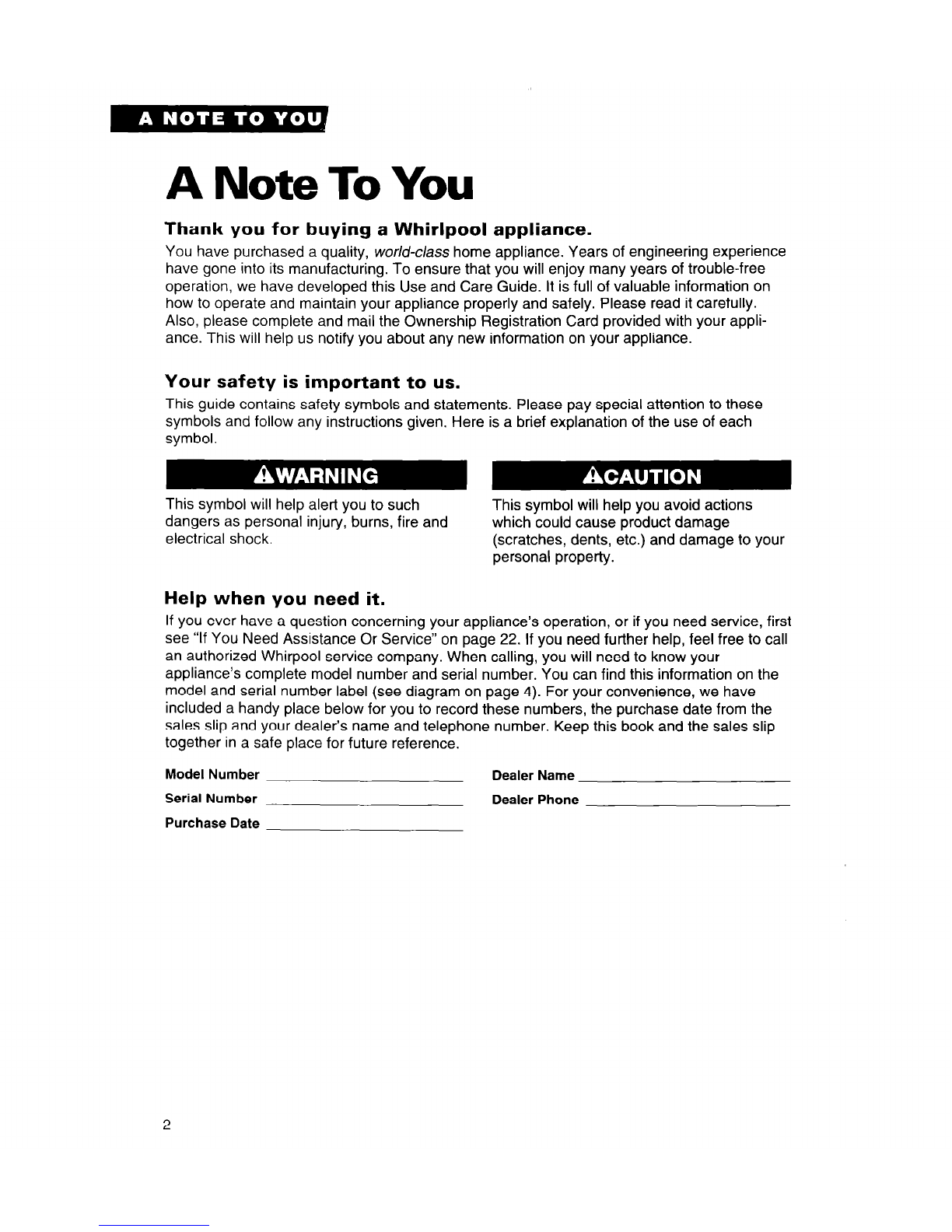

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience

have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free

operation, we have developed this Use and Care Guide. It is full of valuable information on

how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your appli-

ance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire and

electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to your

personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 22. If you need further help, feel free to call

an authorized Whirpool service company. When calling, you will need to know your

appliance’s complete model number and serial number. You can find this information on the

model and serial number label (see diagram on page 4). For your convenience, we have

included a handy place below for you to record these numbers, the purchase date from the

sales slip and your dealer’s name and telephone number. Keep this book and the sales slip

together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

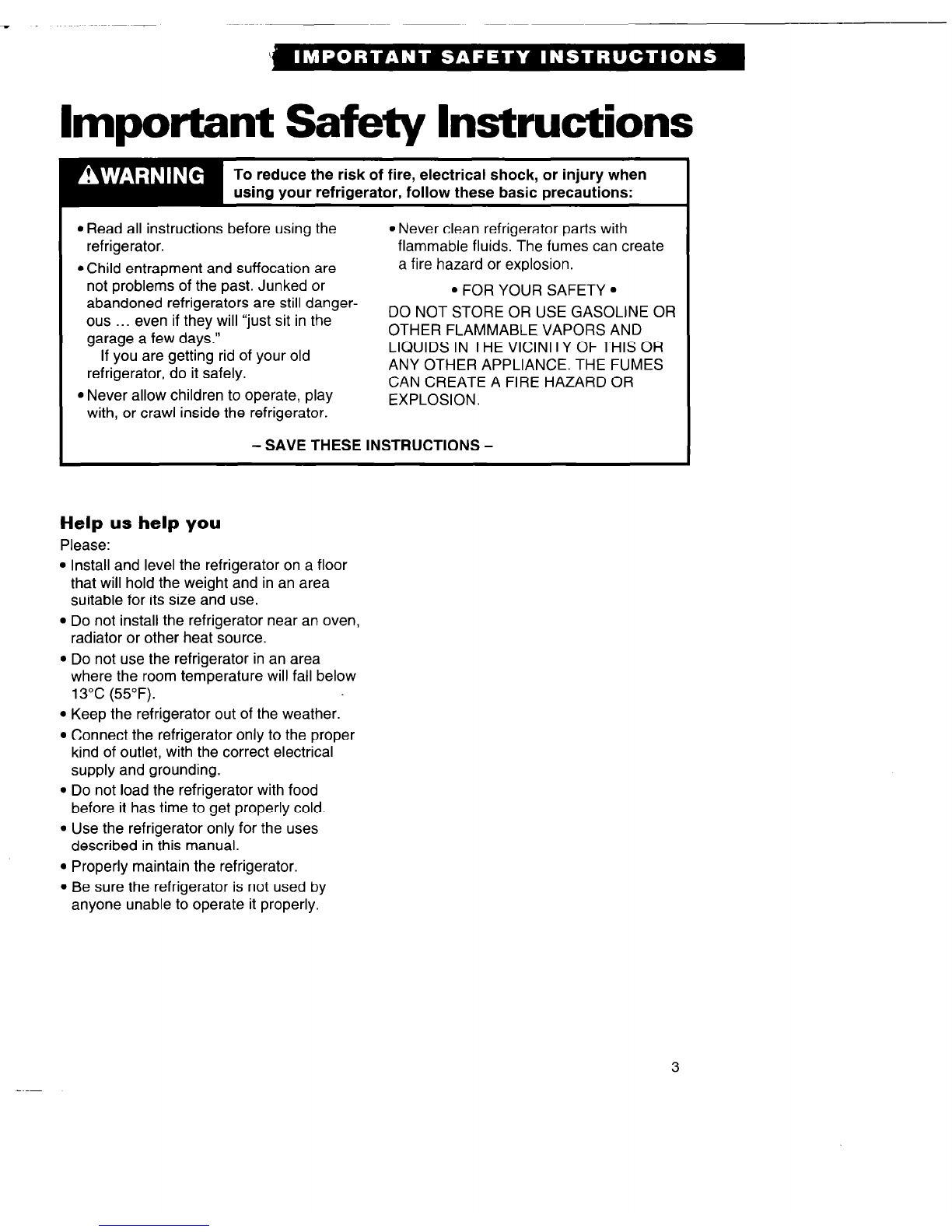

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

l Read all instructions before using the

refrigerator.

l Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous . even if they will “just sit in the

garage a few days.”

If you are getting rid of your old

refrigerator, do it safely.

l Never allow children to operate, play

with, or crawl inside the refrigerator.

. Never clean refrigerator parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

-SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

13°C (55°F).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

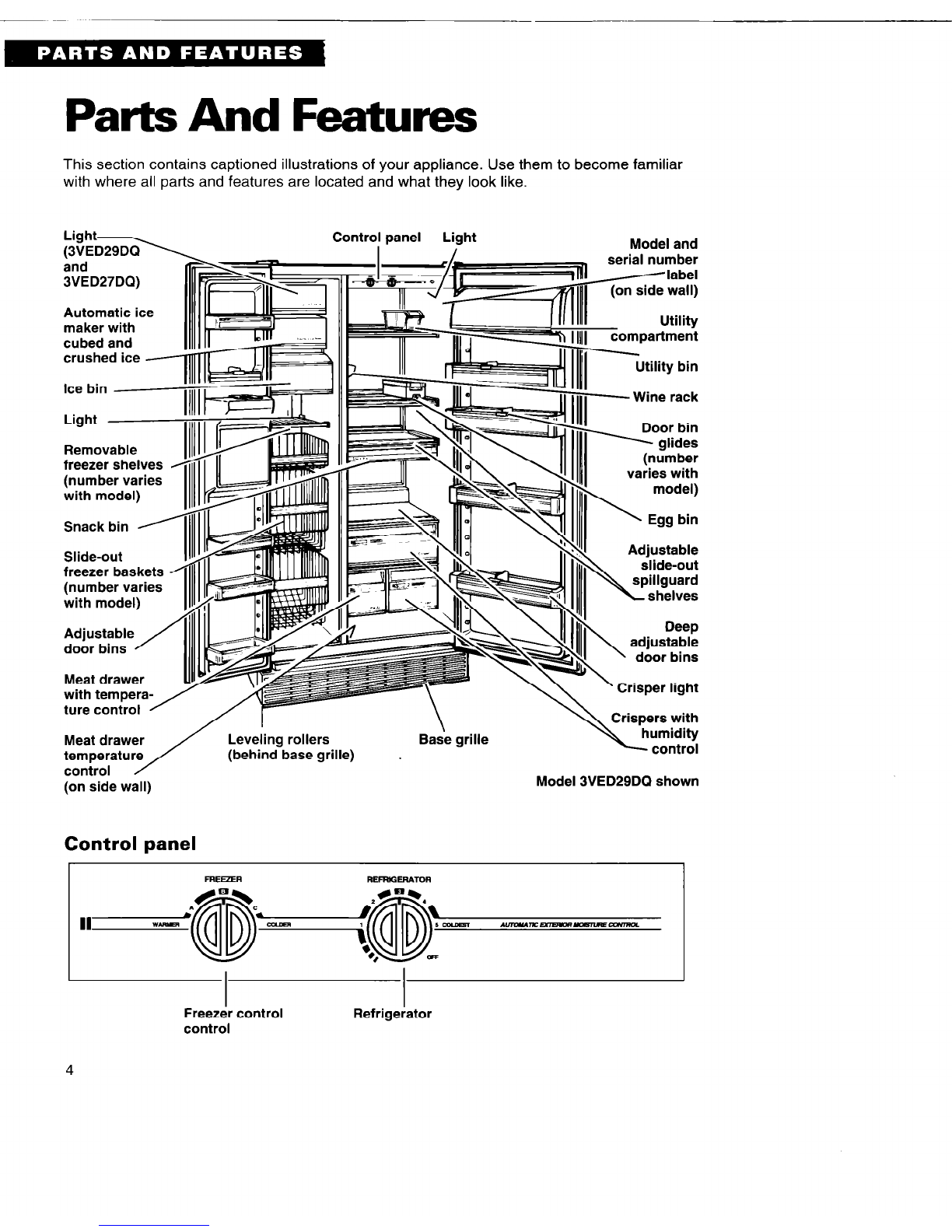

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like.

Model and

serial number

Automatic ice

maker with

Removable

Meat drawer

(on side wall)

Leveling rollers

(behind base grille) Bas\e grille x control

‘humidity

Model 3VED29DQ shown

Control panel

Freezer control

control

Refrigerator

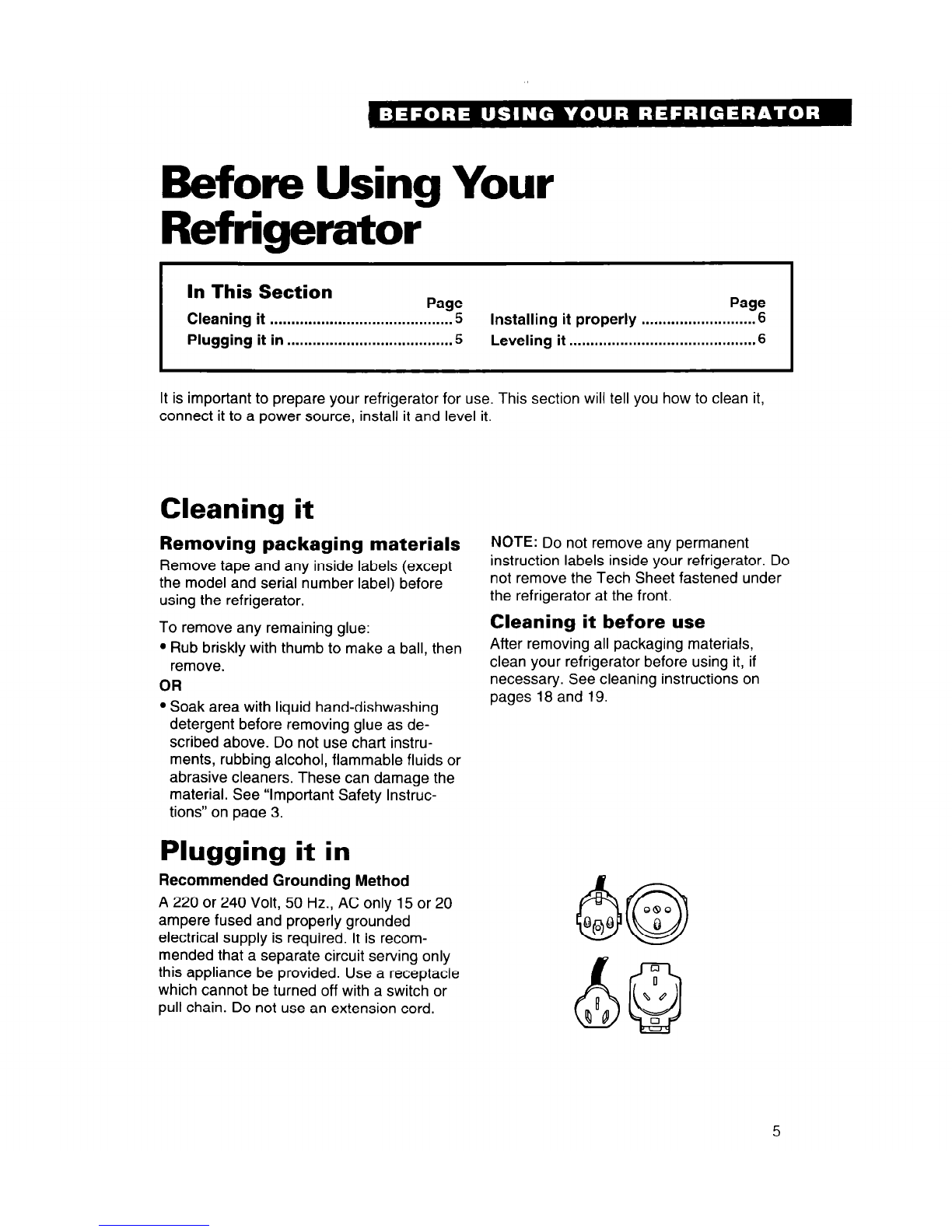

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

NOTE: Do not remove any permanent

Remove tape and any inside

the model and serial number

using the refrigerator.

labels (except

label) before

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as de-

scribed above. Do not use chart instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on paae 3.

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or 20

ampere fused and properly grounded

electrical supply is required. It is recom-

mended that a separate circuit serving only

this appliance be provided. Use a receptacle

which cannot be turned off with a switch or

pull chain. Do not use an extension cord.

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 18 and 19.

Installing it properly

1. Allow 1.25 cm (% inch) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

For 3VED29DQ only:

A minimum of

2.9 cm (1‘/s inch) between the refrigerator

door and wall is required, or a minimum

of 3.8 cm (1% inch) between the freezer

door and wall is required.

3. The refrigerator can be flush against the

wall.

4. Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 16.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Right to raise;

left to lower

Use a screwdriver

wise.

4. Check with level.

5. Replace base grille. (See page 16.)

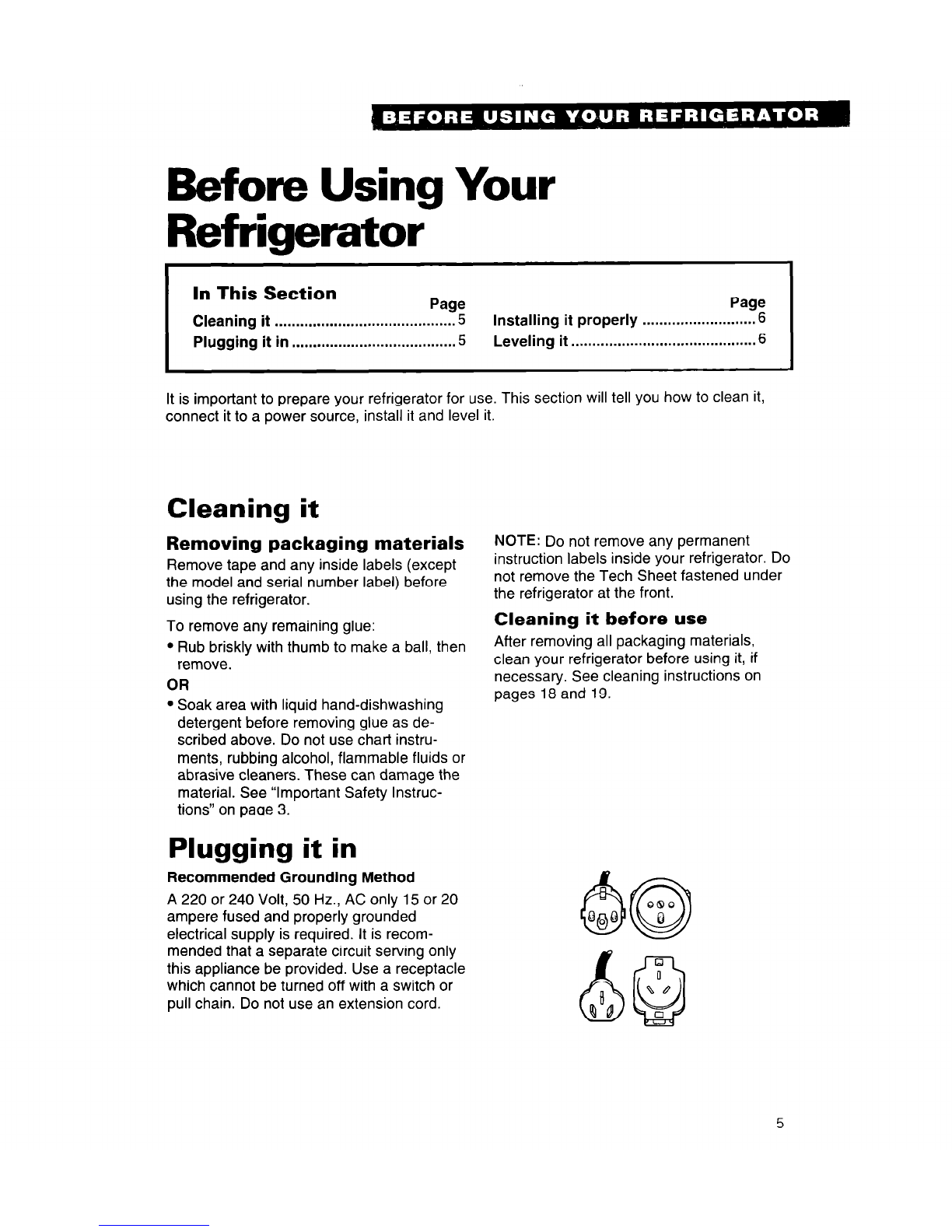

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing it properly ...........................6

Plugging it in 5 Leveling it 6

....................................... ............................................

It is important to prepare your refrigerator for use. This section will tell you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as de-

scribed above. Do not use chart instru-

ments, rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage the

material. See “Important Safety Instruc-

tions” on paae 3.

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or 20

ampere fused and properly grounded

electrical supply is required. It is recom-

mended that a separate circuit serving only

this appliance be provided. Use a receptacle

which cannot be turned off with a switch or

pull chain. Do not use an extension cord.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 18 and 19.

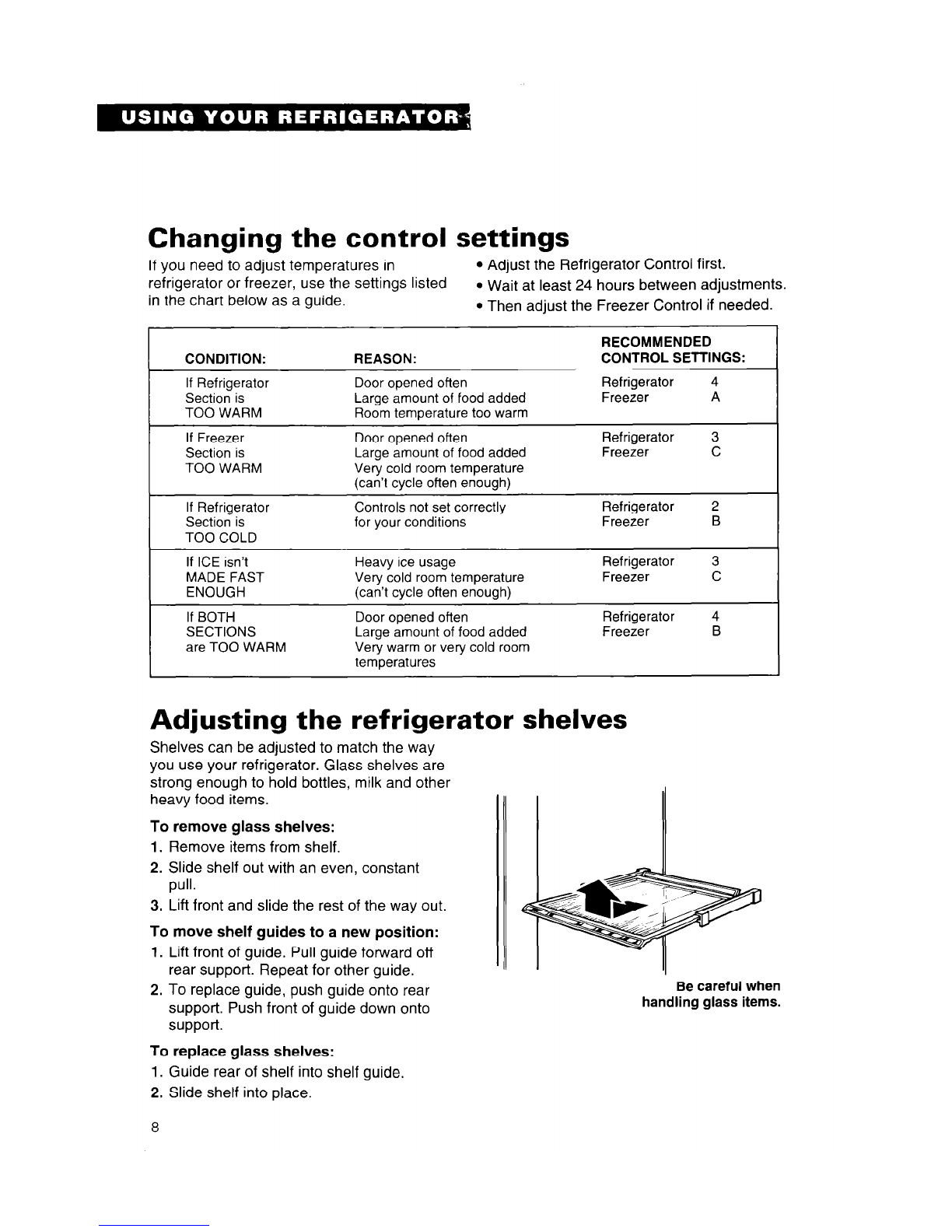

Changing the control settings

If you need to adjust temperatures in

Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed

Wait at least 24 hours between adjustments.

in the chart below as a guide.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle of-ten enough)

RECOMMENDED

CONTROL SETTINGS:

Refrigerator

Freezer :

Refrigerator

Freezer :

If Refrigerator

Section is

TOO COLD

Controls not set correctly Refrigerator 2

for your conditions Freezer B

If ICE isn’t

MADE FAST

ENOUGH

Heavy ice usage

Very cold room temperature

(can’t cvcle often enouah)

Refrigerator

Freezer

If BOTH

SECTIONS

are TOO WARM

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way

you use your refrigerator. Glass shelves are

strong enough to hold bottles, milk and other

heavy food items.

remove glass shelves:

1. Remove items from shelf.

2. Slide shelf out with an even, constant

pull.

3. Lift front and slide the rest of the way out.

move shelf guides to a new position:

1. Lift front of guide. Pull guide forward off

rear support. Repeat for other guide.

2. To replace guide, push guide onto rear

support. Push front of guide down onto

support.

Be careful when

handling glass items.

replace glass shelves:

1. Guide rear of shelf into shelf guide.

2. Slide shelf into place.

Adjusting the door bins

Support button

To remove door bins:

Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push bin down until it stops.

Adjusting the door bin glides

The door bin glides can be used to secure

odd-shaped items or to separate other

items.

Grasp glide.

2. Slide glide along bin.

Removing the crisper and crisper cover

To remove the crisper:

Slide the crisper straight out to the stop.

2. Lift the front slightly.

Pull

out to the

stop, lift the front

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Hold cover firmly with both hands and lift

front of cover off supports.

2. Lift cover out by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

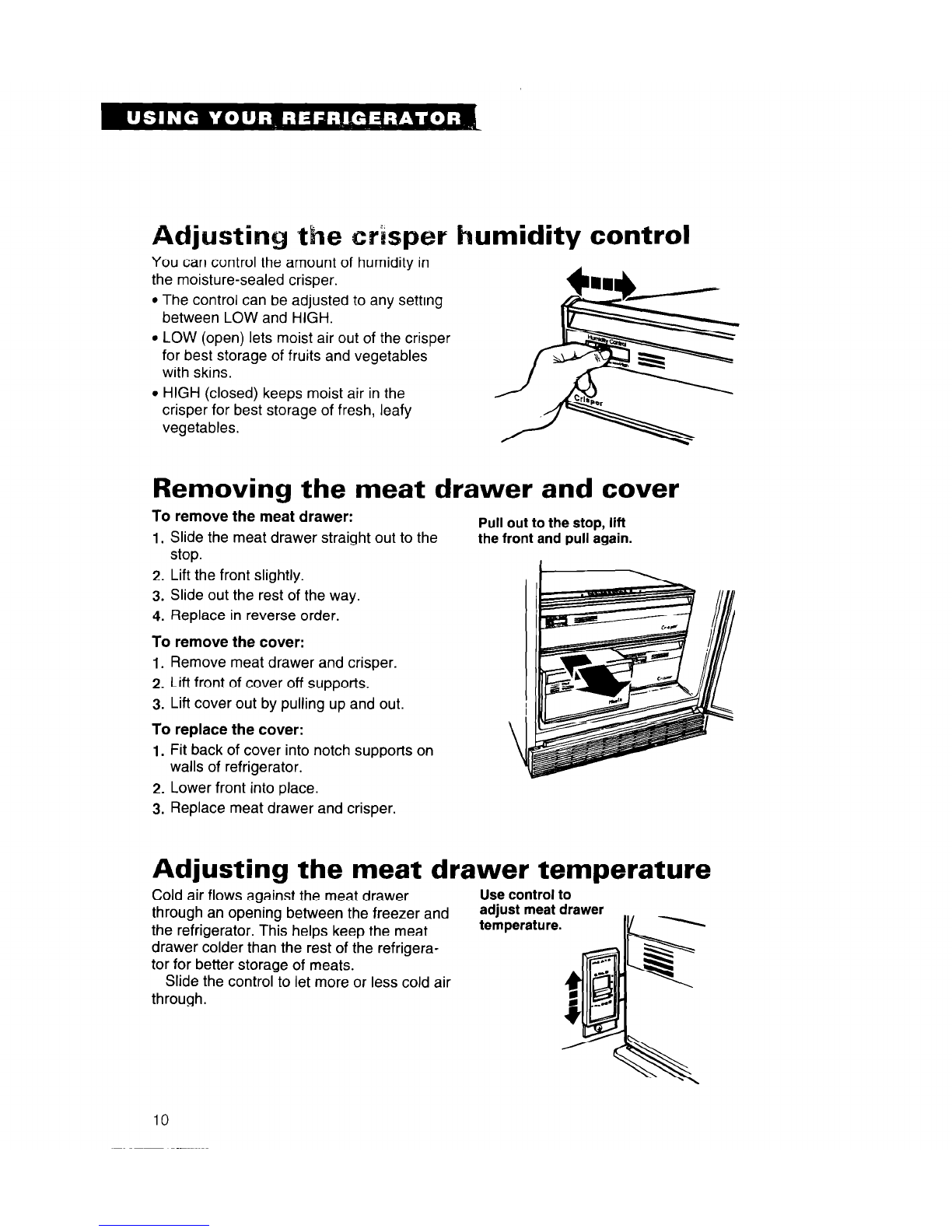

Adjustin the crisper humidity control

You can control the amount of humidity in

the moisture-sealed crisper.

l The control can be adjusted to any setting

between LOW and HIGH.

l LOW (open) lets moist air out of the crisper

for best storage of fruits and vegetables

with skins.

l HIGH (closed) keeps moist air in the

crisper for best storage of fresh, leafy

vegetables.

Removing the meat drawer and cover

To remove the meat drawer: Pull out to the stop, lif-t

Slide the meat drawer straight out to the

the front and pull again.

stop.

Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove meat drawer and crisper.

Lift front of cover off supports.

3. Lift cover out by pulling up and out.

To replace the cover:

Fit back of cover into notch supports on

walls of refrigerator.

Lower front into place.

3. Replace meat drawer and crisper.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer

through an opening between the freezer and

the refrigerator. This helps keep the meat

drawer colder than the rest of the refrigera-

tor for better storage of meats.

Use control to

adjust meat drawer

temperature.

Slide the control to let more or less cold air

through.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Frigorifero

Whirlpool

Whirlpool W10312242A Manuale utente

Whirlpool

Whirlpool ET1CHEXVB00 Manuale utente

Whirlpool

Whirlpool ETl4CC Manuale utente

Whirlpool

Whirlpool 2300257 Manuale utente

Whirlpool

Whirlpool lT20AK Manuale utente

Whirlpool

Whirlpool GI7FVCXW - DIMENSION GUIDE 8-12-09 Manuale utente

Whirlpool

Whirlpool GX5FHDXV Manuale elenco delle parti

Whirlpool

Whirlpool ED5FHEXVB Istruzioni per il montaggio

Whirlpool

Whirlpool ARG 912 - Dimensioni

Whirlpool

Whirlpool Gold GR2SHWXV Manuale

Whirlpool

Whirlpool ED2CHQXVB Istruzioni per il montaggio

Whirlpool

Whirlpool GI5FVAXVB - 25 Cubic Foot Refrigerator Guida utente

Whirlpool

Whirlpool WH46TS3E Manuale utente

Whirlpool

Whirlpool 8ET18DK Manuale utente

Whirlpool

Whirlpool W9RXXMFWS Istruzioni per il montaggio

Whirlpool

Whirlpool TT14DK Istruzioni per l'installazione

Whirlpool

Whirlpool ST14CKXKQ00 Manuale utente

Whirlpool

Whirlpool GC5SHGXKB00 Manuale utente

Whirlpool

Whirlpool WRT318FZDW Manuale utente

Whirlpool

Whirlpool BLF 8001 Guida all'installazione

Whirlpool

Whirlpool G2IXEFMW - 2-20-09 Manuale utente

Whirlpool

Whirlpool W8TXEGFYQ Istruzioni per il montaggio

Whirlpool

Whirlpool GS6NHAXVS - 25 Cubic Foot Qualifi Istruzioni per il montaggio

Whirlpool

Whirlpool 1997 F Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
