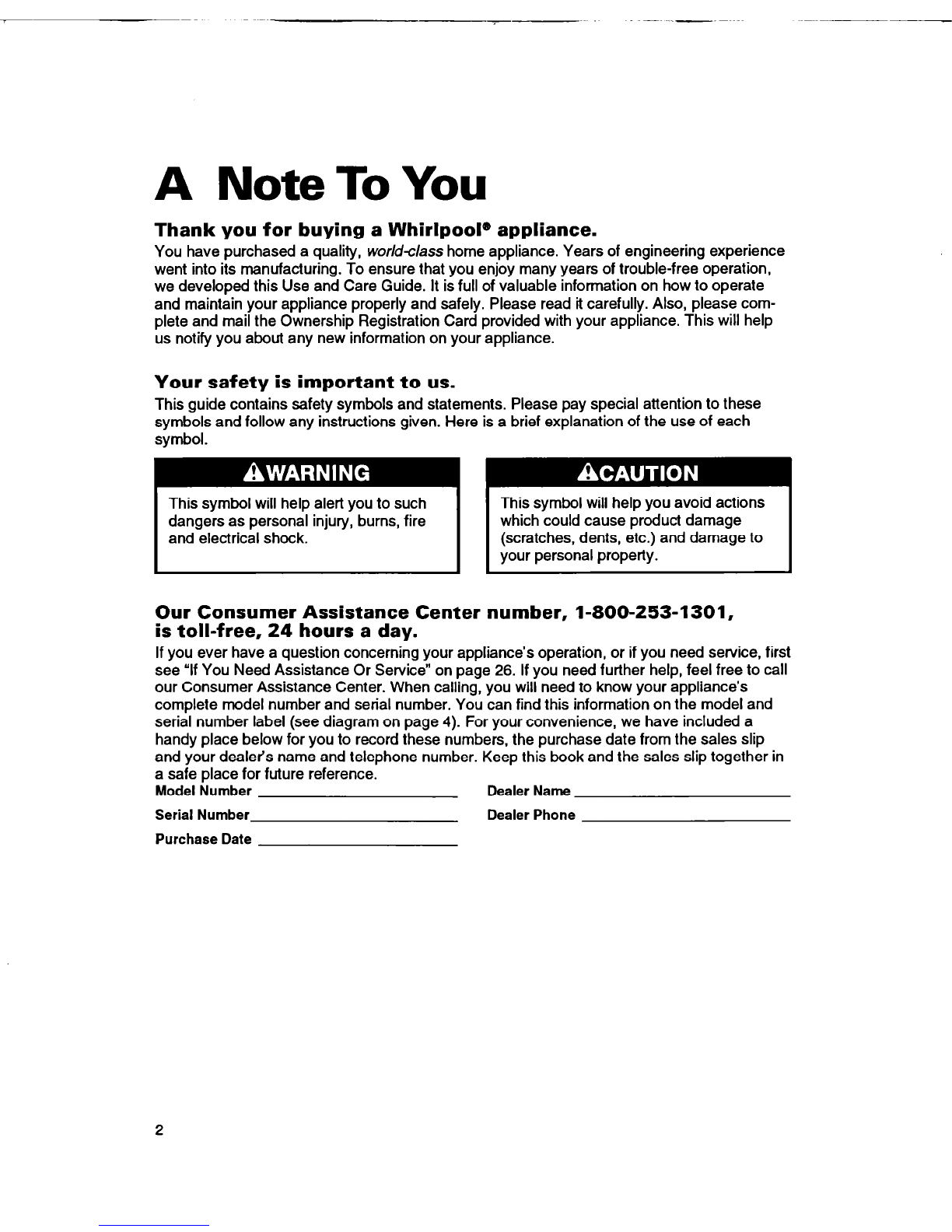

A Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, worldclass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, 1-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page

26.

If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number Dealer Name

Serial Number Dealer Phone

Purchase Date

Important Safety Instructions

To reduce the risk of fire, electrical shock or injury when

using your refrigerator, follow these basic precautions:

l Read all instructions before using the @Never clean refrigerator parts with

refrigerator. flammable fluids. The fumes can create a

l Child entrapment and suffocation are fire hazard or explosion.

not problems of the past. Junked or l FOR YOUR SAFETY l

abandoned refrigerators are still danger- DO NOT STORE OR USE GASOLINE OR

ous ... even if they will “just sit in the OTHER FLAMMABLE VAPORS AND

garage a few days.” LIQUIDS IN THE VICINITY OF THIS OR

If you are getting rid of your old refrig- ANY OTHER APPLIANCE. THE FUMES

erator, do it safely. CAN CREATE A FIRE HAZARD OR

l Never allow children to operate, play EXPLOSION.

with or crawl inside the refrigerator.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like.

Model and serial

Automatic ice

maker with

cubed and

crushed ice

I-- I-:-

wire shelves a

Snack bin

Slide-out

freezer

baskets

Tall-bottle

Temperature-

controlled

meat drawer IIIII II

Adjustable

door bins

llllll b

Removable

shelf fronts

Control panel

Leveling rollers

(behind base grille)

I I

Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................6

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 21-22.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

Refrigerator

power cord

grounding

PNI

Installing it properly

1. Allow % inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

4. Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws+ne on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 18.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Right to raise;

left to lower

Use a screw-

driver to adjust

wise.

4. Check with level.

5. Replace base grille. (See page 18.)

Using Your Refrigerator

In This Section

Page Page

Setting the controls ............................ 7 Removing the snack bin ................. .13

Changing the control settings.. ........ .8 Adjusting the wine rack .................. .13

Removing the door shelf fronts ....... .9 Removing the freezer baskets.. ...... .13

Adjusting the door bins .................... .9 Removing the freezer shelf.. ........... .13

Adjusting the door bin glides ........... .9 Using the THIRSTCRUSHERTM

Removing the tall-bottle retainer ....lO dispensing system ........................... 14

Adjusting the refrigerator shelves ..lO Using the automatic ice maker.. ..... .15

Using the egg bin Removing the ice maker

............................. 11 storage bin ........................................ 16

Removing the crisper and

crisper cover ..................................... 11 Solving common ice maker/

dispenser problems ........................ .17

Adjusting the crisper

humidity control 12 Removing the base grille ................ .18

...............................

Removing the meat drawer Changing the light bulbs ................ .18

and cover ........................................... 12 Understanding the sounds

Adjusting the meat drawer you may hear .................................... 20

temperature ....................................... 12 Saving energy ................................... 20

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the fea-

tures in your refrigerator and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to

adjust these settings, see “Changing the

control settings” below.

NOTE: The Automatic Exterior Moisture

control continuously guards against moisture

build-up on the outside of your refrigerator

cabinet. This control does not have to be set

or adjusted.

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide. If you have

questions, call our Consumer Assistance

Center number, 1-800-253-l 301.

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjustments.

l Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

REASON:

l Door opened often

l Large amount of food added

l Room temperature too warm

RECOMMENDED

CONTROL SETTINGS:

Refrigerator 4

Freezer A

Freezer

section

too warm

l Door opened often

l Large amount of food added

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Refrigerator

section

too cold

l Controls not set correctly Refrigerator 2

for your conditions Freezer 6

Ice not

made fast

enough

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Both

sections

too warm

l Door opened often

l Large amount of food added

l Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

Removing the door shelf fronts

Remove the door shelf fronts for easier

cleaning.

To remove shelf fronts:

1. Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

1. Line up each end of the shelf front with

the button on the door liner wall.

2. Push shelf front straight back until it

snaps securely into place.

3. Replace items on the shelf.

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push down until it stops.

Adjusting the door bin glides

Use the bin glides to secure odd-shaped

items or to separate other items.

1. Grasp glide.

2. Slide glide along bin.

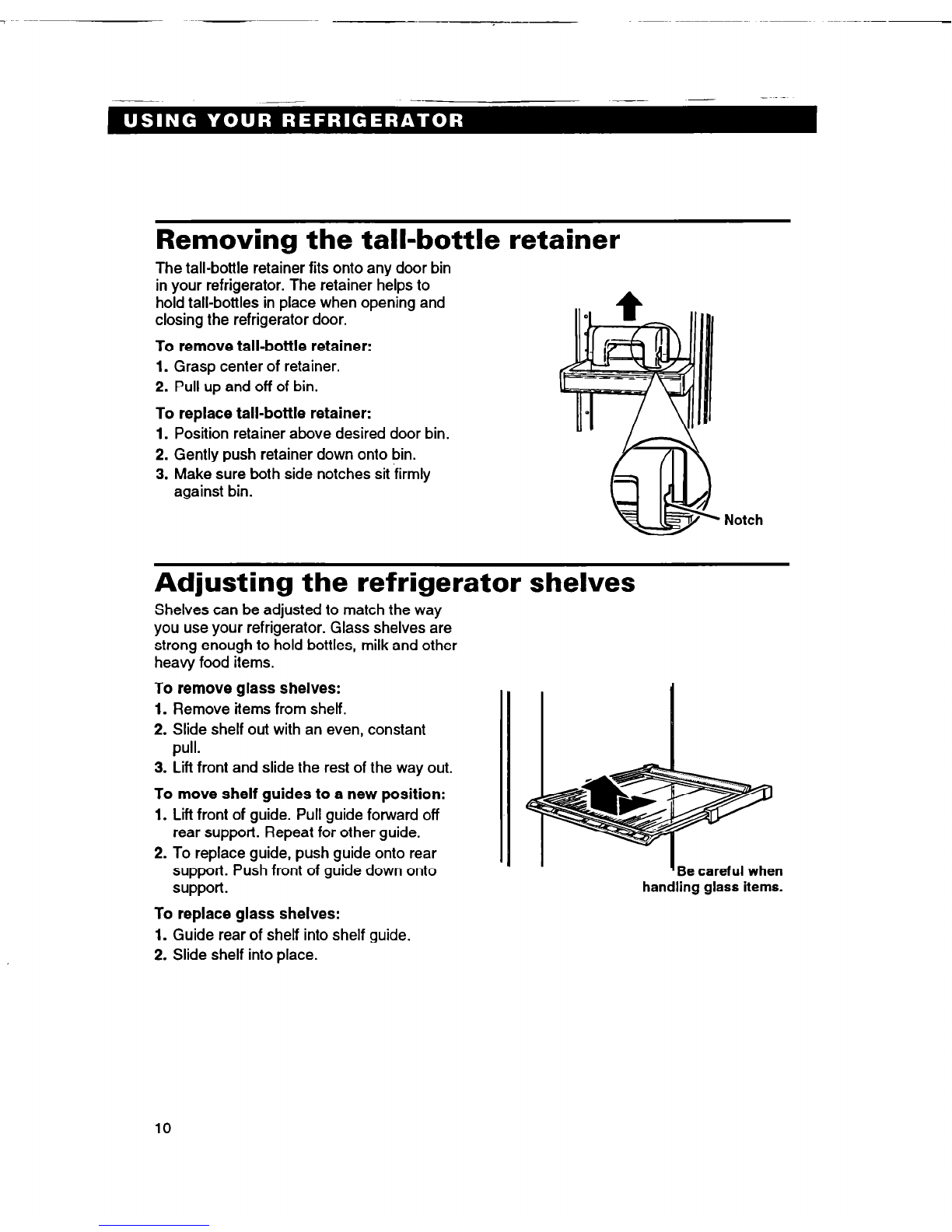

Removing the tall-bottle retainer

The tall-bottle retainer fits onto any door bin

in your refrigerator. The retainer helps to

hold tall-bottles in place when opening and

closing the refrigerator door.

To remove tall-bottle retainer:

1. Grasp center of retainer.

2. Pull up and off of bin.

To replace tall-bottle retainer:

1. Position retainer above desired door bin.

2. Gently push retainer down onto bin.

3. Make sure both side notches sit firmly

against bin.

Notch

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way

you use your refrigerator. Glass shelves are

strong enough to hold bottles, milk and other

heavy food items.

To remove glass shelves:

1. Remove items from shelf.

2. Slide shelf out with an even, constant

pull.

3. Lift front and slide the rest of the way out.

To move shelf guides to a new position:

1. Lift front of guide. Pull guide forward off

rear support. Repeat for other guide.

2. To replace guide, push guide onto rear

support. Push front of guide down onto

support.

To replace glass shelves:

1. Guide rear of shelf into shelf guide.

2. Slide shelf into place.

Indice

Altri manuali Whirlpool Frigorifero

Whirlpool

Whirlpool WRF535SMBB Manuale utente

Whirlpool

Whirlpool EL87TRRRQ - on 35.3 Cu. Ft. SideKicks Manuale utente

Whirlpool

Whirlpool ET8AHKXRQ01 Manuale utente

Whirlpool

Whirlpool ED22PC Manuale utente

Whirlpool

Whirlpool 4ED27DQ Manuale utente

Whirlpool

Whirlpool 2314463 Manuale utente

Whirlpool

Whirlpool GB2SHDXPB01 Manuale utente

Whirlpool

Whirlpool WRS342FIA Manuale elenco delle parti

Whirlpool

Whirlpool W9TXNMFWB - Top Freezer Refrigerator Manuale utente

Whirlpool

Whirlpool W10245525A Manuale utente

Whirlpool

Whirlpool ADN 201/1 Manuale utente

Whirlpool

Whirlpool SKT60 Series Manuale utente

Whirlpool

Whirlpool ETl4EP Manuale utente

Whirlpool

Whirlpool IT8WSKXRW Manuale utente

Whirlpool

Whirlpool 3VED23DQ Manuale utente

Whirlpool

Whirlpool G2IXEFMWQ - 21.8 cu. Ft. Refrigerator Manuale utente

Whirlpool

Whirlpool Gold GB2SHDXP Istruzioni utente

Whirlpool

Whirlpool ED2DHEXWB - Side-By-Side Refrigerator Istruzioni per il montaggio

Whirlpool

Whirlpool 2184591 Manuale utente

Whirlpool

Whirlpool Gold GD5VVAXTY Manuale utente

Whirlpool

Whirlpool GC3NHAXVA00 Manuale utente

Whirlpool

Whirlpool ARC 4170/IX Manuale utente

Whirlpool

Whirlpool GB9SHKRMS00 Manuale utente

Whirlpool

Whirlpool ARC 2000 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
