Whirlpool ED5FVGXSS04 Manuale utente
1

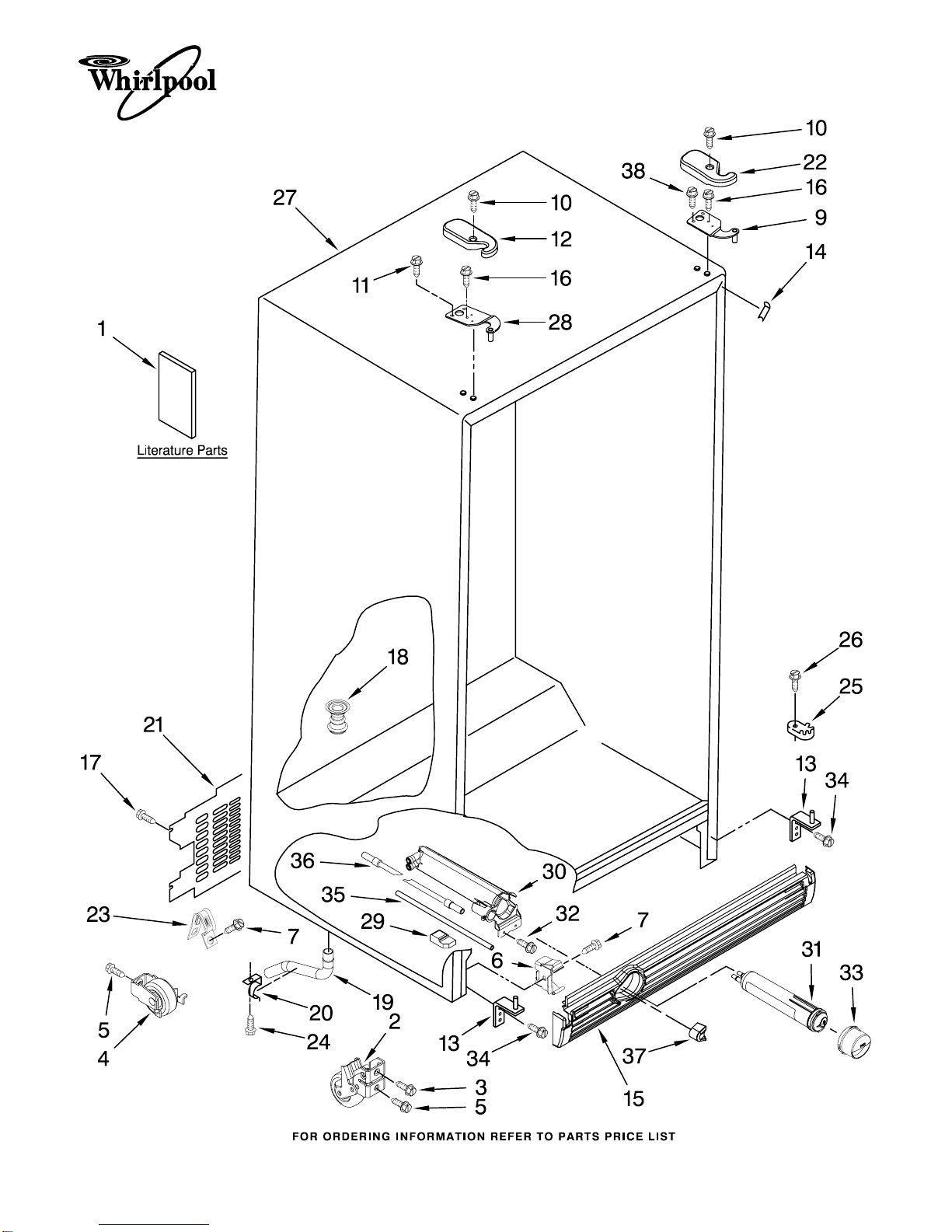

CABINET PARTS
For Model: ED5FVGXSS04
(Stainless Steel)
05−08 Litho in U.S.A. (jdc)(bay) Part No. W10208118 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2318594 Use & Care Guide
W10142157
Service & Wiring
Sheet
W10196284
Energy Guide
628370 Modular Icemaker
Service Sheet
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Roller (Rear) (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
9 2203771 Hinge Top RC
10 8281227 Screw
11 3400858 Screw
12 Hinge Cover FC
2203407B Black
13
W10138965
Hinge Bottom
14 Filler, Wrapper
2304848 Black
15 Grille
2260500B Black
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 1108438 Extension Tube
20 1108439 Clip, Drain Tube
21 2188735 Cover, Unit
22 Hinge Cover RC
2203408B Black
23 549193 Clamp, ServiceCord
24 489084 Screw
25 2155311 Door Closer,
Lower Cam (2)
26 489483 Screw
27 Cabinet (Not a
Serviceable Part)
28 2203770 Hinge Top, FC
29 2260519 Block, Housing
Support
30 2260507 Housing, Water
Filter
31 4396841 Water Filter
32 489500 Screw
33 Cap, Water
Filter
2260502B Black
34 3400113 Screw
35 2255012 Tube, Filter
Outlet
36 2319867 Tube, Filter
Inlet
37 Button, Water
Filter
2260503B Black
38 3400858 Screw

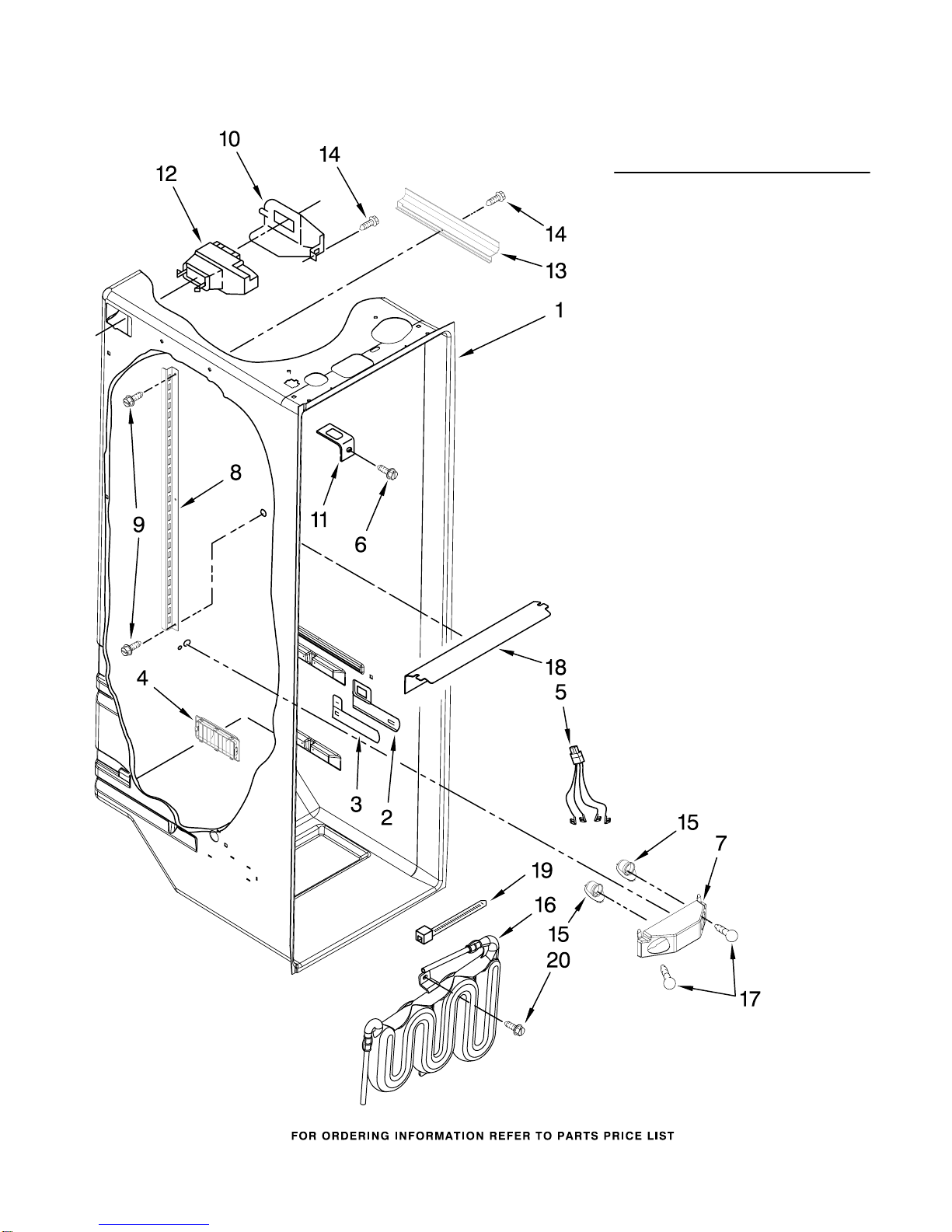

REFRIGERATOR LINER PARTS
3
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
W10175967
Escutcheon, Meat
Pan Control
3 2182757 Slide, Meat
Pan Control
4 2257741 Louver
5 2311637 Wire Harness,
Dual Crisper
6 489290 Screw (2)
7 2256035 Bracket,
Dual Crisper
Light
8 2319866 Shelf Ladder
9 489478 Screw
10 2152019 Air Diffuser
Cover
11 2256085 Bracket Retainer
12
W10151374
Air Diffuser
Assembly
13 2150331 Cover, Conduit
14
W10004810
Screw
15 2162085 Socket
16 2307107 Reservoir
17 527949 Light Bulb
18 2209769 Light Lens
19 2172840 Strap
20 488280 Screw (2)

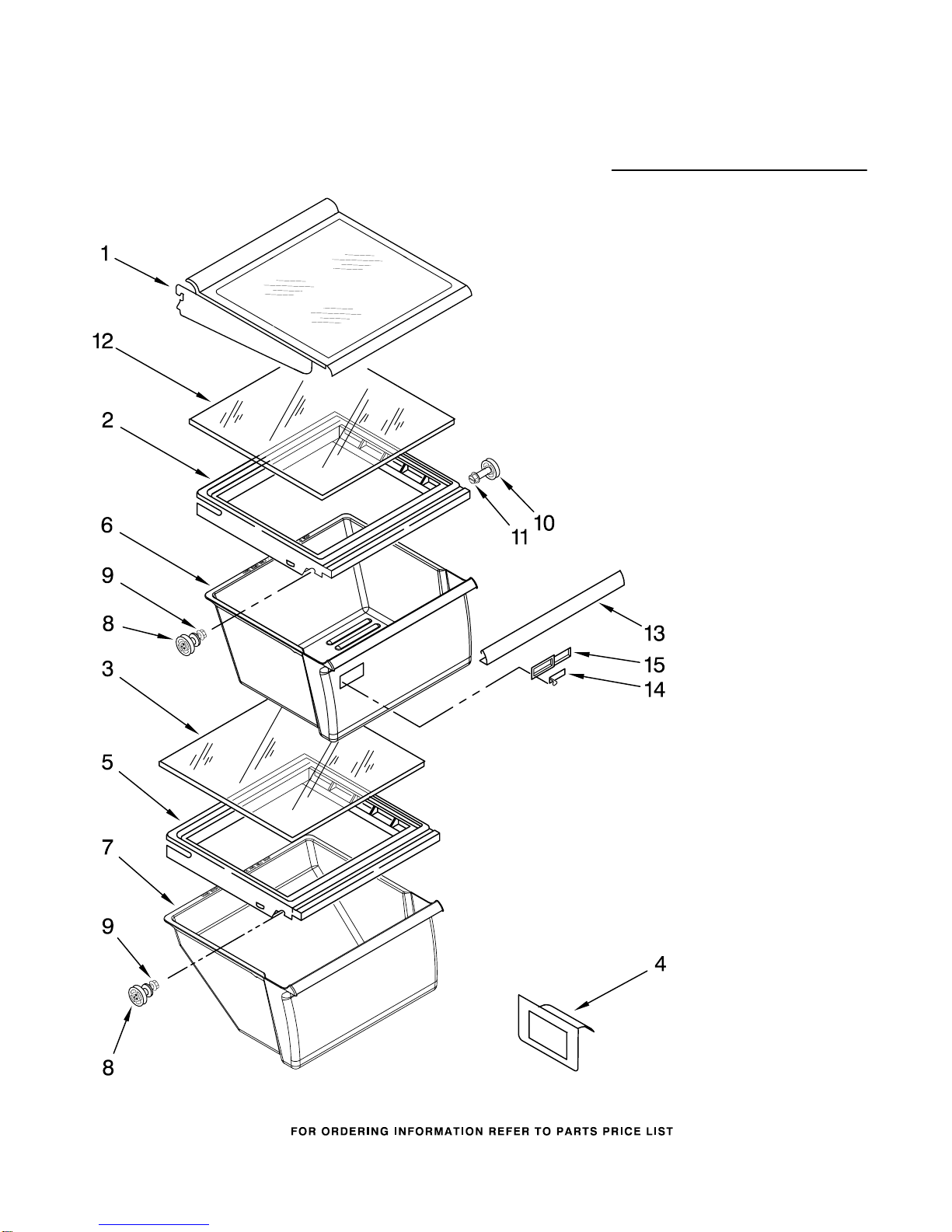

REFRIGERATOR SHELF PARTS
4
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION
1
W10141749
Shelf Assembly,
Spillguard (3)
2 2209698 Cover, Crisper
3 2179259 Glass, Cover
4 2179350 Deflector
5 2311726 Cover, Meat Pan
6 2188652 Crisper Pan
7 2188654 Meat Pan
8 2196485 Stud Assembly
9 3400894 Screw
10 2196483 Stud Assembly
11 8281158 Screw
12
W10141752
Glass, Cover
13 2255593 Trim, Handle
14 2179342 Slide, Humidity
Control
15 2179343 Body, Humidity
Control
5

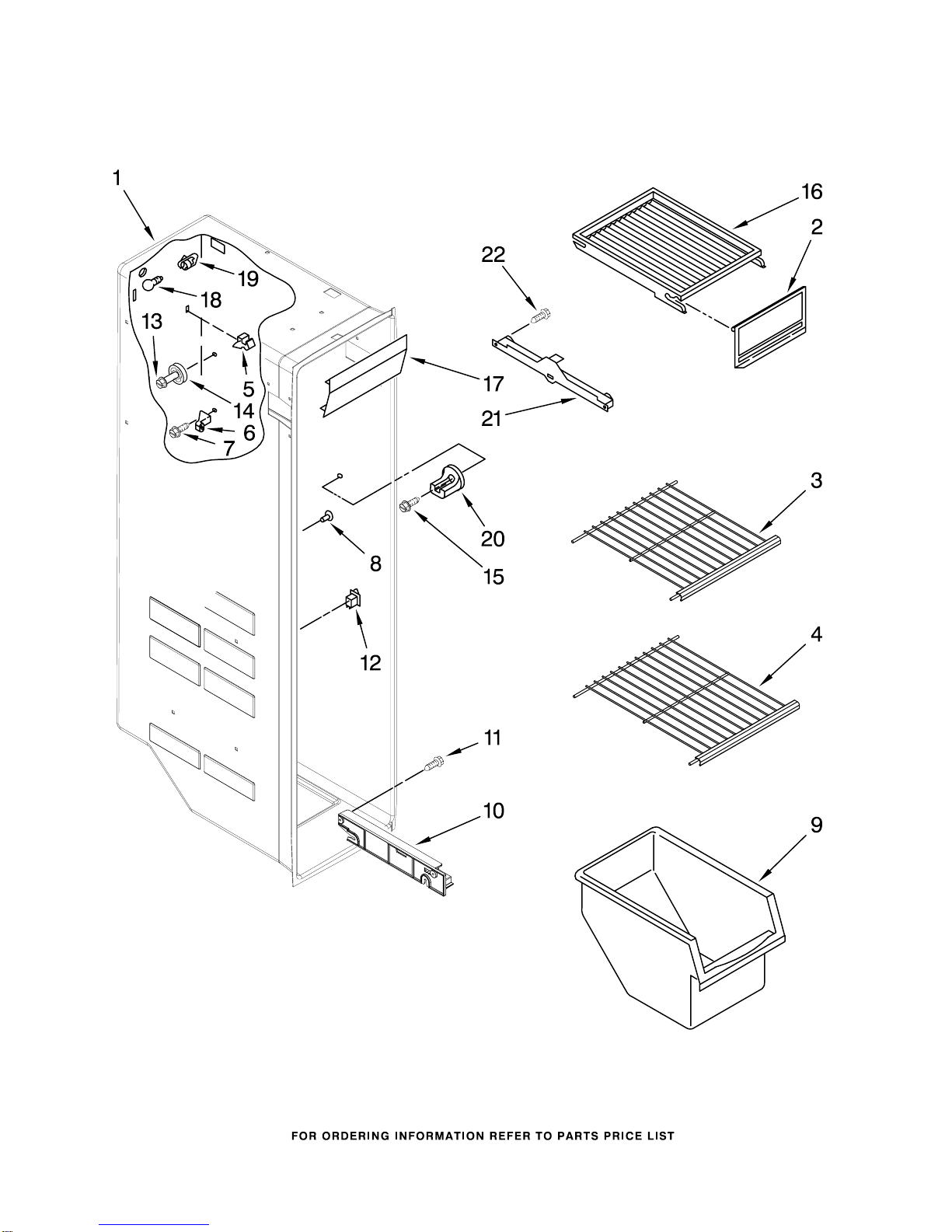

FREEZER LINER PARTS
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
6
FREEZER LINER PARTS
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2171713K Door, Ice
Compartment
3 2174267K Shelf, Upper
4 2174268K Shelf (2)
5 842534 Clip, Air Duct (2)
6 2196206 Support, Stud (4)
7 3400893 Screw
8 2176134 Grommet
9 2182971 Freezer Bin
10 Slide, Basket
2261449 Right Side
2261448 Left Side
11
W10004810
Screw
12 1115373 Switch, Rocker Arm
13 8281158 Screw
14 2196483 Stud Assembly
15 3400893 Screw
16 2171714K Shelf, Top
Compartment
17 2171705 Lens, Light
18 527949 Light Bulb
19 2162085 Light Socket
20 2196207 Stud, Rear
21 Slide, Container
1119237 Left Side
1119293 Right Side
22 489100 Screw

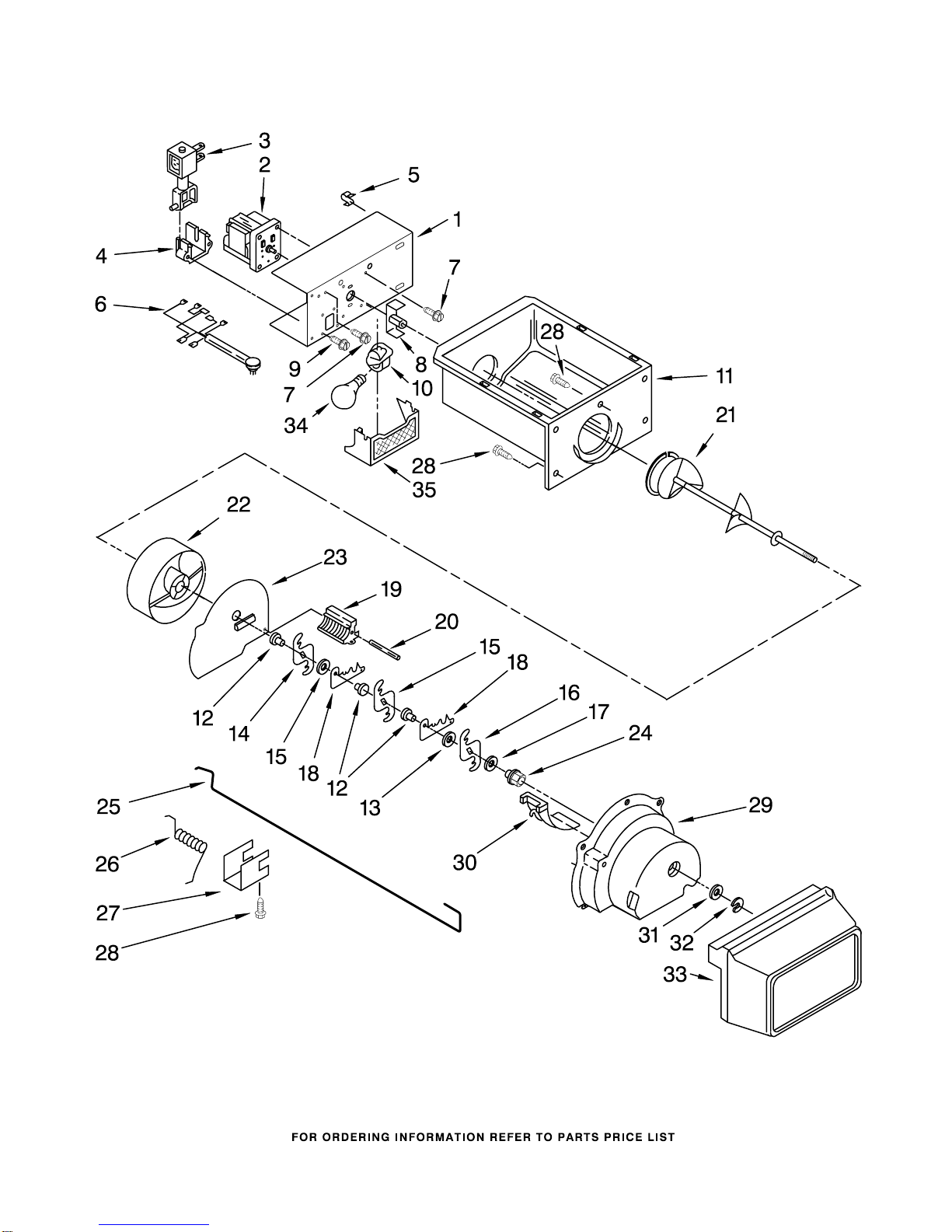

MOTOR AND ICE CONTAINER PARTS
7
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
MOTOR AND ICE CONTAINER PARTS
8
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION
1 2254587 Bracket, Motor
2
W10181208
Motor, Dispenser
3 2152713 Soleniod Assembly
4 2149100 Guide, Soleniod
5 1115374 Clip, Wiring
6 2206501 Wiring Assembly,
Ice Dispenser
7 489399 Screw
8
W10140958
Coupling, Motor
9 489478 Screw
10 2162085 Socket, Light
11 2196091 Ice Container
12 1119005 Spacer, Step (3)
13 1119007 Spacer, Flat (2)
14 2257022 Blade, Rotary
15 2257023 Blade, Rotary
16 2257024 Blade, Rotary
17 489235 Washer, Plain
18 1119009 Blade, Fixed (2)
19 2157405 Block, Blade
20 489229 Roll Pin
21 2196295 Auger
22 2305377 Drum
23 2171682 Floating Baffle
24 1119018 Nut, Bearing
25 2155231 Control Arm
26 1119020 Spring, Return
27 1119021 Retainer Clip, Rod
28 488886 Screw
29 2180348 Housing, Crusher
30 1119017 Deflector, Ice
31 489234 Washer, Plain
32 489236 Retainer Ring
33 2204321 Front Cover,
Ice Container
34 527949 Light Bulb
35 2171706 Light Lens,
Dispenser
100 2209780 Ice Container
Assembly
9

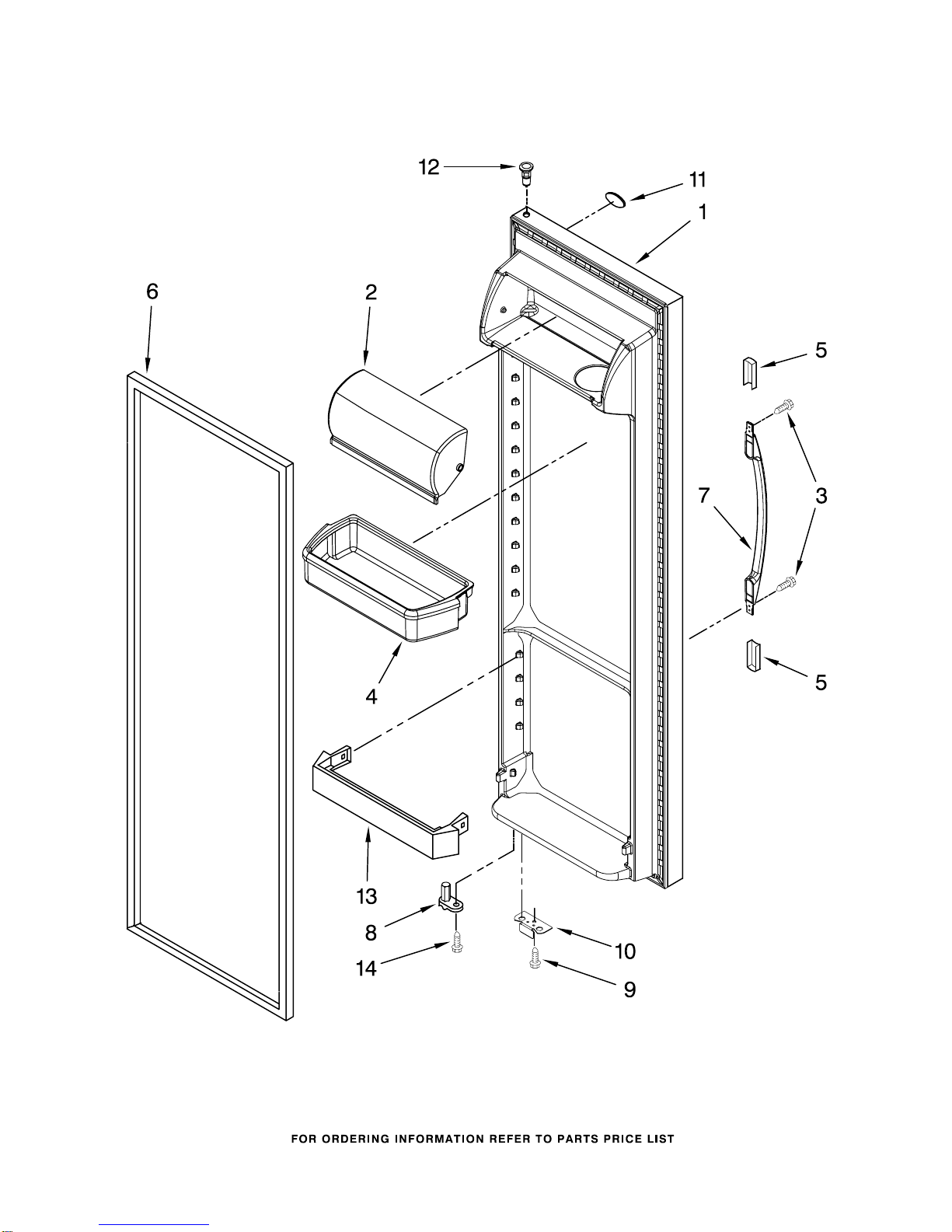

REFRIGERATOR DOOR PARTS
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
REFRIGERATOR DOOR PARTS
10
For Model: ED5FVGXSS04
(Stainless Steel)
W10208118
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item 6)
2206825S Stainless Steel
2 2256101 Door, Compartment
3 489491 Screw
4 2203828K Door Bin (3)
5 Extension, Handle
2193353B Black
6 Door Gasket,
Magnetic (Repair)
2221313 Black
7 Handle, Center
2186649B Black
8 2182178 Door Closer,
Upper Cam
9 489420 Screw
10 Bracket, Door Stop
2206629B Black
11 2255121 Nameplate
12 2182181 Thimble, Top
13 2156022 Trivet
14 3400012 Screw
