CABINET PARTS
For Model: ED5HVAXVL00
(Stainless VCM)
5−09 Printed In U.S.A. (jdc)(bay) Part No. W10174882 Rev. C
REFRIGERATOR
CABINET PARTS
2
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10166791
Energy Guide
2318584 Owner’s Manual
W10142162
Service & Wiring
Sheet
2220407 Modular Icemaker
Service Sheet
2216001 Instruction Sheet
(Door Removal)
2 2174748 Front Roller (2)
3 3400517 Screw
4 2196236 Rear Roller (2)
5 489427 Screw
6 2155013 Clip, Grille
7 489478 Screw
8 2156056 Shim
9 2203771 Hinge Top (RC)
10 3400113 Screw
11 8281227 Screw
12 Hinge Cover
2203407B Black
13 2304322 Hinge Bottom
14 Filler, Wrapper
2304848 Black
15 Grille
2260500B Black
16 489497 Screw
17 489464 Screw
18 2304888 Drain Fitting
19 2304937 Extension Tube
21 2188735 Cover, Unit
22 Cabinet (Not A
Serviceable Part)
23 Hinge Cover
2203408B Black
24 549193 Clamp, Service
Cord
25 489084 Screw
26 2155311 Door Closer,
Lower Cam (2)
27 489483 Screw
28 2260507 Housing, Water
Filter
29 2313412 Water Filter
30 Cap, Water
Filter
2260502B Black
31 489500 Screw
32 2260519 Block, Housing
Support
33 Button, Water
Filter
2260503B Black
34 2319867 Tube, Filter
Outlet
35 2319867 Tube, Filter
Inlet
36 2203770 Hinge Top (FC)

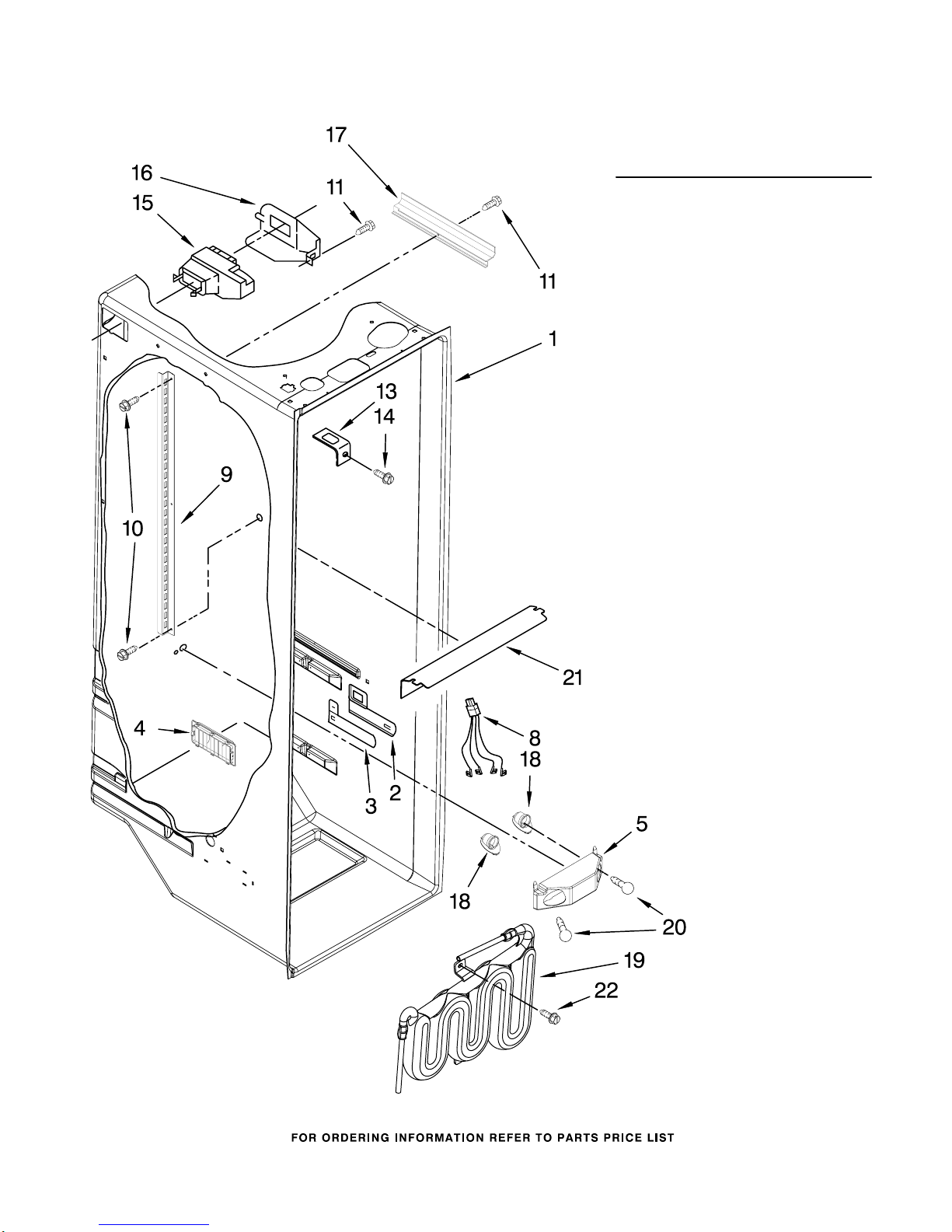

REFRIGERATOR LINER PARTS
3
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2194744 Escutcheon, Meat
Pan Control
3 2182757 Slide Meat
Pan Control
4 2257741 Louver
5 2256035 Bracket,
Dual Crisper
Light
8 2311637 Wire Harness,
Dual Crisper
9 2319866 Shelf Ladder
10 489478 Screw
11
W10004810
Screw (2)
13 2256085 Bracket Retainer
14 489290 Screw
15 2209753 Air Diffuser
Assembly
16 2152019 Air Diffuser
Cover
17 2150331 Cover, Wiring
18 2162085 Socket
19 2307107 Reservoir
20 2255743 Light Bulb
21 2209769 Light Lens
22 488280 Screw

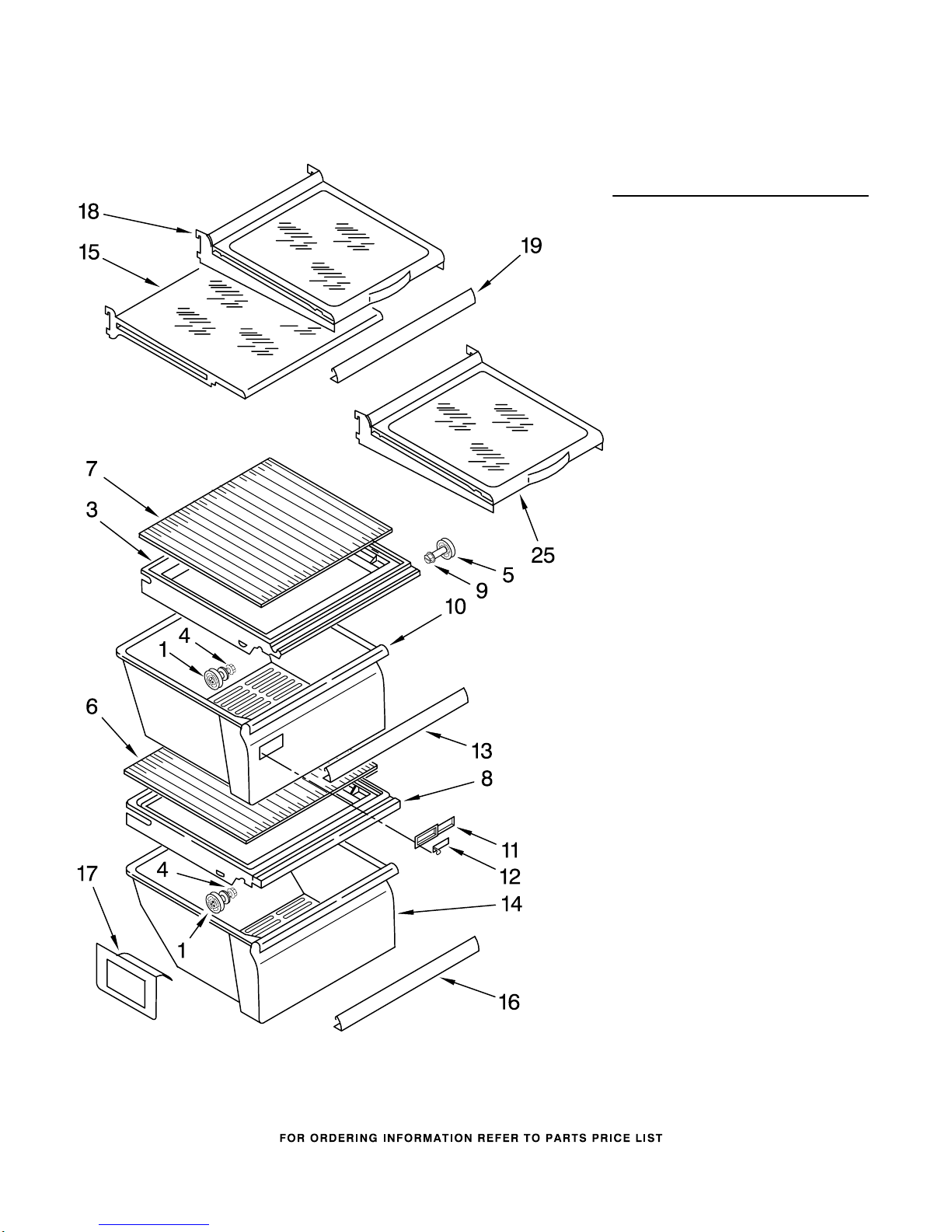

REFRIGERATOR SHELF PARTS
4
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION
1 2196485 Stud Assembly
3 2209698 Cover, Crisper
4 3400894 Screw
5 2196483 Stud Assembly
6 2179259 Glass, Meat Cover
7 2174150 Glass, Cover
8 2311726 Cover, Meat Pan
9 8281158 Screw
10 2188652 Crisper Pan
11 2179343 Body, Humidity
Control
12 2179342 Slide, Humidity
Control
13 2255593 Trim, Handle
14 2188724 Meat Pan
15 2188667 Snack Bin Assy.
16 2179350 Deflector
17 2255592 Trim, Meat Pan
18
W10141750
Shelf Assy
19 2179243 Trim, Snack Pan
25 2188695 Shelf Assembly,
Spillguard (2)
FREEZER LINER PARTS
5
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882

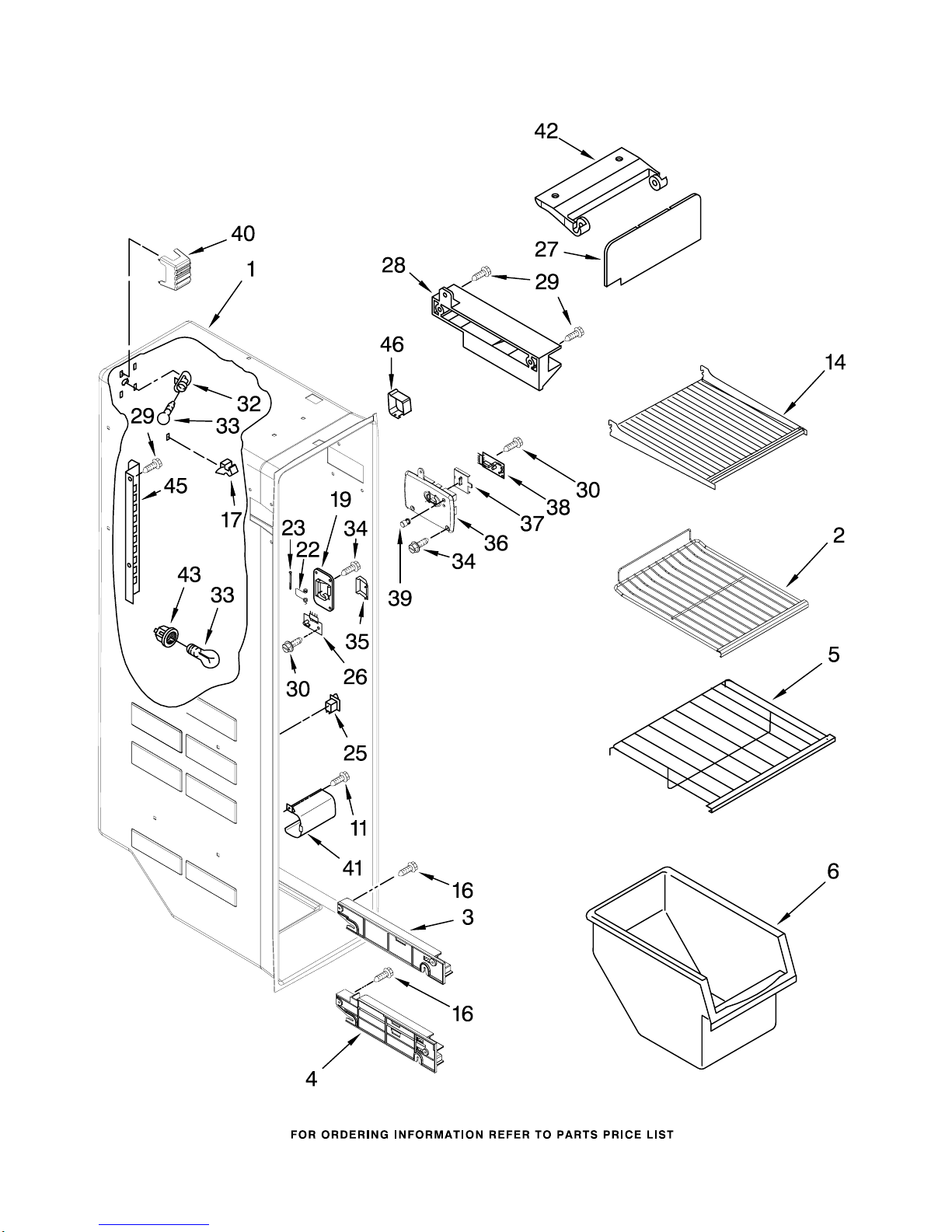

FREEZER LINER PARTS
6
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2211746K Shelf, Slide Out
Upper
3 2301291 Track−Shelf (RS)
4 2301292 Track−Shelf (LS)
5 2211742K Shelf−Slide Out
6 2182971 Freezer Bin
11 3400893 Screw
14 2205837K Shelf (2)
16
W10004810
Screw (8)
17 842534 Clip, Air Duct (2)
19 2198587 Cover, Emitter
22 2198635 Spring
23 2198634 Pin
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2255588 Cover, Ice Maker
28 2212321 Slide, Ice Maker
Mounting
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255558 Cover, Receiver
37 2255562 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2198609 Left Side
2198610 Right Side
46 2303234 Shield, Wiring

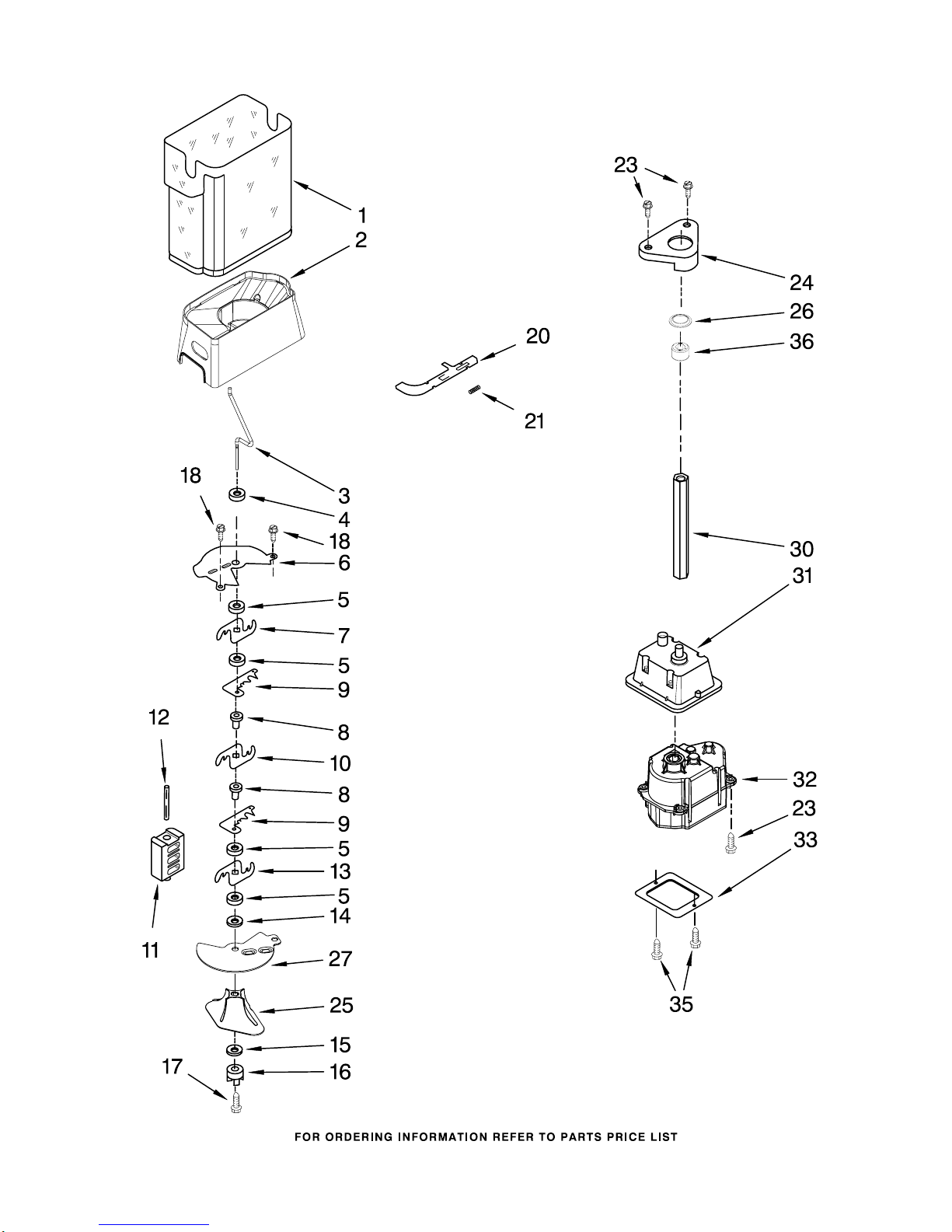

MOTOR AND ICE CONTAINER PARTS
7
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
MOTOR AND ICE CONTAINER PARTS
8
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION
1 2198573 Ice Bin
2 2317254 Crusher Bin
3 2317240 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2317248 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2317239 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
20 2317262 Latch, Bin
21 2198608 Spring, Latch
23 8281163 Screw
24 2188919 Holder
25 2317243 Wiper
26 2198628 Seal
27 2317250 Divider, Chamber
30 2188916 Drive Shaft
31 2256154 Enclosure, Motor
32 2315544 Dispenser, Motor
33 2212305 Cover
35 489478 Screw
36 2315559 Sleeve, Coupling
100 2317251 Ice Container
(Complete)
REFRIGERATOR DOOR PARTS
9
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
REFRIGERATOR DOOR PARTS
10
For Model: ED5HVAXVL00
(Stainless VCM)
W10174882
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes Item #6)
2326326LG
Stainless VCM
2 2256101 Compartment Door
3 2203828K Shelf Bin (3)
4 3400012 Screw
5 2255411 Clip, Mounting
6 Door Gasket,
Magnetic
2221313 Black
7
W10155511
Screw
8
W10127768
Handle, Extr
9
W10152862
Handle, Endcap
10 2182178 Door Closer,
Upper Cam
11 489420 Screw
12 Bracket, Door Stop
2206629B Black
13
W10129563
Screw, Mounting
14 2308091 Thimble−Top
15 2255121 Nameplate
