Whirlpool EL87TRRRQ01 Manuale utente

CABINET PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

4−08 Litho in U.S.A. (wam)(bay) Part No. W10205358 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210433 Owners Manual

8210378 Energy Guide/Tag

2 Top Hinge

W10179593

White

8210251 Black

3 Bottom Hinge

W10201501

White

8210268 Black

4 Grille

(Includes 6 & 7)

8210290 White

8210294 Black

5 4357277 Screw

6 4356803 Clip, Grille

7 Screw

4357243 White

8210262 Black

8 4390520 Washer

9 4390489 Shim Bottom

10 Cover, Hinge

4357279 White

4390763 Black

11 4390866 Leg, Leveller

W10164544

Grommet, Drain

13 4356830 Screw

14 4390489 Shim, Hinge

15 8210302 Power Cord

16 Cabinet (Not A

Serviceable Part)

17 8210265 Bracket, Roller

18 4390755 Axle

19 8210266 Screw

20 4390754 Roller, Front

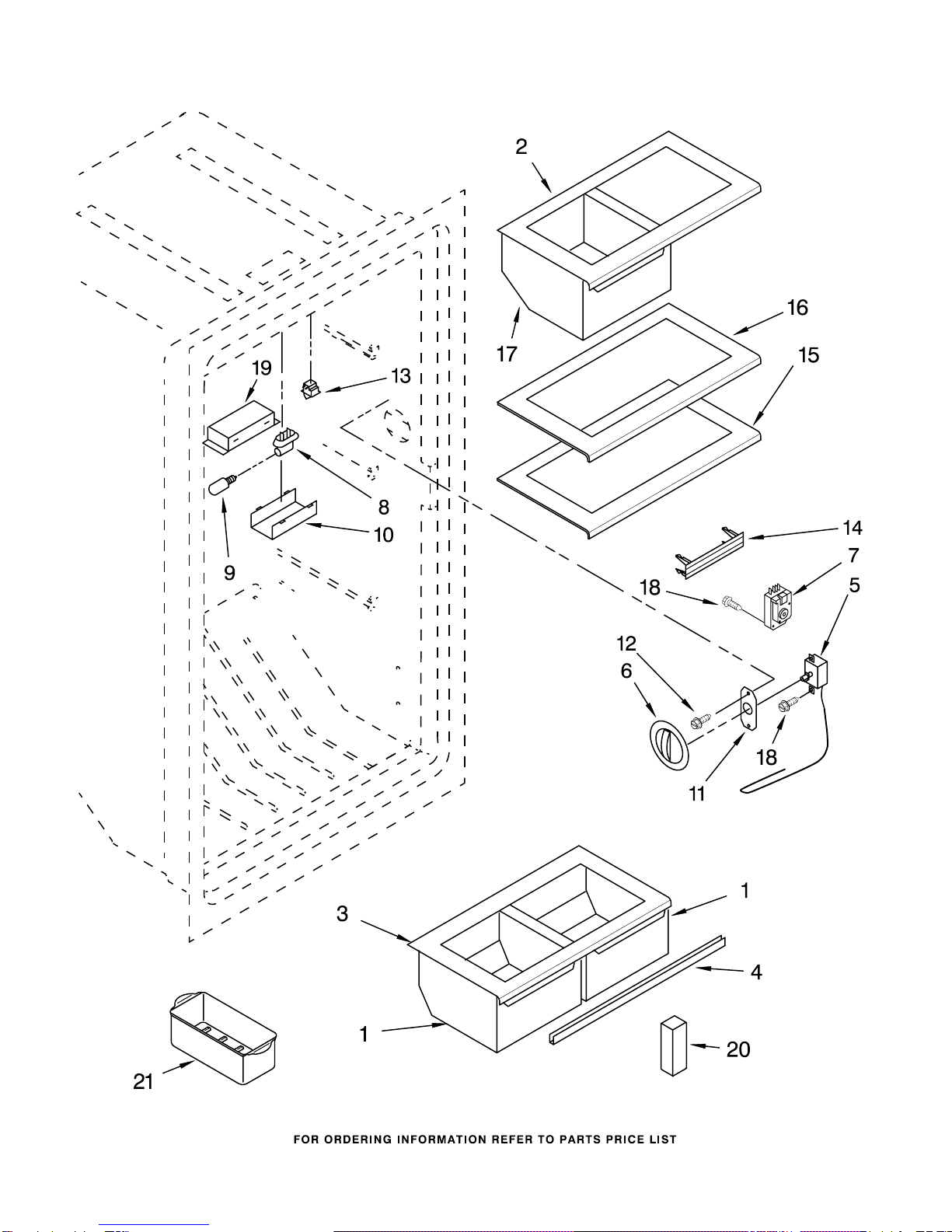

LINER PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

LINER PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

Illus. Part

No. No. DESCRIPTION

1 8210342 Pan, Crisper

2 4390770 Shelf, Crisper

(Upper)

3 4390772 Shelf, Crisper

(Lower)

4 4390773 Channel,

Crisper Cover

5 4390766 Thermostat

6 4357292 Knob, Thermostat

7 4357124 Timer, Defrost

8 8210350 Lamp, Socket

9 4390465 Bulb

10 4390743 Light Shield

11 4357041 Plate,

Thermostat

12 4357042 Screw

13 4390513 Light, Switch

14 4357295 Vent Plug

15 4390768 Shelf, Middle

16 4390767 Shelf, Top

17 8210236 Pan, Crisper

(Upper)

18 4356849 Screw

W10135693

Bracket, Light

20 4390774 Support,

Crisper Cover

21 4390775 Egg Bin

DOOR PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

DOOR PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

Illus. Part

No. No. DESCRIPTION

1 Exterior Door

(Includes

Interior Liner)

8210352 White

8210353 Stainless Steel

8210354 Satina

2 Stop, Door

(Top)

8210401 White

8210402 Black

3 Gasket

8210339 White

8210343 Black

4 8210383 Cover, Bin

5 8210380 Bin, Door

6 8210379 Rail, Door

(Lower)

7 8210381 Housing, Dairy

Compartment

8 8533976 Screw, Set

9 Bushing, Hinge

4390731 White

4390869 Black

10 488208 Screw

11 Stop, Door

(Bottom)

8210400 Natural

12 489491 Screw

13 2219698 Stud, Handle

14 2255121 Nameplate

15 Handle

2313345W White

2313345B Black

W10202711

Brushed Aluminum

(Includes Item 8)

16 4357067 Vent Plug

17 8210382 Door,

Compartment

18 2255411 Clip, Handle

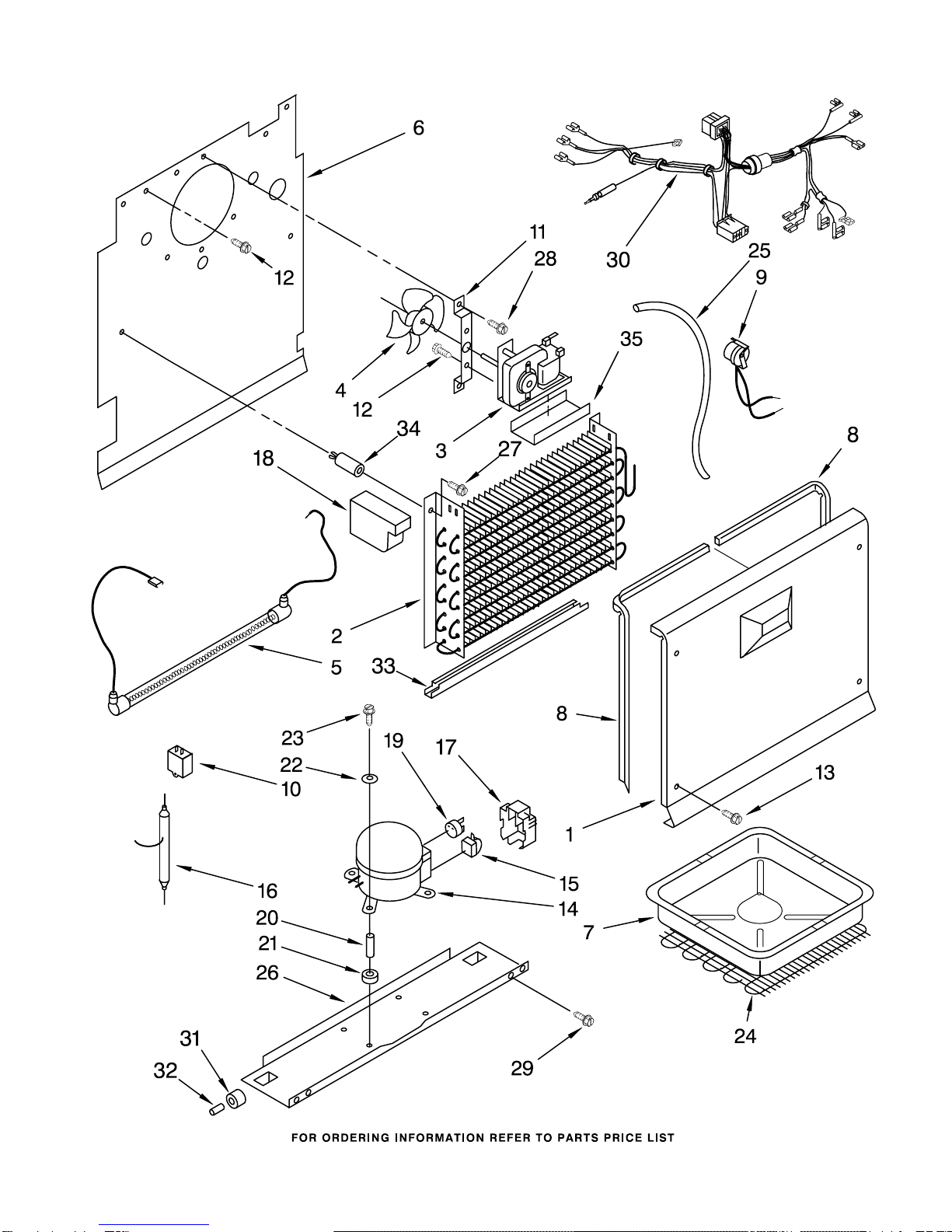

UNIT PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

UNIT PARTS

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4390782 Evaporator

3 4357004 Fan Motor

4 4356920 Fan Blade

5 4356923 Heater Defrost

6 4357123 Plate, Evaporator

Mount

7 4390932 Drain Pan

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 4390783 Bi−Metal Defrost

10 8210239 Capacitor

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357110 Screw

14 8210240 Compressor

(Includes Items

15,16,17 & 19)

15 4356738 Relay

16 4357299 Drier

17 8210242 Cover

18 8210261 Block, Foam

19 8210241 Overload

20 4356846 Sleeve

21 4356335 Grommet,

Compressor

22 4356847 Washer

23 8210220 Screw, Compressor

24 8210300 Condenser

25 4357245 Heat, Exchanger

26 8210202 Compressor Pan

27 4357243 Screw

28 4356970 Screw

29 4357277 Screw

30 8210301 Harness, Unit

31 4390754 Roller

32 4390755 Axle

33 4356924 Shield, Heater

34 4357020 Grommet

35 4357128 Shield, Motor

REFRIGERANT CHARGE

4.107 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: EL87TRRRQ01, EL87TRRRS01, EL87TRRRV01

(White) (Stainless Steel) (Satina)

W10205358

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
