Whirlpool ER6AHKXS Manuale utente

CABINET PARTS

For Models: ER6AHKXSQ01

White

7−07 Litho In U.S.A. (rrm) Part No. W10154411 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10145175

Service &

Wiring Sheet

2316016 Use & Care Guide

W10130118

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

3 2324094 Roller, Front

4 487996 Cap, Bushing

5 2266506 Foam Block

6 Cover, Hinge

2213360 White

7 488296 Washer

8 2264132 Cover, Unit

9 2222100 Screw

10 489442 Screw

11 2166086 Hinge, Center

12 Shim, Hinge

Center

2166043 White

13 489497 Screw

14 2221926 Hinge Butt,

Bottom

15 9791682 Hinge−Pin,

Bottom

16 3428970 Screw

17 2201567 Shim, Bottom

Hinge

18 2174760 Fitting, Water Tube

19 Hole Plug (6)

2201012 White

20 1106508 Seal

21 2262176 Screw

22 Corner Filler

2166003 White

23 489341 Washer

24 487576 Washer 7/64

25 Rail, Center

(Not Serviced)

26 Cabinet (Not a

Serviceable Part)

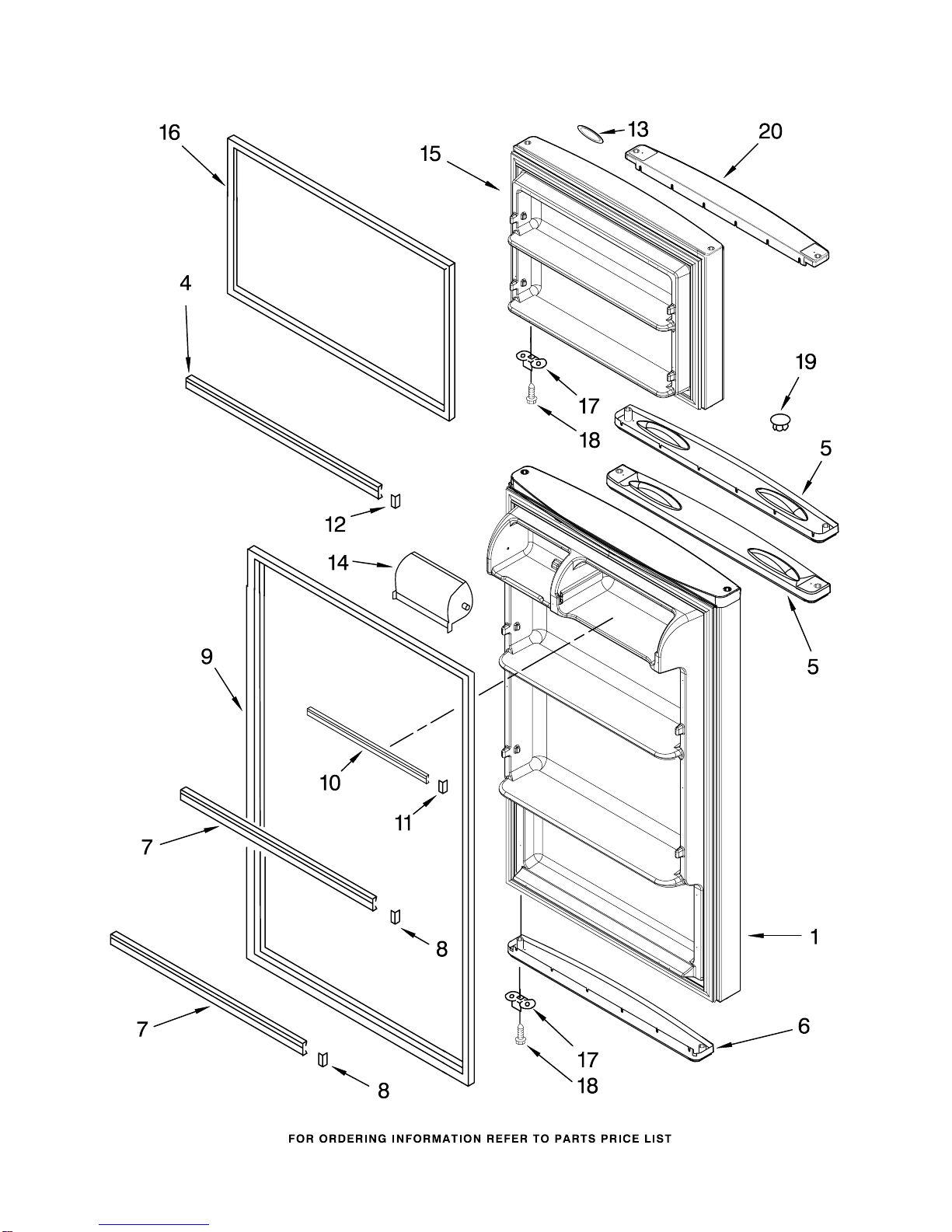

DOOR PARTS

For Models: ER6AHKXSQ01

White

W10154411

DOOR PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 5,6 & 9)

2316366W White

4 2266727 Trim, Door Shelf

5 Handle,

2265645W White

6 Endcap, Bottom

2265647W White

7 2266738 Trim, Door Shelf

8 2195916 Endcap, Trim

9 Door Gasket,

Magnetic

2264507 White

10 2266729 Trim, Door Shelf

11 2156007 Plug, Trim

12 2156003 Endcap, Trim

13 2262218 Nameplate

14 2207942 Door Compartment

15 Freezer Door

(Includes

Illus. 5,16 & 20)

2316367W White

16 Door Gasket,

Magnetic

2263257 White

17 2189202 Bracket, Door Stop

18 8533904 Screw

19 Hole Plug

2212648 White

20 Endcap, Top

2265644W White

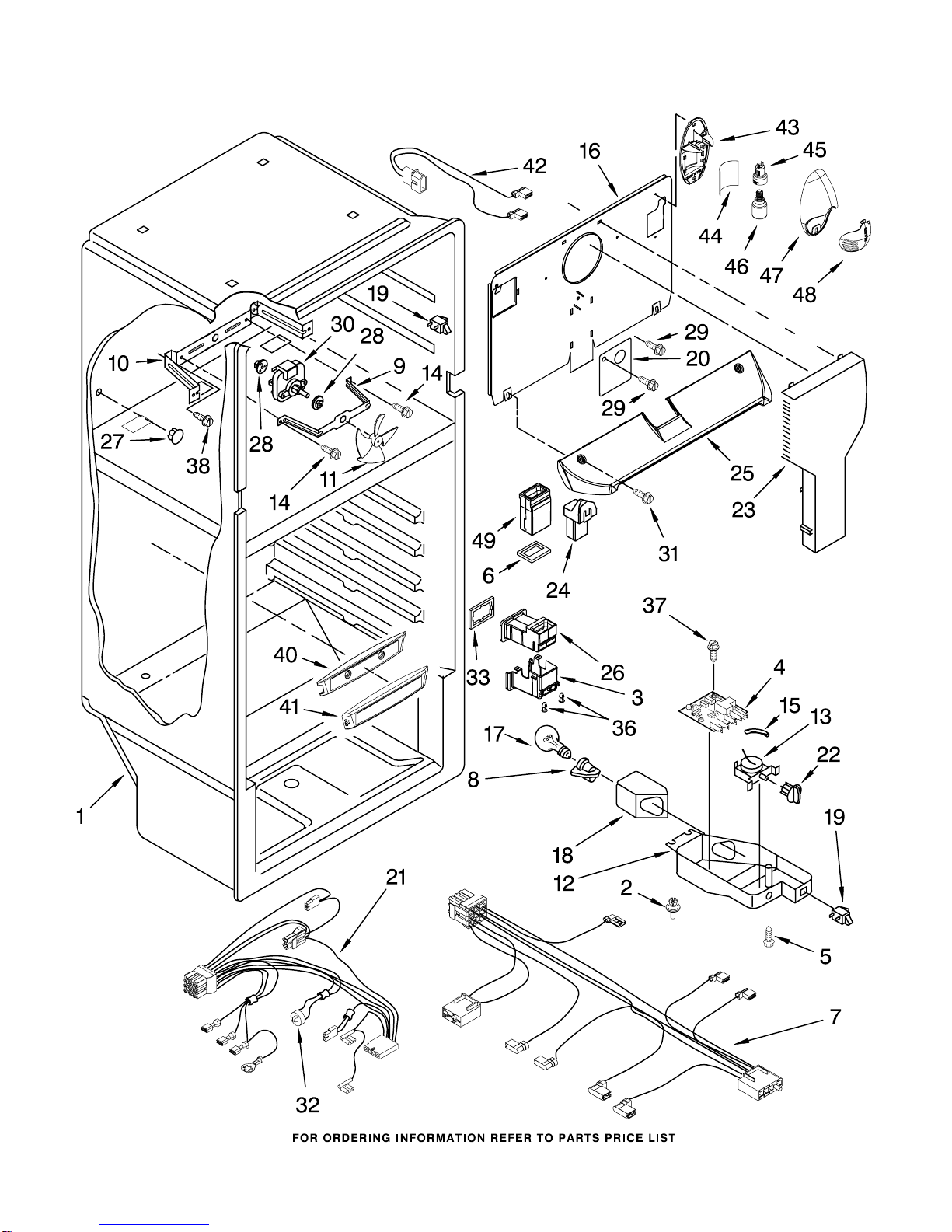

LINER PARTS

For Models: ER6AHKXSQ01

White

W10154411

LINER PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2252837 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

6 2263075 Gasket, Air Duct

7 2262434 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169141 Fan Blade

12 2263083 Control Box

13 2325700 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264715 Cover, Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217784 Cover, Hole

21 2319444 Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2252834 Air Diffuser

27 941839 Hole Plug

28 2264462 Grommet, Motor

29 489478 Screw

30 2201212 Evaporator Fan

Motor

31 2262178 Screw

32 2266067 Defrost, BI−Metal

33 2252846 Gasket, Body

Air Diffuser

36 2256983 Rivet

37 488693 Screw

38 489442 Screw

40 2256958 Insulation (4)

41 2263082 Grill (4)

42 2261879 Wiring Harness,

Freezer Light

43 2256949 Light Holder

44 2256948 Deflector, Light

45 2263413 Light Socket

46 R−31244 Light Bulb

47 2256946 Cover,

Light Holder

48 2256947 Lens, Light

49 2252831 Air Duct

Assembly

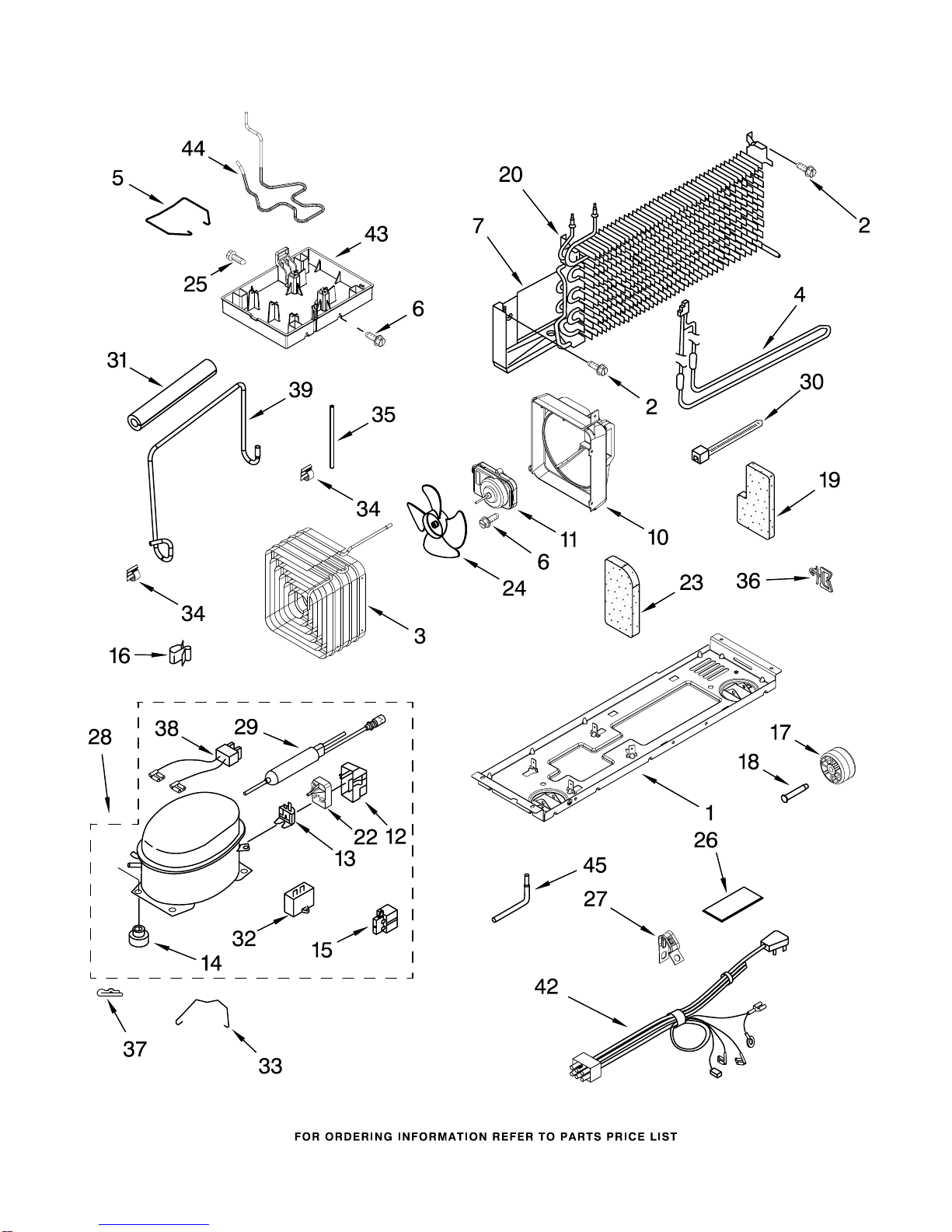

UNIT PARTS

For Models: ER6AHKXSQ01

White

W10154411

UNIT PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10127456

Support Plate,

Compressor

2 489442 Screw

W10140200

Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condensor

6 8533859 Screw

7 2319224 Heat Shield

10 2263929 Air Baffle

11 2188875 Motor, Condensor

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet

2222084 Production

4387558 Service

15 2183454 Start Relay

(Service Only)

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

W10128791

Start− Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

26 2266360 Shield−Electrical

27 549193 Clamp, Cord

W10141544

Compressor

(Includes Items

12,13,14,15,29

32 & 38)

29 Drier

2317845 Service

30 2263990 Strap

31 2264838 Sleeve

32 Capacitor

2264017 Production

1118576 Service

W10141545

Bale Strap

34 1114718 Clip, Wiring

35 2264278 Tube, Drain

36 2266467 Clip, Harness

37 24364001 Clip, Compressor

38 4387765 Wire Assembly

(Service Only)

W10140199

Extension,

Tube−Heat

42 2263753 Wire Assy. Unit

43 2263928 Evaporator Tray

W10140197

Tube, Discharge

(Incl. Pre Cooler)

W10140201

Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

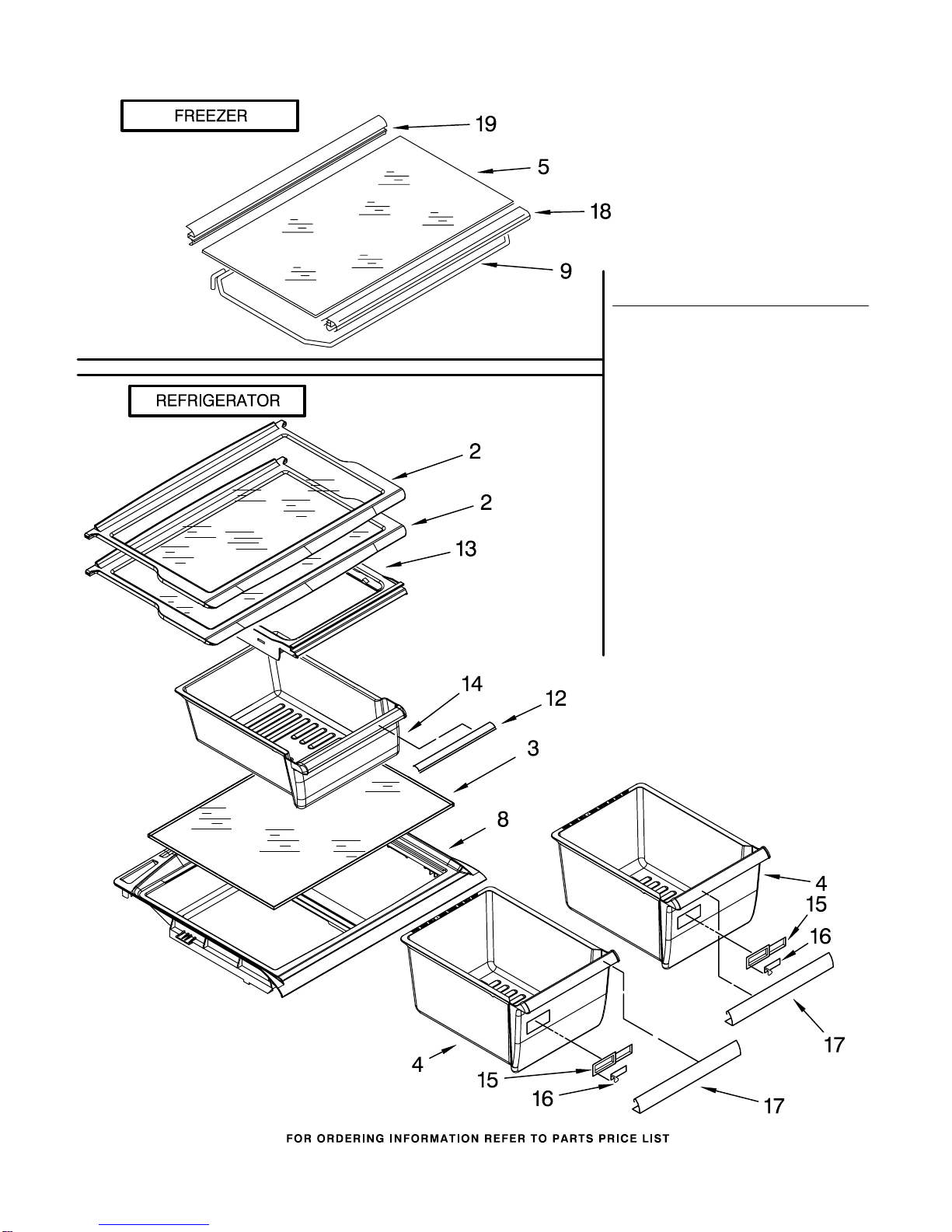

SHELF PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION

2 2263643 Shelf

3 2262441 Glass Cover

4 2263086 Crisper Pan

(Includes Items

15, 16 & 17)

5 2262442 Glass, Shelf

8 2222031 Cover, Crisper

9 2256691 Shelf−Frame, Wire

12 2263087 Trim, Meat Pan

13 2256601 Holder, Meat Pan

14 2263088 Meat Pan

(Includes #12)

15 2212446 Body, Humidity

Control

16 2176222 Slide, Humidity

Control

17 2263085 Trim, Crisper Pan

18 2215011 Trim, Shelf

(Front)

19 2215010 Trim, Shelf

(Rear)

OPTIONAL PARTS

For Models: ER6AHKXSQ01

White

W10154411

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

799340 Enamel, Black

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

1129316 ECKMF90

TORX SCREW WRENCH

1117510 Torx Key
