Whirlpool ES5DVAXW Manuale utente

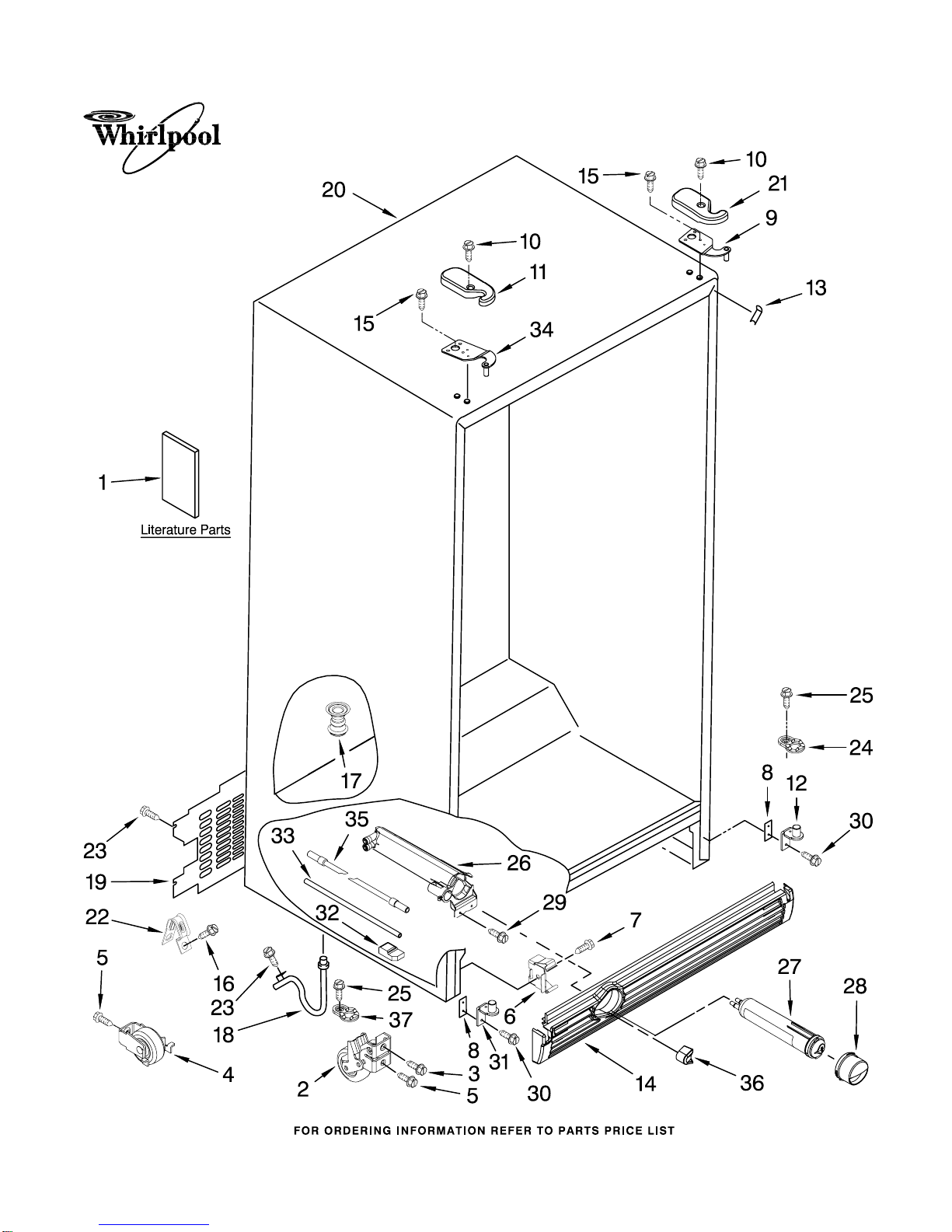

CABINET PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

7−09 Printed In U.S.A. (jdc) (psw) Part No. W10283349 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10253633

Energy Guide

W10193166

Owner’s Manual

W10238216

Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

W10206334

Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 488500 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

10 8281227 Screw

11 Hinge Cover (FC)

2203407W White

2203407B Black

2203407AP

Apollo Gray

W10138965

Bottom Hinge (RC)

13 Filler, Wrapper

2304846 White

2304848 Black

W10143043

Apollo Gray

14 Grille

W10188054

White

W10188055

Black

W10188057

Midnight Grey

15 489497 Screw

W10142235

Screw

17 2304888 Drain Fitting

W10153550

Extension Tube

19 2188739 Cover, Unit

20 Cabinet (Not A

Serviceable Part)

21 Hinge Cover (RC)

2203408W White

2203408B Black

2203408AP

Apollo Gray

22 549193 Clamp, Service

Cord

23 489084 Screw

24 2155311 Door Closer, RC

25 489483 Screw

W10121138

Housing, Water

Filter

27 9030 Water Filter

28 Cap, Water

Filter

2260502W White

2260502B Black

2260502MG

Midnight Grey

29 489500 Screw

W10001250

Screw

31 2303141 Bottom Hinge (FC)

32 2260519 Block, Housing

Support

33 2255012 Tube, Filter

Outlet

34 2203770 Hinge Top (FC)

W10212512

Tube, Filter

Inlet

36 Button, Water

Filter

2260503W White

2260503B Black

2260503MG

Midnight Grey

37 2223751 Door Closer, FC

REFRIGERATOR LINER PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 1118894 Switch,

Rocker Arm

6 2319866 Shelf Ladder

W10001260

Screw

W10128734

Air Diffuser

Assembly

9 2162085 Socket

10 2307107 Reservoir

W10194422

Light Bulb

W10242623

Shield Assy, Light

W10001250

Screw

W10128735

Cover, Air

Diffuser

17 2310527 Wire Assy −

RC Light

18 2326209 Trim, Light RC

19 2223680 Shield, Heat

20 2223857 Socket, Light

21 2326255 Bulb, Light

W10141632

Screw

23 2223506 Lens, Light

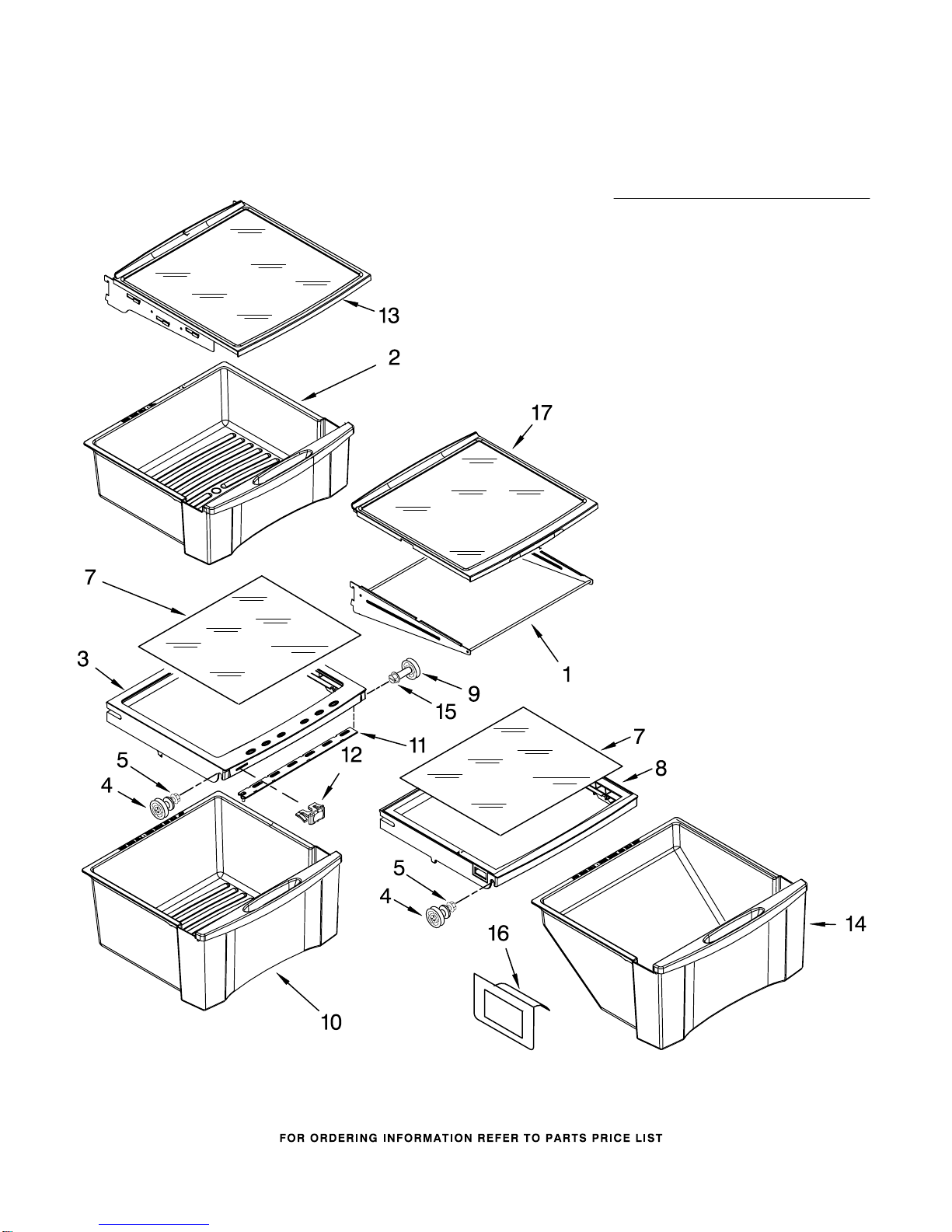

REFRIGERATOR SHELF PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION

1 2195975 Frame Assembly (2)

2 2188667 Snack Bin Asm

3 2209698 Cover, Crisper

4 2196208 Stud Assembly

W10191954

Screw

7 2179259 Glass, Cover

8 2311726 Cover, Meat Pan

9 2196205 Stud Assembly

W10178772

Crisper Pan Asm

11 2179342 Slide, Humidity

Control

12 2179343 Knob, Humidity

Control

W10141750

Shelf Pan Assembly

14 2188665 Meat Pan Assembly

W10191952

Screw

16 2179350 Deflector

W10141748

Shelf,

Slide Out (2)

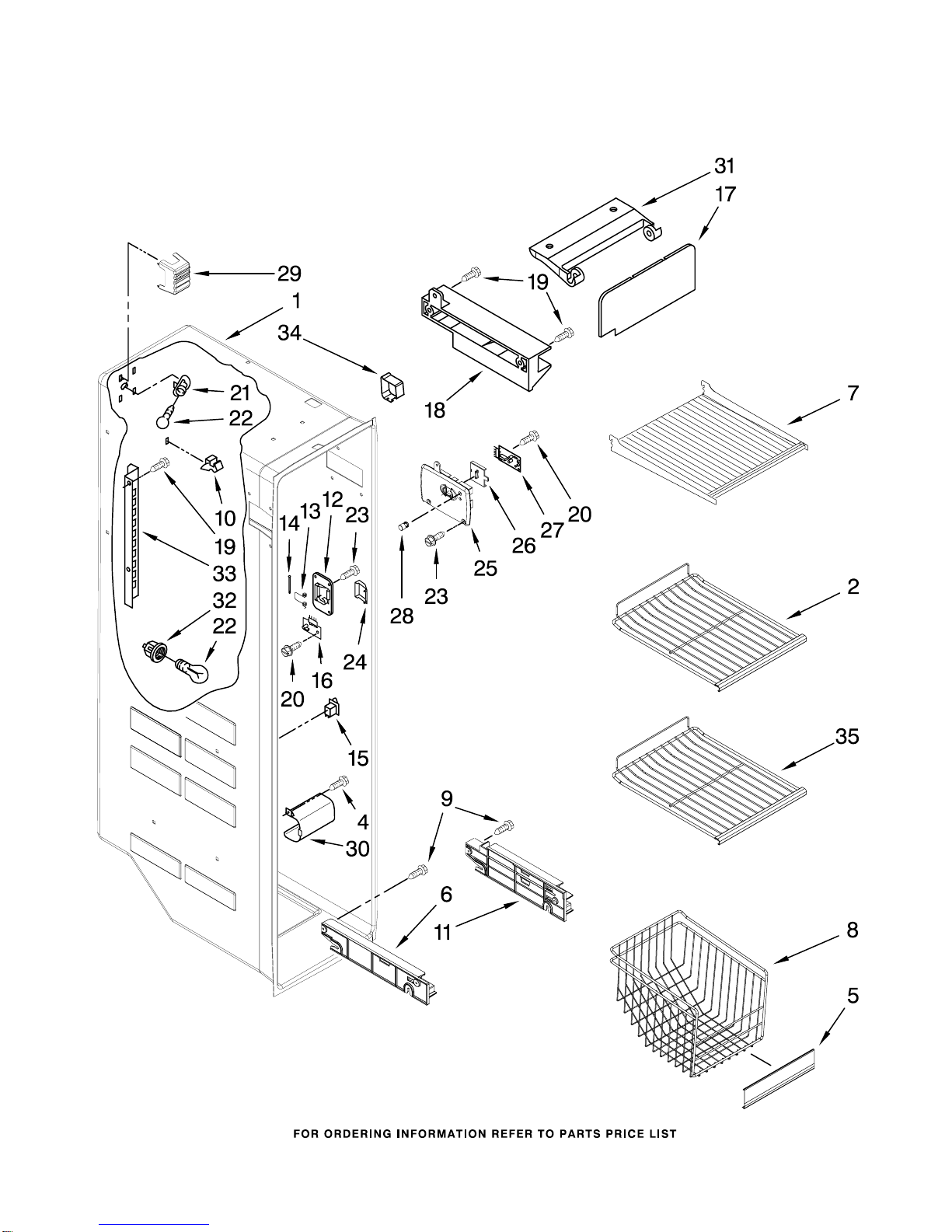

FREEZER LINER PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

FREEZER LINER PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2211746 Shelf, FC (2)

4 3400893 Screw

5 2219982 Trim, Basket

6 Shelf Track

2301289 Right Side

2301290 Left Side

7 2205837K Shelf (2)

8 2182971 Basket, Sloped

W10004810

Screw (8)

10 842534 Clip, Air Duct (2)

11 Shelf Track, Dual

2301291 Right Side

2301292 Left Side

12 2198587 Cover, Emitter

13 2198635 Spring

14 2198634 Pin

15 1115373 Switch, Rocker Arm

W10193840

P.C. Board

Emitter

17 2255720 Cover, Ice Maker

18 2212321 Slide, Ice Maker

Mounting

W10001260

Screw

20 489214 Screw

21 2162085 Light Socket

W10194422

Light Bulb

23 8281185 Screw

24 2198633 Flipper

W10173569

Cover, Receiver

26 2315398 Slide, Ice Maker

Shut Off

W10193666

P.C. Board,

Receiver

28 2198643 Lens

29 2198589 Light Shield

30 2212340 Light Lens

31 2198641 Bracket,

Ice Maker Cover

32 2155597 Socket

33 Light Ladder

2198609 Left Side

2198610 Right Side

34 2303234 Shield, Wiring

35 2211742 Shelf, Lower

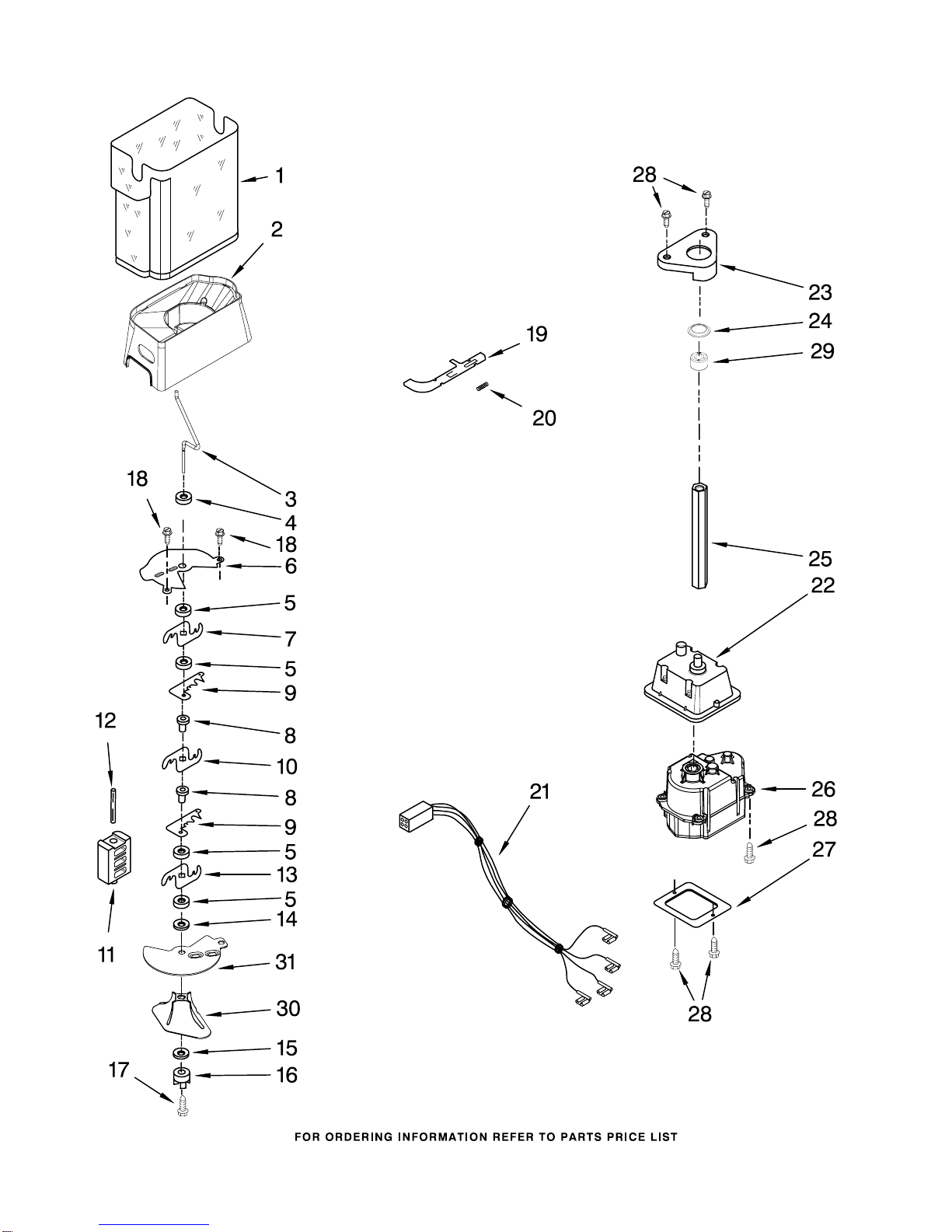

MOTOR AND ICE CONTAINER PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

MOTOR AND ICE CONTAINER PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2317254 Crusher Bin

3 2317240 Auger

4 2258220 Washer, Auger

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

19 2317277 Latch, Bin

20 2198608 Spring, Latch

W10209450

Wire Assembly,

IDI Motor

22 2322488 Enclosure, Motor

23 2188919 Holder

24 2198628 Seal

25 2188916 Drive Shaft

26 2326873 Dispenser, Motor

27 2212305 Cover

28 8281163 Screw (2)

29 2315559 Sleeve, Coupling

30 2317243 Wiper

31 2317250 Divider −

Chamber

100 2317251 Ice Container

(Complete)

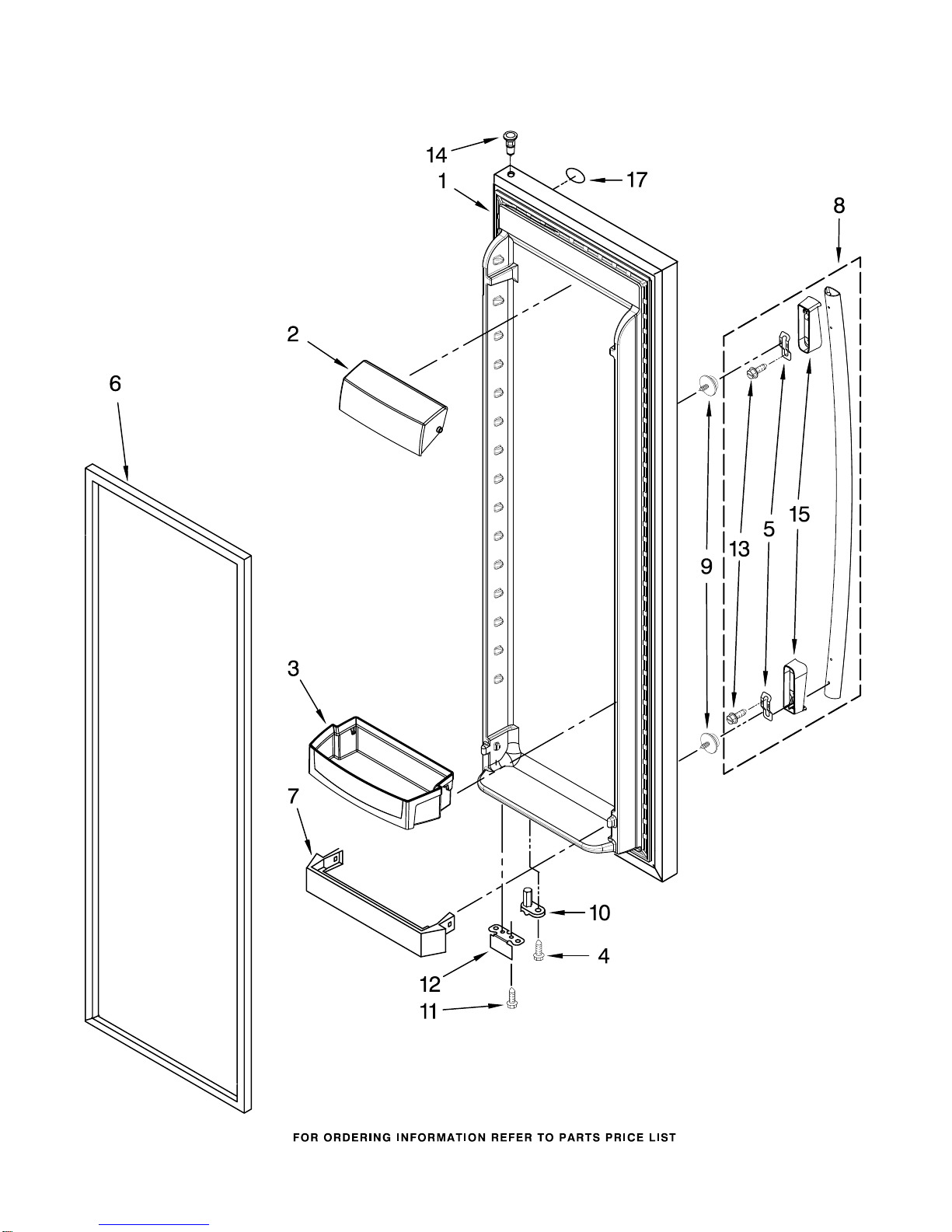

REFRIGERATOR DOOR PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

REFRIGERATOR DOOR PARTS

For Models: ES5DVAXWQ00, ES5DVAXWB00, ES5DVAXWY00, ES5DVAXWA00, ES5DVAXWS00

(White) (Black) (Monochromatic Satina) (Monochromatic Stainless) (Stainless)

W10283349

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

W10169204

White

W10169205

Black

W10169210

Mono Satina

W10169208

Monochromatic

Stainless

W10169207

Stainless

2 2256101 Dairy Door

3 2313199 Door Bin (3)

4 3400012 Screw

5 2255411 Clip

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

2326338 Apollo Grey

7 2156022 Trivet

8 Handle, Assy

W10127803

White

W10127804

Black

W10152865

Stainless, All

W10129563

Screw, Mounting

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

3400012 Chrome

W10175741

Black

W10201588

Screw

14 2200087 Thimble, Top

15 Handle, Endcap

W10127813

White

W10127814

Black

W10152864

Stainless, All

17 2255121 Nameplate
