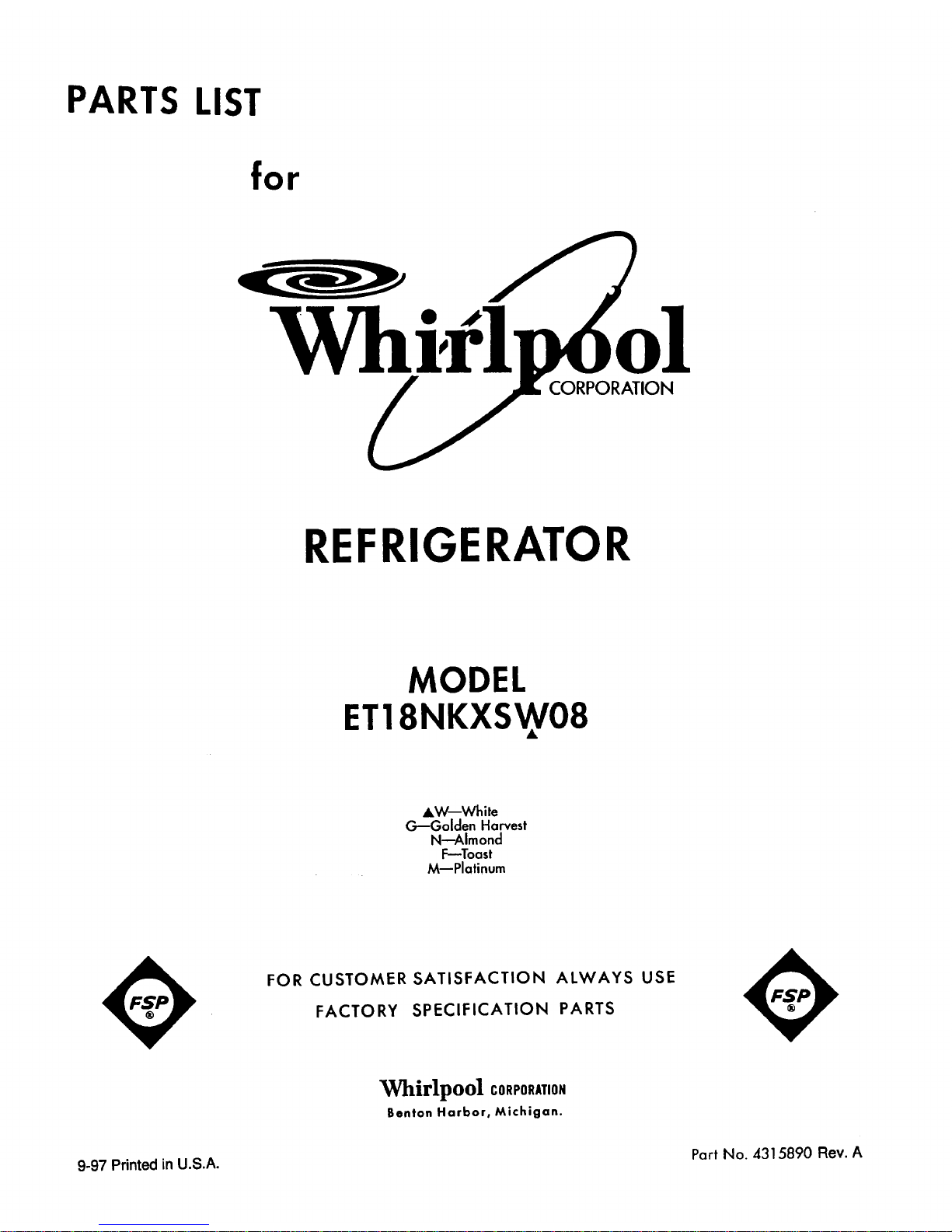

Whirlpool ET18NKXSW08 Manuale utente

1 Cabinet (Not A Serviceable Part)

2 944766 Leveler

3 937216 Roller, Front & Rear (4)

4 489179 Screw

489297 Screw (Repair)

5 940024 Spacer

6 534365 Breaker, Trim Clip (3)

7 1108139 Heater, Mullion

8 1110231 Center Rail, Bracket (2)

10 489169 Screw (2)

11 488844 Screw, 8-32 x 1/2 (2)

12 Hole Plug (2)

1122929 White

1126569 Golden Harvest

1126571 Almond

1126570 Toast

1126568 Platinum

13 Center Rail

1120501 White

1120502 Golden Harvest

1120503 Almond

1120505 Platinum

1120504 Toast

14 939034 Center, Rail Shim (2)

15 489184 Screw

16 489194 Screw, 10-32 x 23/32

489297 Screw (Repair)

17 1123514 Hinge, Top

18 1123517 Shim, Hinge Top

19 Hinge Cover

842010 White

989896 Golden Harvest

989194 Almond

1100172 Toast

1100173 Platinum

20 489077 Screw, 10-32 x 1/2

489297 Screw (Repair)

21 944788 Hinge, Center

22 836155 Shim, Hinge Center

836195 Shim, Center (Repair)

23 487802 Washer, 7/64

24 488296 Washer, 11/64

25 944813 Tap Plate (2)

26 1123882 Hinge Butt, Bottom

27 654366 Hinge Pin, Bottom

28 489218 Screw

29 942812 Shim, Bottom

30 489201 Washer, 7/64

31 Cover, Glider Rail

942818 White

942820 Golden Harvest

942822 Almond

1100685 Platinum

1100686 Toast

32 Cover, Deck Rail

1119399 White

1119400 Golden Harvest

1119401 Almond

1119403 Platinum

1119402 Toast

33 Cover, Glider Rail

943552 White

944831 Almond

944833 Golden Harvest

1100681 Platinum

1100682 Toast

34 Filler, Wrap Corner (2)

1118058 White

1118060 Golden Harvest

1118059 Almond

1118062 Platinum

1118061 Toast

35 Hole Plug

1119707 White

1119709 Almond

1119708 Golden Harvest

1119711 Platinum

1119710 Toast

36 Hole Plug (3)

1129062 White

1129063 Almond

1129064 Golden Harvest

1129065 Toast

1129066 Platinum

37 1129056 Hole Seal

39 942845 Cover, Wiring

41 489242 Screw

489254 Screw (Repair)

42 939054 Clip, Wire (4)

43 549193 Clamp, Service Cord

44 937360 Cord, Service

45 937357 Clamp

46 942813 Fitting, Drain

47 1106507 Gasket, Seal

49 1106511 Plug Assembly

50 1120224 Hole Seal

51 509640 Tube, Drain

52 519405 Clamp

53 1106510 Seal, Gasket

1 Liner (Not A Serviceable Part)

2 1127626 Wiring, Fan Motor

4 941839 Hole Plug (2)

6 942751 Side, Electric Shield

7 1129068 Top, Electric Shield

8 942750 Stud, Evaporator (2)

9 939065 Stud Hook

11 1123230 Clip, Strap

13 1118775 Cover, Air Duct

15 489242 Screw

489254 Screw (Repair)

16 1105608 Motor, Fan

17 1100938 Blade, Fan

18 487887 Screw, 3-48 x 1/4 (2)

19 531933 Grommet (2)

21 489168 Screw (2)

23 1122814 Scroll, Fan

24 943741 Evaporator Cover

25 489225 Screw (5)

26 1129070 Hole Cover, Evaporator

27 1103725 Hole Plug

1 1111796 Bottom, Compartment Separator

2 1126703 Box, Control

3 1108112 Switch, Rocker Arm

4 1114283 Timer, Defrost (8 Hour)

5 488693 Screw, 6-20 x 1/2

6 1105166 Switch, Toggle

7 851067 Socket Assembly

8 946059 Bulb, Light

9 940014 Hole Plug

10 1114241 Thermostat Barrier Assembly

11 1111759 Knob, Thermostat

12 1108358 Drain Pan

14 1126711 Knob, Air Control

16 1111272 Rod, Connecting

17 1118774 Air Diffuser Assembly

18 1114325 Gasket, Air Diffuser

19 1108176 Cover, Air Diffuser

20 489242 Screw

489254 Screw (Repair)

21 937078 Wiring Assembly

22 1127674 Wiring Assembly, Control Box &

23 1123915 Gasket, Bottom Separator

25 488678 Screw, 8-15 x 1-3/8

26 1108196 Insulation, Filler

27 1110354 Insulation, Compartment Separator

28 946367 Pad (2)

31 1111503 Insulation, Center Rail

33 1123400 Separator, Compartment (Top)

34 942849 Drain Insert, Separator,

35 939191 Cup, Drain

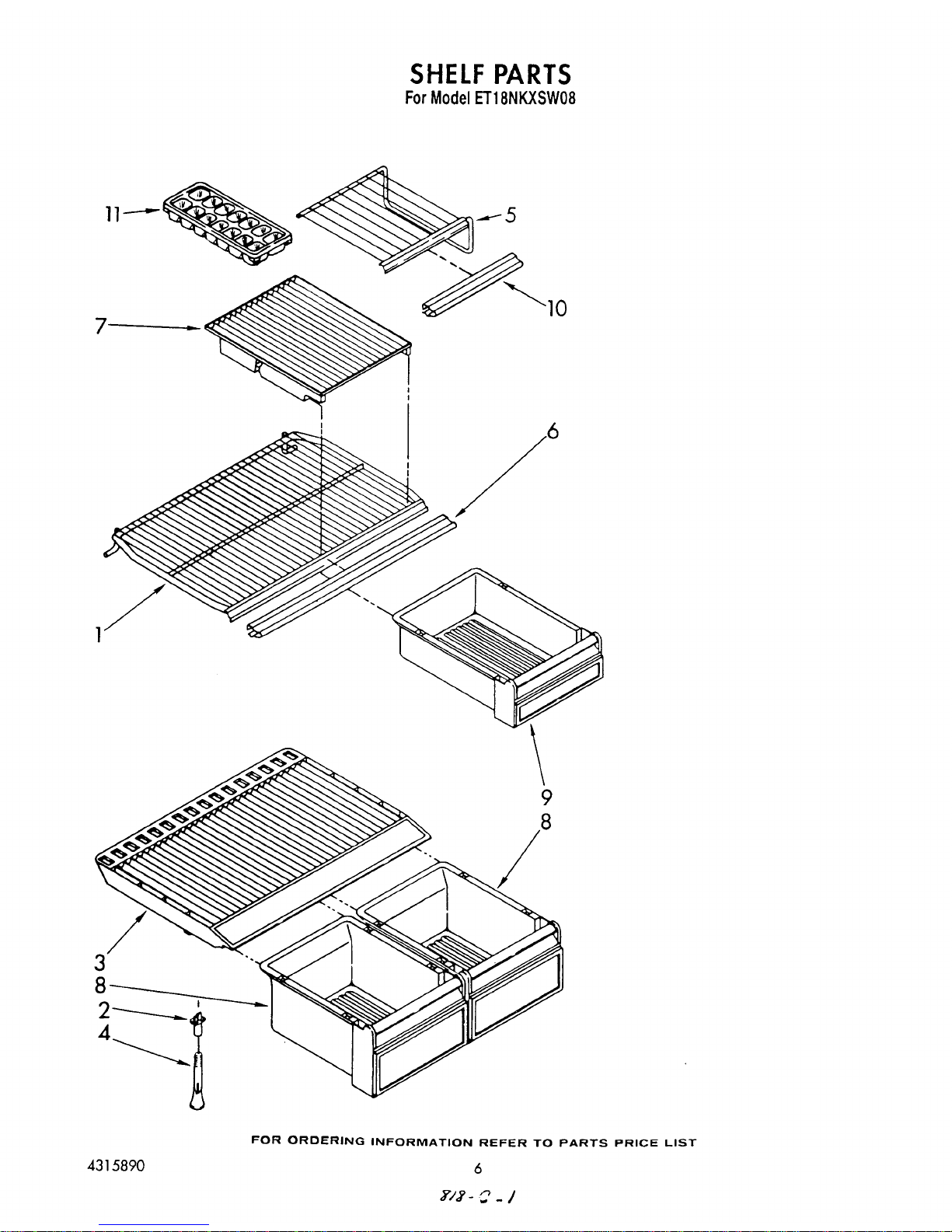

1 943719 Shelf, Pullout (3)

2 1103731 Support Cover, Crisper

3 1110144 Cover, Crisper

4 836410 Post, Crisper Cover

5 1100799 Shelf, Ice Cube Pan

6 943718 Trim, Shelf (3)

7 1110145 Cover, Meat Pan

8 1111863 Crisper Pan

9 1116012 Pan, Meat

10 1100125 Trim, Shelf

11 841180 Tray, Ice (2)
