Whirlpool G32026PEKW3 Manuale utente

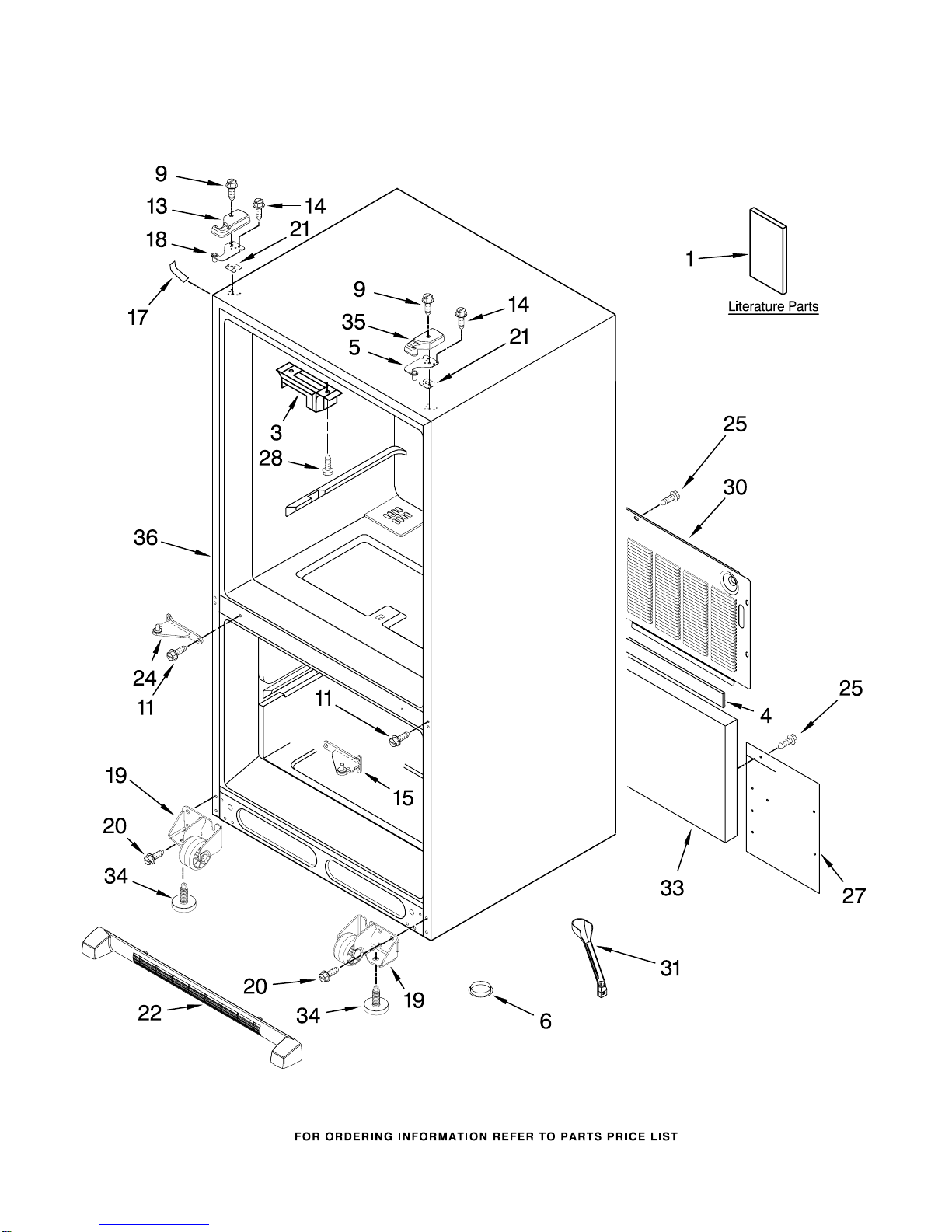

CABINET PARTS
1
For Models: G32026PEKW3
(White)
9−09 Litho In U.S.A. (mat)(bay) Part No. W10294593 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: G32026PEKW3
(White)
W10294593
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10239995
Tech Sheet
12828189 Owners Manual
3 12698403 Block, Pivot
4 B5759649 Gasket
5
12566604ED
Hinge, Top Right
6 A3076901 Plug, Button
9 12992602 Screw
11 12992201 Screw (6)
13 Cover, Left Hinge
W10177766
White
14 12992403 Screw (6)
15 Hinge, Center (RT)
13000002WD
White
17 Cover, Corner
12587703W
White
18
12566605ED
Hinge, Top Left
19 Bracket, Foot (2)
W10275850
Left
W10275849
Right
20 12991302 Screw
21 12579702 Shim, Hinge
22 Grille, Toe
W10244559
White
24 Hinge, Center (LT)
13000001WD
White
25 12990511 Screw (10)
27
W10217701
Cover, Water Valve
28 12990303 Screw (2)
30
W10212203
Cover, Unit
31 12638901 Tube, Drain
33 12820505 Insulation, Sound
34
W10141622
Foot Brake
35 Cover, Right Hinge
12684202W
White
36 Cabinet (Not a
Servicable Part)

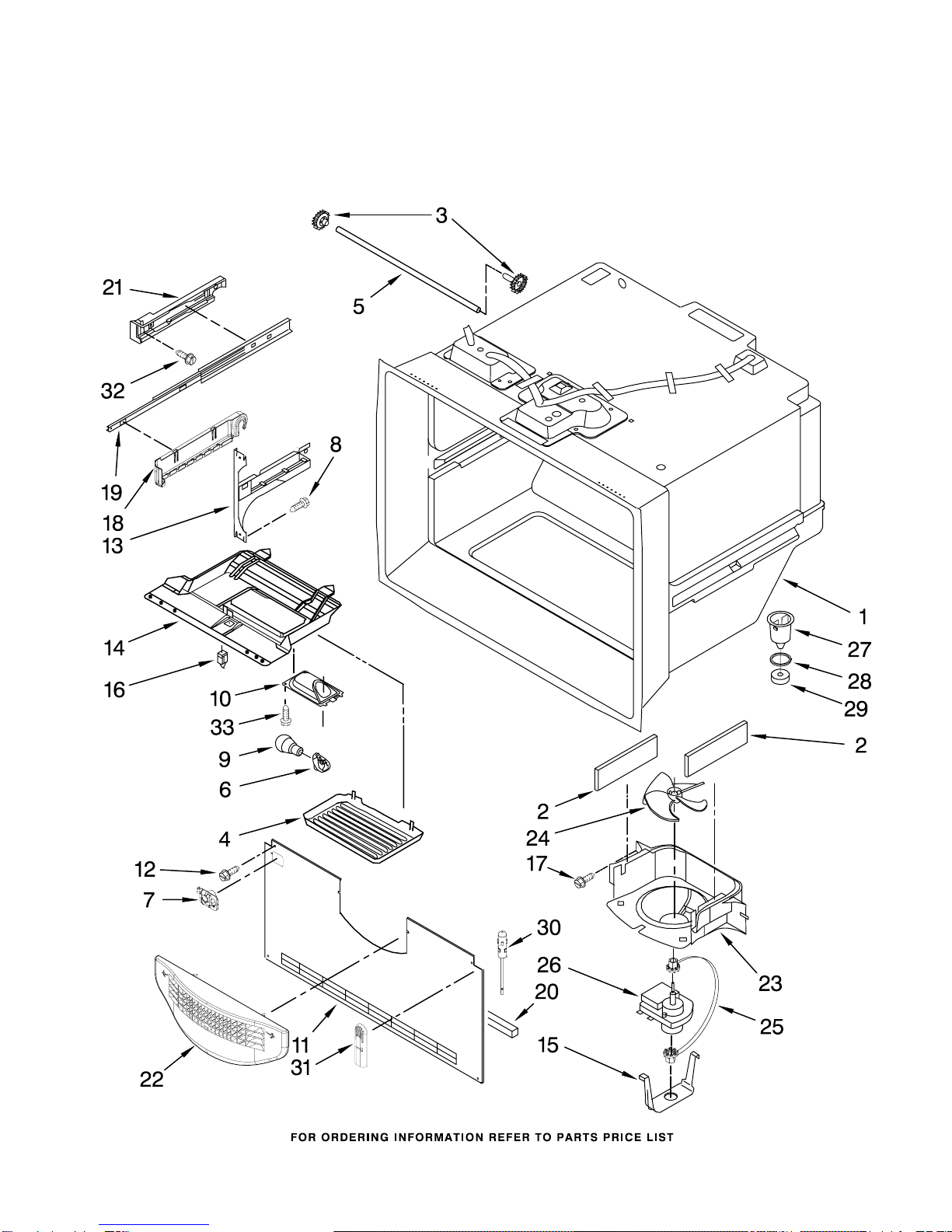

FREEZER LINER PARTS
3
For Models: G32026PEKW3
(White)
W10294593
FREEZER LINER PARTS
4
For Models: G32026PEKW3
(White)
W10294593
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189392 Gasket, Foam
3 12002497 Gear
(Includes LH & RH)
4 12804901 Cover, Light
5
12812903WD
Shaft
6
W10134764V
Socket, Light
7 12932103 Guide, Fill Tube
8 12990521 Screw (8)
9
A0282808V
Bulb, Light
10
12476401V
Housing, Light
11 12226114 Cover, Evaporator
12 12990511 Screw (4)
13 Bracket, Door
W10119064
Left
W10119295
Right
14 12805001 Module, Light
15 10623002 Clip, Evap Motor
16 12466105 Switch, Light
17 12990504 Screw (2)
18 Cradle, Basket
W10281115
Left
W10281116
Right
19 13055901 Slide, Drawer (2)
20 A3189397 Gasket, Bottom
21 Adapter, Slide
12846605 Left
12846606 Right
22 13024803 Grille, Fz Air
23 13057901 Shroud, Evap Fan
24 2169142 Blade, Fan
(Evaporator)
25
W10121318
Grommet
26 10449516 Motor, Evaporator
27 D7753903 Funnel, Drain
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 12815301 Cover, Thermistor
32 12990501 Screw (6)
33
12991603V
Screw
Following Parts Not Illustrated
13065802 Harness, Fz Module

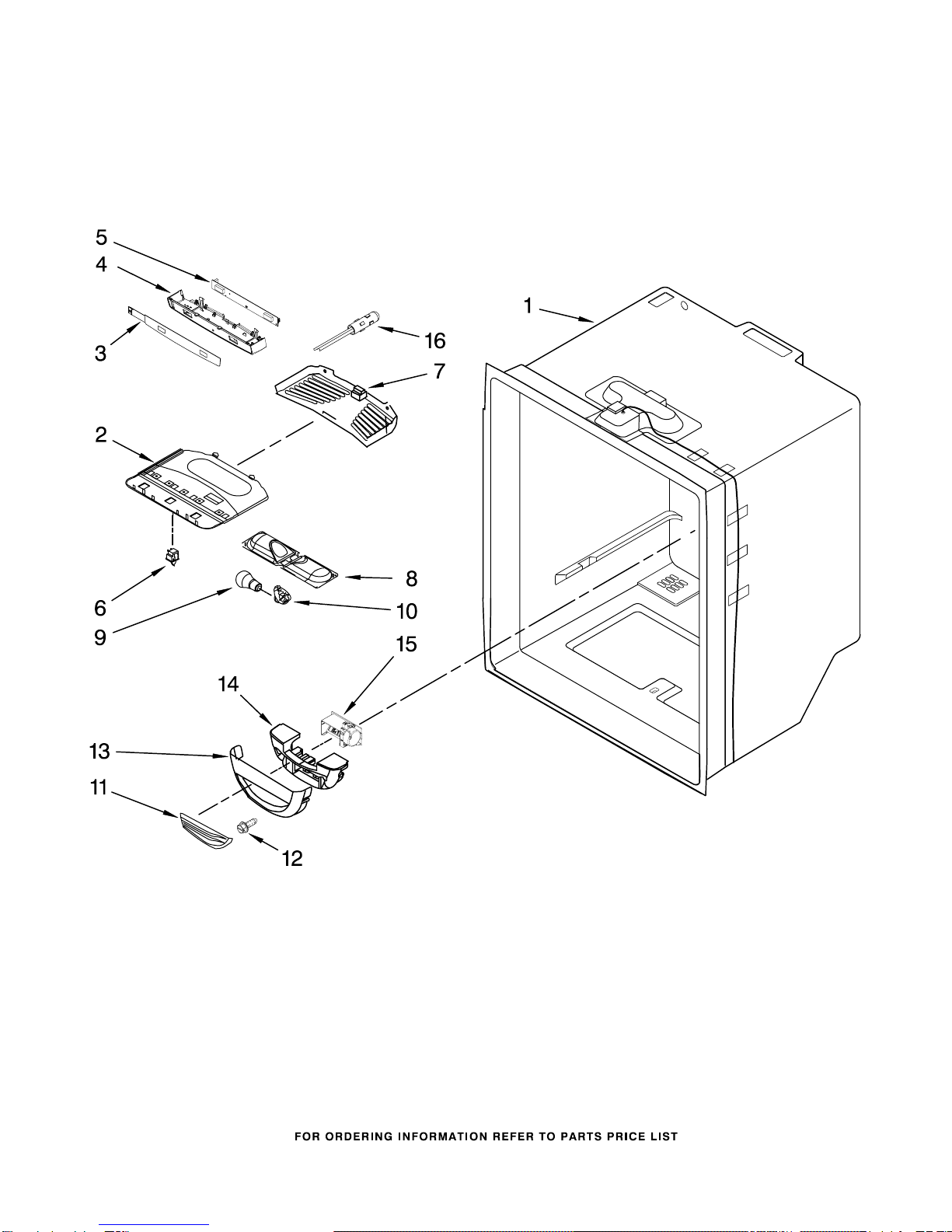

REFRIGERATOR LINER PARTS
5
For Models: G32026PEKW3
(White)
W10294593
REFRIGERATOR LINER PARTS
6
For Models: G32026PEKW3
(White)
W10294593
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806302 Bracket, Control
and Lights
3 12816517 Keyboard
4 12806406 Housing, Control
5 12868515 Board, Control
6
C3680310V
Switch, Light (2)
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
A0282808V
Bulb, Light (2)
10
W10134764V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw (2)
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10177399
Control, Damper
(Incl. Harness)
16 12002355 Thermistor
Following Parts Not Illustrated
12973603 Harness, Control
(Refrigerator)

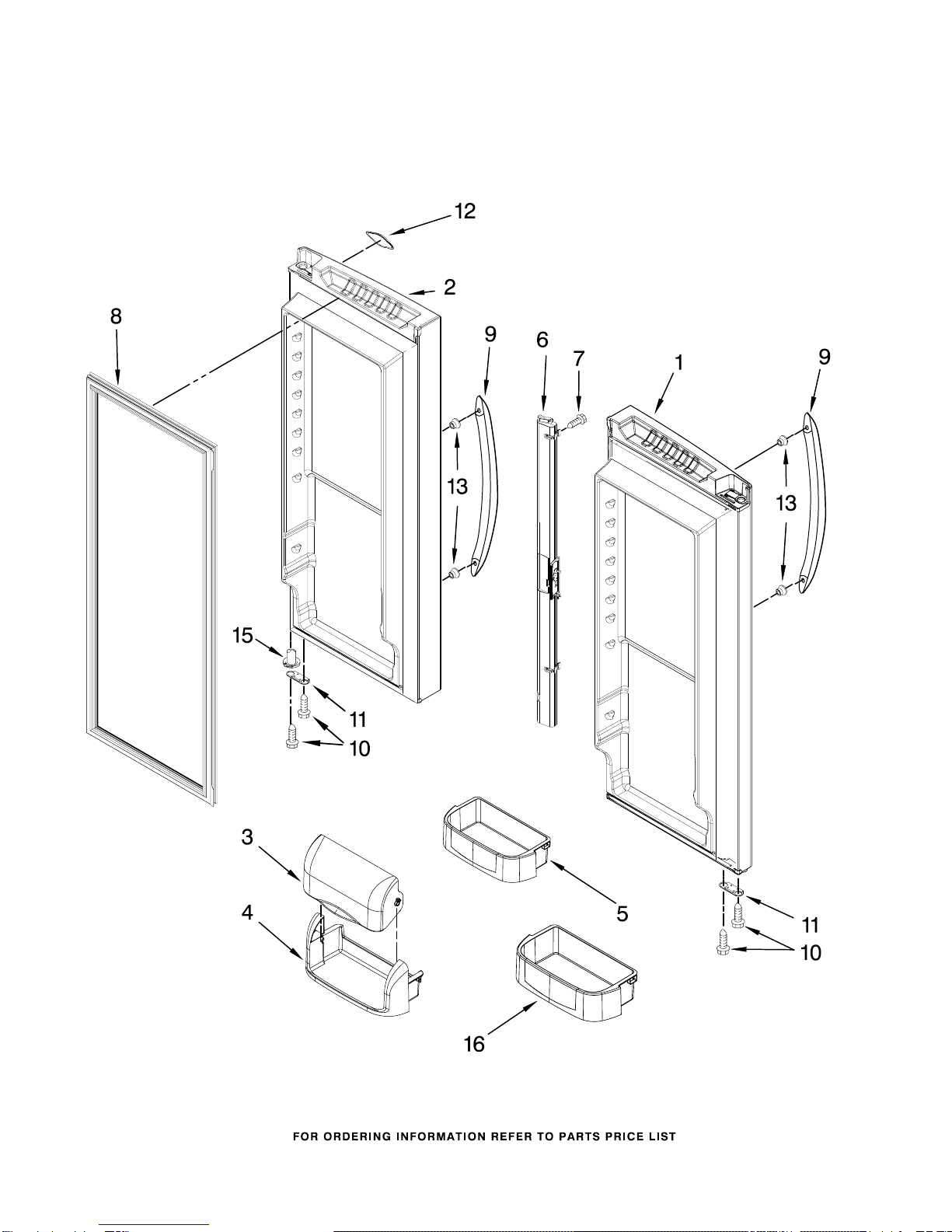

REFRIGERATOR DOOR PARTS
7
For Models: G32026PEKW3
(White)
W10294593
REFRIGERATOR DOOR PARTS
8
For Models: G32026PEKW3
(White)
W10294593
Illus. Part
No. No. DESCRIPTION
1 Door, Left
12732427WQ
White
2 Door, Right
13024017WQ
White
3
12804701SP
Door, Dairy
4
12369502SP
Tray, Dairy
5 12557214 Bin, Shelf (3)
(Medium)
6 Mullion, Door
12722811WKV
White
7 12990204 Screw
8 Gasket, Door (2)
W10163894
White
9 Handle, Door
W10179171
Left
W10179168
Right
10 12990504 Screw
11 Stop, Door
12968202W
White
12 66981−5 Nameplate
13 12992902 Mount, Handle
15 Closure, Door
12028505W
White
16 12699004 Bin, Shelf (2)
(Gallon)

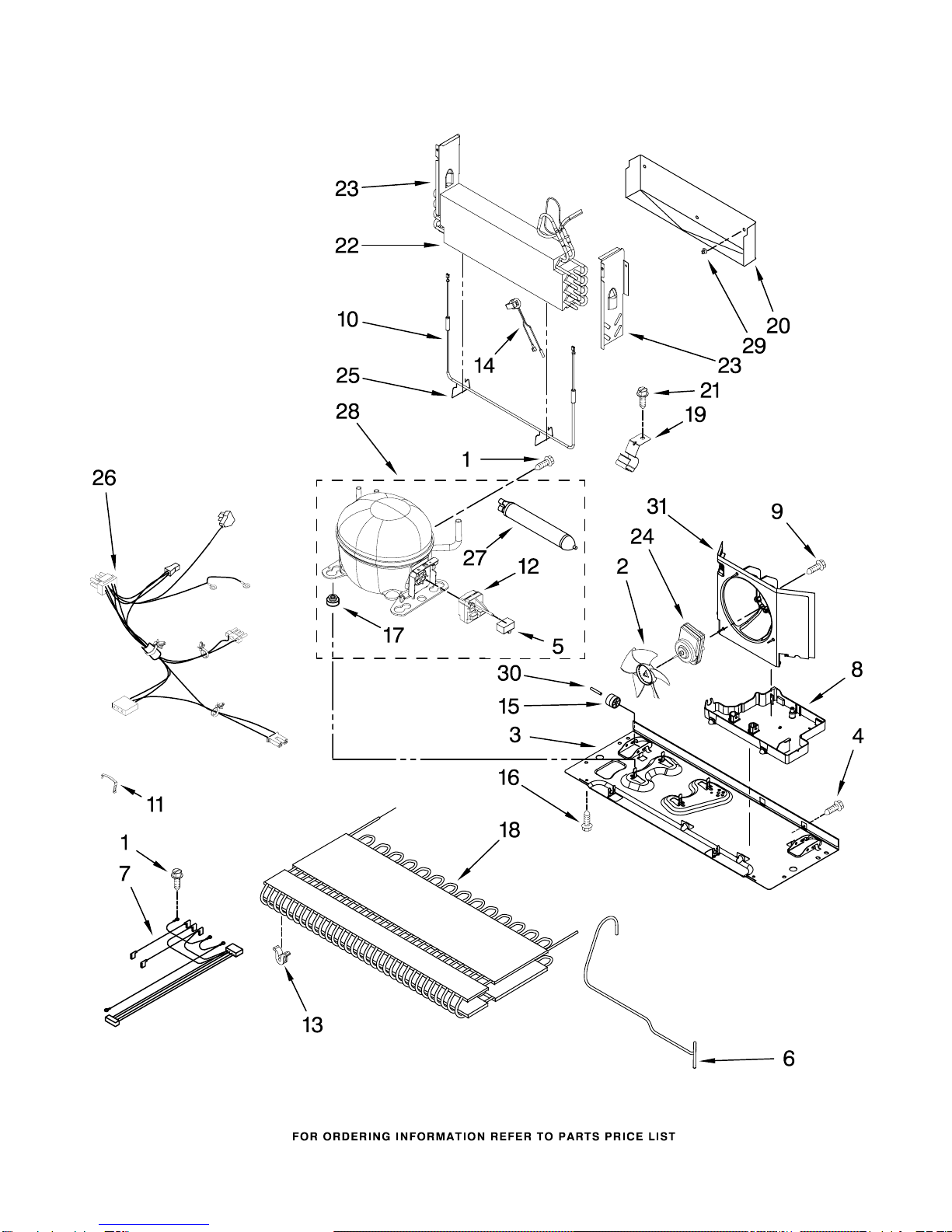

UNIT PARTS
9
For Models: G32026PEKW3
(White)
W10294593
UNIT PARTS
10
For Models: G32026PEKW3
(White)
W10294593
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 12992301 Screw
2 12825803 Blade, Fan
3
W10210985
Basepan
4 12990511 Screw
5 2321245 Capacitor
6
W10286438
Tube, Discharge
7
W10280429
Harness, Evap.
Heater
8
W10215085
Pan, Drain
9 12991001 Screw
10 12729132 Heater, Defrost
11 2302129 Strap, Bale
12 2312007 Start Device
13
W10137529
Grommet, Cond (4)
14
12639322SP
Thermostat,
Defrost
15 12477102 Roller (2)
16 12992101 Screw
17
10835903SP
Grommet (4)
18
W10135027
Condenser
19 10547003 Clip, Drier
20
12225403WD
Tray, Drip
21 12990701 Screw
22 12726403 Evaporator
23 Dam
12225702 Right Side
12225602 Left Side
24 12825102 Motor, Fan
25 10428101 Clip, Heater
26
W10234312
Harness, Unit
with Power Cord
27
W10143759
Drier
28
W10223234
Compressor
(Includes items
11,12,17,27)
29 10623002 Clip, Evaporator
30 12477202 Axle, Roller (2)
31
W10189187
Shroud
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)
