CABINET PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

12−05 Litho In U.S.A. (awm) Part No. W10024340

REFRIGERATOR

CABINET PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2300261 Use & Care Guide

8208239 Energy Tag

8208183 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

4344209 White

4344208 Black

8170487 Biscuit

4 8170924 Gasket

5 8170886 Roller Assembly

6 8170869 Clip, Grille

7 4344177 Pin, Center Hinge

8 8170972 Bolt, Adjusting

(Front Roller)

9 8171215 Screw

10 Hinge Cover, Bottom

8171004 White

8171002 Black

8171003 Biscuit

11 4344186 Screw

12 8170373 Screw

13 8208155 Cover, Water Line

14 4344198 Screw

15 Hinge, Center

8170980 Black

8170981 White

16 4343675 Screw

17 Cover, Corner

8170860 White

8170858 Black

8170859 Biscuit

19 Hinge, Bottom

8171067 White

8171066 Black

20 8171202 Screw

22 Grille Assembly

(Includes Clips)

8170866 White

8170867 Black

8170868 Biscuit

25 4344167 Screw

27 8170920 Cover, Water Valve

30 8170910 Cover, Unit

32 8170925 Power Cord

33 8171247 Insulation, Sound

37 8170861 Tube, Drain

38 8170862 Clip, Drain Tube

41 8170974 Hinge, Top

42 Cover, Hinge

8170977 White

8170975 Black

8170976 Biscuit

43 8170878 Plug, Button

44 8208236 Bolt, Adjusting

(Rear Roller)

46 8171272 Foot Brake

Following Parts Not Illustrated

8170942 Clamp, Tube

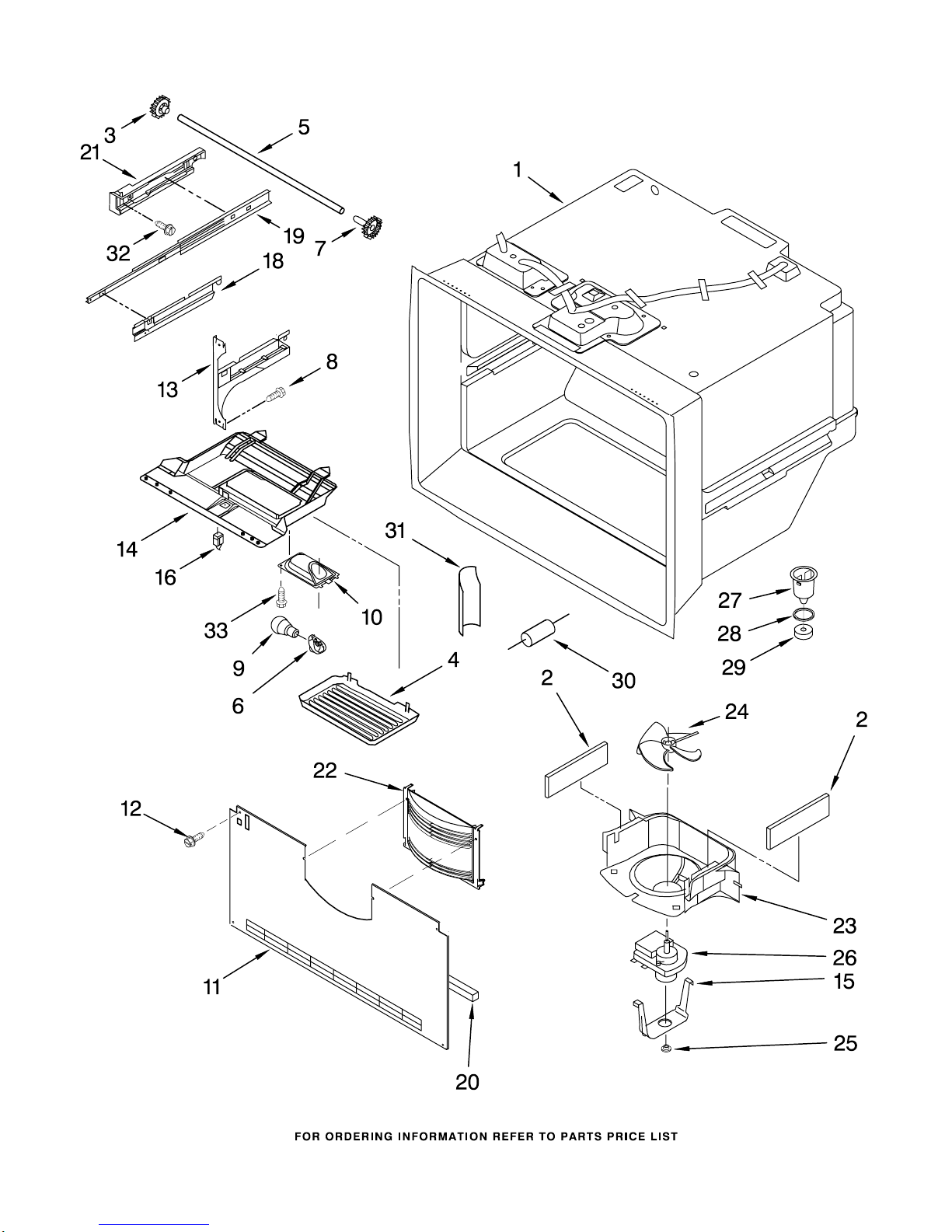

FREEZER LINER PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

FREEZER LINER PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 8170897 Gasket, Foam

3 8171237 Gear

4 8208205 Cover, Light

5 8171229 Shaft

6 8170839 Socket, Light

7 8171236 Gear

8 8170456 Screw

9 8208190 Bulb, Light

10 8170838 Housing, Frz. Light

11 8208235 Cover, Evaporator

12 4344167 Screw

13 Bracket, Door

8171232 Left

8171233 Right

14 8208206 Housing, Lighting

15 8171238 Clip, Evap. Motor

16 8170842 Switch, Light

18 Bracket, Basket

8171234 Left

8171235 Right

19 8208214 Slide, Drawer (2)

20 8208203 Gasket, Bottom

21 Bracket, Slide

8208215 Left

8208216 Right

22 8170881 Cover, Fan Shroud

23 8171153 Shroud, Evap.Fan

24 8170544 Blade, Fan

(Evaporator)

25 8171086 Grommet (2)

26 8170894 Motor, Evaporator

27 4344385 Funnel, Drain

(Incl. # 28 & 29)

28 4344311 Seal

29 4344310 Gasket

30 8208196 Thermistor

31 8208202 Cover, Thermistor

32 8208217 Screw

33 4343670 Screw

Following Parts Not Illustrated

8208199 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

8208226 White

8208227 Black

8208228 Biscuit

8208229 Stainless Steel

2 Handle

8170776 White

8170961 Black

8170777 Biscuit

3 Door Gasket,

Magnetic

8171163 White

8171162 Black

4 Trim, Handle

8170752 White

8170785 Black

8170786 Biscuit

5 8170499 Screw

6 Plug, Button (2)

8208212 White

8208213 Black

7 Plug, Button (1)

8170953 White

4343926 Black

REFRIGERATOR LINER PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8208184 Bracket, Control

and Lights

3 8208185 Overlay

4 8208186 Housing,

Electronic Control

5 8208187 Electronic Control

6 4344571 Switch, Light

7 8208188 Cover, Light

8 8208189 Housing, Light

9 8208190 Bulb, Light (2)

10 8170839 Socket, Light (2)

11 8208191 Insert,

Damper Cover

12 8208192 Screw

13 8208193 Cover, Damper

14 8208194 Insulation

15 8208195 Control, Damper

16 8208196 Thermistor

Following Parts Not Illustrated

8208197 Harness,

Damper Control

8208198 Harness, Controls

(Refrigerator)

(Includes # 16)

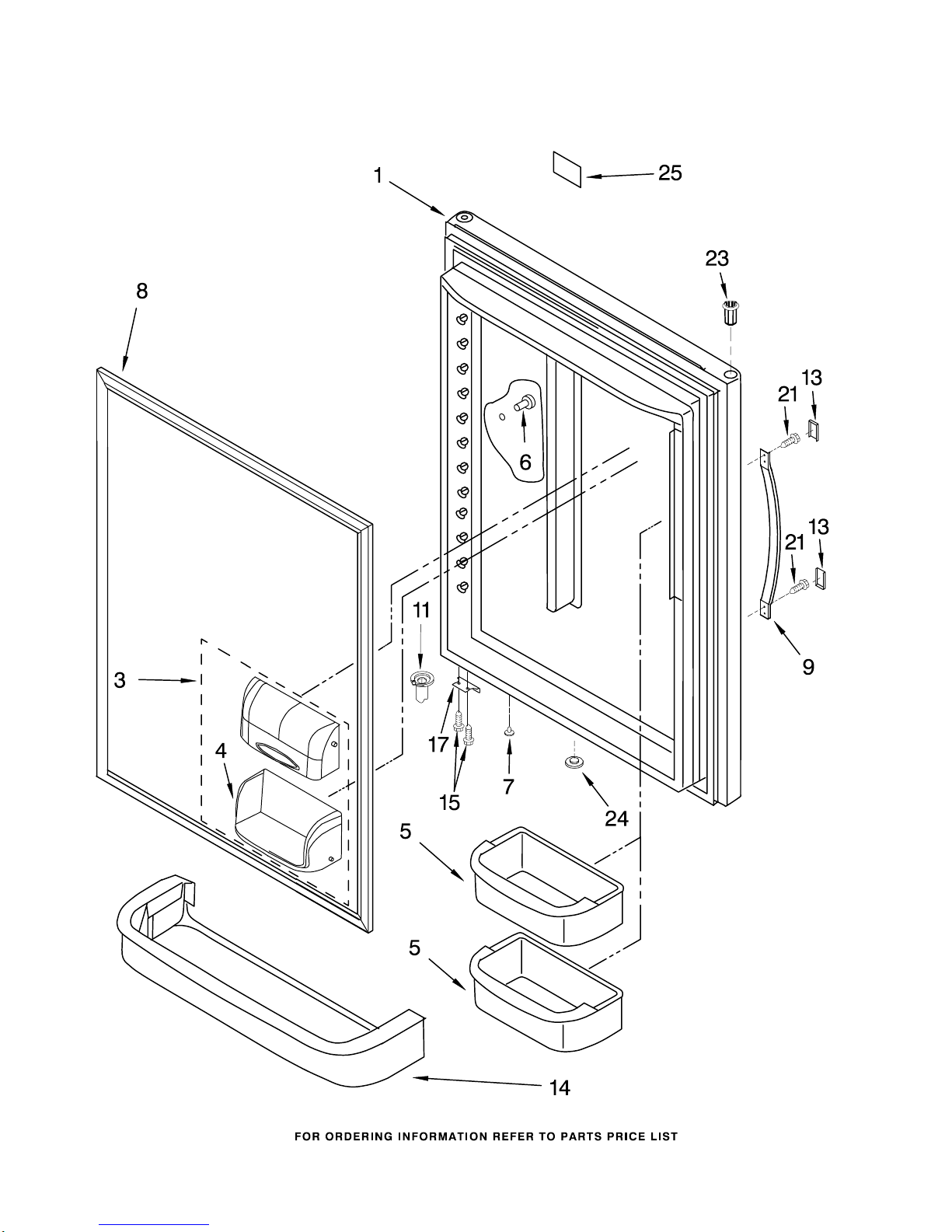

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/ Insulation)

8171171 White

8208225 Black

8171203 Biscuit

8208224 Stainless Steel

3 8171204 Door, Compartment

4 8170793 Tray, Dairy

5 8171166 Shelf Bin

(Medium)

6 Plug, Handle Hole

4344535 White

4344533 Black

8170495 Biscuit

7 Plug, Button

8208212 White

8208213 Black

8 Door Gasket,

Magnetic

8171197 White

8170758 Black

9 Door Handle

8170776 White

8170961 Black

8170777 Biscuit

11 Door Closure

8171245 White

8171246 Black

13 Trim, Handle

8170752 White

8170785 Black

8170786 Biscuit

14 8170795 Shelf, Bin (Large)

15 4344333 Screw

17 Stop, Door

8171205 White

8171214 Black

8171206 Biscuit

21 8170499 Screw

23 Bushing

8208208 White

8171213 Black

24 Plug, Button

8170953 White

4343926 Black

25 8170797 Nameplate

UNIT PARTS

For Models: GB2SHDXPQ01, GB2SHDXPB01, GB2SHDXPT01, GB2SHDXPS01

(White) (Black) (Biscuit) (Stainless Steel)

W10024340

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4343865 Screw

2 8208223 Blade, Fan

3 8208232 Base

4 4344167 Screw

7 8208204 Harness, Evap.

Heater

8 8170911 Drain Pan

9 8171209 Grommet (3)

10 8171152 Evaporator Heater

11 8170724 Strap

12 8171210 Overload

(Includes Relay)

13 8170914 Gasket

14 8170904 Bi−Metal

15 8170912 Grommet

17 8170462 Capacitor

18 8171211 Condenser

20 8170882 Tray, Drip

22 8170889 Evaporator

23 Dam

8171155 Right Side

8171154 Left Side

24 8208221 Motor, Fan

25 4343918 Clip, Heater

26 8208233 Harness, Unit

27 4344268 Drier

28 8171208 Compressor

(Includes Items

11, 12, 15,

17 & 27)

31 8170906 Shroud

32 8208222 Bracket, Fan Motor

34 8170901 Clip, Drier

36 8170916 Roller

39 4343845 Grommet (4)

40 8208234 Screw

41 8170917 Axle, Roller

42 4344219 Clip, Evaporator

43 8170902 Screw

44 8171253 Screw

53 4344292 Screw

55 8171240 Tube, Drain

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
