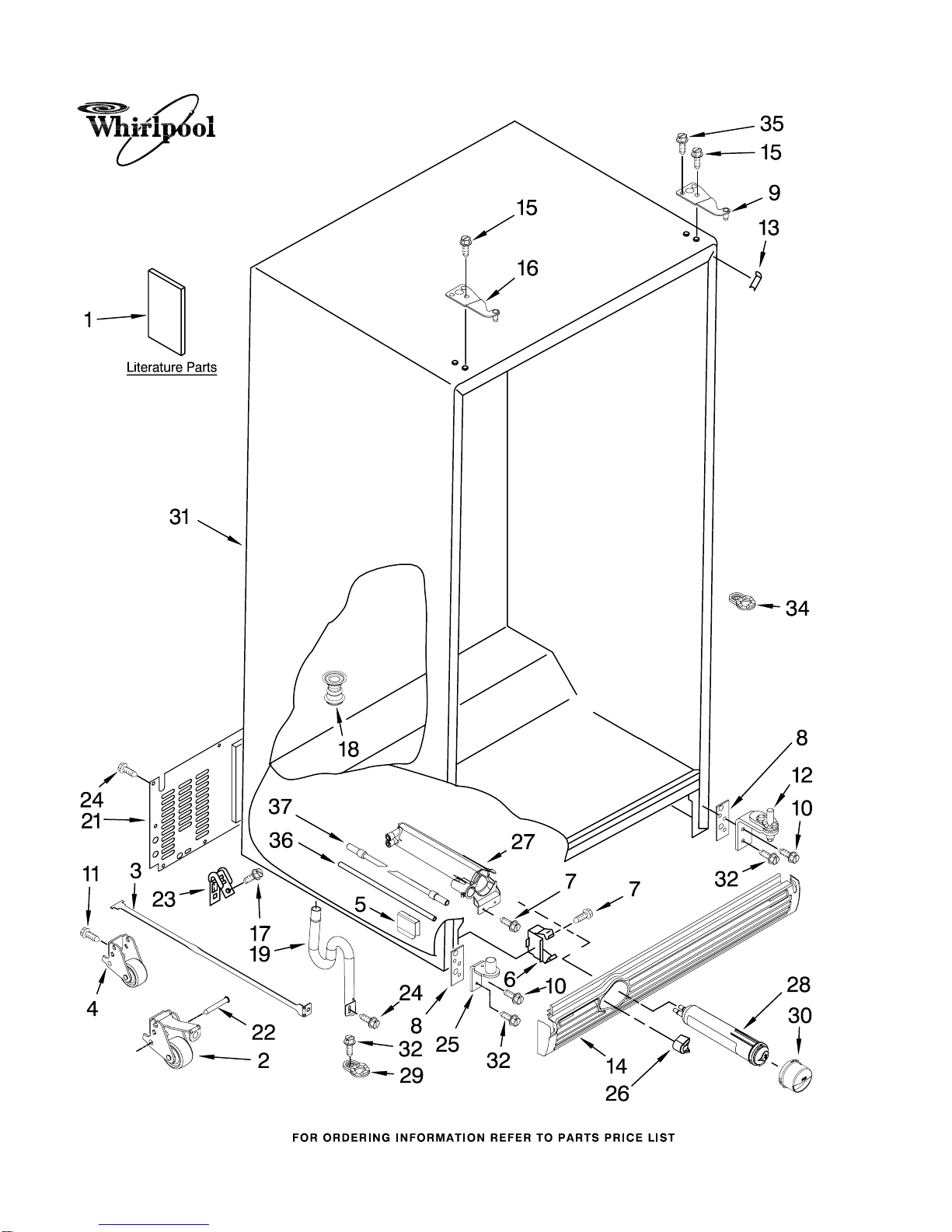

CABINET PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

02−07 Printed In U.S.A. (mat) Part No. W10128955 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318493 Use & Care Guide

2223996 Installation

Instructions

2322230 Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

2326314 Energy Guide

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Rear Roller (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008B Black

10 3400113 Screw

11 3400243 Screw

12 2307179 Hinge Assembly,

Bottom−RC

13 Filler, Wrapper

2223893W White

2223893B Black

14 Grille

2322234W White

2322234B Black

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007B Black

17 489464 Screw

18 2304888 Drain Fitting

19 2254566 Tube, Extension

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2307152 Hinge Assembly,

Bottom−FC

26 Button, Water

Filter

2260503W White

2260503B Black

27 2260526 Housing, Water

Filter

28 4396841 Water Filter

29 2307051 Door Closer, FC

30 Cap, Water

Filter

2260518W White

2260518B Black

31 Cabinet (Not A

Serviceable Part)

32 489483 Screw

34 2307049 Door Closer, RC

35 3400858 Screw

36 2304709 Tube, Filter

Outlet

37 2319868 Tube, Filter

Inlet

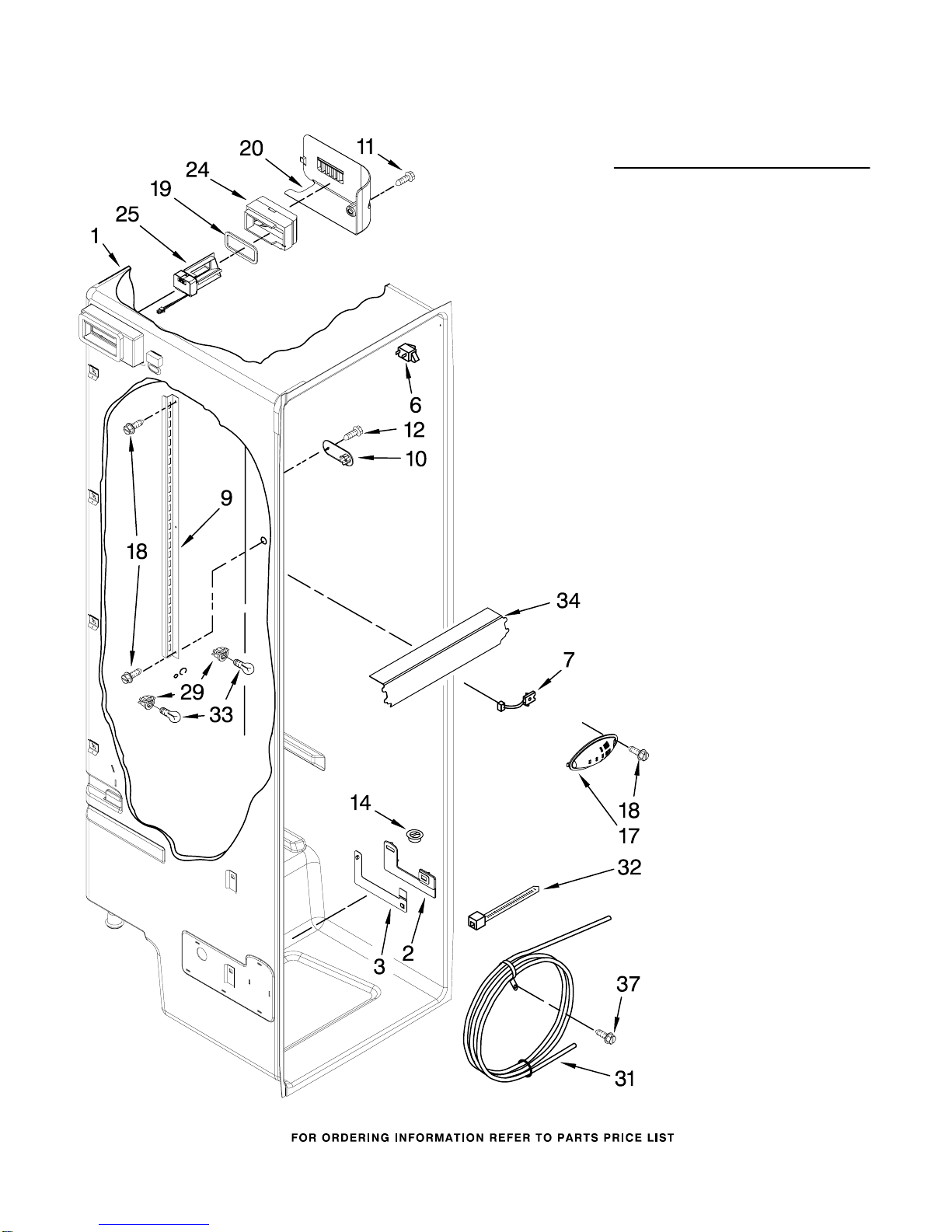

REFRIGERATOR LINER PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223524 Escutcheon, Meat

Pan Control

3 2223339 Slide Meat

Pan Control

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

9 2319866 Ladder, Shelf (2)

10 2317740 Housing, Door

Control

11 489084 Screw

12 3400893 Screw

14 2171846 Release Valve

17 2317105 Cover, Thermistor

18 489478 Screw

19 2304597 Gasket,

Air Baffle

20 2223403 Cover,

Air Baffle

24 2224076 Air Diffuser

Assembly

25 2220377 Air Baffle

29 2162085 Socket

31 2223876 Reservoir

32 2307062 Strap

33 2255743 Light Bulb

34 2223663 Light Lens

37 488280 Screw

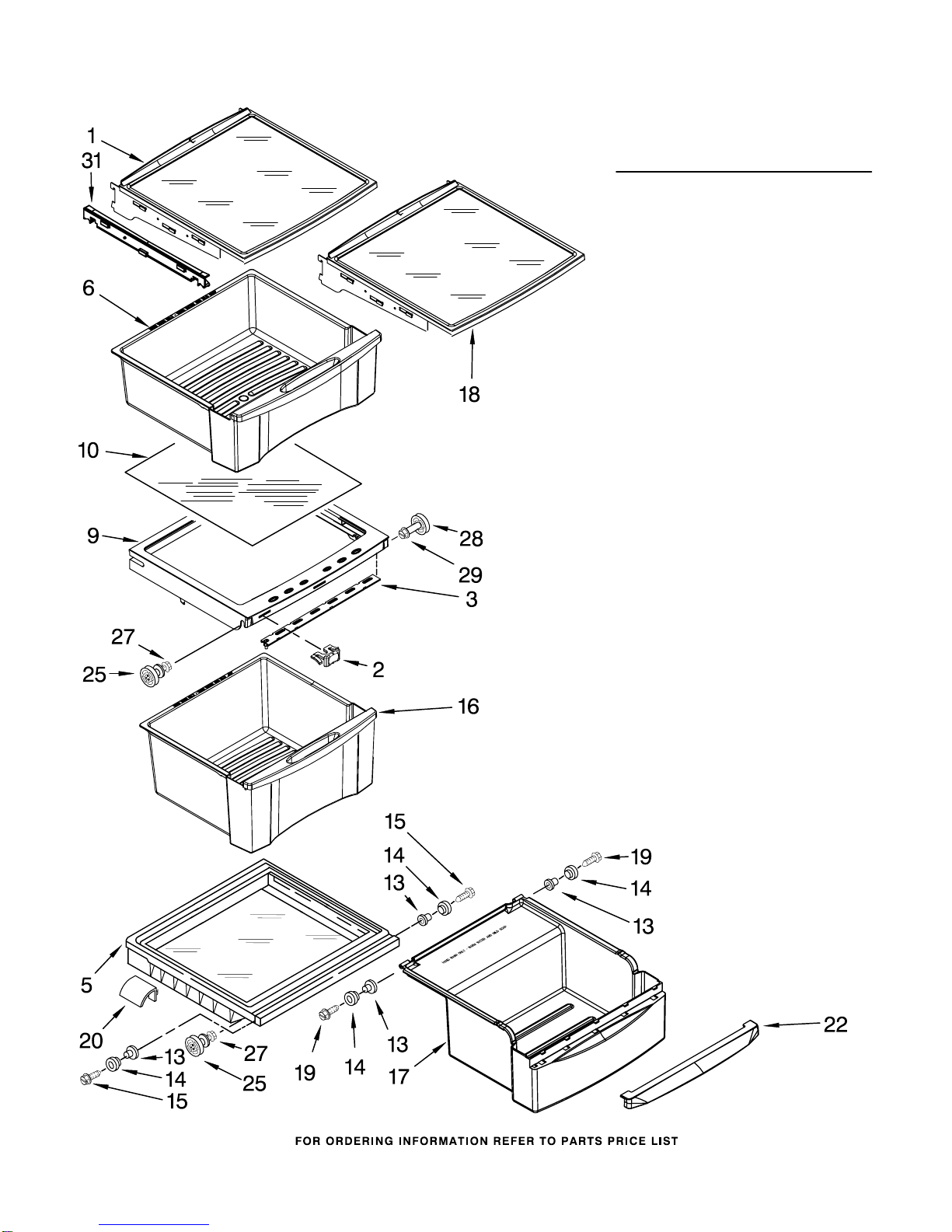

REFRIGERATOR SHELF PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION

1 2223288 Pan Assembly

(Includes #31)

2 2223309 Button, Humidity

3 2223308 Slide, Humidity

5 2203027 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2223261 Snack Pan

9 2223307 Cover, Crisper

(Includes 2 & 3)

10 2223591 Glass, Cover

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2223235 Crisper Pan

17 2223526 Meat Pan

(Includes 13,

14, 19 & 22)

18 2224059 Shelf and Frame

Assembly (3)

19 489261 Screw

20 2223487 Deflector

22 2203029 Handle

25 2196485 Stud Assembly

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

31 2223320 Slide, Pan

FREEZER LINER PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

FREEZER LINER PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 8534064 Screw

3 3400893 Screw

6 2223690 Basket, Deep (2)

9 2223500 Shelf Assembly,

Cantilever (2)

11 2223782 Front, Basket

13 Shelf Track

2223787 Right Side

2223788 Left Side

14 2223681 Shelf, Fixed

15 2223692 Basket, Lower

17 842534 Clip, Air Duct (2)

18 Glide Assembly,

Basket (2)

2224137 Right Side

2224138 Left Side

19 2259487 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

24 2198665 Tube, P.C. Board

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2223321 Cover, Ice Maker

28 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255558 Cover, Receiver

37 2255562 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2320024 Left Side

2320025 Right Side

46 2303378 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

MOTOR AND ICE CONTAINER PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION

1 2223317 Ice Bin

2 2317254 Crusher Bin

3 2317240 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2317248 Cover, Crusher

7 2257022 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257024 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

20 2317262 Latch, Bin

21 2198608 Spring, Latch

23 8281163 Screw

24 2188919 Holder

25 2317243 Wiper

26 2198628 Seal

27 2317250 Divider, Chamber

30 2188916 Drive Shaft

31 2256154 Enclosure, Motor

32 2315547 Dispenser, Motor

33 2212305 Cover

36 2315559 Sleeve, Coupling

37 2187725 Wire Harness,

IDI Motor

100 2317266 Ice Container

(Complete)

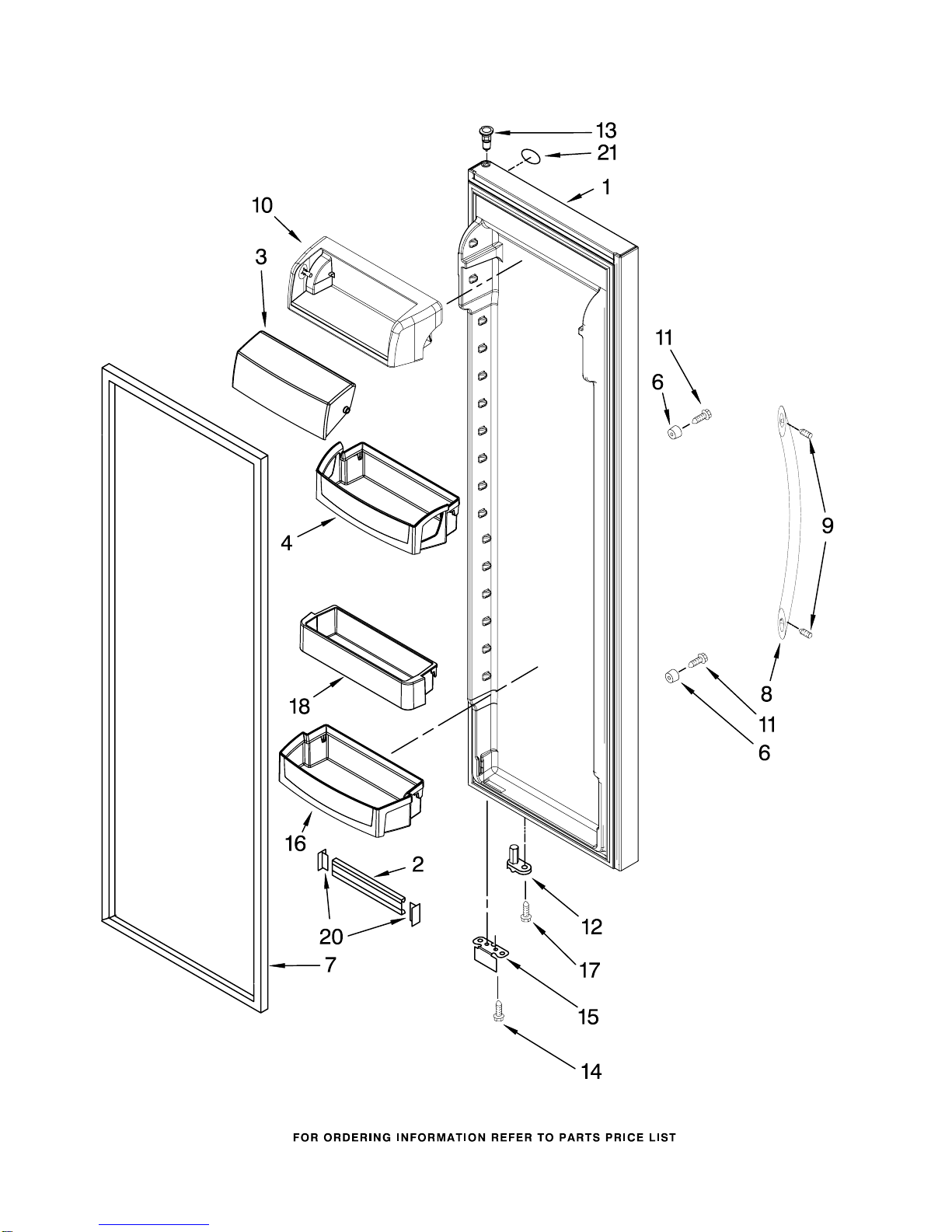

REFRIGERATOR DOOR PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

REFRIGERATOR DOOR PARTS

For Models: GC3JHAXTQ01, GC3JHAXTB01, GC3JHAXTS01, GC3JHAXTL01

(White) (Black) (Stainless Steel)(Stainless VCM)

W10128955

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

W10120254

White

W10120255

Black

2307199S Stainless Steel

2327924LG

Stainless VCM

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2304952K Door Bin (3)

6 2219698 Stud, Handle

7 Door Gasket,

Magnetic

2223841 Mist

2223911 Black

8 Handle

(Includes #9)

2254600W White

2254600B Black

2254600S Stainless

W10010140

Screw

10 2223879 Dairy Compartment

11 488208 Screw

12 Door Closer

Upper Cam

2307048 (For SS Model)

2182178 (For VCM Model)

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 White

2306940B Black

16 2223239K Door Bin (2)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

20 2156006K Plug, Trim

21 2220214 Nameplate
