CABINET PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

10−05 Printed In U.S.A. (kdr) Part No. 8199268 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2306981 Use & Care Guide

2223996 Installation

Instructions

2223419 Service & Wiring

Sheet

2308412 Energy Guide

628370 Modular Icemaker

Service Sheet

2 Front Roller Asm

2306950 Left Side

2306951 Right Side

3 2223263 Strap, Roller

4 2306949 Roller, Rear (2)

5 2223388 Clip, Retainer (4)

6 2155013 Clip, Grille

7 489478 Screw

8 2223545 Shim

9 Hinge Top, RC

2307008W White

2307008T Biscuit

2307008B Black

10 3400113 Screw

11 3400243 Screw

12 2223520 Hinge Assembly,

Bottom−RC

13 Filler, Wrapper

2223893W White

2223893T Biscuit

2223893B Black

14 Grille

2223514W White

2223514T Biscuit

2223514B Black

15 3400108 Screw

16 Hinge, Top FC

2307007W White

2307007T Biscuit

2307007B Black

17 489464 Screw

18 940139 Drain Fitting

19 2199954 Tube, Extension

20 1108439 Clip, Drain Tube

21 2223409 Cover, Unit

22 2223387 Pin, Roller (4)

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2223460 Hinge Assembly,

Bottom−FC

26 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

27 2260526 Housing, Water

Filter

28 4396710 Water Filter

30 Cap, Water

Filter

2260518W White

2260518T Biscuit

2260518B Black

31 Cabinet (Not A

Serviceable Part)

35 3400858 Screw

36 2224020 Tube, Filter

Outlet

37 2305536 Tube, Filter

Inlet

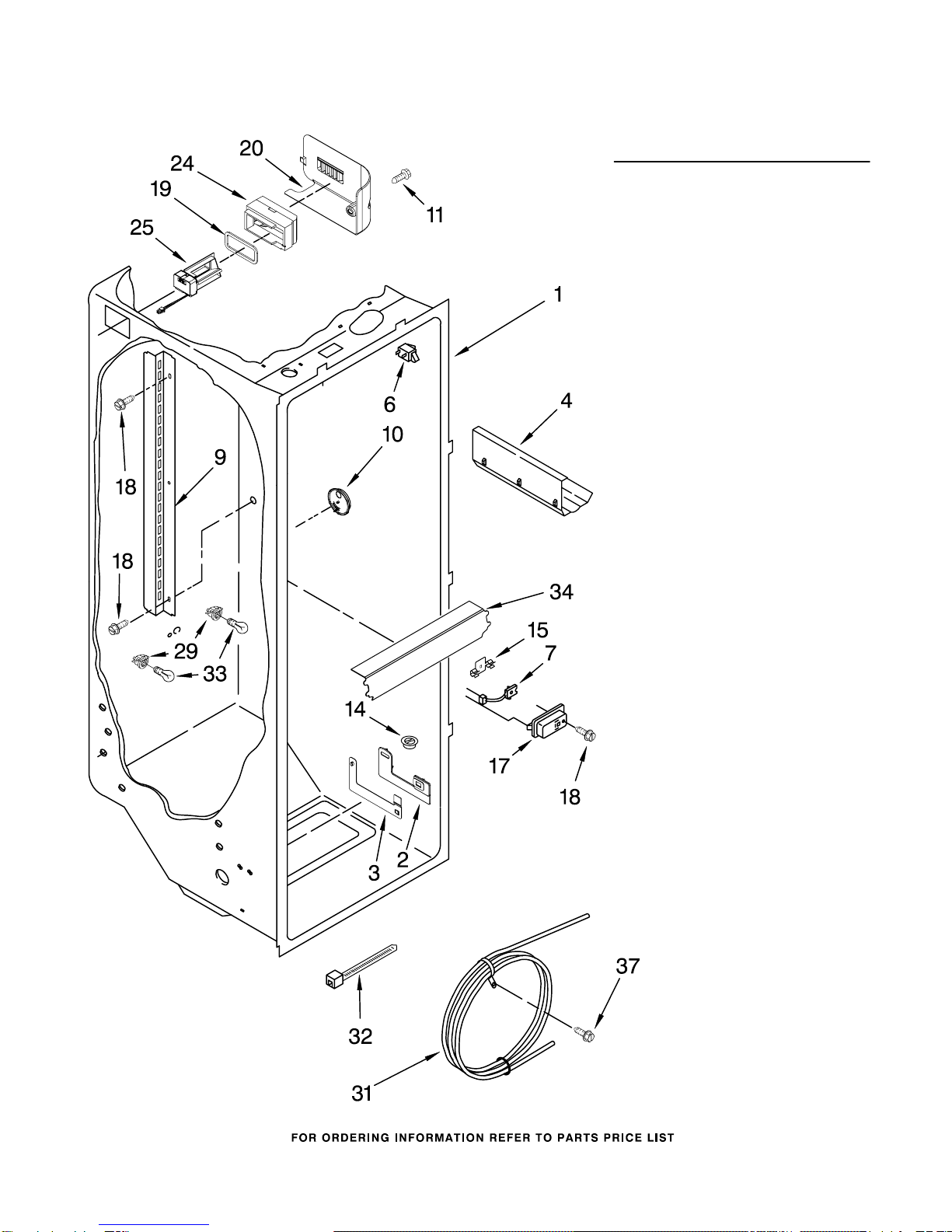

REFRIGERATOR LINER PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2223338 Escutcheon, Meat

Pan Control

3 2223339 Slide Meat

Pan Control

4 2179404K Wine Rack

6 1118894 Switch, Rocker

Arm

7 2188820 Thermistor

9 2206273 Ladder, Shelf (2)

10 2261601 Housing, Door

Control

11 489084 Screw

14 2171846 Release Valve

15 2209204 Clip, Thermistor

17 1116793 Cover, Thermistor

18 489478 Screw

19 2304597 Gasket,

Air Baffle

20 2223403 Cover,

Air Baffle

24 2224076 Air Diffuser

Assembly

25 2220377 Air Baffle

29 2162085 Socket

31 2223876 Reservoir

32 2205813 Strap

33 2255743 Light Bulb

34 2223663 Light Lens

37 488280 Screw

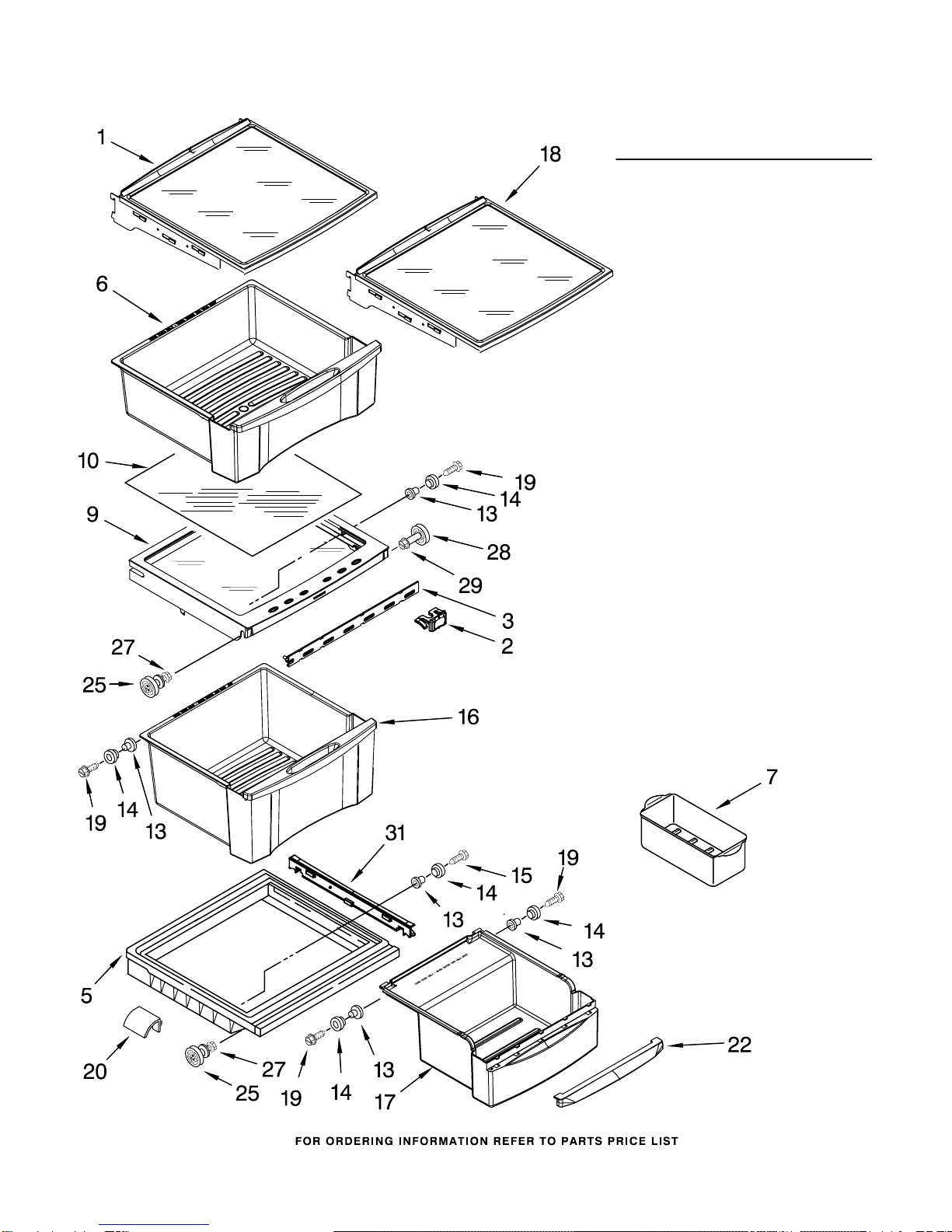

REFRIGERATOR SHELF PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION

1 2223288 Pan Assembly

2 2223309 Button, Humidity

3 2223308 Slide, Humidity

5 2223525 Cover, Meat Pan

(Includes Items

13, 14, 15 & 20)

6 2223261 Snack Pan

7 2216624K Egg Bin

9 2223592 Cover, Crisper

(Includes 2,

3, 13, 14 & 19)

10 2223591 Glass, Cover

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2223235 Crisper Pan

(Includes 13

14 & 19)

17 2223526 Meat Pan

(Includes 13,

14, 19 & 22)

18 2224059 Shelf and Frame

Assembly (3)

19 489261 Screw

20 2223487 Deflector

22 2203029 Handle

25 2196485 Stud Assembly

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

31 2223320 Slide, Pan

FREEZER LINER PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

FREEZER LINER PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2223777 Spacer, Slide (2)

3 3400893 Screw

5 2196483 Stud Assembly

6 2223690 Basket, Deep (2)

8 8281158 Screw

9 2223500 Shelf Assembly,

Cantilever (2)

11 2223782 Front, Basket

13 Shelf Track

2223787 Right Side

2223788 Left Side

14 2223681 Shelf, Fixed

15 2223692 Basket, Lower

16 486298 Screw

17 842534 Clip, Air Duct (2)

18 Glide Assembly,

Basket (2)

2301544 Right Side

2301545 Left Side

19 2223991 Cover, Emitter

20 8534064 Screw

22 2198635 Spring

23 2198634 Pin

24 2198665 Tube, P.C. Board

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2223321 Cover, Ice Maker

28 Slide, Ice Maker

Mounting

2212321 Right Side

2306900 Left Side

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255558 Cover, Receiver

37 2255562 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2306901 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

MOTOR AND ICE CONTAINER PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION

1 2223317 Ice Bin

2 2255574 Crusher Bin

3 2258222 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 2257022 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257024 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2255575 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 999536 Drive Shaft

31 2256154 Enclosure, Motor

32 2188860 Dispenser, Motor

33 2212305 Cover

36 2212365 Sleeve, Coupling

37 2187725 Wire Harness,

IDI Motor

REFRIGERATOR DOOR PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

REFRIGERATOR DOOR PARTS

For Models: GC3SHEXNQ01, GC3SHEXNT01, GC3SHEXNB01, GC3SHEXNS01

(White) (Biscuit) (Black) (Stainless Steel)

8199268

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2223835W White

2223835T Biscuit

2223835B Black

2224132S Stainless Steel

2 2203087K Trim, Shelf

3 2255421 Dairy Door

4 2223463K Door Bin

5 2223464K Mat, Bin (3)

6 2255411 Clip, Mounting

7 Door Gasket,

Magnetic

2223841 Mist Beige

2223911 Black

8 Handle

(Includes #9)

2313351W White

2313351T Biscuit

2313351B Black

9 8533920 Screw

10 2223879 Dairy Compartment

11 489491 Screw

12 2182178 Door Closer,

Upper Cam

13 2308091 Thimble, Top

14 489420 Screw

15 Bracket, Door Stop

2306940 Chrome

2306940B Black

16 2223239K Door Bin (2)

17 3400012 Screw

18 2224173 Door Bin,

Shallow

20 2156006K Plug, Trim

21 2220214 Nameplate
