CABINET PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

1−08 Litho In U.S.A. (rrm) Part No. W10180452 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142144

Service &

Wiring Sheet

W10178120

Energy Label

2225623 Modular Icemaker

Service Sheet

Use & Care Guide

W10131411

Bilingual

W10131419

Trilingual

2302485 Customer Instruct

Sheet, Wtr Filter

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 489427 Screw

5 2208136 Clamp, Tube

(Water Supply Line)

7 Cap, Water Filter

2186494W White

2186494B Black

9 2225521 Housing,

Water Filter

11 3400504 Screw

12 549193 Clamp, Cord

13 2179826 Rivet

14 3196178 Screw

15 489497 Screw

16 2254618 Hinge, Center

17 2183852 Shim, Hinge

Center

18 8281265 Screw

19 2301705 Water Filter

20 2254473 Hinge Butt

21 Fitting, Water Tube

(NOT SERVICED)

22 Hole Plug (6)

2201012 White

2183998 Black

23 Corner Filler (2)

2201014 White

2201017 Black

24 Grille

(Includes

Illus. 27)

2301619W White

2301619B Black

25 489341 Washer, Plain

26 487576 Washer, Nylon

27 2189356 Clip, Grille (2)

28 Cover, Hinge

2213360 White

2213363 Black

29 Rail, Center

(NOT SERVICED)

30 2254578 Cover, Unit

31 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

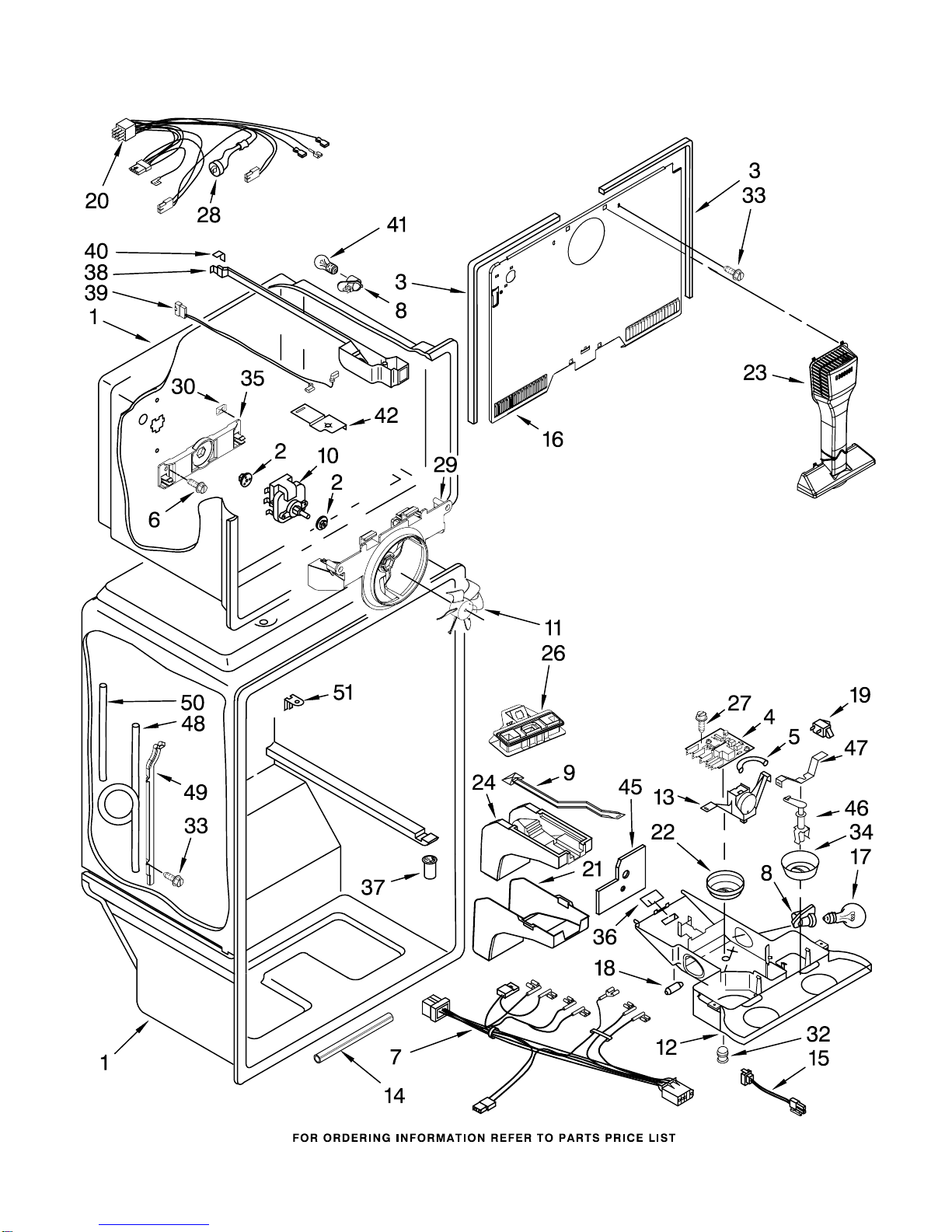

LINER PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254359 Gasket, Evaporator

Cover (2)

4 2304093 Adaptive Defrost

Control

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310076 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2315539 Fan Motor

11 2163777 Fan Blade

12 2218304 Control Box

13 2314594 Thermostat Assembly

(Includes

Illus. 5 & 18)

14 2301622 Insulation,

Water Tube

15 2213462 LED & Connector

Assembly

16 2320191 Cover, Evaporator

17 2255743 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129791

Wire Assembly,

Freezer Compartment

(Includes

Illus. 28)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2210390 Air Separator

Assembly

27 8534009 Screw

28 2321800 Defrost Bi−metal

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

32 2213495 Lens−LED

33 489478 Screw

34 2302536 Knob, Damper

35 2254454 Bracket

Evap. Fan, Rear

36 2205079 Seal, Rear

Thermostat

37 2210509 Valve

38 2300417 Housing Base

39 2187601 Wiring Harness,

Freezer Light

40 2166284 Gasket, Rear

41 2260802 Light Bulb

42 2193491 Electrical Shield,

Freezer Light

45 2204639 Shield, Heat

46 2179859 Post, Damper

47 2163810 Bracket,

Damper Knob

48 2319867 Tube, Filter Inlet

49 2225531 Cover, Tubing

50 2301621 Tube, Water Filter

51 2210563 Clip, Retainer

SHELF PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

SHELF PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mtg.

5 489478 Screw

6 3400065 Screw

7 2214912 Glass, Shelf

8 2254352 Ice Bucket

9 2314497 Crisper Cover

10 2214910 Shelf Assembly

11 2221693 Glass, Crisper

Cover

12 2214892 Frame Assembly,

Meat Shelf

13 2254458 Deflector−Air

14 2195340 Trim−Crisper Pan

(10 Inch)

(Crisper Cover)

15 2314477 Crisper, Support

16 2214908 Shelf Assembly,

Spillguard (2)

17 2176275 Shelf, Freezer

18 2218138 Pan, Crisper Assy.

(10 Inch)

(Includes

Illus. 14, 21, 22)

19 2218139 Pan, Crisper Assy.

(13 Inch)

(Includes

Illus. 21,22 & 23)

20 2218127 Pan, Meat

21 2176222 Slide, Crisper

22 2212446 Body, Humidity

Control

23 2195341 Trim, Crisper Pan

(13 Inch)

24 2176356 Trim, Meat Pan

REFRIGERATOR DOOR PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

REFRIGERATOR DOOR PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 8 & 12)

2205395 White

2205398 Black

2218280 Stainless Steel

2218506 Stainless VCM

2 2300430 Mat, Rubber

(Door Bin)

4 2189202 Bracket, Door

Stop

5 Hole Plug, Endcap

2204837 White

2204840 Black

6 489276 Screw, 8−18 x 3/4

7 Hole Plug

Hinge Sleeve

2212648 White

2212651 Black

8 Door Gasket,

Magnetic

2202874 Mist Beige

2202881 Black

11 2210566 Housing Compartment

12 2183003 Thimble

13 2159302 Tray, Door

14 Endcap, Handle

2212689 White

2221652 Black

15 2300447 Bin, Door Shelf (3)

16 2195949 Trim, Door Shelf

17 2218109 Door Compartment

18 2159312 Trim, Door Shelf

19 2177340 Endcap, Door Trim

20 2156006 Plug−Trim

UNIT PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

UNIT PARTS

For Models: GR9FHTXVQ00, GR9FHTXVB00, GR9FHTXVS00, GR9FHTXVL00

(White) (Black) (Stainless Steel) (Stainless VCM)

W10180452

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320188 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2315531 Heater, Defrost

5 2254250 Evaporator Assy.

6 8533859 Screw

7 2254294 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

15 2225929 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 488500 Screw

22 2201184 Support Block

23 3400518 Screw

26 2255113 Strap, Compressor

27 4387765 Wire Assembly

(Service Only)

28 2218968 Compressor

(Includes Items

12,13,14,27,29,

31 & 32)

29 Drier

2317845 Service

30 2155774 Wire Tie

31 2183454 Relay

(Service Only)

32 Capacitor

2264017 Production

1118576 Service

39 2315541 Air Baffle

40 2188728 Motor, Condenser

42 2310435 Wire Assy. Unit

43 2225834 Fan Blade

46 2205384 Tube, Discharge

47 2225237 Tube, Suction

48 2154109 Tube, Process

49 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
