Whirlpool W10197275 Manuale utente

CABINET PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

3−11 Litho In U.S.A. (jdc) (eeb) Part No. W10197275 Rev. A

REFRIGERATOR

CABINET PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10184934

Energy Guide

2318587 Owner’s Manual

W10152828

Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

2308394 Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Rear Roller (2)

5 489427 Screw

6 2155013 Clip, Grille

7 488500 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

11 8281227 Screw

12 Hinge Cover

2203407W White

2203407T Biscuit

2203407B Black

2203407AP

Apollo Gray

W10138965

Bottom Hinge (RC)

14 Filler, Wrapper

2304846 White

2304849 Biscuit

2304848 Black

W10143043

Apollo Gray

15 Grille

2303494W White

2303494T Biscuit

2303494B Black

2303494MG

Apollo Grey

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

20 3400858 Screw

21 2188739 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408T Biscuit

2203408B Black

2203408AP

Apollo Gray

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer, RC

27 489483 Screw

28 2260507 Housing, Water

Filter

29 4396841 Water Filter

30 Cap, Water

Filter

2260502W White

2260502T Biscuit

2260502B Black

2260502MG

Apollo Grey

31 489500 Screw

32 3400113 Screw

33 2303141 Bottom Hinge (FC)

34 2260519 Block, Housing

Support

35 2255012 Tube, Filter

Outlet

36 2203770 Hinge Top (FC)

37 2319867 Tube, Filter

Inlet

38 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

2260503MG

Apollo Grey

39 2223751 Door Closer, FC

40 2305373 Clamp, Cord

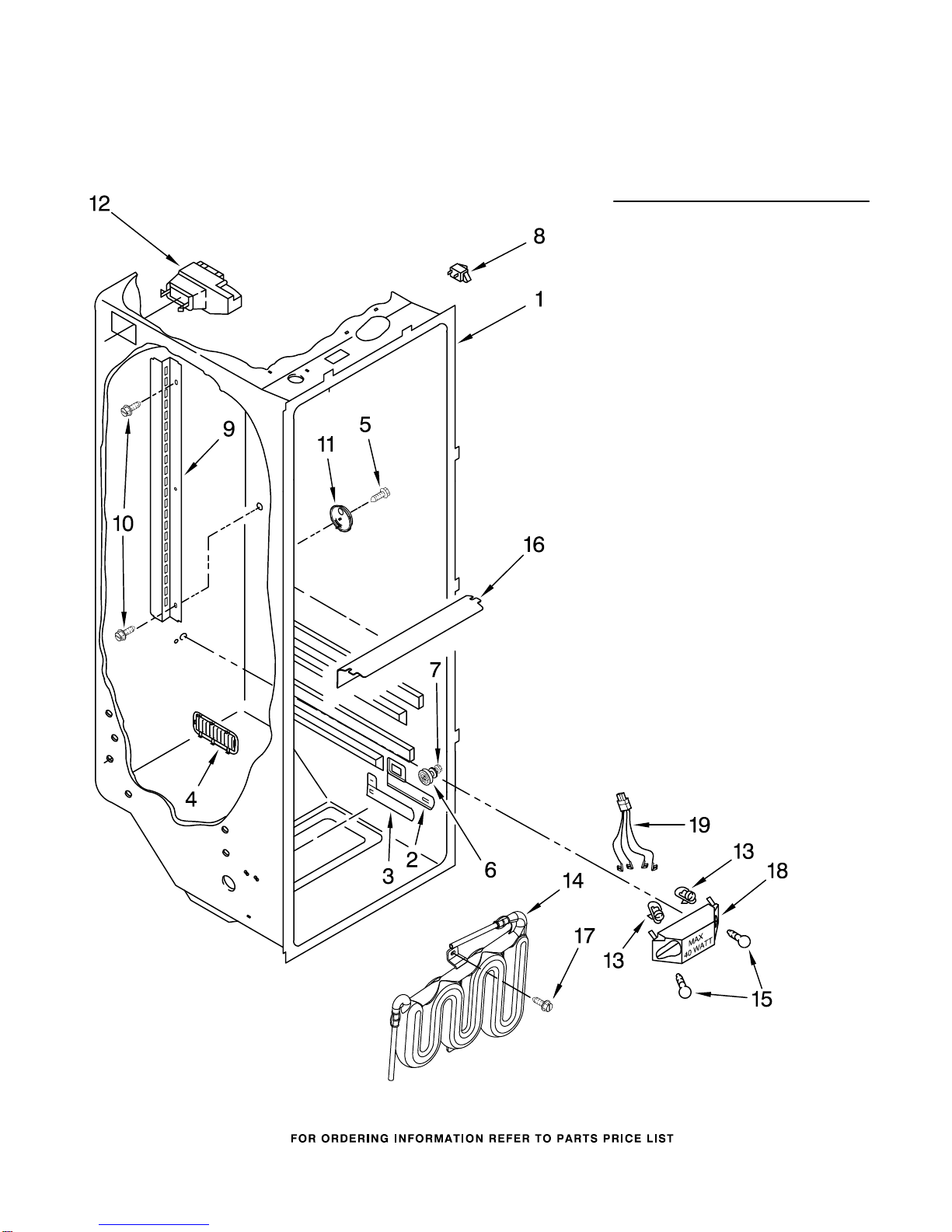

REFRIGERATOR LINER PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

W10004810

Screw

6 2196485 Stud Assembly

7 3400894 Screw

8 1118894 Switch,

Rocker Arm

9 2319866 Shelf Ladder

10 489478 Screw

11 2261601 Door Control Asm

W10151374

Air Diffuser

Assembly

13 2162085 Socket

14 2307107 Reservoir

15 2255743 Light Bulb

16 2209769 Light Lens

17 488280 Screw

18 2256035 Bracket,

Dual Crisper

19 2311637 Wire Harness,

Dual Crisper

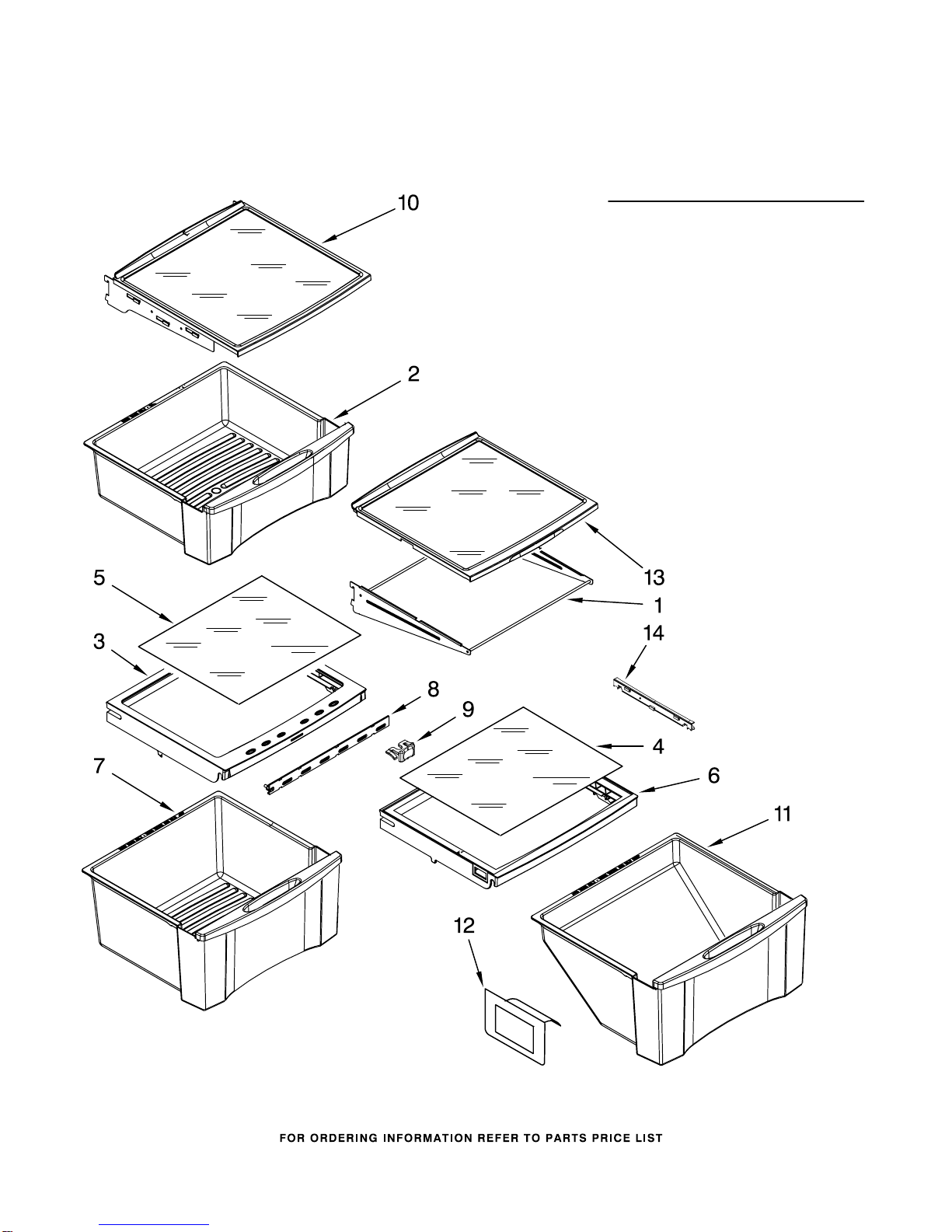

REFRIGERATOR SHELF PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION

1 2223517 Frame Assembly (2)

2 2223261 Snack Bin Asm

3 2223592 Cover, Crisper

4 2223714 Glass, Meat Cover

5 2223591 Glass, Cover

6 2223242 Cover, Meat Pan

7 2223235 Crisper Pan Asm

8 2223308 Slide, Humidity

Control

9 2223309 Knob, Humidity

Control

10 2223288 Shelf Pan Assembly

11 2223243 Meat Pan Assembly

12 2179350 Deflector

13 2255160 Shelf,

Slide Out (2)

14 2223320 Slide, Pan

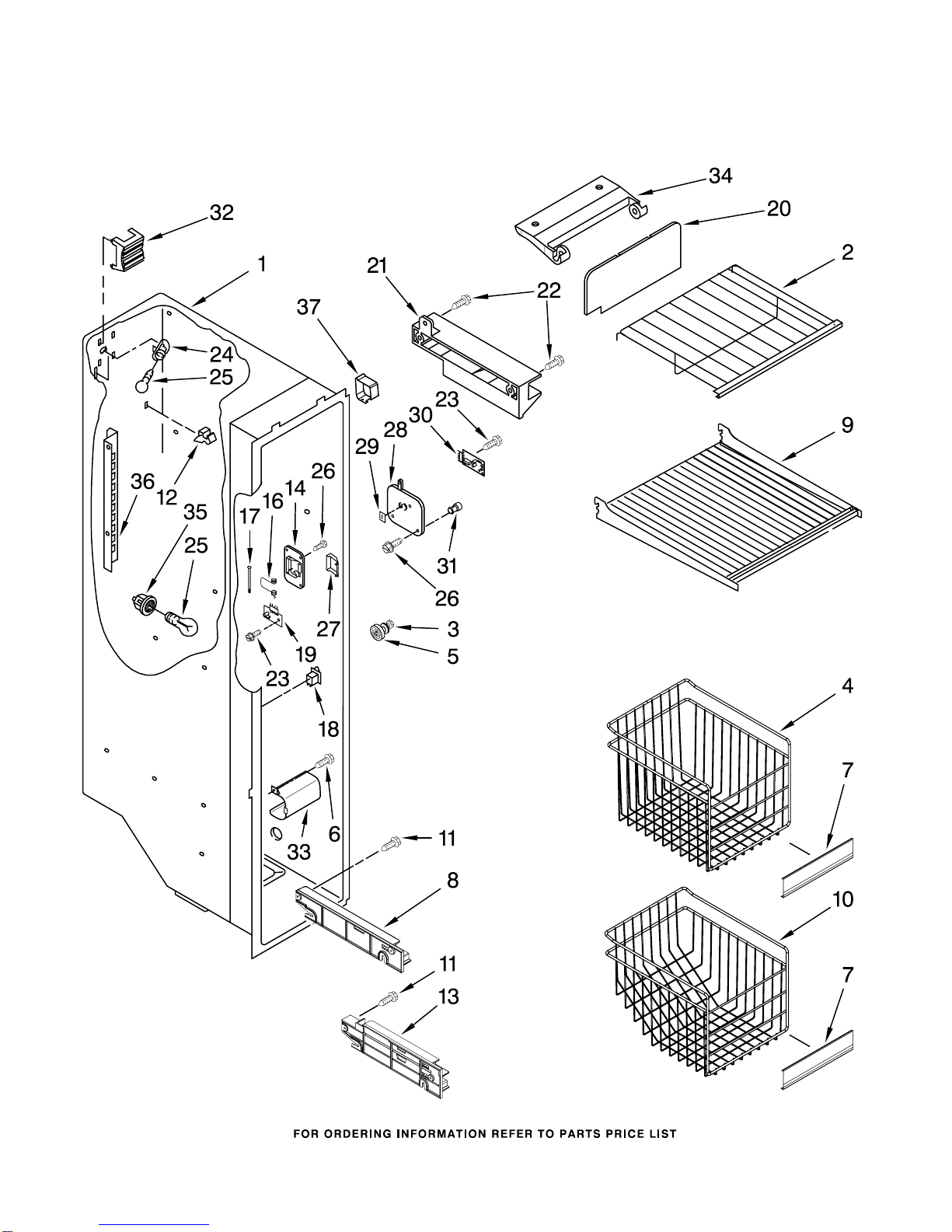

FREEZER LINER PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

FREEZER LINER PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2211746K Shelf, Slide Out

3 2196483 Stud Assembly

4 2301190 Basket, Tall

5 8281158 Screw

6 3400893 Screw

7 2195905K Trim, Basket

8 Shelf Track

2301289 Right Side

2301290 Left Side

9 2205837K Shelf (2)

10 2301191 Basket, Sloped

W10004810

Screw (8)

12 842534 Clip, Air Duct (2)

13 Shelf Track, Dual

2301293 Right Side

2301294 Left Side

14 2198587 Cover, Emitter

16 2198635 Spring

17 2198634 Pin

18 1115373 Switch, Rocker Arm

19 2220398 P.C. Board

Emitter

20 2255720 Cover, Ice Maker

21 2212321 Slide, Ice Maker

Mounting

22 489478 Screw

23 489214 Screw

24 2162085 Light Socket

25 2255743 Light Bulb

26 8281185 Screw

27 2198633 Flipper

W10173569

Cover, Receiver

29 2315398 Slide, Ice Maker

Shut Off

30 2255114 P.C. Board,

Receiver

31 2198643 Lens

32 2198589 Light Shield

33 2212340 Light Lens

34 2198641 Bracket,

Ice Maker Cover

35 2155597 Socket, Light

36 Ladder

2198609 Left Side

2198610 Right Side

37 2303234 Shield, Wiring

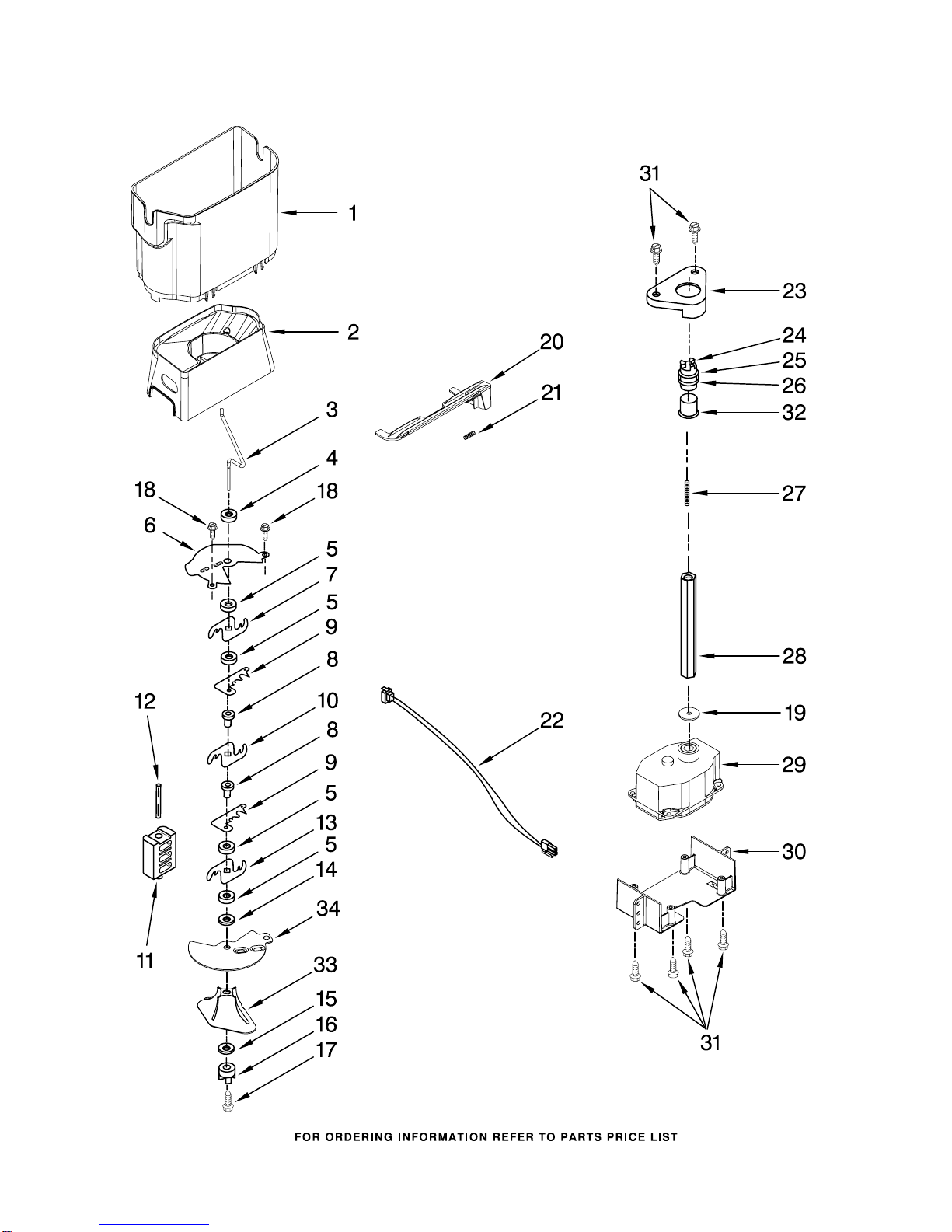

MOTOR AND ICE CONTAINER PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

MOTOR AND ICE CONTAINER PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION

W10139383

Ice Bin

W10138753

Crusher Bin

W10140642

Auger

4 2258220 Washer, Auger

5 1119007 Spacer, Flat (4)

W10139321

Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2317239 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

W10140684

Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 2212369 Holder

24 2220458 Coupling, Bottom

25 2198628 Seal

26 2212370 Washer

27 2198607 Spring

28 2305243 Drive Shaft

29 2252130 Dispenser, Motor

30 2305208 Bracket, Motor

31 8281163 Screw

32 2212365 Sleeve, Coupling

33 2317243 Wiper

34 2317250 Divider−

Chamber

100

W10140651

Ice Container

(Complete)

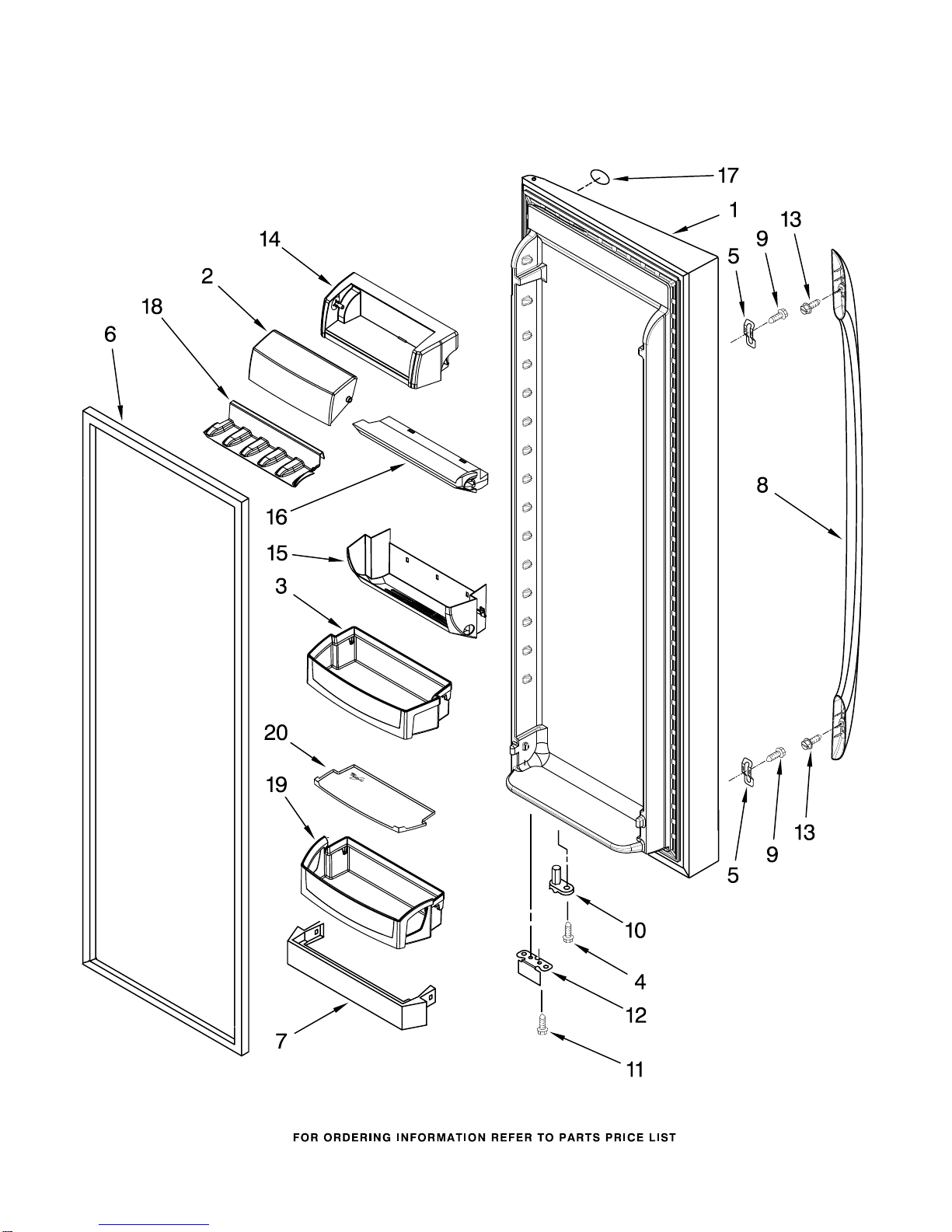

REFRIGERATOR DOOR PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

REFRIGERATOR DOOR PARTS

For Models:

(White) (Biscuit) (Black) (Stainless Steel) (Stainless VCM) (Monochromatic (Monochromatic

GS6NBEXRQ04, GS6NBEXRT04, GS6NBEXRB04, GS6NBEXRS04, GS6NBEXRL04, GS6NBEXRY04, GS6NBEXRA04

Satina) Stainless)

W10197275

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2255535W White

2255535T Biscuit

2255535B Black

2255535SB

Stainless Steel

2255535LB

Stainless VCM

2255535SAP

Monochromatic

Stainless

2255535LAP

Monochromatic

Satina

2 2255421 Dairy Door

3 2223239K Door Bin (2)

4 3400012 Screw

5 2255411 Clip

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

2326338 Apollo Grey

7 2223727 Trivet

8 Handle

W10135837

White

W10135841

Biscuit

W10135840

Black

W10135838

Universal Silver

9 489491 Screw

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2200082 Chrome

2200082B Black

13 8533920 Screw

14 2255420 Door Compartment

15 2255422 Frame, Can Rack

16 2255424 Air Diffuser Asm

17 2220214 Nameplate

18 2255423 Floor, Can Rack

19 2223463K Door Bin

20 2223464K Mat−Bin−(2)
