Whirlpool WHPTM34600WH Manuale utente

WHIRLPOOL OF INDIA LTD

Service Manual

Top Mount

No Frost Refrigerator

REV - 00

TROUBLE DIAGNOSTIC CHART

INDEX

Sr.No. Detail Page No.

1. MODEL RANGE 3

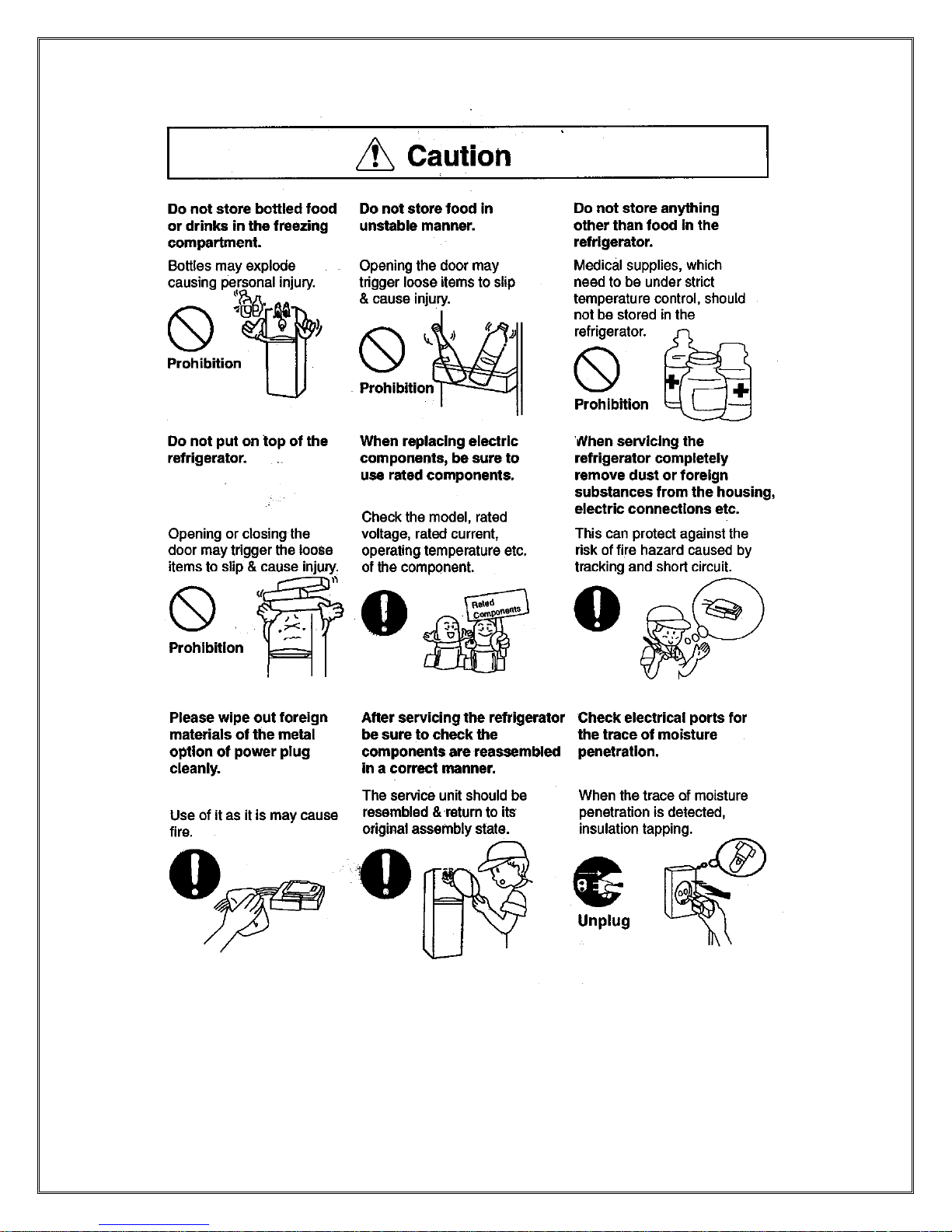

2. SAFETY PRECAUTIONS 4

-5

3. FEATURE / TECHNICAL SPECIFICATION 6

4. ELECTRONIC CONFIGURATION AND TROUBLESHOOTING 7

5. WIRING DIAGRAM 8

6. -

7. EXPLODED VIEWS -

8. SERVICE PART LIST -

NO FROST REFRIGERATOR

MODEL RANGE:

340L AUS DLX SP ALFA STEEL(WHPTM34600XX)

340L AUS DLX SP WHITE (WHPTM34600WH)

340

TECHNICAL /FEATURE SPECIFICATION:

71g

MODEL L

Type Frost free

Capacities (L) total net L

Width 620

Height 1680

Depth 675

Gross Weight (kg)

Voltage / Hz 220-240V/50Hz

Compressor

Oil Capacity

Comp. Run Capacitor

PTC Relay

Motor Protector

Fan motor

Split Diffuser NO

Deodorizer CHARCOAL

Number of Shelves 1

Type of Shelves GLASS

Humidity Control YES

RC Illumination BULB

FC Illumination -

Bottle Retainer 2

Can Rack NO

Egg tray 8 EGGS

Removable Ice twister YES

Puff pastry NO

Freezer Door Bins / Trivets 2

Refrigerator Door Bins / Trivets 4

Door lock NO

Handle SP

Electromechanical Control in

RC compartment

Yes

Fast Forward Cool Operation -

Door Alarm NO

Auto Power save mode NO

TX1113Y

4MFD

RSCR

RELAY-TY-QZ-003

PANASONIC 3.2W

DELUXE In this type of refrigerator, there is no user Interface on freezer compartment door for setting cooling .

Electronic Configuration, Logic & Troubleshooting

GENX Controls & Electronics Configuration

Product Configuration

Product Control RC Controlled

Software

User interface NO

Auto cool mode NO

Quick Chill/Fast Forward Ice NO

Auto Power sa e mode NO

Door Alarm NO

RC Illumination Yes(Lamp)

Control Board NO

Defrost heater Yes (Radiant Heater 180 W)

FC Door grounding No

Compressor

Run Capacitor

Door Re ersibility No

340L DLX

TX1113Y

4MFD

BLOWING AGENT : C H (CYCLO PENTANE)

5 10

R600a ((CH ) CH(CH )) : AS PER TABLE

3 2 3

W11033782

NAME MODEL GROSS

CAPACITY

COMPRESSOR DETAILS

NET

CAPACITY TX1113Y

L60 WHP TM34600 340L 308L 55

RD/BR

THERMOSTAT

TIMER

PK 4

PK PK PK

THERMAL

FUSE DEFROST HEATER

BU BU

BI - METAL

BULB

OVERLOAD

COMPRESSOR

START

RUN

C C

PTC RELAY

RUN CAP

OPTIONAL

RC SWITCH

FAN MOTOR

TEST

TERM

EMC FILTER

220 - 240V

50 Hz

REFRIGERANT QTY (Gms)

R600a((CH ) CH(CH) )

C H

15W

0.6 A

168 W AT 240 V

I/P AC LINE I/P AC NEUTRAL

GND

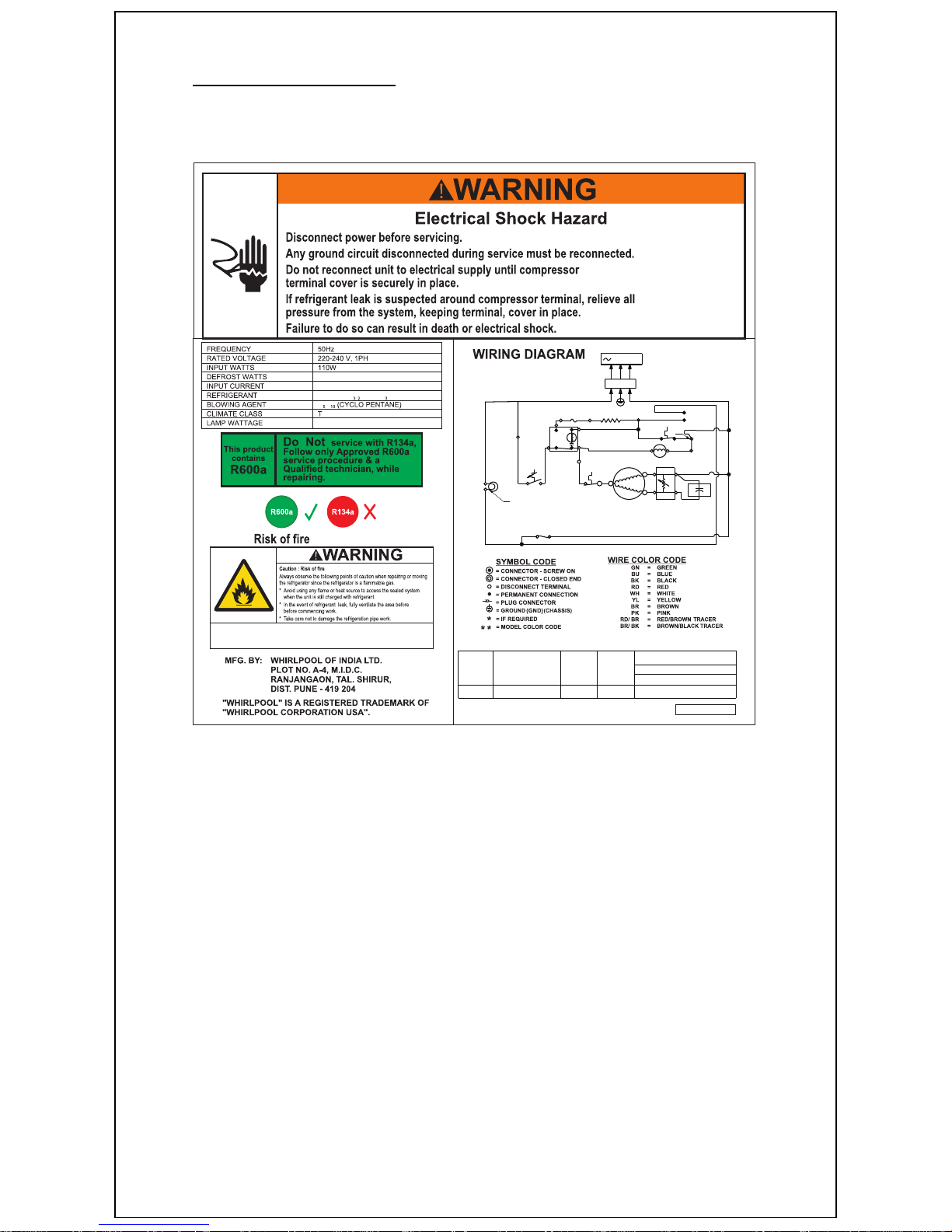

WIRING DIAGRAM:

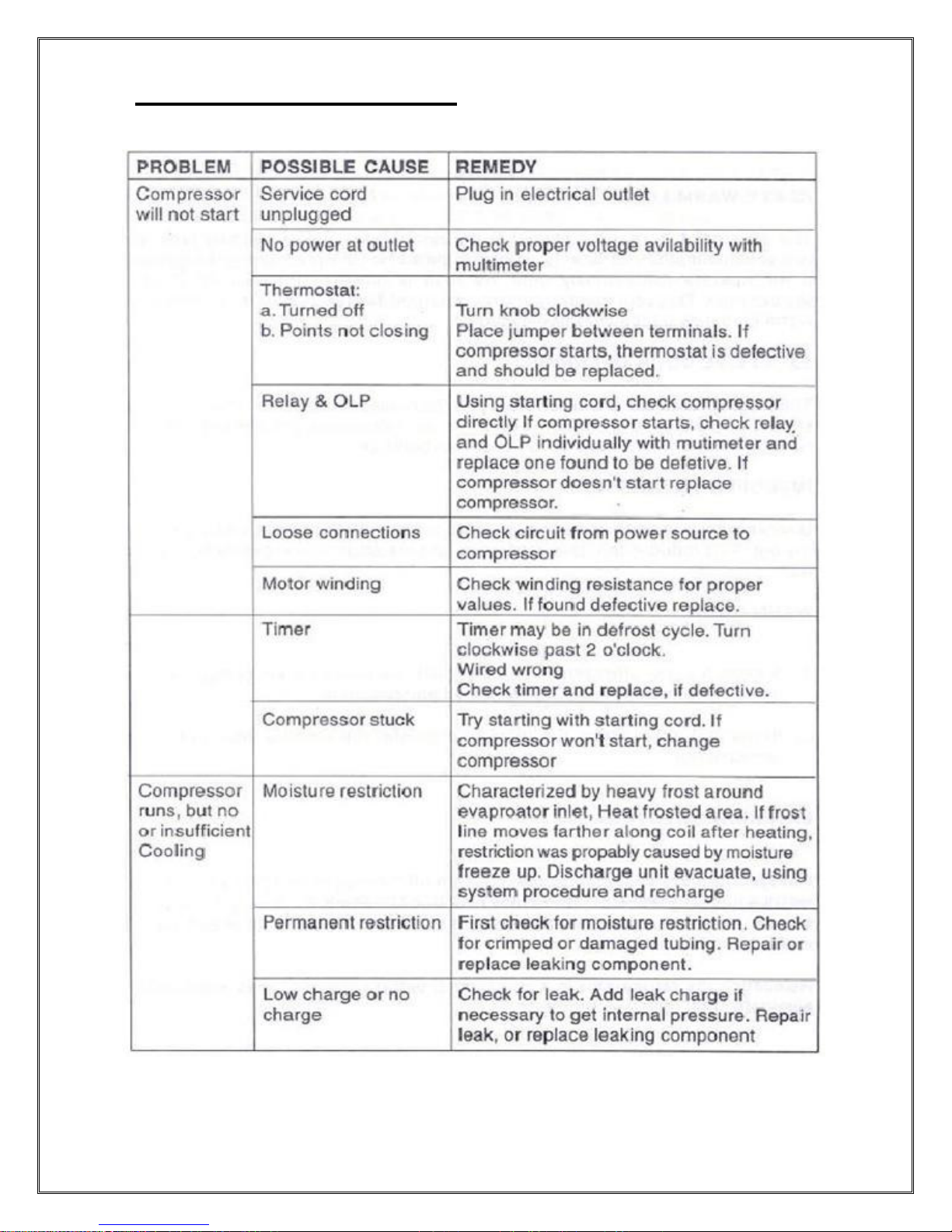

TROUBLE DIAGNOSTIC CHART
