Whirlpool 3LSP8255BW0 Manuale utente

1 357213 Nut, Push-In

2 Top

3358200 For White Model

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63424 For White Model

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3947509 For White Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (5)

31 90016 Clip, Harness

32 3362952 Dispenser, Bleach

LITERATURE PARTS

LIT3363122 Sheet, Installation Instructions

LIT3360469 Guide, Use and Care

LIT3947784 Label, Wiring Diagram

LIT4313896 Manual, (Washer) Do-It-Yourself

LIT881270 List, Repair Parts

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH-UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY (13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

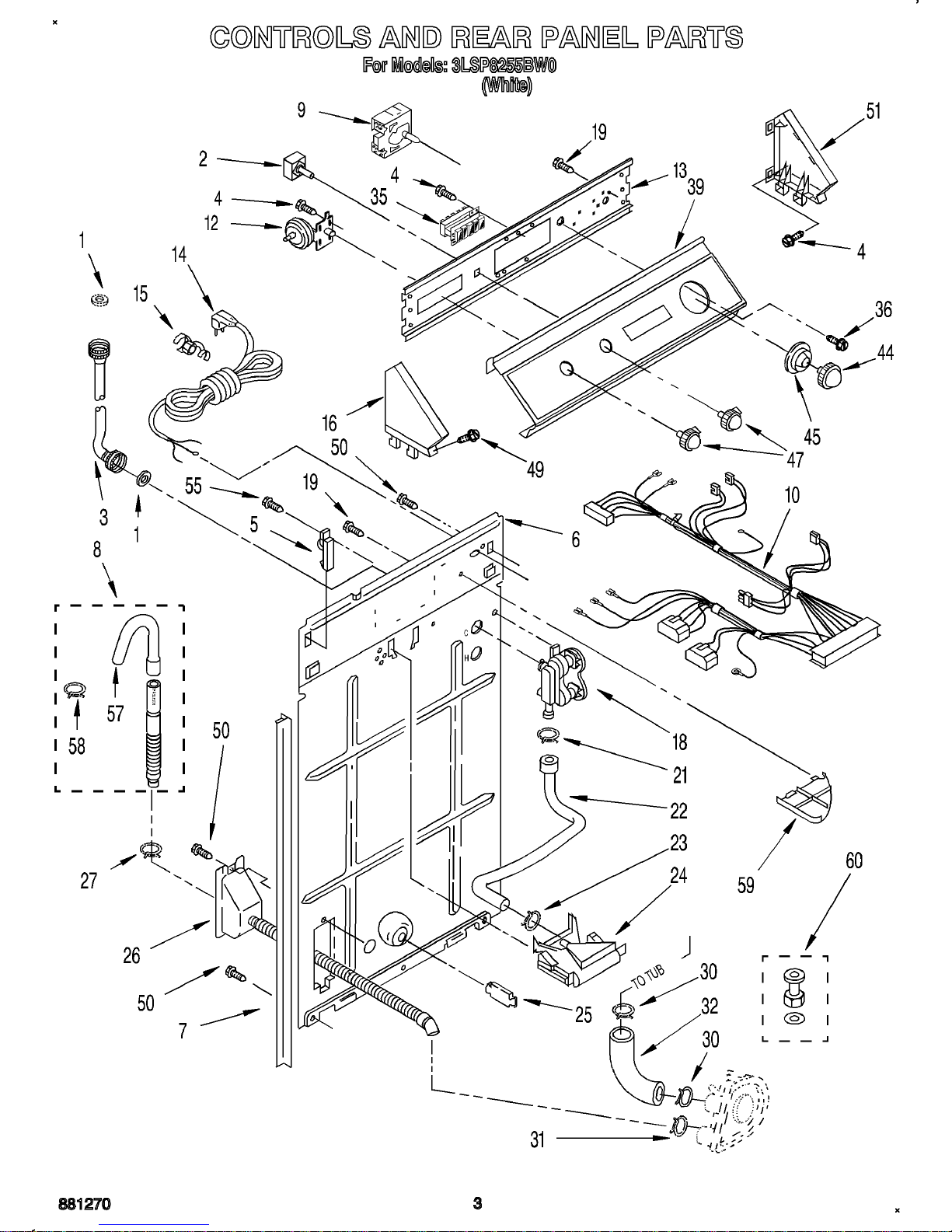

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

2 3349591 Switch, Cycle Modifier

3 3354858 Hose, Water Inlet (2)

4 90767 Screw, 8A x 3/8

5 387402 Hinge, Console (2)

6 3361144 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4"-8")

661577 Hose, Drain (9'-9") (Not Included)

3357090 Extension, Drain Hose (21 Inches) (Not Included)

9 3947783 Timer, Control (50 Hz.) (Motor Not A Service Part)

10 3361903 Harness, Wiring (For Detail See Page No. 9 )

12 3356464 Switch, Water Level

13 3361414 Bracket, Control

14 3361035 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358528 For White Model

18 3360393 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear Panel

26 3361805 Hose, Corrugated Assy.

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 3359102 Switch, Pushbutton (5)

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3360837 For White Model

44 3364290 Knob, Timer

45 3946260 Dial, Timer

47 3358431 Knob, Control

49 388326 Screw, 8-18 (2) (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap , End (R.H.)

3358513 For White Model

55 3357011 Screw, 10-16 x 1/2

57 3357027 Nozzle, Drain Hose

58 3357331 Clamp, Drain Hose

59 3348424 Shield, Suds

60 3357451 Hose Adapter Assembly

1 3359460 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 3359452 Nut, Lock (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

1 63580 Dispenser

2 358237 Screw & Washer (5-16-24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

9 3351001 Cam Driven

10 387091 Dog, Agitator Clutch

12 21366 Nut, Spanner

13 3350649 Basket & Balance Ring

14 3361948 Filter, Plate (Includes Illus. 15)

15 62942 Lock, Filter

16 388893 Tub (Includes Item 25)

17 389140 Block, Basket Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure Switch

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

26 3354845 Clip, Agitator

27 3355921 Washer, Agitator
