TOP AND CABINET PARTS AUTOMATIC

WASHER

For Model: 4XLA64W72BN0

(Almond)

1−94 Litho in U.S.A.(L.T.) Part No. 3361091

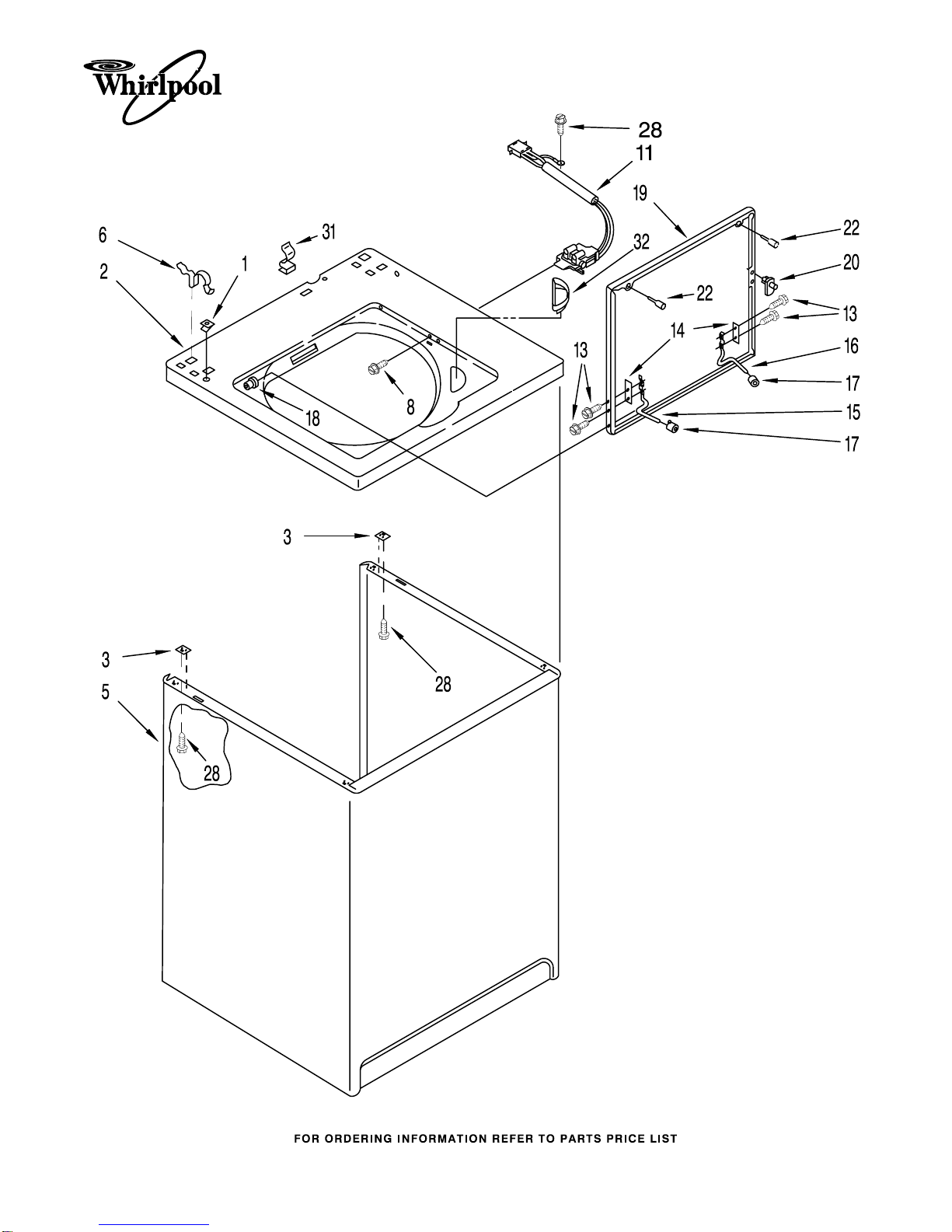

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: 4XLA64W72BN0

(Almond)

3361091

1 357213 Nut, Push−In

2 Top

3358227 For Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63129 For Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352631 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3358772 For Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360465 Guide, Use and

Care

LIT3361024 Label, Wiring

Diagram

LIT3361091 List, Repair Parts

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896 Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

CONTROLS AND REAR PANEL PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

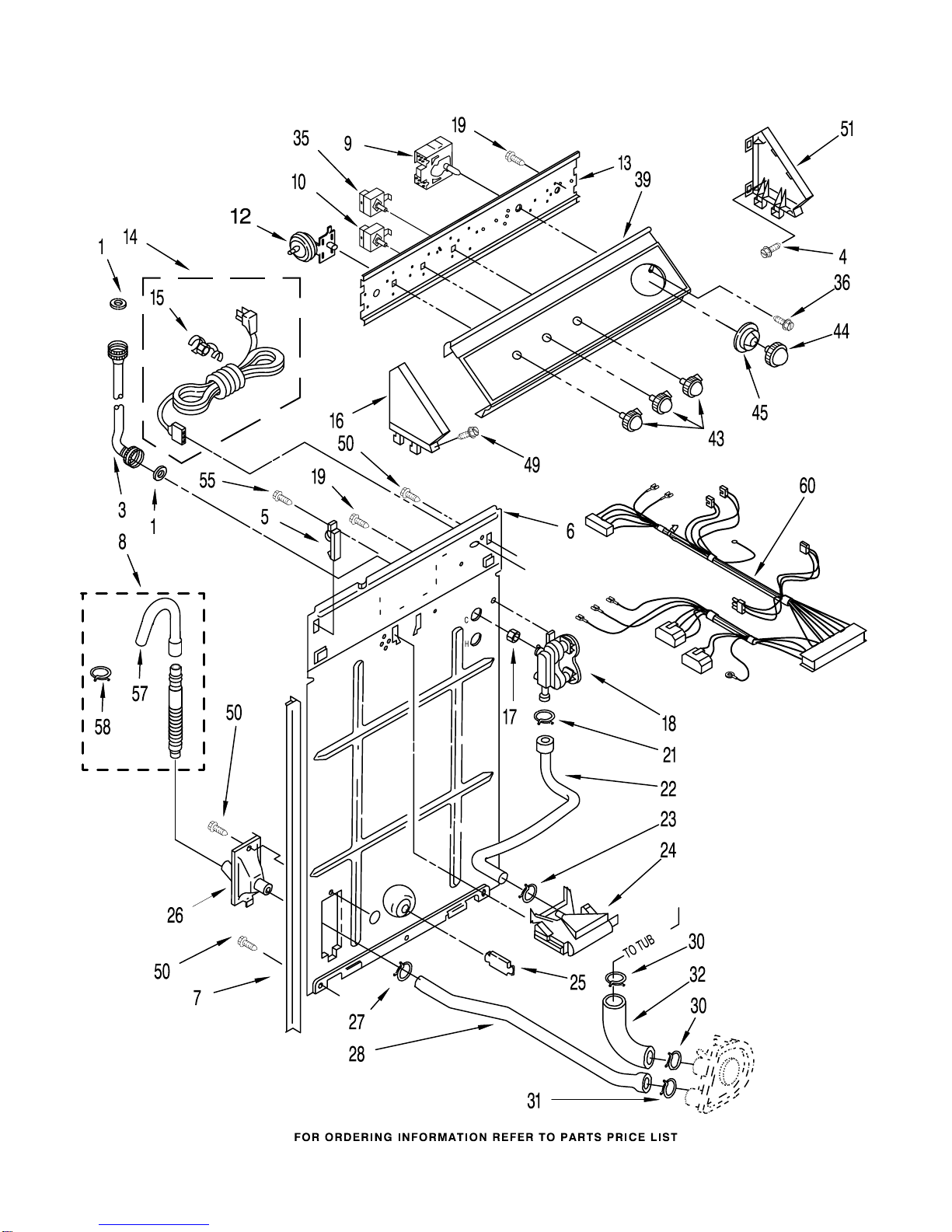

CONTROLS AND REAR PANEL PARTS

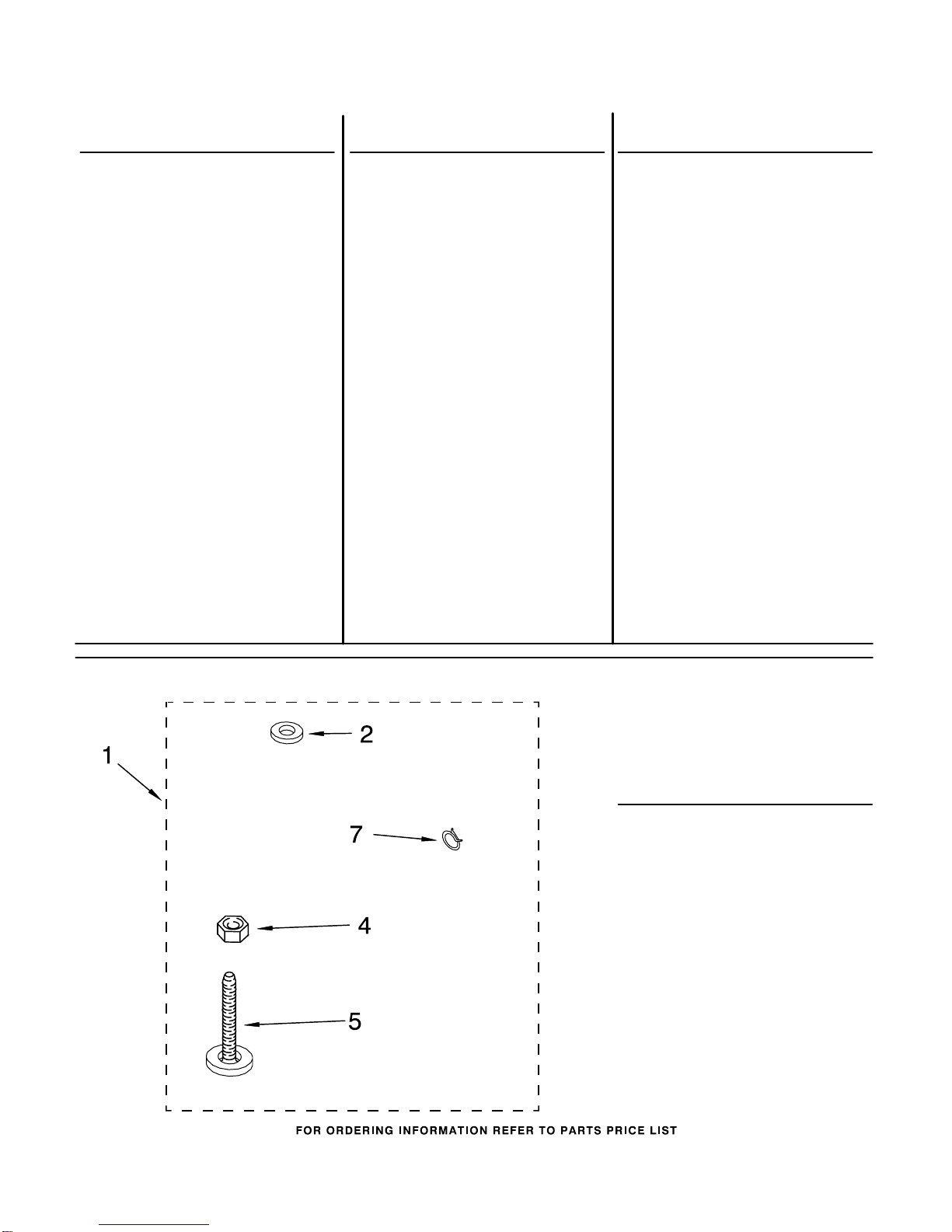

MISCELLANEOUS PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

1 3356711 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 62739 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 3359917 Hose, Water

Inlet (2)

4 90767 Screw, 8A x 3/8

5 387402 Hinge, Console (2)

6 3357976 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’− 9")

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches)

(Not Included)

9 3361023 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3349591 Switch, Rotary

12 3356465 Switch, Water Level

13 3358895 Bracket, Control

14 3353850 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358532 For Almond Model

17 96160 Screen, Filter (2)

18 3360393 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 62662 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 661536 Switch, Rotary

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3360843 For Almond Model

43 3358431 Knob, Control (3)

44 3358416 Knob, Timer

45 3358446 Dial, Timer

49 3353145 Screw, 8−18 (2)

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358517 For Almond Model

55 3357011 Screw,

10−16 x 1/2

57 3357027 Nozzle, Drain

Hose

58 3357331 Clamp, Drain

Hose

60 3362558 Harness, Wiring

(For Detail See

Page 9.) Also

See Clips.

AGITATOR, BASKET AND TUB PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

Illus. Part

No. No. DESCRIPTION

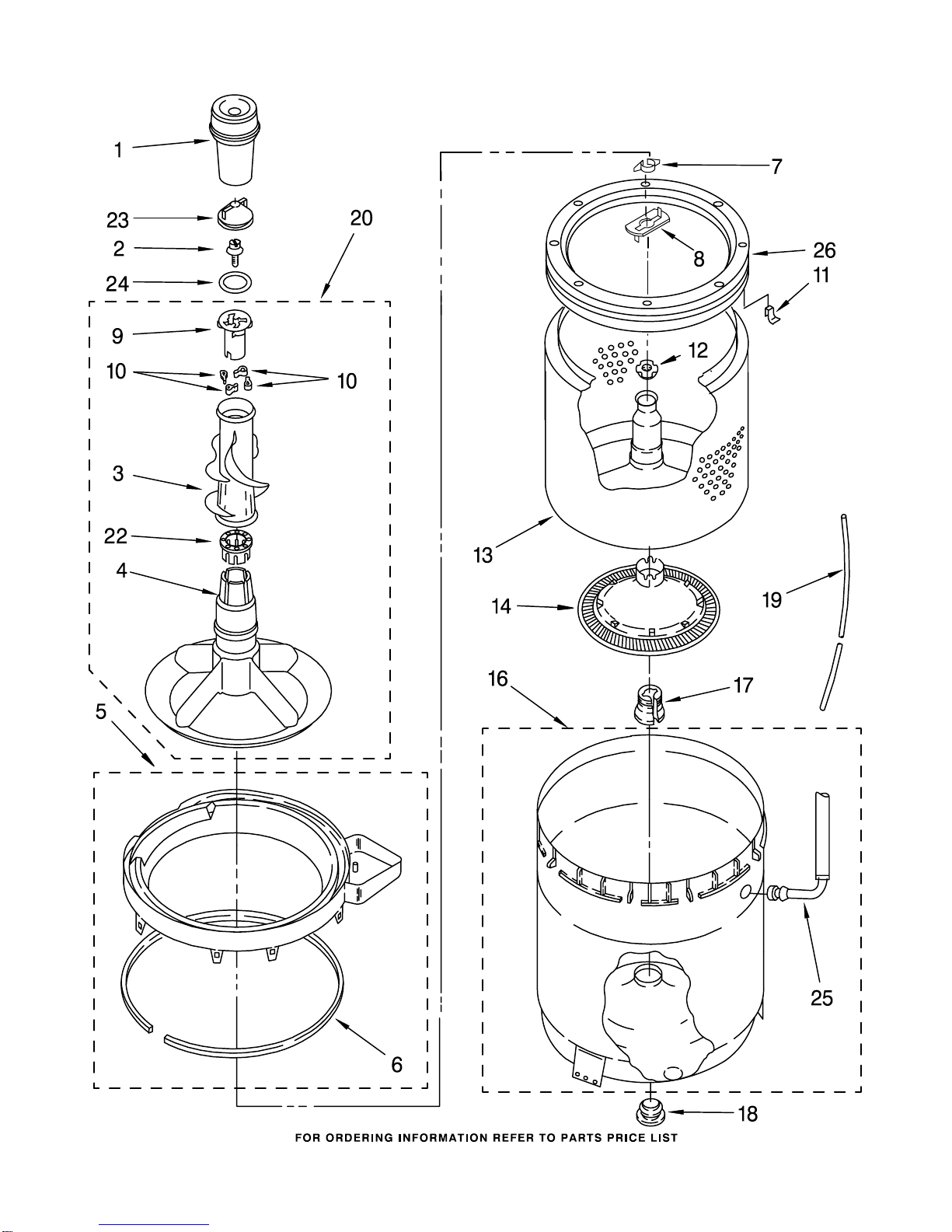

AGITATOR, BASKET AND TUB PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

11 387867 Clip

12 21366 Nut, Spanner

13 3357245 Basket & Balance

Ring

14 3361948 Filter, Plate

16 63039 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3350829 Agitator

(Complete Asy.)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

26 387868 Balance Ring

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

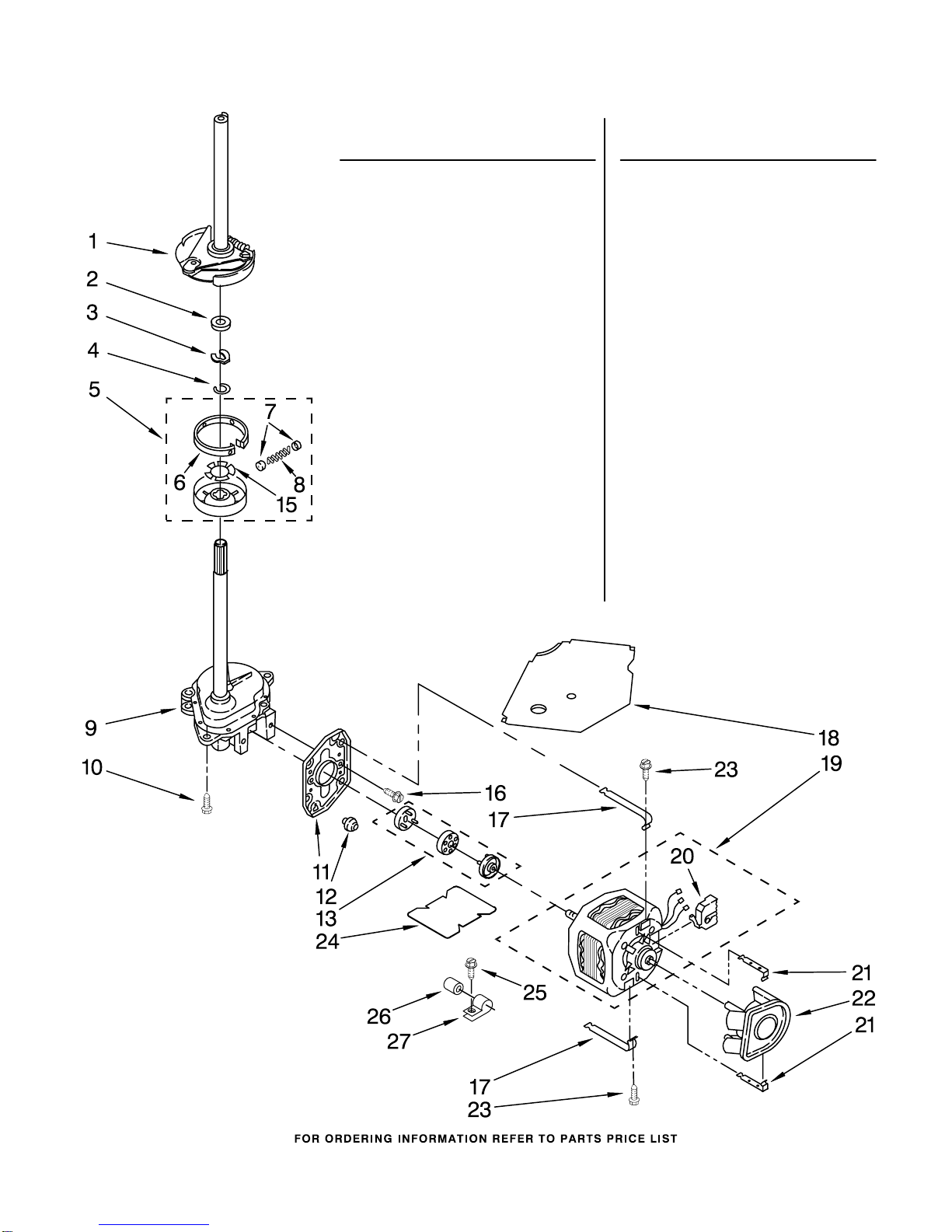

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 62693 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3353846 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

Illus. Part

No. No. DESCRIPTION

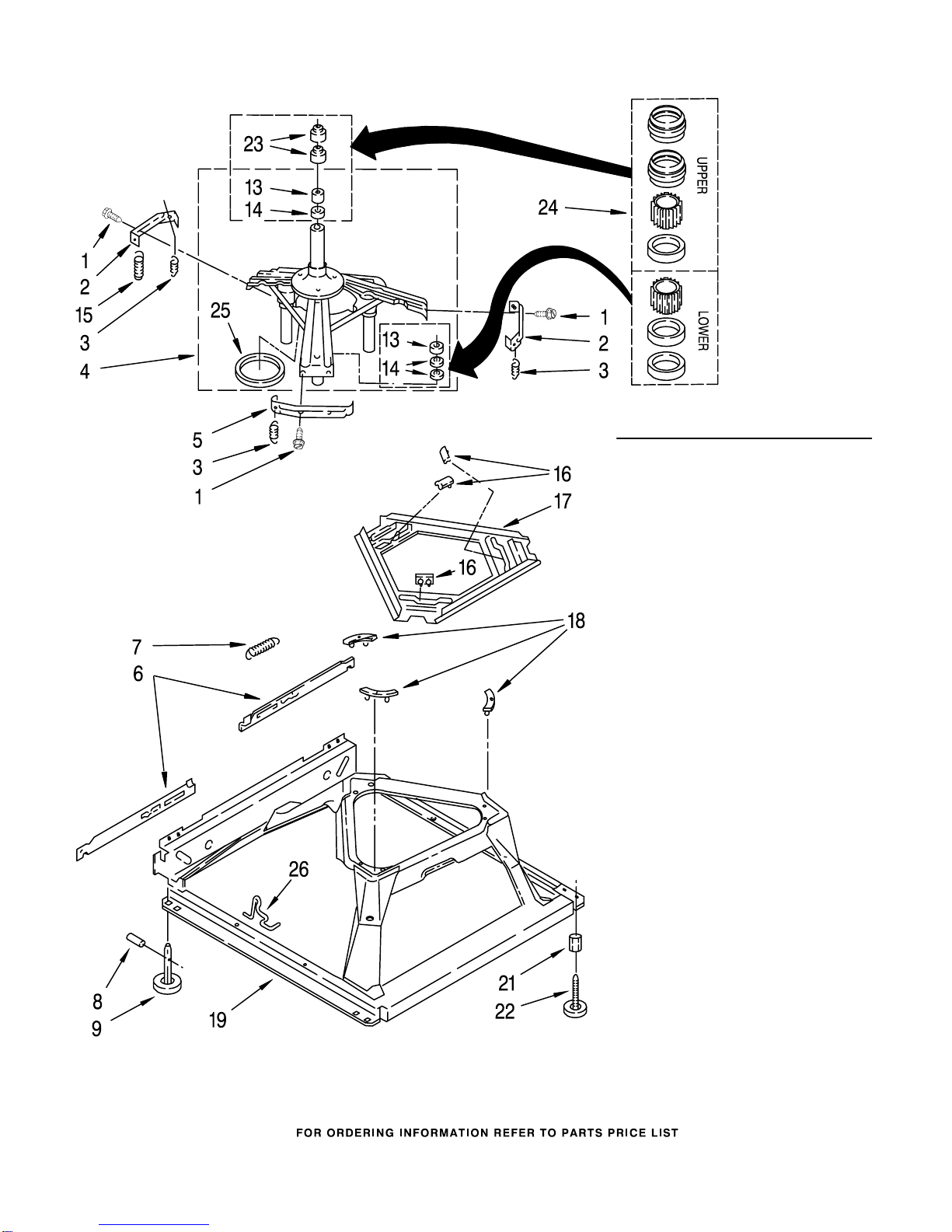

MACHINE BASE PARTS

For Model: 4XLA64W72BN0

(Almond)

3361091

1 343641 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63138 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3349337 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 62739 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

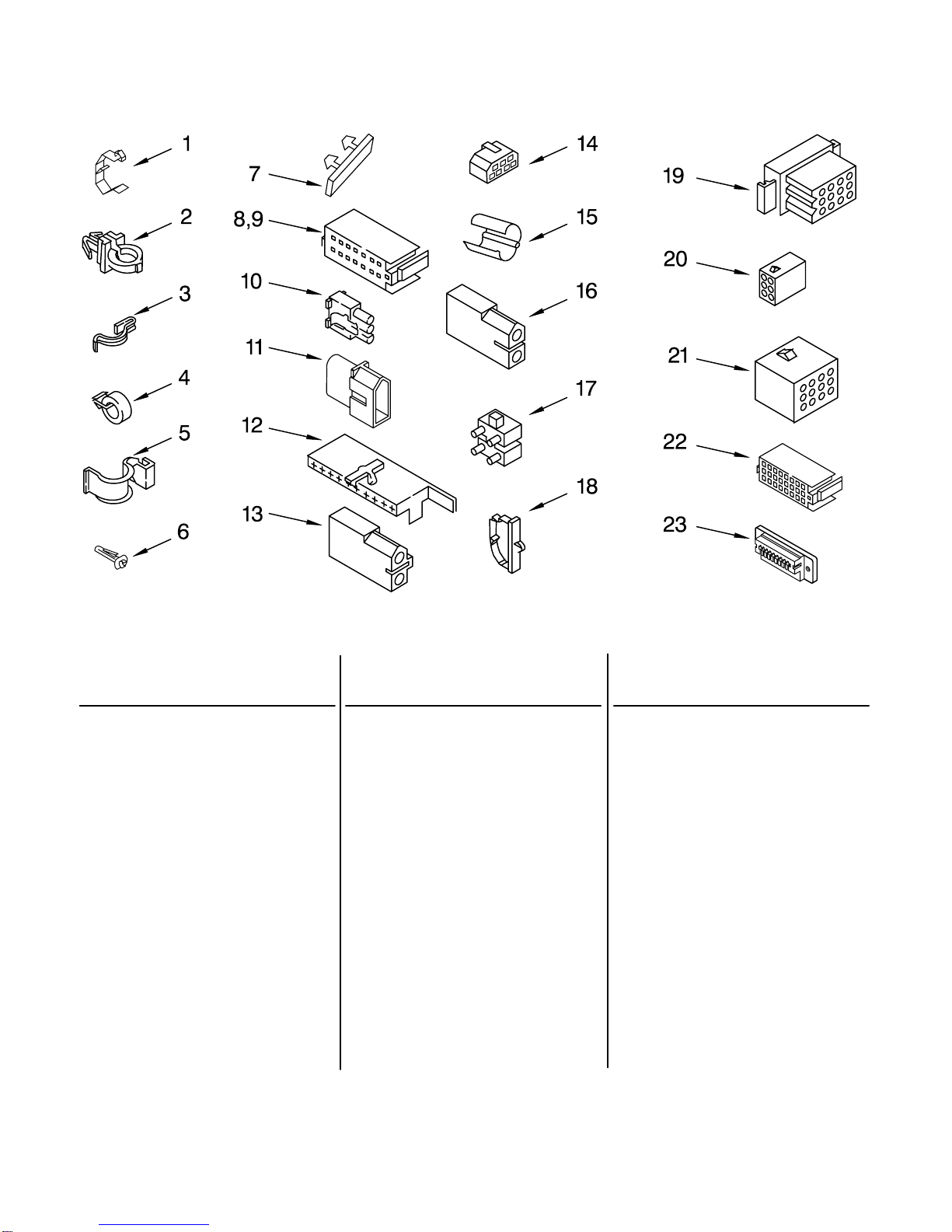

WIRING HARNESS PARTS

WH2B

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term. 94613

or 94614 )

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term. 94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term. 352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

or 94614)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Suds Valve)

(Use Term. 94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle,

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

or 94614)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term. 3369365)

23 3349494 Connector, ETC

(Use Term. 340795)

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Model: 4XLA64W72BN0

(Almond)

3361091 9

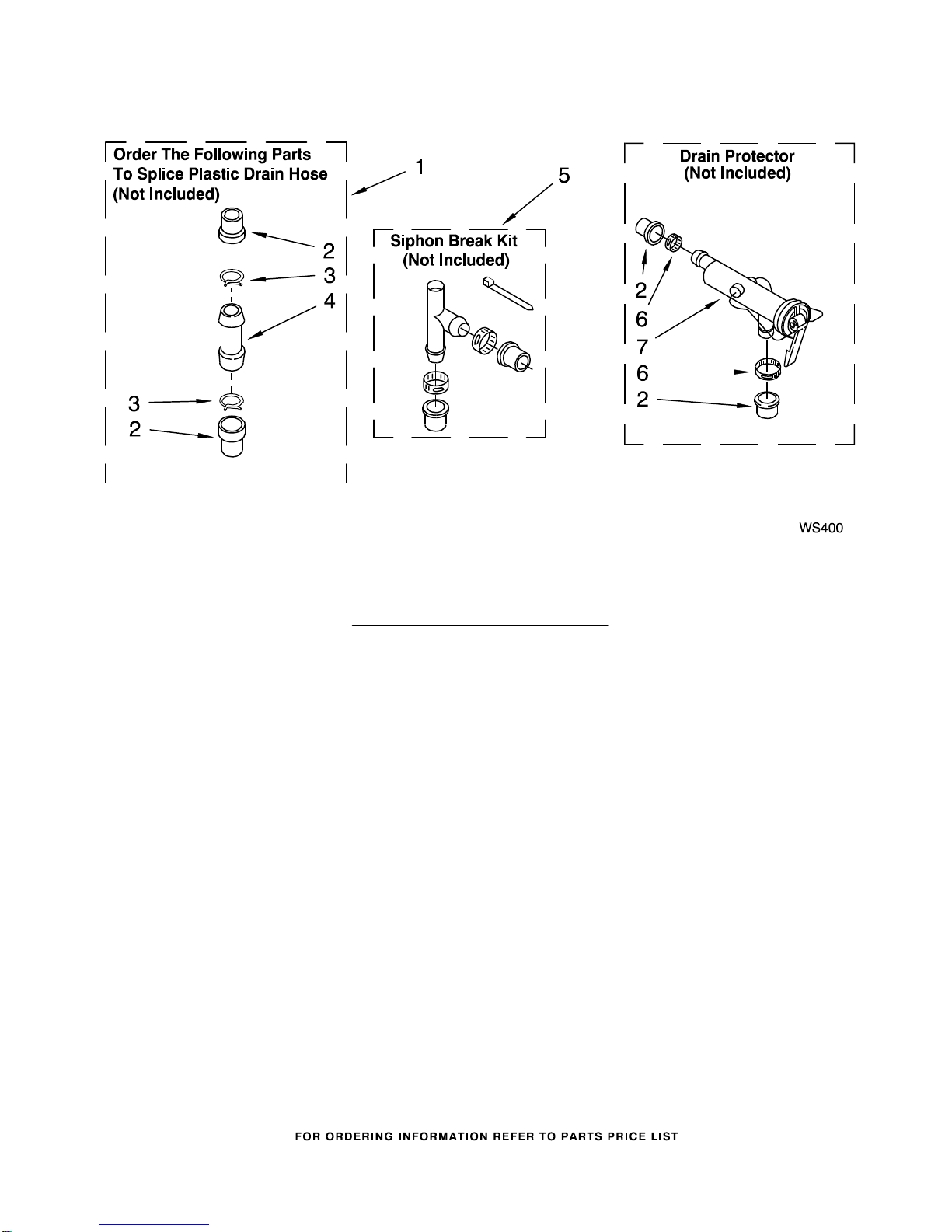

WATER SYSTEM PARTS

Illus. Part

No. No. DESCRIPTION

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

For Model: 4XLA64W72BN0

(Almond)

3361091
