Whirlpool 6LSC9255BQ2 Manuale utente

1 357213 Nut, Push-In

2 Top

3358200 White

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

388391 White

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3947509 White

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (5)

31 90016 Clip, Harness

32 3362952 Dispenser, Bleach

LITERATURE PARTS

LIT3363123 Sheet, Installation Instructions

LIT3364267 Guide, Use and Care

LIT3364211 Energy Guide

LIT3947640 Label, Wiring Diagram

LIT881249 List, Repair Parts

Following May Be Purchased

DO-IT-YOURSELF REPAIR MANUALS

LIT4313896 Manual, (Washer) Do-It-Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH-UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY (13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

OIL 350572 Oil, Gearcase (16 Oz.)

LUBRICANT

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

SEALER285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

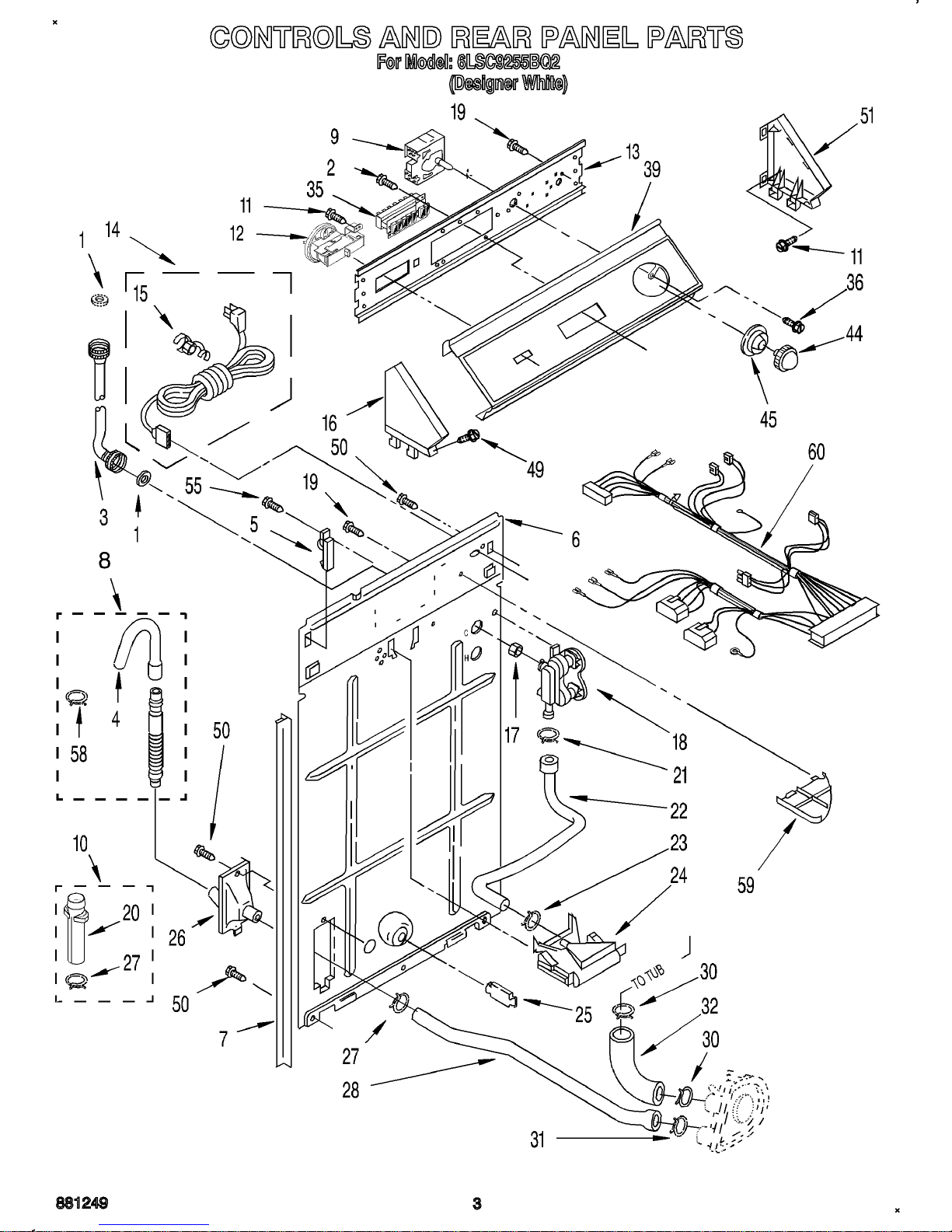

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

2 90767 Screw, 8A x 3/8

3 3358798 Hose, Water Inlet (2)

4 3357027 Nozzle, Drain Hose

5 387402 Hinge, Console (2)

6 3949205 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4'- 8")

661577 Hose, Drain (9'- 9") (Not Included)

3357090 Extension, Drain Hose (21 Inches.) (Not Included.)

9 3947639 Timer, Control (50 Hz.) (Motor Not A Service Part)

10 285750 (Kit-Adapter) (Includes. Item 20 and 27)

11 3390646 Screw, 8-18 x 5/16

12 Switch, Water Level

3357481 For Designer White Model

13 3361414 Bracket, Control

14 3353308 Cord, Power

15 63848 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358528 For Designer White Model

17 96160 Screen, Filter (2)

18 3360393 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

20 3363920 Adapter-Drain Hose

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear Panel

26 3355497 Connector, Drain Hose

27 356138 Clamp, Hose

28 3359816 Hose, Pump To Drain Connector

30 371502 Clamp, Hose

31 371507 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 Switch, Touch-Pad (7)

3363673 For Designer White Model

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3363474 For Designer White Model

44 Knob, Timer

3364291 For Designer White Model

45 Dial, Timer

3946261 For Designer White Model

49 3353145 Screw, 8-18 (2) (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap , End (R.H.)

3358513 For Designer White Model

55 3357011 Screw, 10-16 x 1/2

58 3357331 Clamp, Drain Hose

59 3348424 Shield, Suds

60 3949110 Harness, Wiring (For Detail See Wiring Harness Parts Page)

Also See Clips.

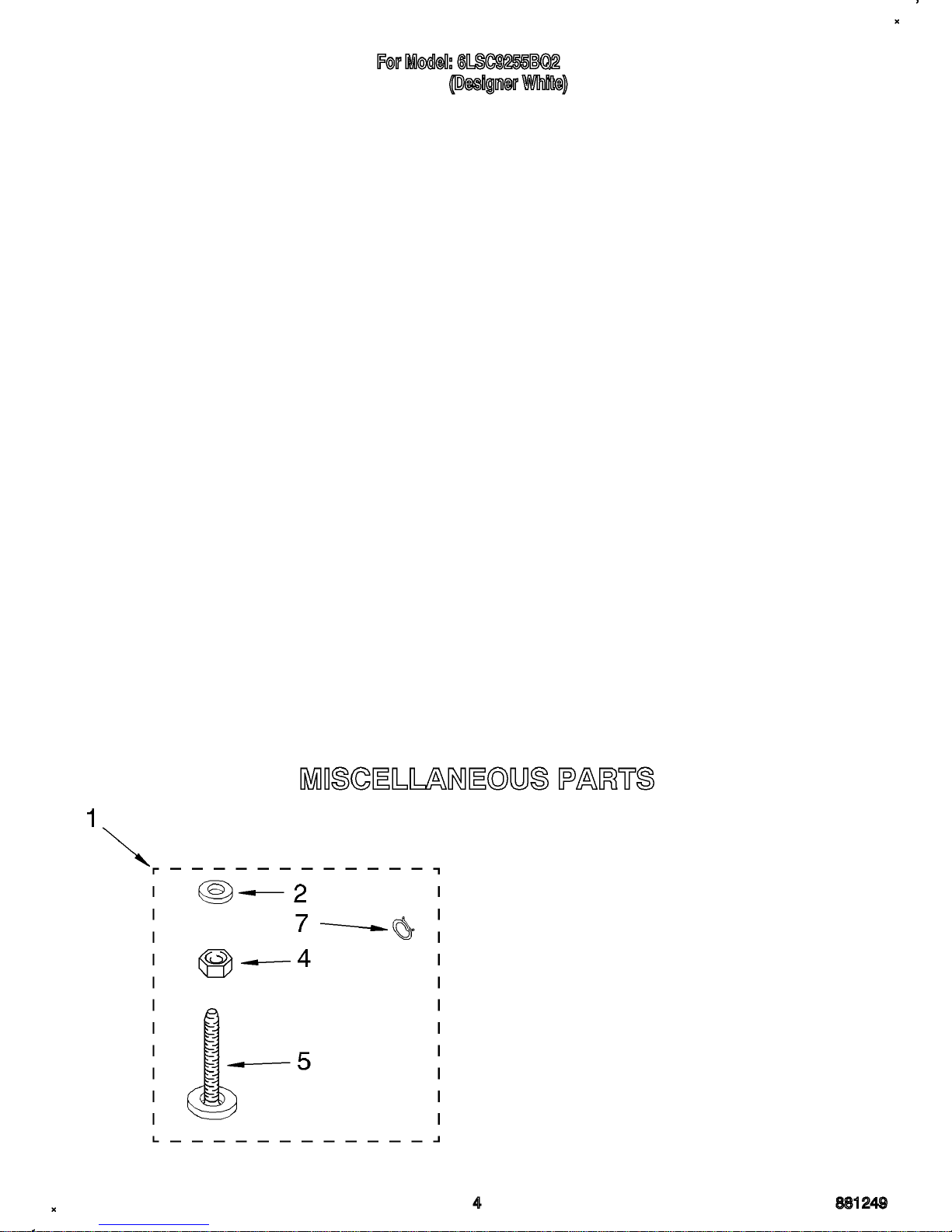

1 3359464 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 3359452 Nut, Lock (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

1 63580 Dispenser

2 358237 Screw & Washer (5-16-24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator Clutch

12 21366 Nut, Spanner

13 3350649 Basket & Balance Ring

14 3361948 Filter, Plate

16 388893 Tub (Includes Item 25)

17 389140 Block, Basket Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure Switch

20 3348117 Agitator Asy. (Complete)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach
