TOP AND CABINET PARTS
1
For Model: LBR2121DW0
(WHITE)
7−96 Litho in U.S.A. (L.T.) Part No. 881194
AUTOMATIC WASHER
TOP AND CABINET PARTS
LITERATURE AND OPTIONAL PARTS
2
For Model: LBR2121DW0
(WHITE)
881194
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
357213
Nut, Push−In (2)
2
Top
3358239
White
3
62750
Spacer, Cabinet To
Top (4)
5
Cabinet
63128
White
6
62780
Clip, Top & Cabinet
& Rear Panel (2)
8
3356311
Screw & Washer,
Lid Switch (2)
11
3352631
Switch, Lid
13
3351355
Screw, Lid Hinge
Mounting (4)
15
54584
Hinge, Lid (L.H.)
16
54583
Hinge, Lid (R.H.)
17
19119
Bumper, Lid Hinge
18
21258
Bearing, Lid
Hinge (2)
19
Lid
3351652
White
20
358684
Strike, Lid Switch
22
93770
Bumper, Lid (2)
28
384435
Screw,
10−16 x 1/2 (4)
31
90016
Clip, Harness
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE PARTS
LIT3360057
Sheet, Installation
Instructions
LIT3363551
Guide, Use and
Care
LIT3361385
Energy Guide
LIT3351738
Label, Wiring
Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT4313896
Manual, (Washer)
Do−It−Yourself
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017
White
72107
Almond
72110
Golden Harvest
PAINT, PRESSURIZED SPRAY
(13 oz.)
350938
Primer, Gray
350930
White
350956
Almond
261890
Golden Harvest
PAINT, BULK (1 qt.)
799344
White (Uncut)
978883
Almond (Uncut)
261891
Golden Harvest
(Uncut)
OIL
350572
Oil, Gearcase
(16 Oz.)
LUBRICANT
285208
Lubricant (Use
Only in Brake
Shoe Assembly
On Roller and
Pin)
SEALER
285195
Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
SHIPPING KIT
3348675
Shipping Kit
ACCESSORY PARTS
89121
Stand−Pipe Kit
367031
Drain Protector
285320
Siphon Break Kit
CONTROLS AND REAR PANEL PARTS
3
For Model: LBR2121DW0
(WHITE)
881194

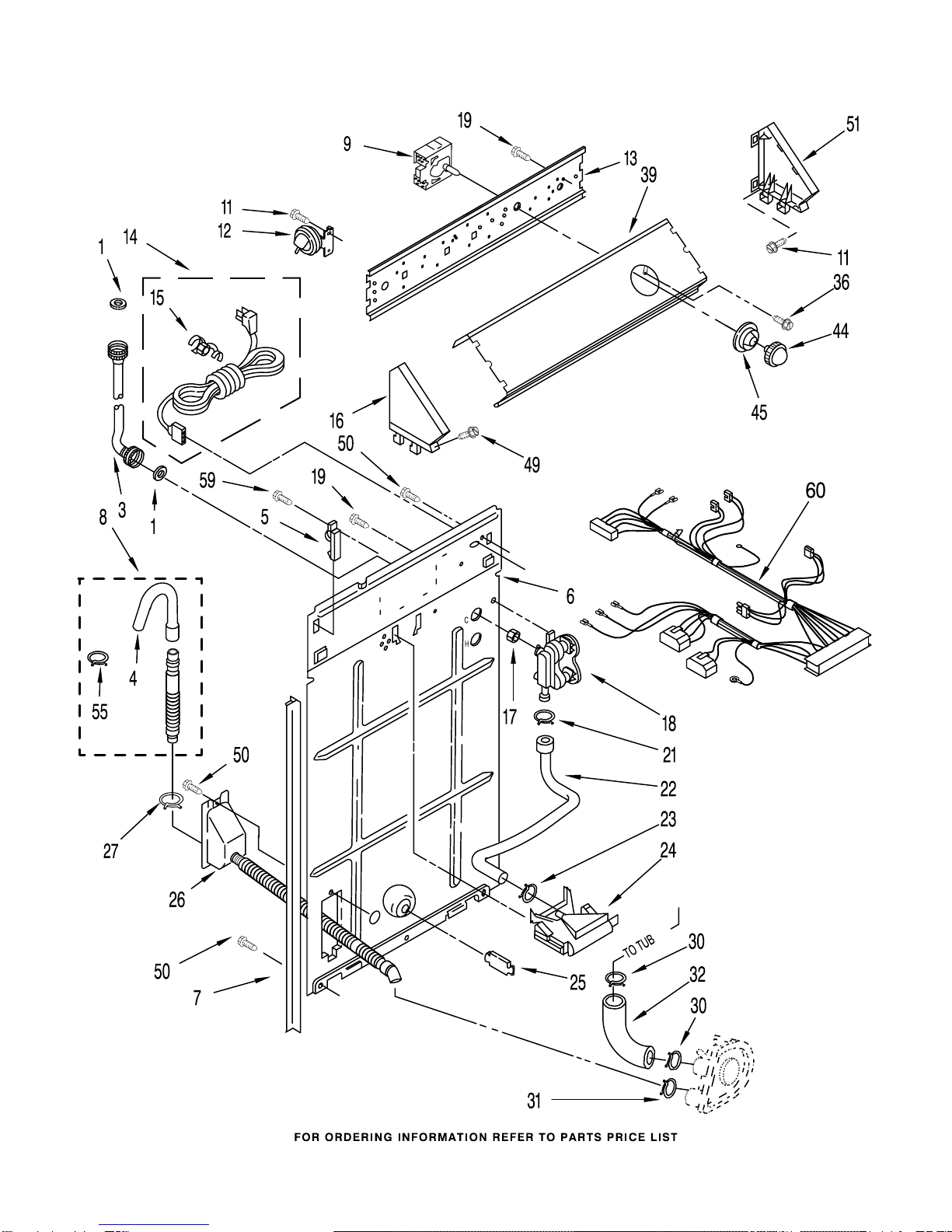

CONTROL AND REAR PANEL PARTS
4
For Model: LBR2121DW0
(WHITE)
881194
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
16123
Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
3
3354858
Hose, Water
Inlet (2)
4
3357027
Nozzle−Drain
Hose
5
387402
Hinge, Console (2)
6
3357976
Panel, Rear
7
62747
Pad, Rear Panel
8
661575
Hose, Drain
(4’− 8")
661577
Hose, Drain
(9’− 9")
(Not Included)
3357090
Extension,
Drain Hose
(21 Inches.)
(Not Included.)
9
3946451
Timer, Control
(60 Hz.)
(Motor Not A
Service Part)
11
90767
Screw, 8A x 3/8
12
64102
Switch, Water Level
13
3358897
Bracket, Control
14
3360514
Cord, Power
15
63848
Strain Relief,
Power Cord
16
Cap, End (L.H.)
3358530
Black/Chrome
17
96160
Screen, Filter (2)
18
3360392
Valve, Water
Mixing
19
90864
Screw,
10−24 x 3/8 (2)
21
370451
Clamp, Hose
272846 (Alt.)
353367 (Alt.)
22
62662
Hose, Vacuum
Break
23
371503
Clamp, Hose
24
3347034
Break, Vacuum
25
63290
Support, Rear
Panel
26
3361805
Hose−Corrugated
Assy.
27
356138
Clamp, Hose
30
371502
Clamp, Hose
31
660628
Clamp, Hose
272858 (Alt.)
370447 (Alt.)
353097 (Alt.)
32
62731
Hose, Pump To Tub
36
96435
Screw, Timer
Mounting
(10−32 x 1) (2)
39
3947790
Panel, Console
44
3358418
Knob, Timer
45
3946260
Dial, Timer
49
3353145
Screw, 8−18
(Panel to Top)
50
62863
Screw, 10−16 x 3/8
51
Cap, End (R.H.)
3358515
Black/Chrome
55
3357331
Clamp, Drain
Hose
59
3357011
Screw,
10−16 X 1/2
60
3947388
Harness, Wiring
(For Detail See
Page 9.) Also
See Clips.
AGITATOR, BASKET AND TUB PARTS
5
For Model: LBR2121DW0
(WHITE)
881194
MISCELLANEOUS PARTS
AGITATOR, BASKET AND TUB PARTS
6
For Model: LBR2121DW0
(WHITE)
881194
Illus. Part
No. No. DESCRIPTION
1
3355758
Cap, Agitator
2
358237
Screw & Washer
(5−16−24 x 1)
4
3350151
Agitator
5
3360611
Tub Ring & Gasket
Assy.
6
3359586
Gasket, Tub Ring
7
387867
Clip, Balance
Ring (8)
8
387868
Balance Ring
12
21366
Nut, Spanner
13
387713
Basket & Balance
Ring
14
63125
Tub
15
389140
Block, Basket
Drive
16
383727
Gasket, Centerpost
17
386757
Hose, Pressure
Switch
Illus. Part
No. No. DESCRIPTION
1
3356711
Miscellaneous
Parts Bag
2
16123
Washer, Inlet
Hose
(1−1/16 x 5/8) (4)
4
62739
Nut, Lock (2)
(3/8−16)
5
389102
Foot, Front (2)
7
356138
Clamp, Hose
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
7
For Model: LBR2121DW0
(WHITE)
881194
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
388951
Brake & Drive
Tube (Complete)
(Refer to Page 10
For Further
Breakdown)
2
63292
Washer, Spin
Tube Thrust
3
62697
Ring, Spin
Tube Support
4
63283
Ring, Retainer
5
3946794
Clutch (Complete)
6
3946793
Band & Lining,
Clutch (Includes
Illus. 7 & 8)
7
62646
Cap, Clutch
Spring (2)
8
3363337
Spring, Clutch
9
3360630
Gearcase
(Complete)
(Refer To Page
11 For Further
Breakdown.)
10
3357334
Screw, Gearcase
To Base (3)
11
62611
Plate, Motor
Mount To
Gearcase
12
62691
Grommet, Motor (4)
13
3364003
Coupling, Motor
And Isolation
Coupling
14
3946532
Shield, Motor
16
3357334
Screw
17
3349637
Retainer, Motor (2)
18
3362089
Shield, Tub
To Motor
19
661599
Motor, Main
Drive
20
62850
Switch, Main
Drive Motor
21
62700
Retainer, Pump (2)
22
3363394
Pump (Complete)
25
3387485
Screw (2)
10−16 x 5/8
26
3355454
Clip,
Anti−Rattle
27
62863
Screw,
10−16 x 3/8
28
357021
Capacitor
29
357030
Clamp, Capacitor
MACHINE BASE PARTS
8
For Model: LBR2121DW0
(WHITE)
881194
Illus. Part
No. No. DESCRIPTION
1
343641
Screw, Bracket
Mounting
(10−16 x 1/2)
2
64067
Bracket, Spring
Outer (2)
3
63907
Spring (3)
4
3362087
Support & Brake,
Tub
5
64065
Bracket, Spring
Outer (L.F.)
6
3348725
Link, Leveling
Mechanism (2)
7
62597
Spring, Leveling
Mechanism
8
62837
Pin, Knurled
9
62596
Foot, Rear (2)
13
3347047
Bearing,
Centerpost (2)
14
357409
Seal, Centerpost (3)
15
388492
Spring,
Counterweight
16
62568
Pad, Plate
17
3946509
Plate, Suspension
(Includes Illus. 16)
18
3363660
Pad, Base
19
3349337
Base Assembly
(Includes Illus, 6,
7, 8, 9, 18 & 26)
21
62739
Nut, Lock
(3/8−16) (2)
22
389102
Foot, Front (2)
23
356934
Seal, Centerpost (2)
24
285203
Centerpost
Bearing Kit
(Includes Illus.
13, 14 & 23)
25
63134
Ring, Sound
Deadening
26
63806
Retainer,
Suspension Spring
WIRING HARNESS PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
FOR COMPLETE WIRING HARNESS REFER TO
CONTROL AND REAR PANEL PARTS PAGE
WH2D
1 3349557 Clip, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness
5 90016 Clip, Harness
6 3390496 Clip, Harness
7 389379 Retainer,
(Suds Models)
8 352090 Timer, Block
Disconnect
(White)
9 352089 Timer, Block
Disconnect
(Black)
10 62889 Receptacle,
Terminal
(3−Way)
(Lid Switch)
(Use Term.94613)
Or 94614.)
11 353424 Plug, Terminal
(3−Way)
(Power Cord)
(Use Term.94613)
12 62505 Block, Disconnect
(Motor 2 Speed)
(Use Term.352088)
13 3348075 Block, Disconnect
(Motor 3 Speed)
(Use Term. 94613
Or 94614.)
14 3347243 Block, Disconnect
(Use Term. 352088)
15 63523 Protector
16 717252 Connector
(2−Way)
(Use Term.94614)
17 387566 Plug, Terminal
(4−Way)
(Power Cord)
(Use M3 Screws)
18 3352944 Clip, Harness
19 3390423 Block, Disconnect
(12−Way)
(Timer)
(Use Term. 94613)
20 3347730 Receptacle
(6−Way)
(Use Term. 94613)
21 388818 Plug, Terminal
(12−Way)
(Use Term. 94613
Or 94614.)
22 3369366 Timer, Block
Disconnect
(Black) (Amp)
(Use Term.3369365)
23 3349494 Connector, Etc
24 60687 Connector, Relay
(Use Term.308569
Or 338664.)
25 3407125 E.T.C. Control
9
For Model: LBR2121DW0
(WHITE)
881194
BRAKE AND DRIVE TUBE PARTS
Illus. Part
No. No. DESCRIPTION
1 388951 Brake And Drive
Tube (Complete)
2 62658 Ring, Thrust
3 91939 Seal, Oil
4 356427 Seal, Drive Tube
5 356937 Spacer, Drive
Tube
6 64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
7 64035 Ring, Retaining
8 64232 Brake Shoe
9 62703 ‘‘T’’ Bearing,
Spin Tube
10 62648 Cap, Brake
Spring (2)
11 62647 Spring, Brake
12 62909 Sleeve, Brake
Spring
13 63023 Cam, Brake
Release
14 63022 Sleeve, Cam
15 64194 Driver, Brake
Cam
16 90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
10
For Model: LBR2121DW0
(WHITE)
881194
