TOP AND CABINET PARTS

AUTOMATIC

WASHER

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

9−93 Litho in U.S.A. Part No. 881059

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 357213 Nut, Push−In (2)

2 Top

3358200 For White &

Designer White

Models

3358201 For Almond &

Designer Almond

Models

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White &

Designer White

Models

63425 For Almond &

Designer Almond

Models

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361392 For White &

Designer White

Models

3361393 For Almond &

Designer Almond

Models

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360057 Sheet, Installation

Instructions

LIT3357469 Guide, Use and

Care

LIT3361370 Energy Guide

LIT3361180 Label, Wiring

Diagram

LIT4313896 Manual, (Washer)

Do−It−Yourself

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

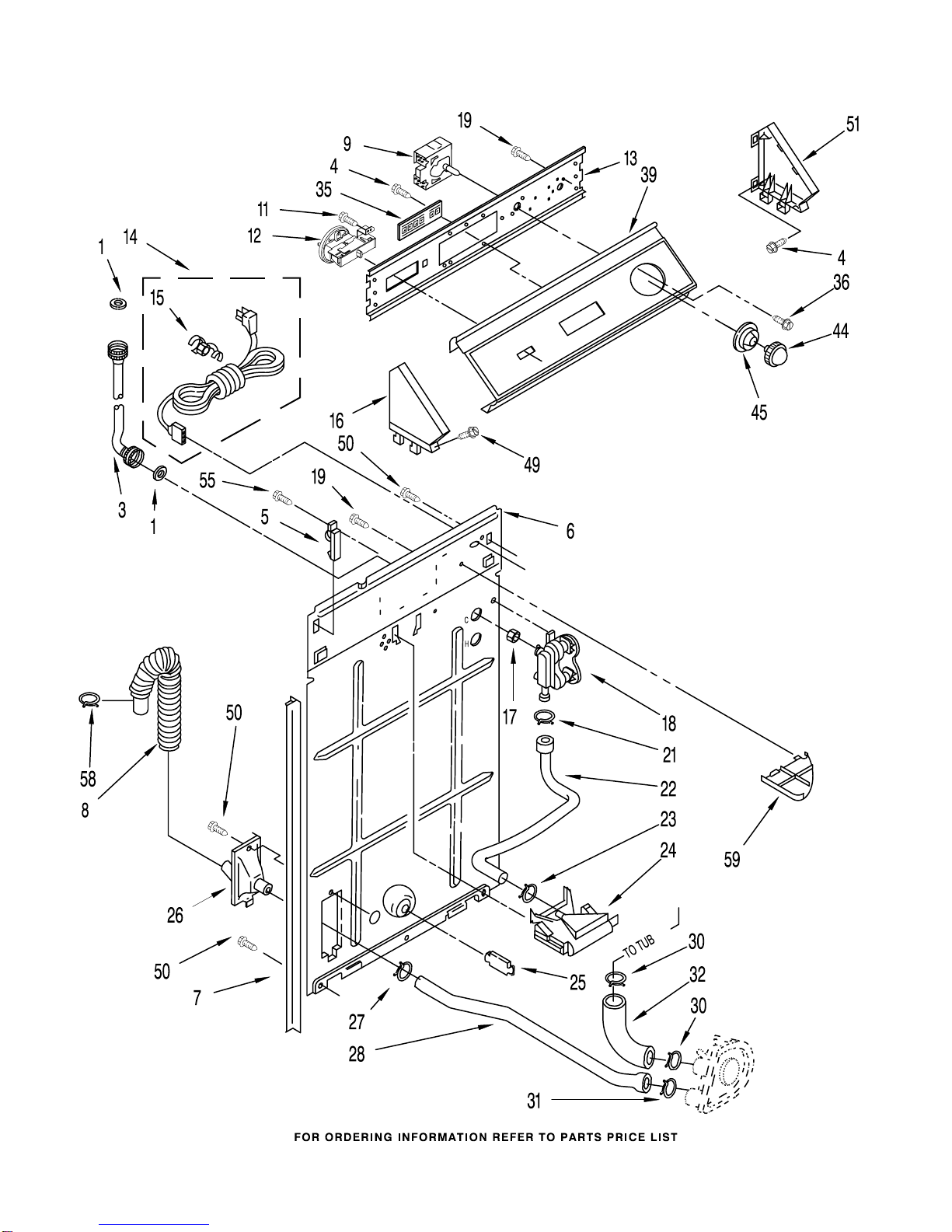

CONTROLS AND REAR PANEL PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONTROLS AND REAR PANEL PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 3354858 Hose, Water

Inlet (2)

4 90767 Screw, 8A x 3/8

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(5−1/2 Ft.)

661577 Hose, Drain

(10 Ft.)

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches)

(Not Included)

9 3361178 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 3390646 Screw, 8−18 x 5/16

12 Switch, Water Level

3357482 For White &

Almond Models

3357481 For Designer

White Models

3357480 For Designer

Almond Model

13 3361414 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 For White &

Designer White

Models

3358532 For Almond &

Designer Almond

Models

17 96160 Screen, Filter (2)

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

3357090 272858 (ALT.)

370447 (ALT.)

353097 (ALT.)

32 62731 Hose, Pump To Tub

35 Switch, Touch−Pad

(6)

3361355 For White &

Almond Models

3361356 For Designer

White Model

3361357 For Designer

Almond Model

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3360878 For White Model

3360879 For Almond Model

3360880 For Designer White

Model

3361520 For Designer

Almond Model

44 Knob, Timer

3358416 For White &

Almond Models

3358417 For Designer

White Model

3358420 For Designer

Almond Model

45 Dial, Timer

3358446 For White &

Almond Models

3358447 For Designer

White Model

3358448 For Designer

Almond Model

49 3353145 Screw, 8−18 (2)

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 For White &

Designer White

Models

3358517 For Almond &

Designer Almond

Models

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

59 3348424 Shield, Suds

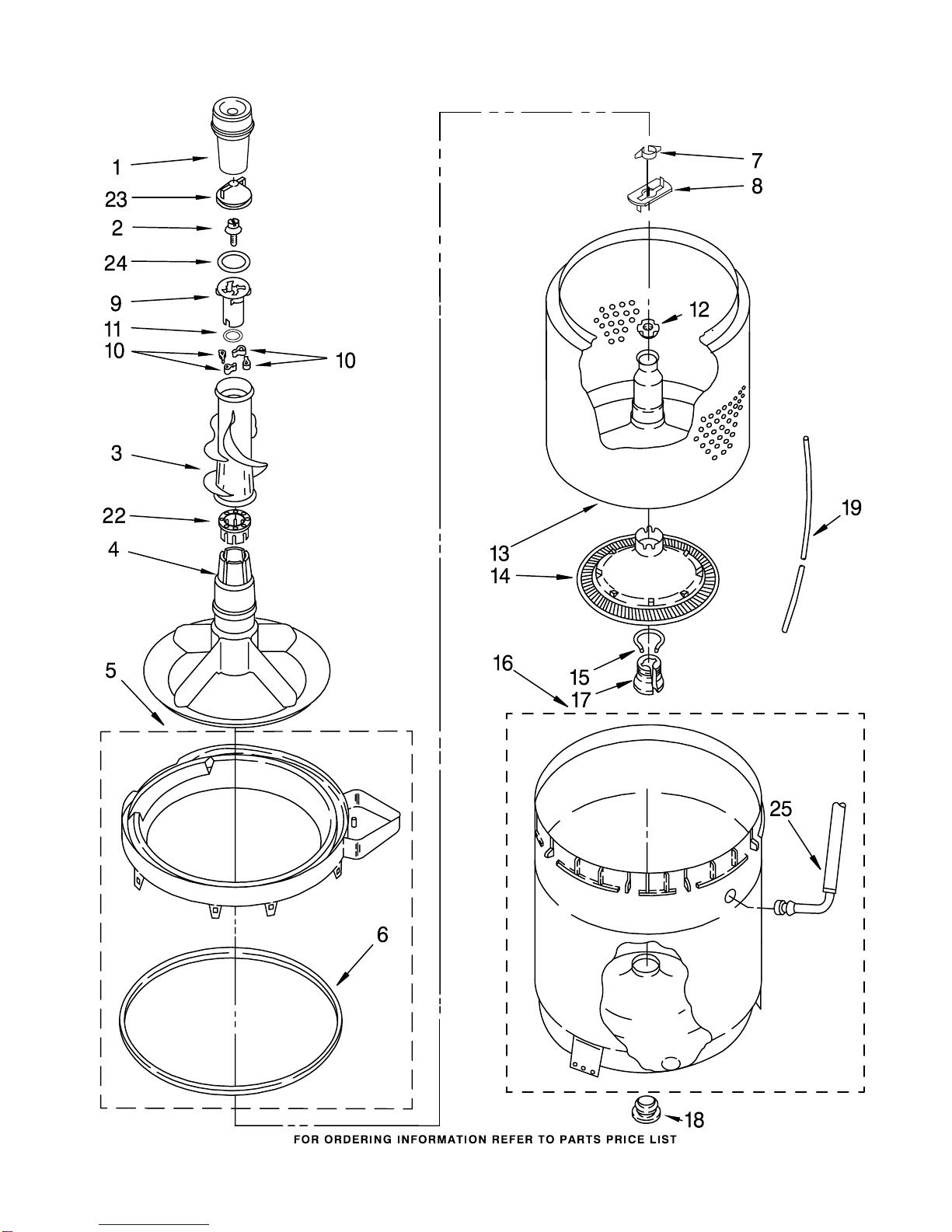

AGITATOR, BASKET AND TUB PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

11 357574 Seal, Agitator

12 21366 Nut, Spanner

13 3350649 Basket & Balance

Ring

14 62941 Filter, Plate

(Includes Illus.

15)

15 62942 Lock, Filter

16 388893 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

Illus. Part

No. No. DESCRIPTION

MISCELLANEOUS PARTS

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

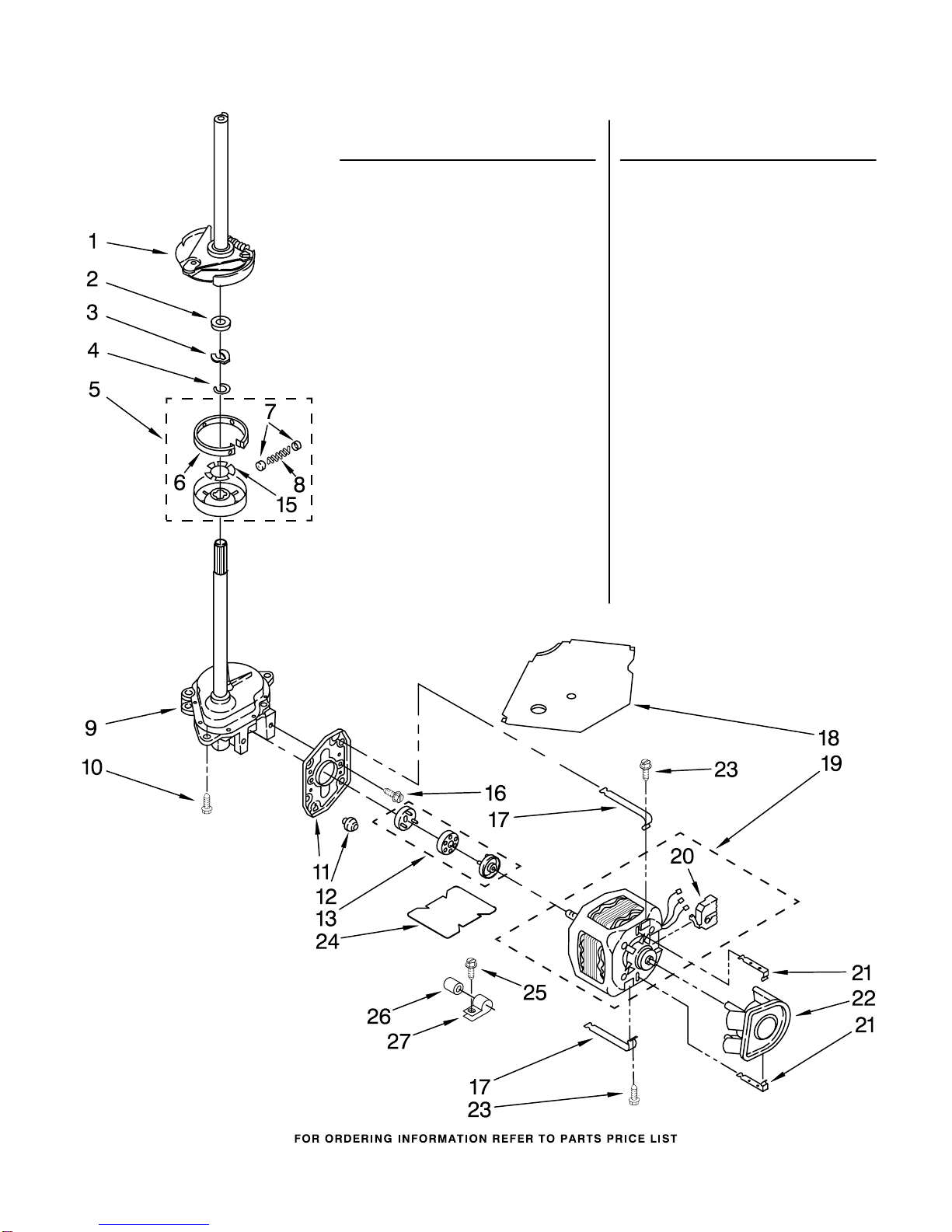

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 62693 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3349282 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 98610 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 389350 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

Illus. Part

No. No. DESCRIPTION

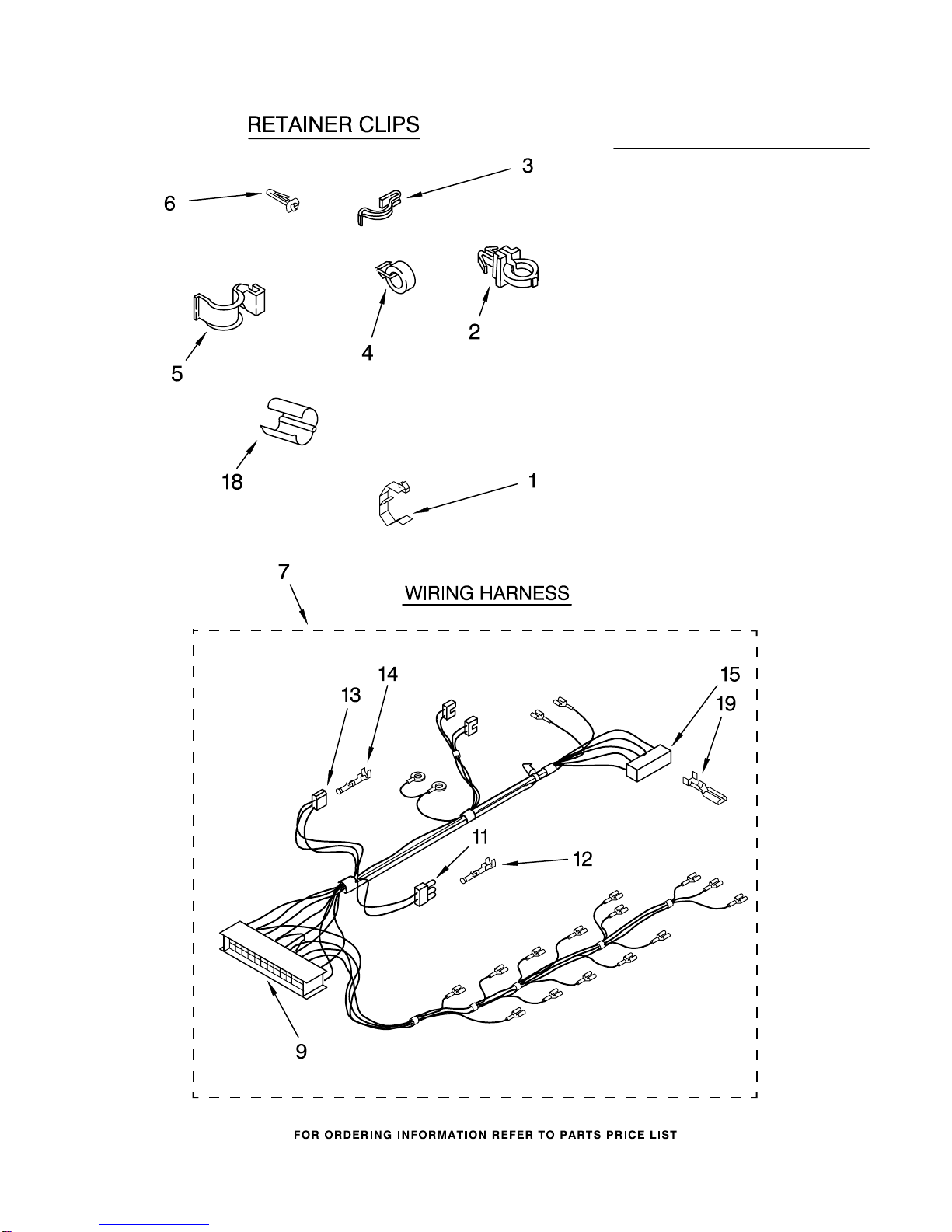

WIRING HARNESS PARTS

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

1 3349557 Clip, Harness

2 62749 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 3359849 Wiring Harness

9 352089 Block, Disconnect

11 62889 Receptacle,

Terminal

(3−Way) (Lid Switch)

12 94614 Terminal, Female

13 3353876 Plug, Terminal

(3−Way)

(Power Cord)

14 94613 Terminal, Male

15 62505 Block, Disconnect

(Motor)

18 63523 Protector, Harness

19 3371761 Terminal

Illus. Part

No. No. DESCRIPTION

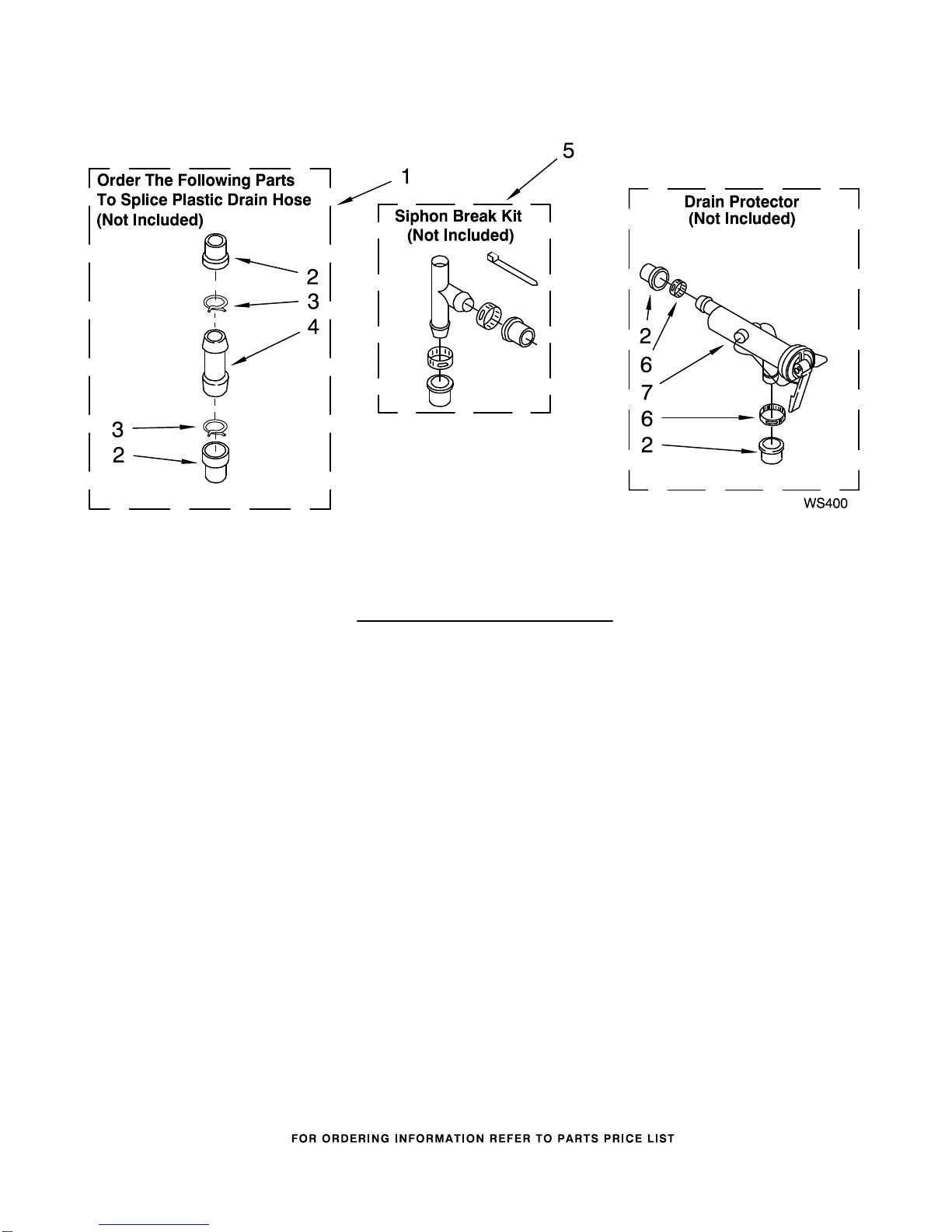

WATER SYSTEM PARTS

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

For Models: LSC6244BW0, LSC6244BN0, LSC6244BQ0, LSC6244BZ0

(White) (Almond) (Designer White)(Designer Almond)

881059

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Rondella

Whirlpool

Whirlpool AWM 5100 Manuale utente

Whirlpool

Whirlpool 3LWTW4705FW0 Manuale utente

Whirlpool

Whirlpool 7MLSR5132JQ3 Manuale utente

Whirlpool

Whirlpool 1CWTW4800 Manuale utente

Whirlpool

Whirlpool LA6800XM Manuale utente

Whirlpool

Whirlpool LASOOXP Manuale utente

Whirlpool

Whirlpool GVW9959KL0 Manuale utente

Whirlpool

Whirlpool FSCR80420 Manuale di installazione e funzionamento

Whirlpool

Whirlpool WFW9400SW - Duet HT Series Manuale utente

Whirlpool

Whirlpool LA8860xW Manuale utente

Whirlpool

Whirlpool Duet WFW9200SQ02 Guida alla risoluzione dei problemi

Whirlpool

Whirlpool TAWM400A Manuale utente

Whirlpool

Whirlpool LXR9245EQ2 Manuale utente

Whirlpool

Whirlpool CAM2762KQ Manuale utente

Whirlpool

Whirlpool 8182674 Manuale utente

Whirlpool

Whirlpool SUPREME CARE 7014 Manuale di installazione e funzionamento

Whirlpool

Whirlpool w1058789a Manuale utente

Whirlpool

Whirlpool AWT 7101 D Manuale utente

Whirlpool

Whirlpool LA5885XK Manuale utente

Whirlpool

Whirlpool 6TH SENSE WHFFB9458WVUKN Manuale utente

Whirlpool

Whirlpool LA6OOOXP Manuale utente

Whirlpool

Whirlpool W10240438A Manuale utente

Whirlpool

Whirlpool LA5578XS Manuale utente

Whirlpool

Whirlpool Cabrio 8566930 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
