TOP AND CABINET PARTS

3−93 Litho in U.S.A. Part No. 881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

AUTOMATIC

WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

881041

1 357213 Nut, Push−In (2)

2 Top

3358200 White

3358201 Almond

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 White

63425 Almond

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3351659 White

3351660 Almond

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 63289 Dispenser, Bleach

LITERATURE PARTS

LIT3358964 Sheet, Installation

Instructions

LIT3357460 Guide, Use and

Care

LIT3358674 Energy Guide

LIT3358995 Label, Wiring

Diagram

LIT4313896 Manual, (Washer)

Do−It−Yourself

LIT881041 List, Repair Parts

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

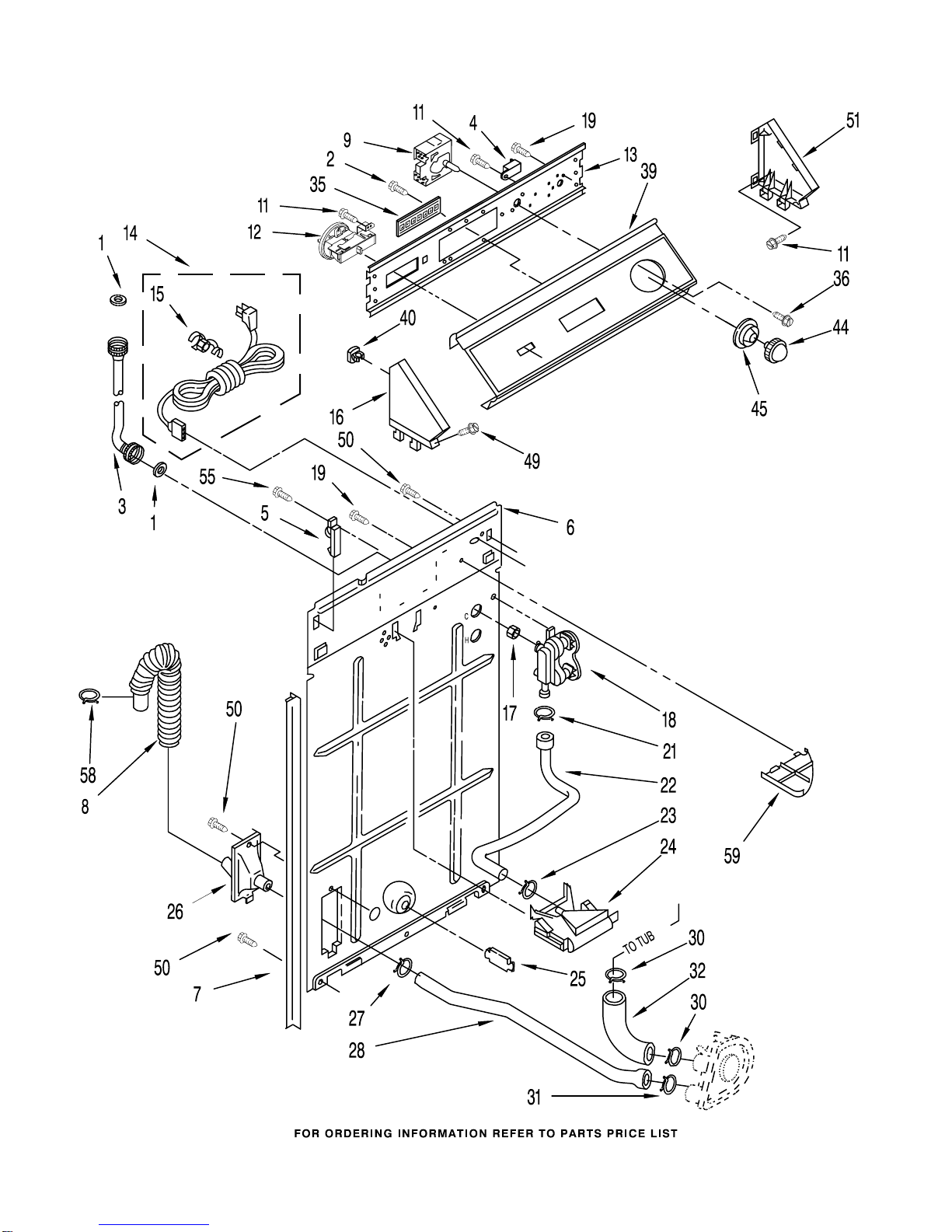

CONTROLS AND REAR PANEL PARTS

881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONTROLS AND REAR PANEL PARTS

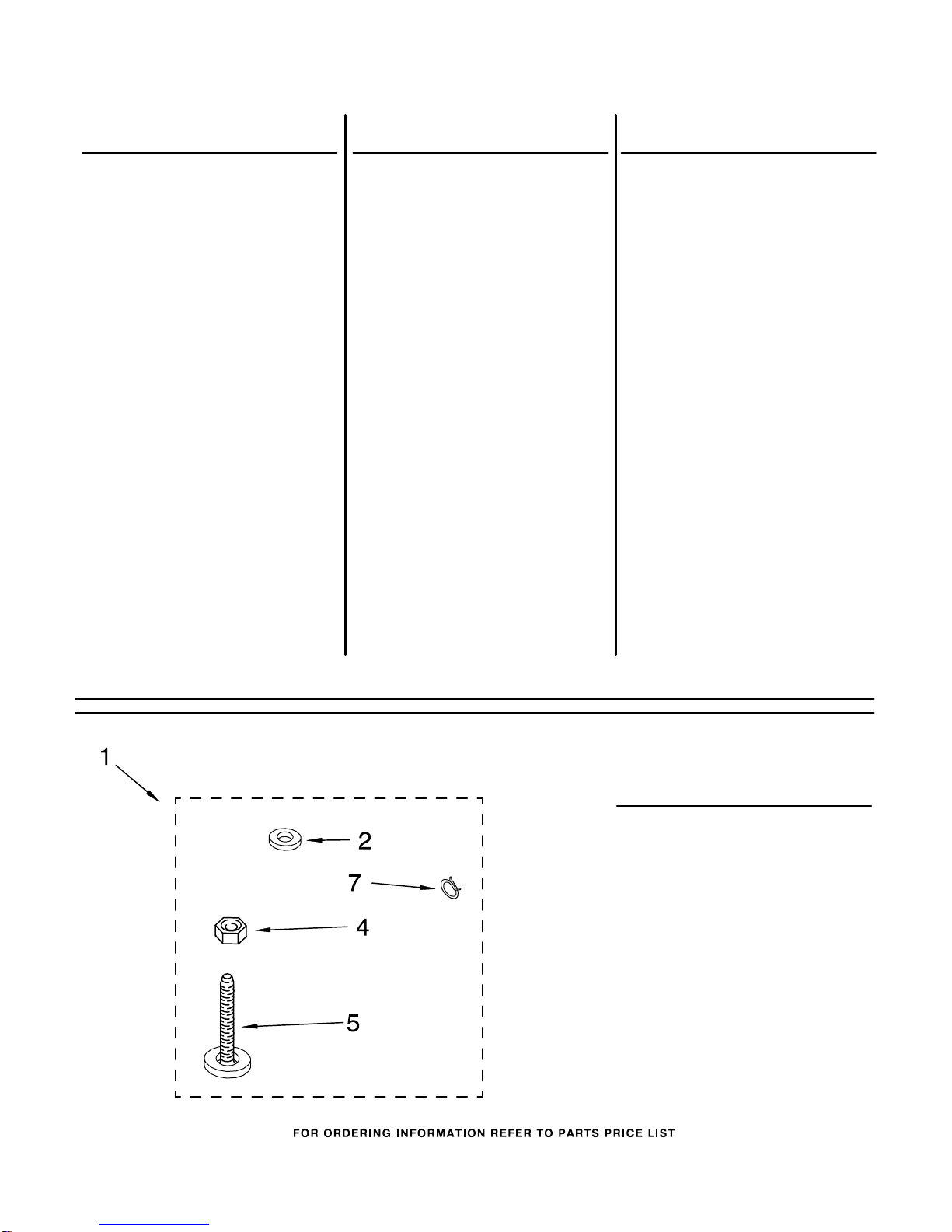

MISCELLANEOUS PARTS

881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 3397537 Screw, 8−18 x 7/8

3 660028 Hose, Water

Inlet (2)

81339 (Alt.)

366108(Alt.)

387057 (Alt.)

4 694419 Mini Buzzer

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(5−1/2 Ft.)

661577 Hose, Drain

(10 Ft.)

(Not Included)

9 3358993 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 3390646 Screw, 8−18 x 5/16

12 3357482 Switch, Water Level

13 3358890 Bracket, Control

14 62734 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 White/Chrome

3358532 Almond/Chrome

17 96160 Screen, Filter (2)

18 358992 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 3359551 Switch, Touch−Pad

(7)

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3359285 For White Model

3359286 For Almond Model

40 689559 Nut, Push−In (2)

44 3358419 Knob, Timer

45 3358446 Dial, Timer

49 3353145 Screw, 8−18 (2)

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 White/Chrome

3358517 Almond/Chrome

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

59 3348424 Shield, Suds

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

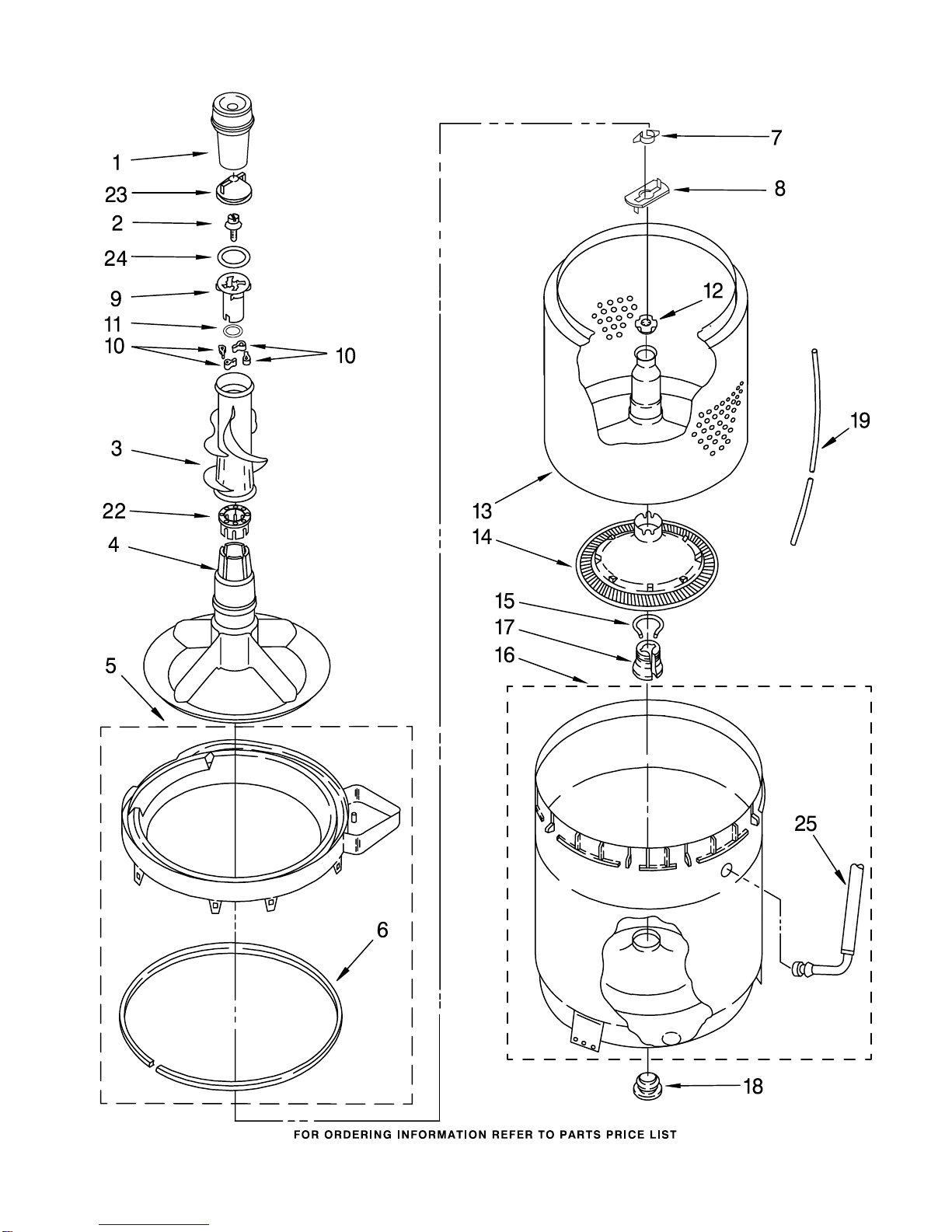

AGITATOR, BASKET AND TUB PARTS

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

881041

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

WATER SYSTEM PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

11 357574 Seal, Agitator

12 21366 Nut, Spanner

13 3350649 Basket & Balance

Ring

14 62941 Filter, Plate

(Includes Illus.

15)

15 62942 Lock, Filter

16 388893 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

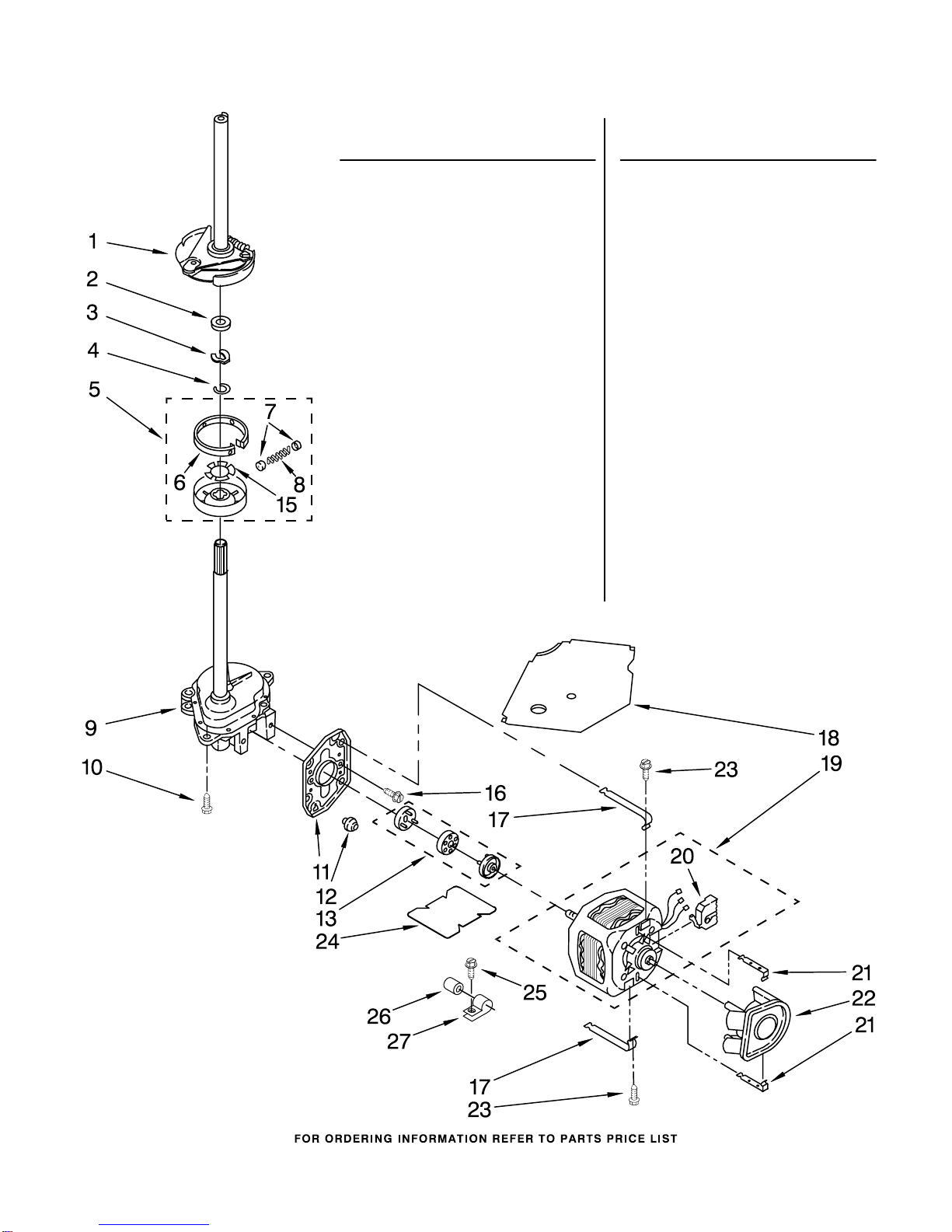

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown

10 62735 Screw, Gearcase

To Base (3)

(5/16−24 x 3/4)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 661560 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 98062 Screw,

5/16−24 x 5/8 (2)

17 3349637 Retainer, Motor (2)

18 3349282 Shield, Tub

To Motor

19 3352287 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 3348058 Capacitor

27 357030 Clamp, Capacitor

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

881041

1 98610 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 389350 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16) (2)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

1 3349557 Clip, Harness

2 62749 Clip, Harness

3 98997 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 3359850 Wiring Harness

8 352090 Block, Disconnect

9 352089 Block, Disconnect

11 62889 Receptacle,

Terminal

(3−Way) (Lid Switch)

12 94614 Terminal, Female

13 3353876 Plug, Terminal

(3−Way)

(Power Cord)

14 94613 Terminal, Male

15 62505 Block, Disconnect

(Motor)

17 3348075 Block, Connector

18 63523 Protector, Harness

19 3371761 Terminal

881041

Illus. Part

No. No. DESCRIPTION

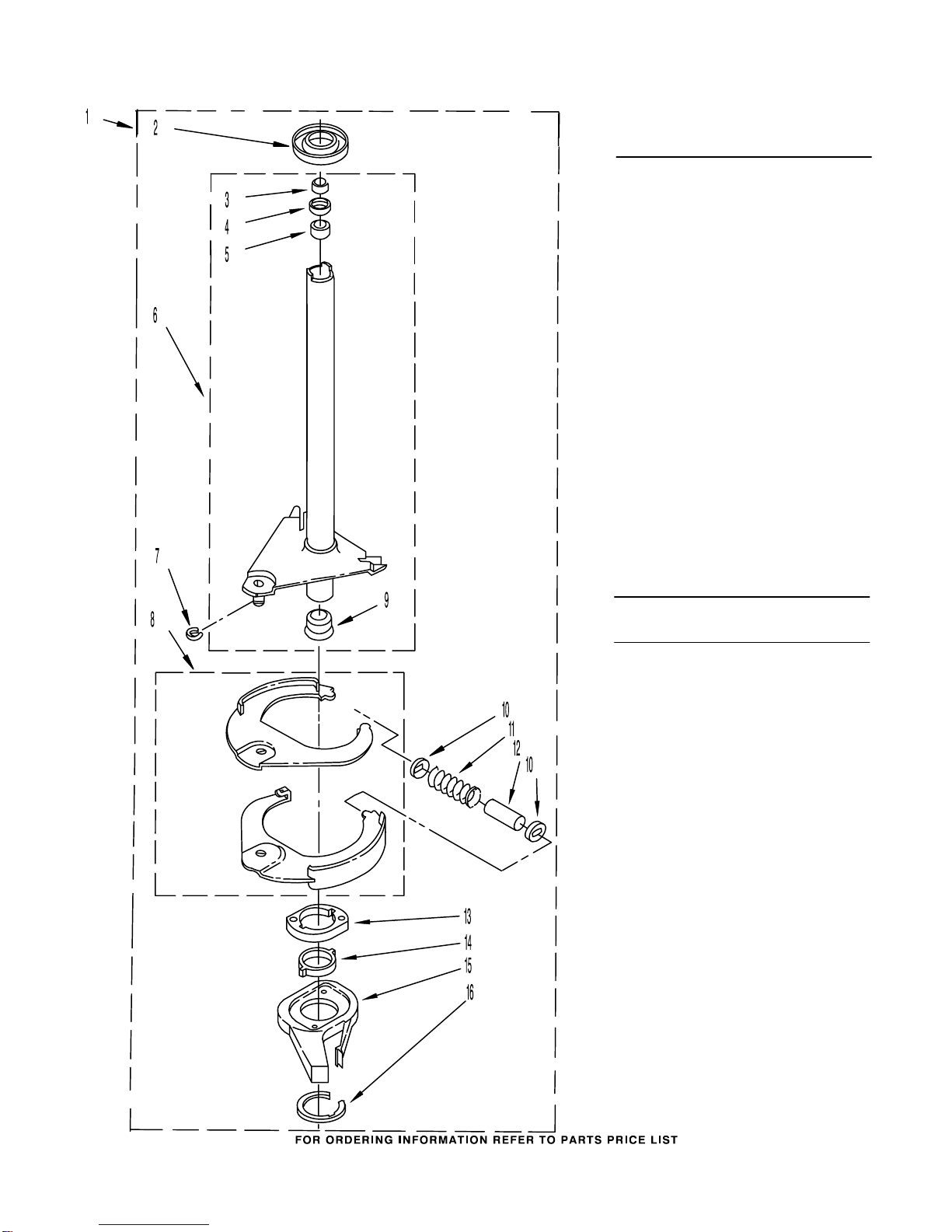

BRAKE AND DRIVE TUBE PARTS

1 388952 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Shoe, Brake

9 62703 "T" Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 387806 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

BD−315A

881041

For Models: LST9355AW0, LST9355AN0

(White) (Almond)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Rondella

Whirlpool

Whirlpool Duet WFW9600T Manuale

Whirlpool

Whirlpool Duet steam WFW9640XW Istruzioni per il montaggio

Whirlpool

Whirlpool Cabrio WTW6400SW1 Manuale utente

Whirlpool

Whirlpool LLC7244AN0 Manuale utente

Whirlpool

Whirlpool CWNB7002GWG Manuale utente

Whirlpool

Whirlpool WTW5500XW Istruzioni per il montaggio

Whirlpool

Whirlpool WTW4850HW Manuale utente

Whirlpool

Whirlpool ICWTW5590ST0 Manuale utente

Whirlpool

Whirlpool WTW5500XW Manuale utente

Whirlpool

Whirlpool WTW2000HW Manuale utente

Whirlpool

Whirlpool 7MWTW5010PW Manuale utente

Whirlpool

Whirlpool AWT 2250/1 Manuale utente

Whirlpool

Whirlpool WFRB1054BHG2 Manuale utente

Whirlpool

Whirlpool LBT6133AW1 Manuale utente

Whirlpool

Whirlpool LMR4131A Manuale utente

Whirlpool

Whirlpool 6LBR6233BQ0 Manuale utente

Whirlpool

Whirlpool AWE 6760 Manuale utente

Whirlpool

Whirlpool RAM5243A Manuale utente

Whirlpool

Whirlpool WFW95HEDW0 Manuale utente

Whirlpool

Whirlpool LSC5000PQ1 Manuale utente

Whirlpool

Whirlpool 8MWTW1612 Manuale utente

Whirlpool

Whirlpool WFW8300SW - Duet Sport Washer Manuale utente

Whirlpool

Whirlpool LLR8233BW0 Manuale utente

Whirlpool

Whirlpool WFC 3C26 P X Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
