TOP AND CABINET PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

1−94 Litho in U.S.A.(L.T.) Part No. 881078

AUTOMATIC

WASHER

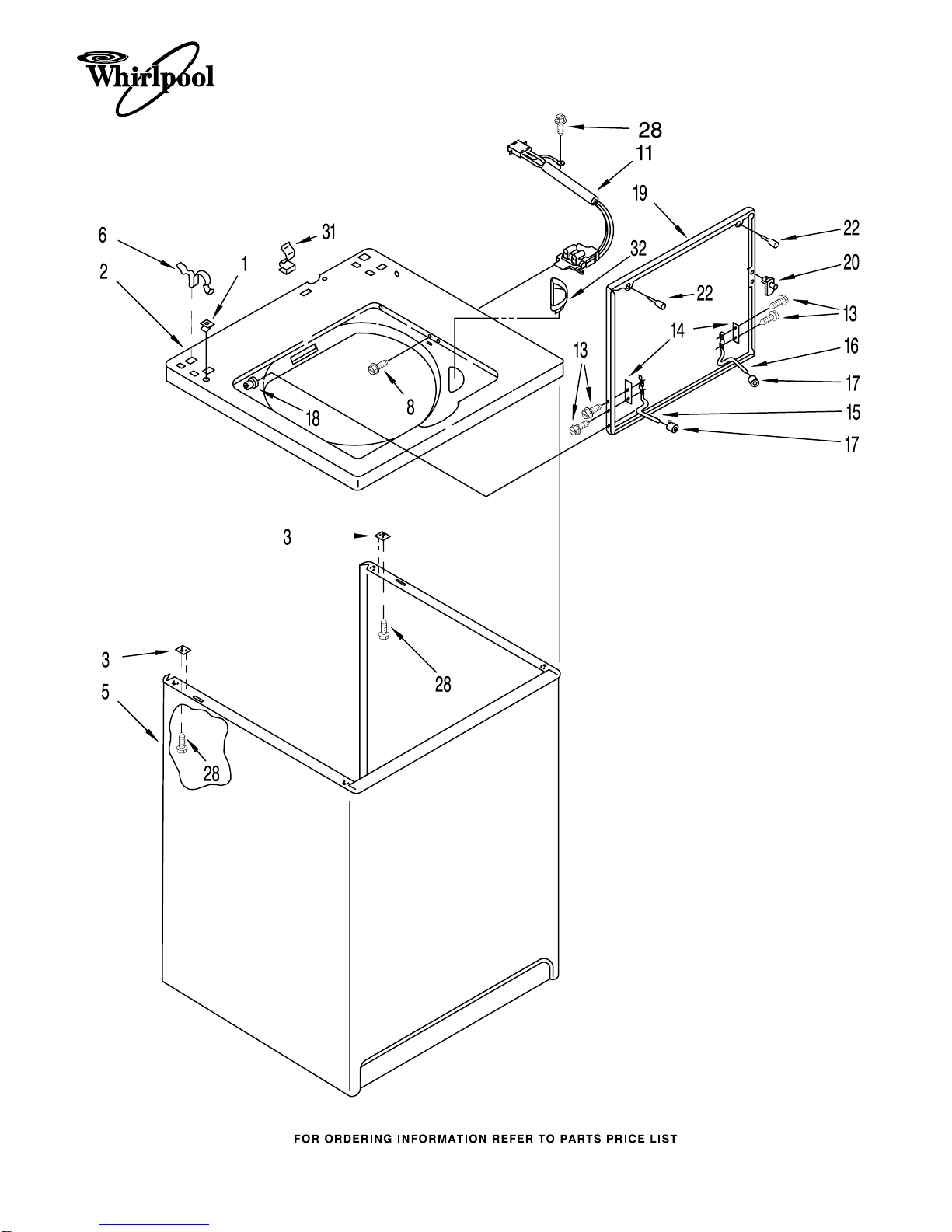

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078

1 357213 Nut, Push−In (2)

2 Top

3358200 For White And

Designer White

Models

3358201 For Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White And

Designer White

Models

63425 For Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361392 For White And

Designer White

Models

3361393 For Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360057 Sheet, Installation

Instructions

LIT3357469 Guide, Use and

Care

LIT3361370 Energy Guide

LIT3361180 Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896 Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

CONTROLS AND REAR PANEL PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078 3

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONTROLS AND REAR PANEL PARTS

MISCELLANEOUS PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 90767 Screw 8A x 3/8

3 3354858 Hose, Water

Inlet

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’− 9")

(Not Included)

9 3361178 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 3390646 Screw, 8−18 x 5/16

12 Switch, Water Level

3357482 For White And

Almond Models

3357481 For Designer

White Model

13 3361414 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 For White And

Designer White

Models

3358532 For Almond Model

17 96160 Screen, Filter (2)

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 Switch, Touch−Pad

(6)

3361355 For White And

Almond Models

3361356 For Designer

White Model

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

39 Panel, Console

3360715 For White Model

3360716 For Almond Model

3361535 For Designer

White Model

44 Knob, Timer

3358419 For White And

Almond Models

3358417 For Designer

White Model

45 Dial, Timer

3358446 For White And

Almond Models

3358447 For Designer

White Model

49 3353145 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 For White And

Designer White

Models

3358517 For Almond Model

55 3357011 Screw,

10−16 x 1/2

57 3357027 Nozzle, Drain

Hose

58 3357331 Clamp, Drain

Hose

59 3348424 Shield, Suds

60 3359849 Harness, Wiring

(For Detail See

Page 10.) Also

See Clips.

AGITATOR, BASKET AND TUB PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078 5

AGITATOR, BASKET AND TUB PARTS

Illus. Part

No. No. DESCRIPTION

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

12 21366 Nut, Spanner

13 3350649 Basket & Balance

Ring

14 3361948 Filter, Plate

16 388893 Tub

(Includes Item 25)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3348117 Agitator

(Complete Asy.)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078 7

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 10

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 11

For Further

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 62693 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

Illus. Part

No. No. DESCRIPTION

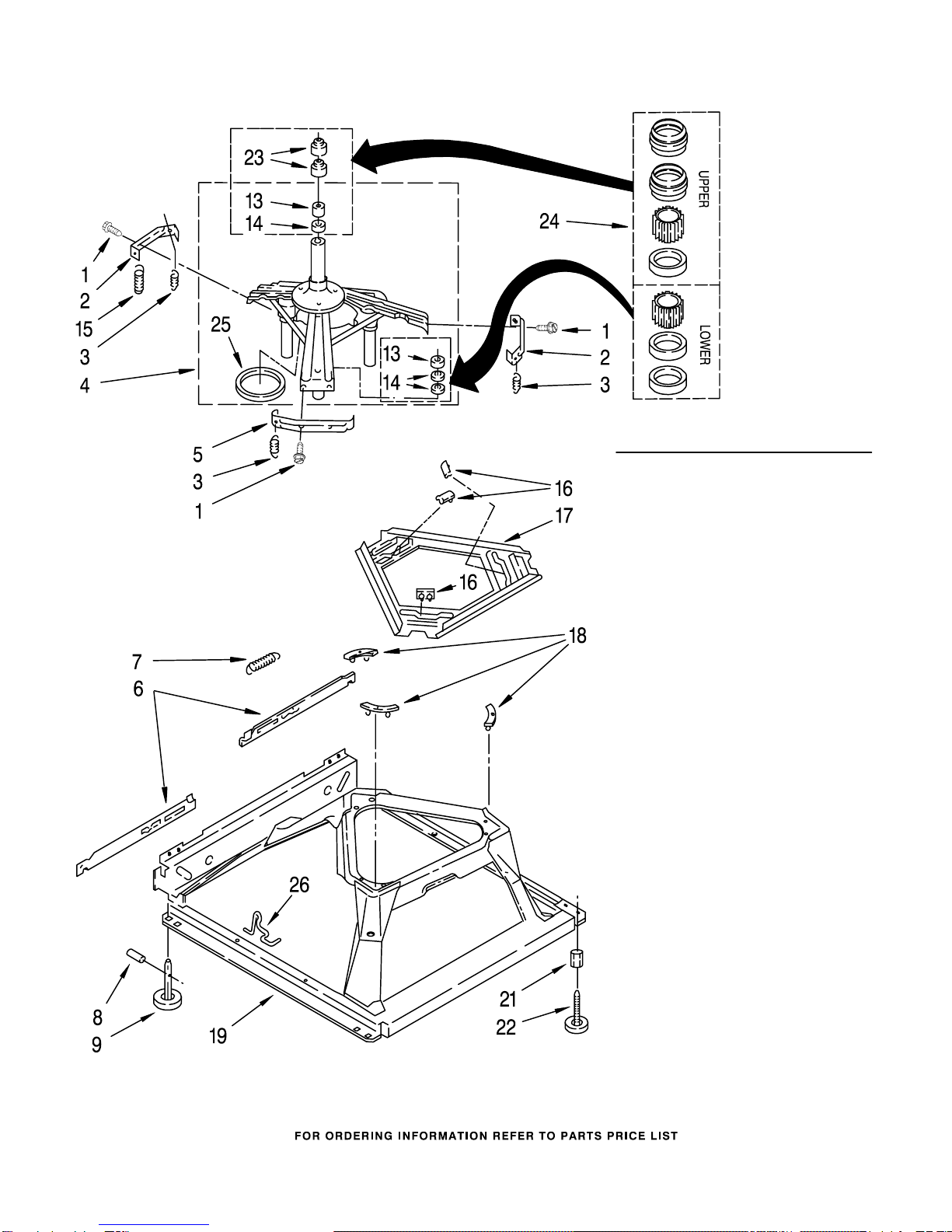

MACHINE BASE PARTS

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078

1 343641 Screw, Bracket

Mounting

(10−16 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

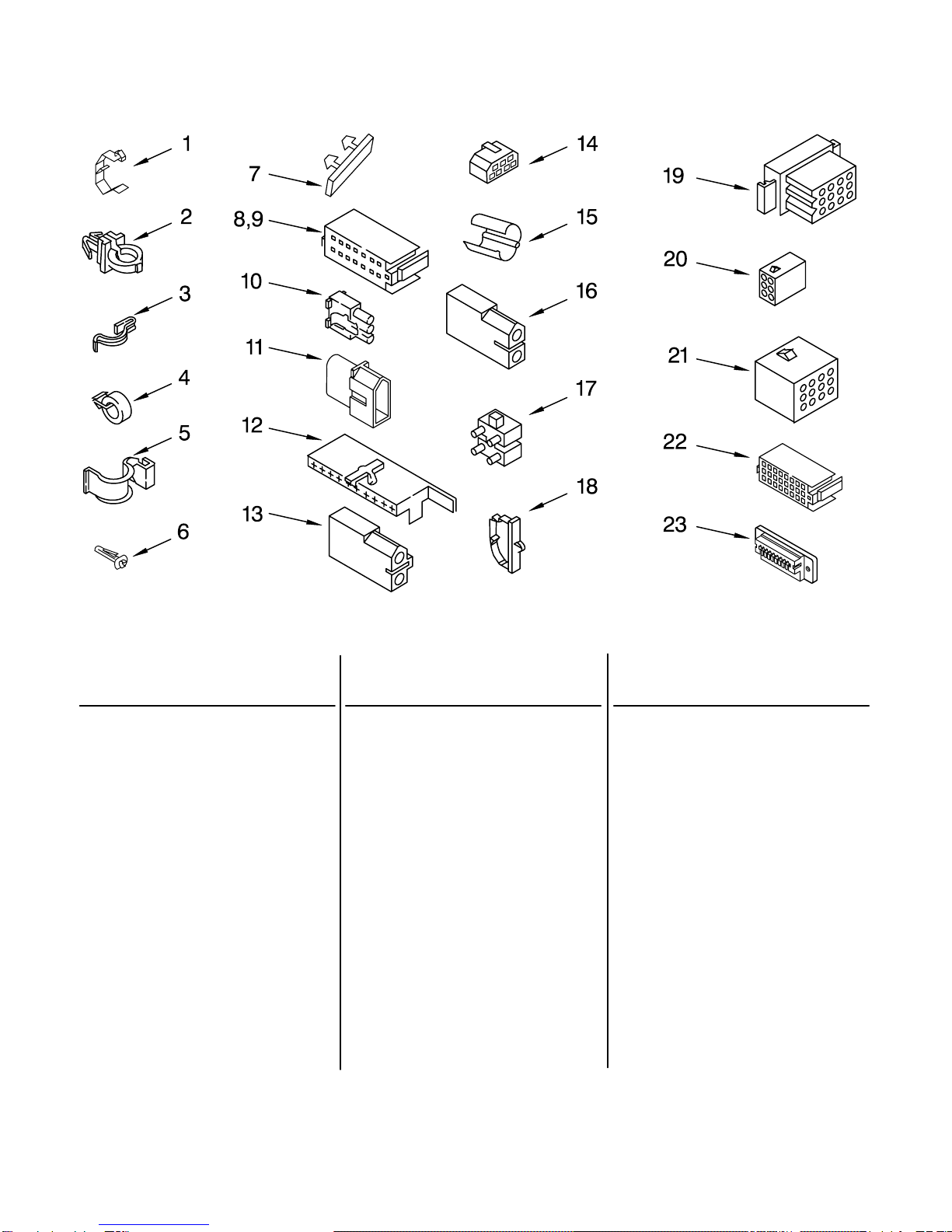

WIRING HARNESS PARTS

WH2B

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term. 94613

or 94614 )

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term. 94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term. 352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

or 94614)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Suds Valve)

(Use Term. 94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle,

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

or 94614)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term. 3369365)

23 3349494 Connector, ETC

(Use Term. 340795)

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078 9

Illus. Part

No. No. DESCRIPTION

BRAKE AND DRIVE TUBE PARTS

1 388952 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Shoe, Brake

9 62703 "T" Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 387806 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

BD−315A

For Models: LSV8244BW0, LSV8244BN0, LSV8244BQ0

(White) (Almond) (Designer White)

881078

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Rondella

Whirlpool

Whirlpool TDLR70212 Guida all'installazione

Whirlpool

Whirlpool HE2t - 3.7 cu. Ft. Front Load Washer Manuale utente

Whirlpool

Whirlpool 3LA5800XK Manuale utente

Whirlpool

Whirlpool Design 2000 LA5700XP Manuale utente

Whirlpool

Whirlpool 8LSR5132BW1 Manuale utente

Whirlpool

Whirlpool W11566615A Manuale utente

Whirlpool

Whirlpool WTW9500EW Manuale utente

Whirlpool

Whirlpool Cabrio WTW5700AC Manuale utente

Whirlpool

Whirlpool Duet steam WFW9640XW Manuale elenco delle parti

Whirlpool

Whirlpool WTW4810EW Manuale utente

Whirlpool

Whirlpool AWE 6112 Manuale utente

Whirlpool

Whirlpool LLC7244AN0 Manuale utente

Whirlpool

Whirlpool 7MWTW1950EW1 Manuale utente

Whirlpool

Whirlpool LA5500XS Manuale utente

Whirlpool

Whirlpool LSR8244EQ1 Manuale utente

Whirlpool

Whirlpool JS854F Manuale utente

Whirlpool

Whirlpool Cabrio WTW8200YW Istruzioni per il montaggio

Whirlpool

Whirlpool MVWC450XW4 Manuale utente

Whirlpool

Whirlpool Cold GST9675JQ1 Manuale utente

Whirlpool

Whirlpool Cabrio W10280477A Manuale utente

Whirlpool

Whirlpool LCE4332PQ0 Manuale utente

Whirlpool

Whirlpool CALYPSO WashMotion GVW9959K-0 Manuale utente

Whirlpool

Whirlpool LA7000XM Manuale utente

Whirlpool

Whirlpool Cabrio WTW6600SG1 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Beko

Beko WKB 51231 PTMA Manuale utente
