Whispbar K334W Manuale utente

K334W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

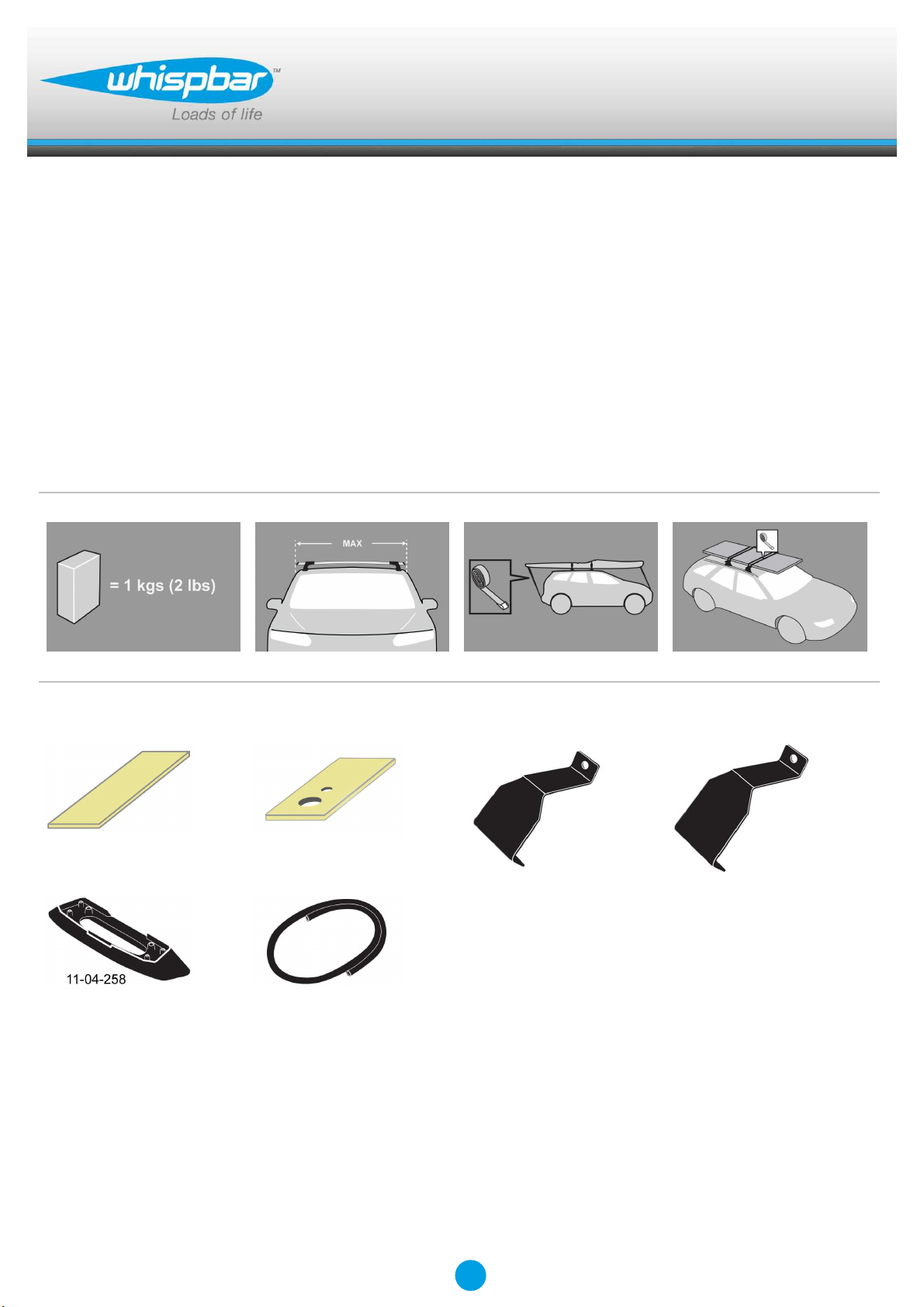

x 2 x 2 x 2 x 2

x 4 x 4

Revision No: 7C 1

Fitting Kit K334W

MAX kgs (lbs)

W/P WHD

Volkswagen

Golf Mk5, 5dr Hatch 04-07 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk5, 5dr Hatch 04-09 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk6, 5dr Hatch 08-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk6, 5dr Hatch 09-12 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf , 5dr Hatch 10-12 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk5, 5dr Hatch Aug 04-Feb 09 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk5, 5dr Hatch Aug 04-Feb 09 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk6, 5dr Hatch Mar 09-12 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Golf Mk6, 5dr Hatch Mar 09-12 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

GTI , 5dr Hatch 06-09 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Rabbit Mk5, 5dr Hatch 06-09 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K334W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K334W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K334W

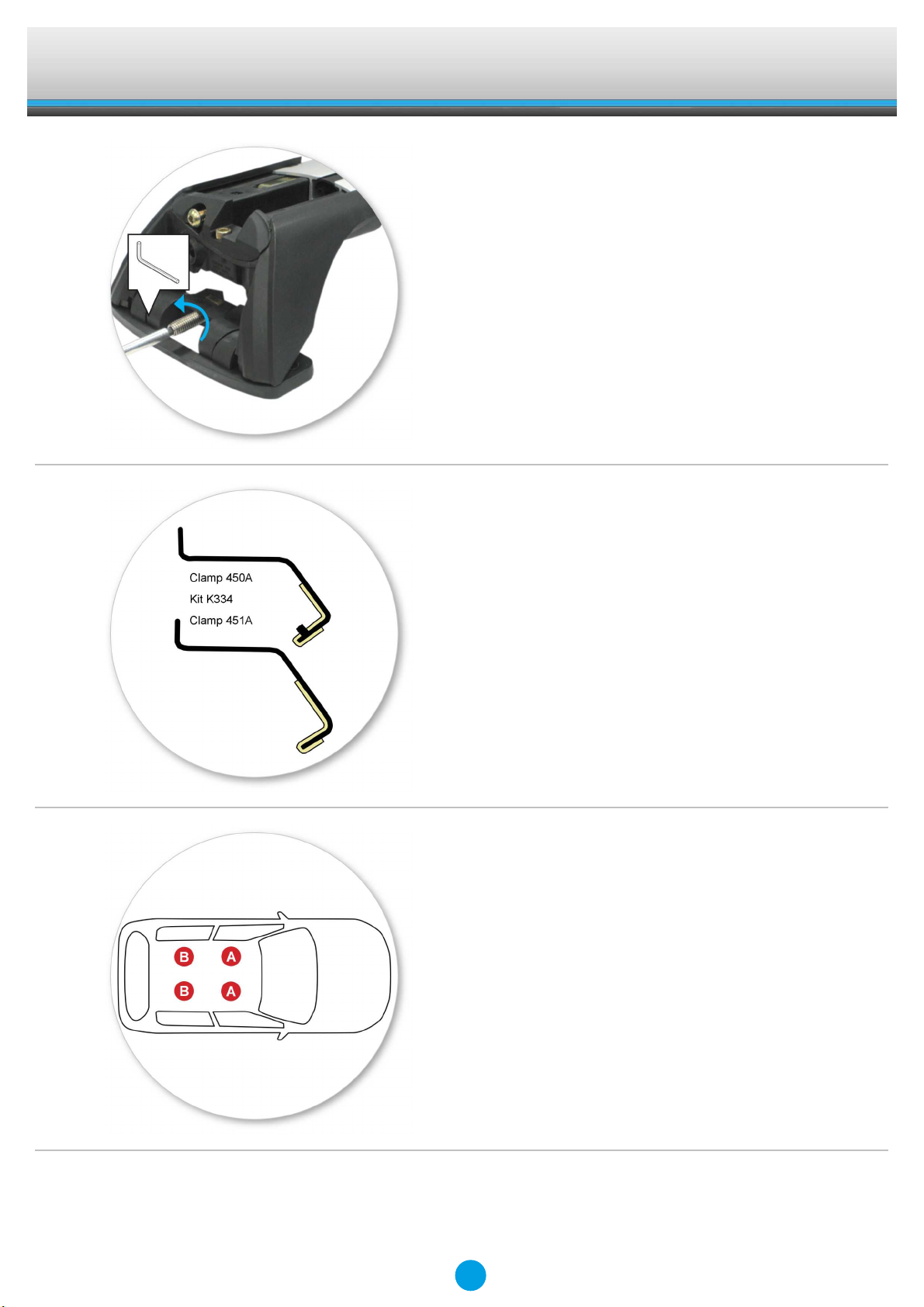

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 450A

B = 451A

Fitting Kit EN

K334W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitting Kit EN

K334W

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Locate vehicle's fixed points.

●Clamps directly to edge of roof under the

doors, pin locates in hole on vehicle on

front clamps

Fitting Kit EN

K334W

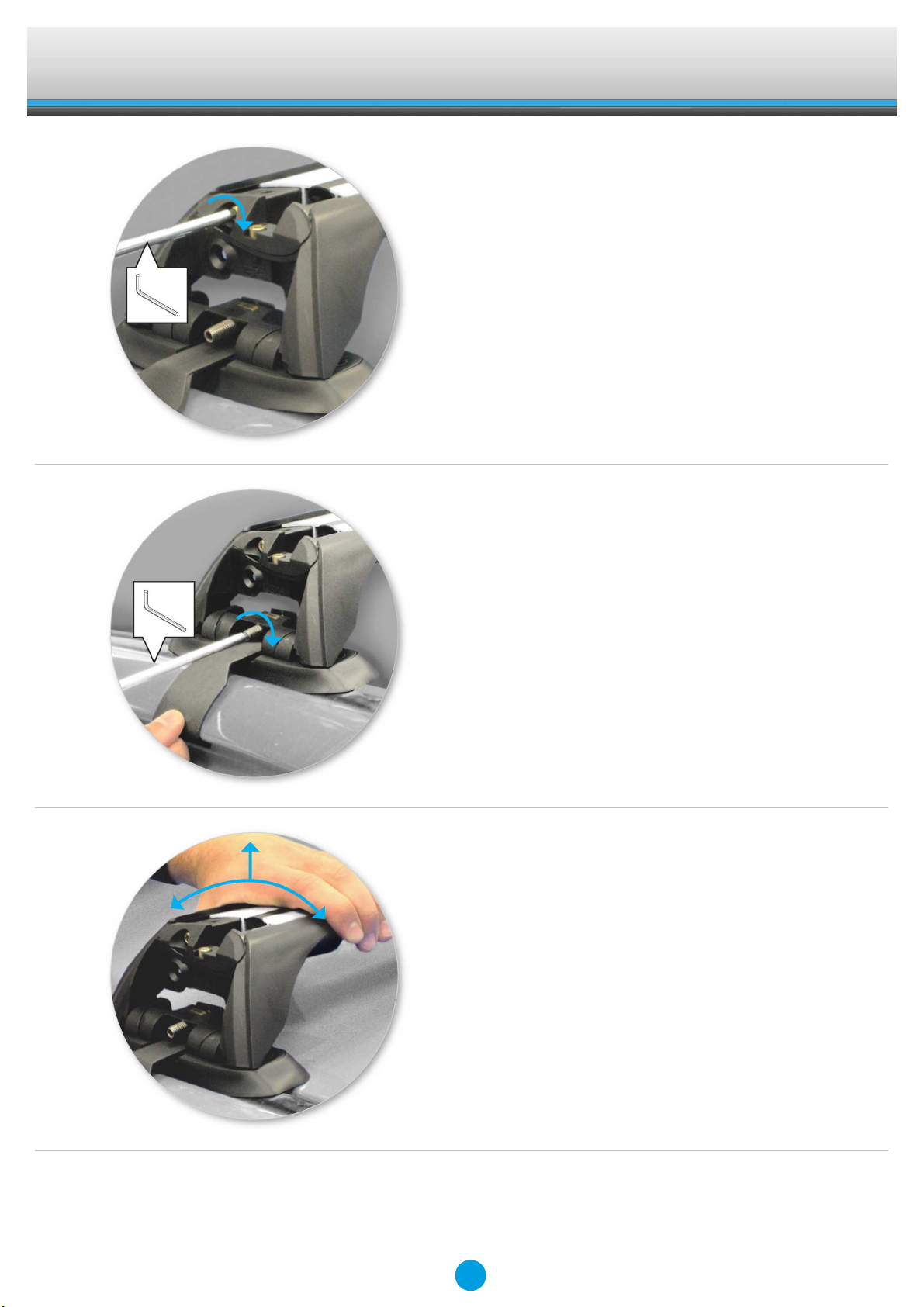

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K334W

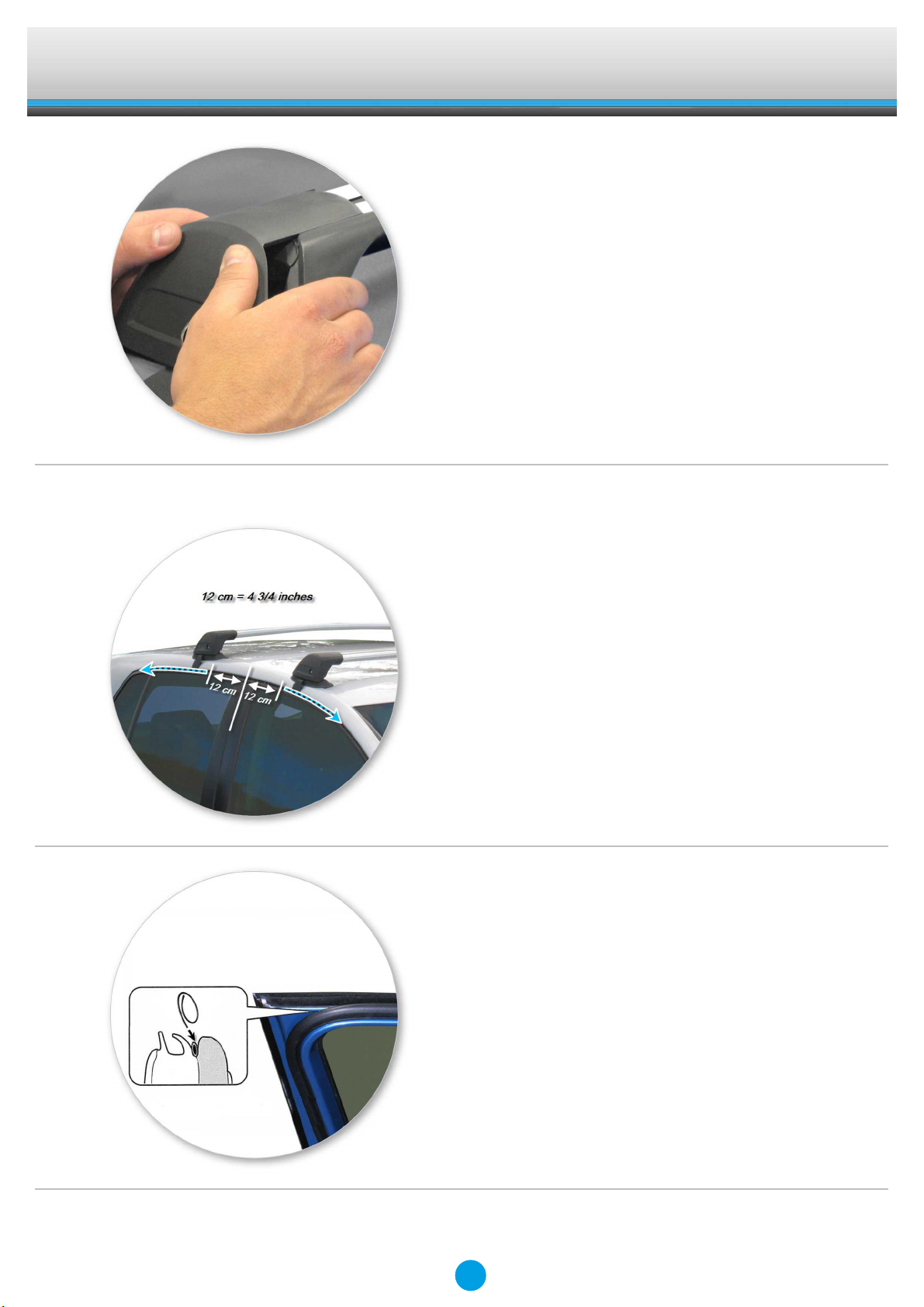

●Use keys to fit and lock covers

Energising Door Seal (Mk5 only)

●Measure doors as shown for starting

placement of door seal.

●Repeat for all doors.

●Ensure door seal positioned as shown.

Fitting Kit EN

K334W

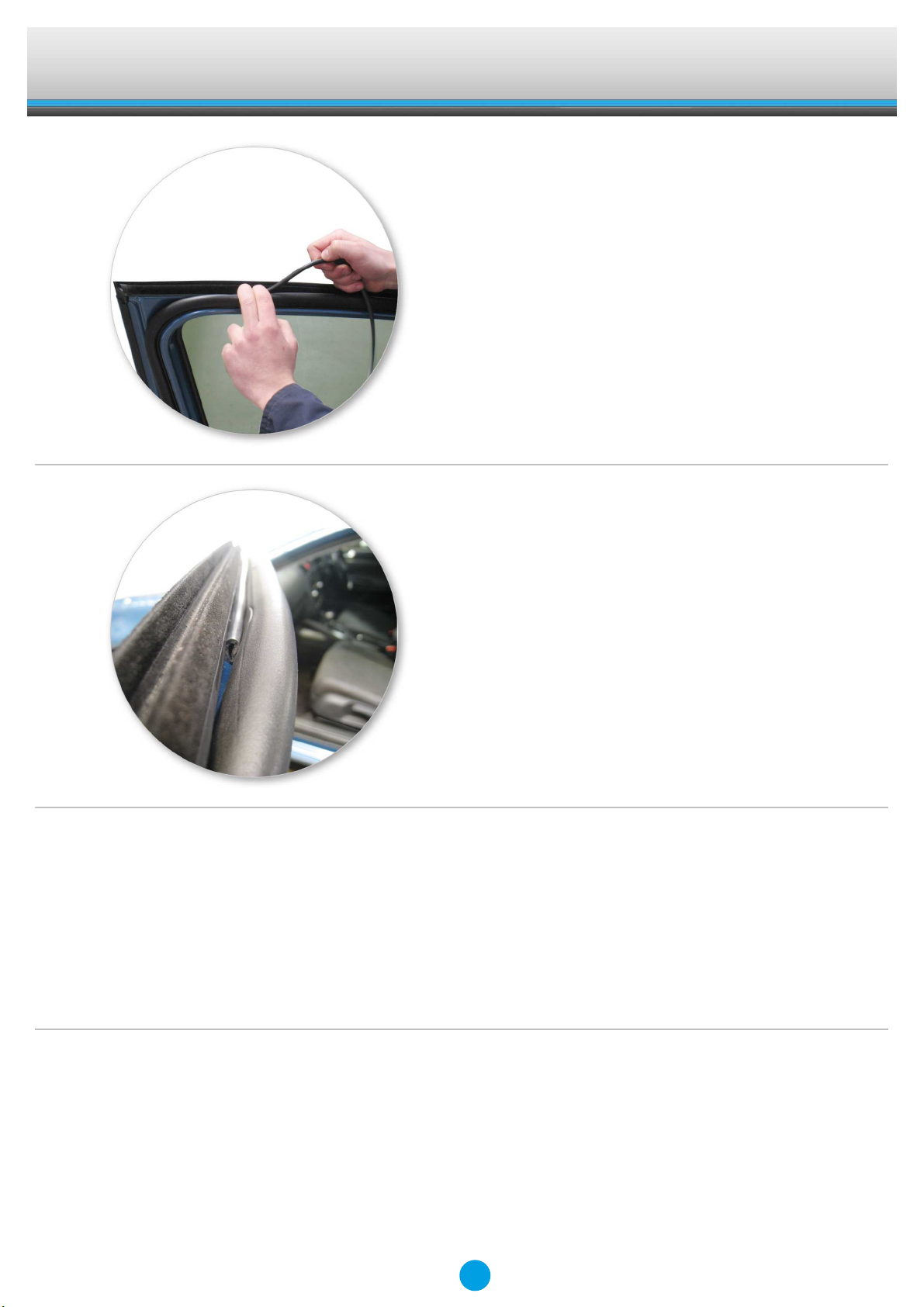

●Install door seal.

●Check placement

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
