Whispbar K337W Manuale utente
K337W
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 1 x 4 x 4 x 4
x 1
Revision No: 8D 1
Fitting Kit K337W
MAX kgs (lbs)
W/P WHD
Peugeot
307 , 3dr Hatch 01-08 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 3dr Hatch 01-08 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 3dr Hatch 01-08 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 5dr Hatch 01-08 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 5dr Hatch 01-08 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 5dr Hatch 01-08 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 5dr Hatch Nov 01-Feb 08 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
307 , 5dr Hatch Nov 01-Feb 08 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Fiat
Doblo , 5dr Van 05-09 EU 75 kgs (165 lbs) 75 kgs (165 lbs)
Doblo , 5dr Van 05-09 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Doblo , 5dr Van 05-09 CN 75 kgs (165 lbs) 75 kgs (165 lbs)
Ford
Territory , 5dr SUV 04-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Territory , 5dr SUV 11-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Territory , 5dr SUV 11-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Territory , 5dr SUV Apr 04-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Territory , 5dr SUV Apr 04-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit EN
K337W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
3
Fitting Kit EN
K337W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Please check the rear of this manual for
information relating specifically to your
vehicle.
4
Fitting Kit EN
K337W
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
5
Fitting Kit EN
K337W

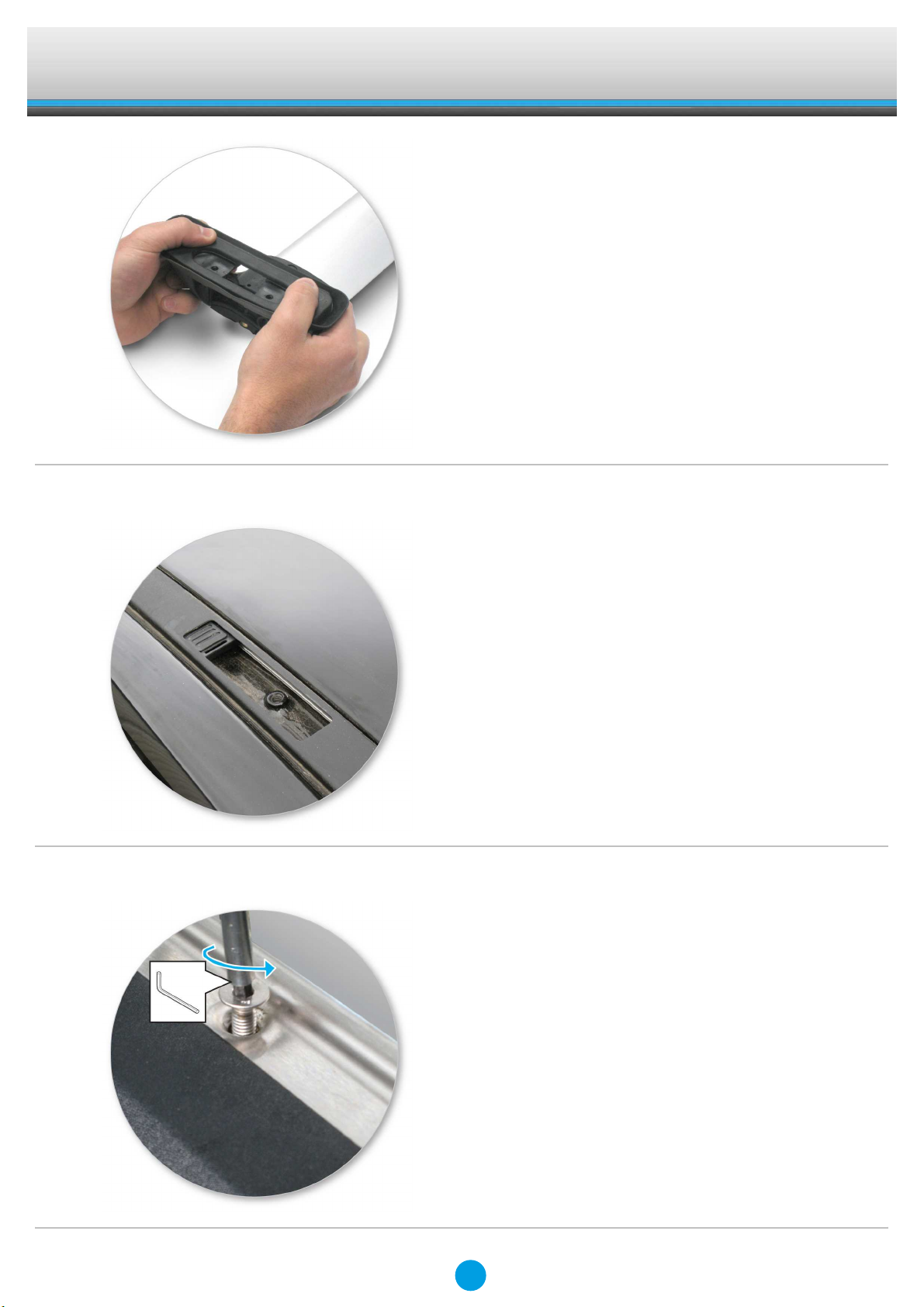

●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
●Repeat for all legs.
Fitment
●Open or remove fixed-point covers.
FITMENT TO FORD TERRITORY ONLY
●Carefully select desired position for
crossbars on vehicle roof.
●Using large Hex screwdriver provided with
fitting kit, remove four screws from the
desired location in the Ford Territory rails
(two from each rail).
●Select grubscrews and screw into the
vehicle's fixed points.
6
Fitting Kit EN
K337W

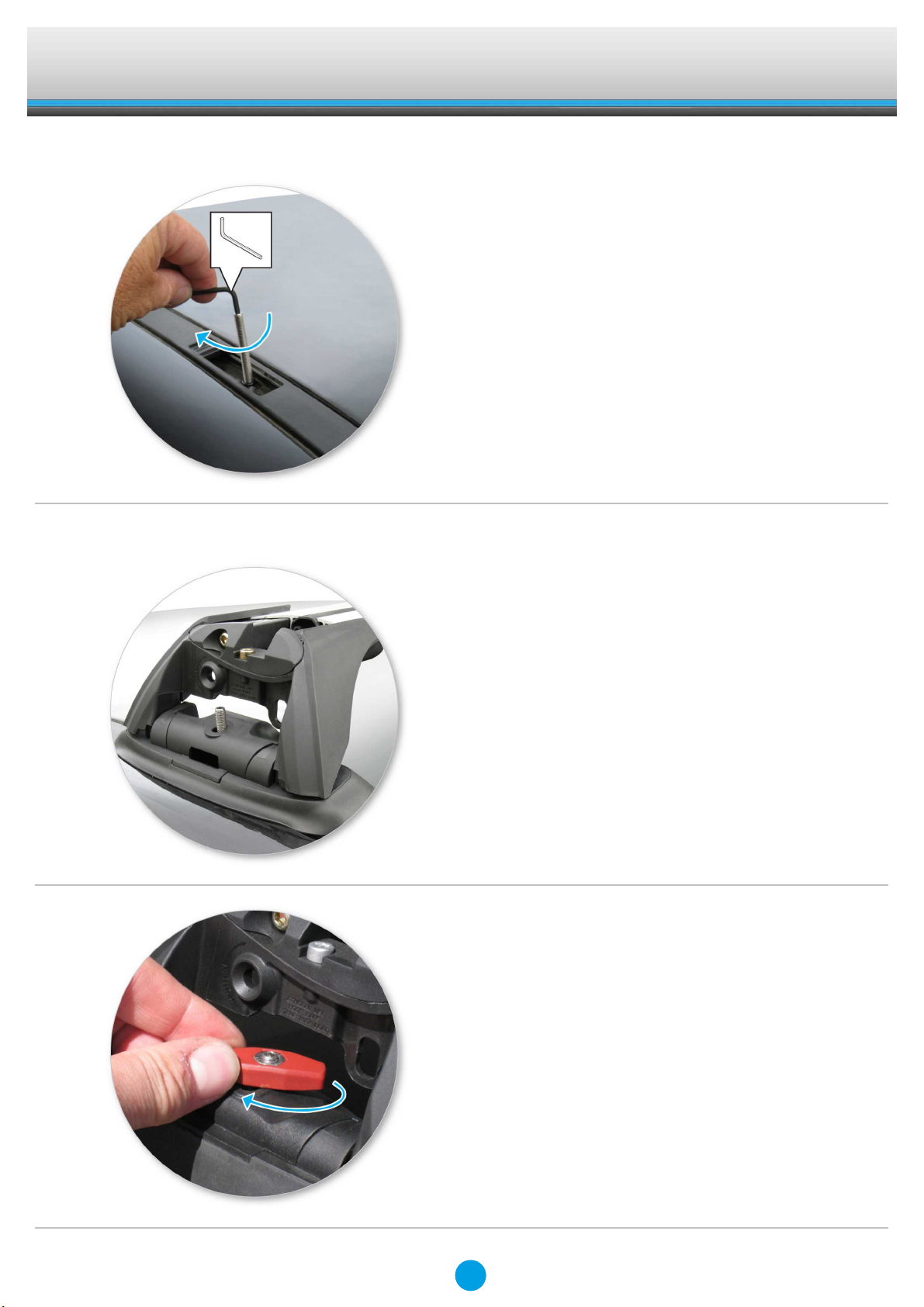

FITMENT TO PEUGEOT AND FIAT ONLY
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
FITMENT TO ALL VEHICLES
●Place crossbar foot over grubscrews.
●Tighten the plastic knob. The side with the
nut showing should be facing up.
7
Fitting Kit EN
K337W

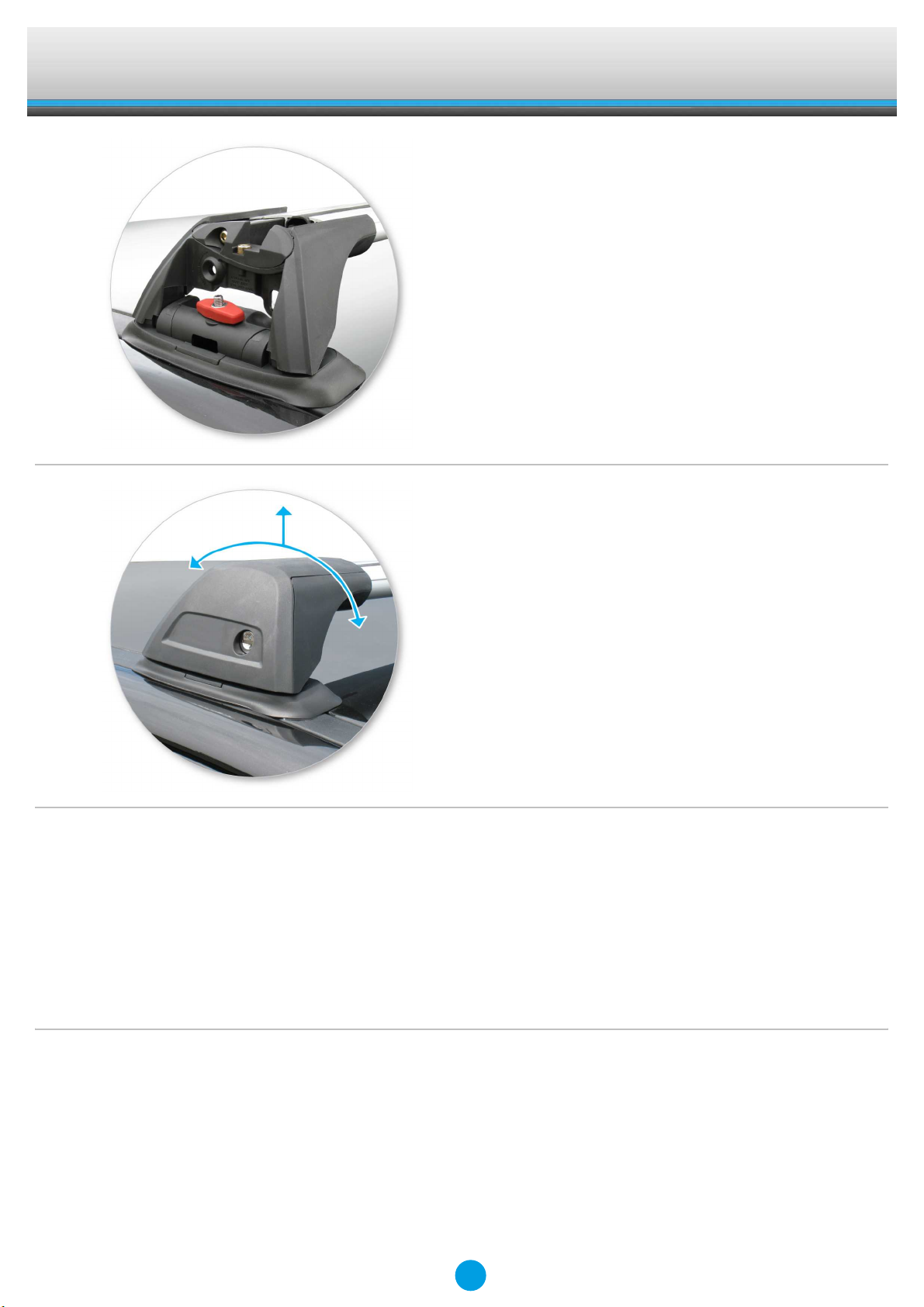

●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
8
Fitting Kit EN
K337W
Maintenance
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
9
Fitting Kit EN
K337W
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Yakima Australia Pty Ltd
17 Hinkler Court
Brendale QLD 4500
AUSTRALIA
www.whispbar.com
www.whispbar.com.au
www.whispbar.co.nz
www.whispbar.co.uk
www.whispbar.co.za
www.whispbar.eu
www.whispbar.ca
10
