Whispbar K723W Manuale utente
K723W
Fitting Kit
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema
de transporte
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de
transporte.
RU Установочные Инструкции для
Поперечных Балок
x 6 x 12 x 12 x 6
x 6 x 6
Revision No: 5E 1
Fitting Kit K723W

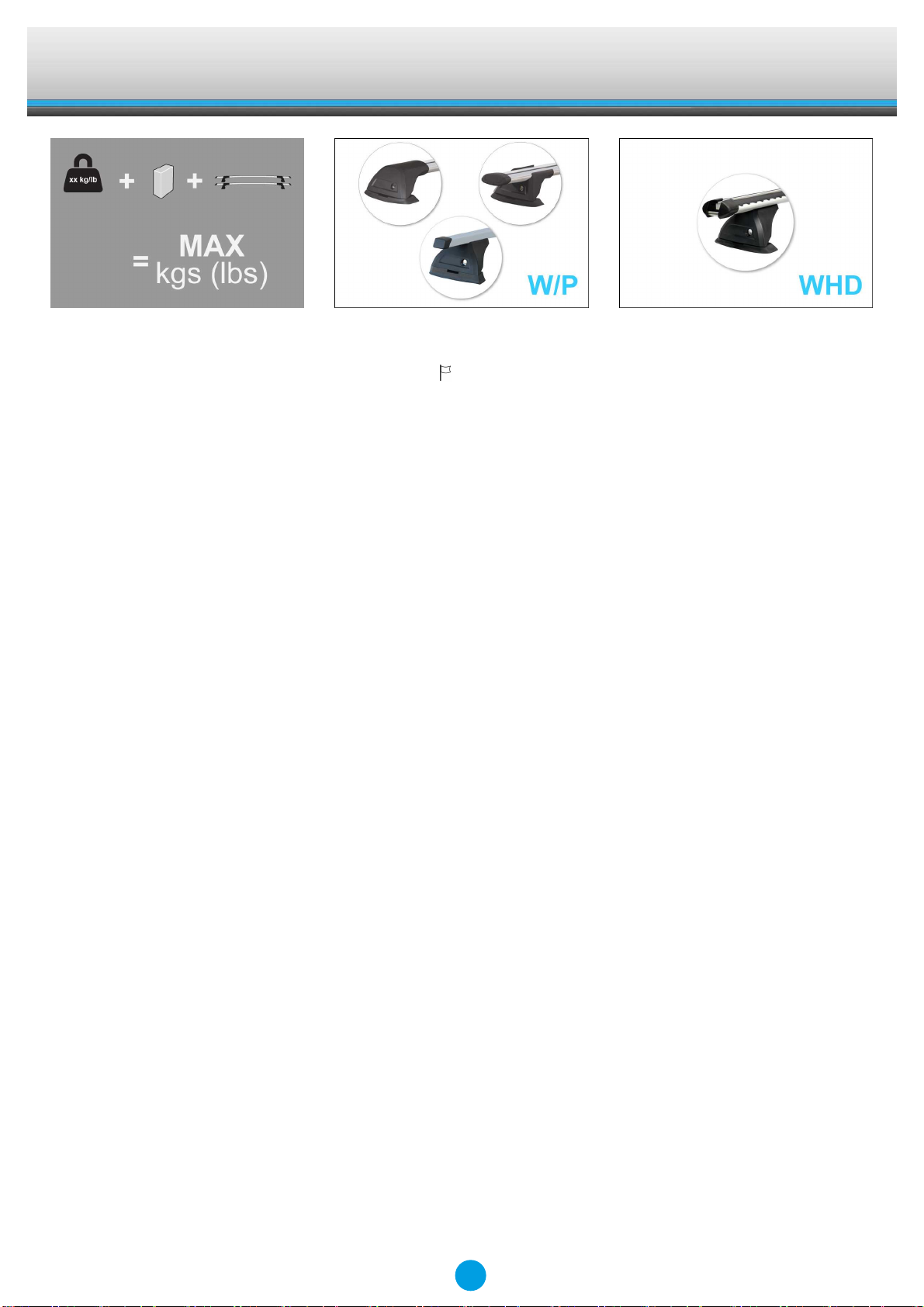

MAX kgs (lbs)
W/P WHD
Nissan
Primastar SWB, 5dr Van 06-May 15
Primastar SWB, 5dr Van 07-May 15
Primastar SWB, 5dr Van 07-May 15
Renault
Trafic SWB, 5dr Van 06-May 15
Trafic SWB, 5dr Van 06-May 15
Trafic SWB, 5dr Van 06-May 15
Trafic SWB, 5dr Van 06-May 15
Opel
Vivaro SWB, 5dr Van 06-May 15
Vivaro SWB, 5dr Van 06-May 15
2
EU 75 kgs (165 lbs) 100 kgs (220 lbs)
AU 75 kgs (165 lbs) 100 kgs (220 lbs)
ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
AU 75 kgs (165 lbs) 100 kgs (220 lbs)
EU 75 kgs (165 lbs) 100 kgs (220 lbs)
ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
CN 75 kgs (165 lbs) 100 kgs (220 lbs)
EU 75 kgs (165 lbs) 100 kgs (220 lbs)
ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
Fitting Kit K723W
X
A B C 1 2 3
Primastar SWB, 5dr Van 06-May 15 (EU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Primastar SWB, 5dr Van 07-May 15 (AU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Primastar SWB, 5dr Van 07-May 15 (ZA) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Trafic SWB, 5dr Van 06-May 15 (AU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Trafic SWB, 5dr Van 06-May 15 (EU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Trafic SWB, 5dr Van 06-May 15 (ZA) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Trafic SWB, 5dr Van 06-May 15 (CN) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Vivaro SWB, 5dr Van 06-May 15 (EU) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
Vivaro SWB, 5dr Van 06-May 15 (ZA) 645mm 1430mm 1920mm 1240mm 1240mm 1240mm
25 3/8ths" 56 5/16ths" 75 9/16ths" 48 13/16ths" 48 13/16ths" 48 13/16ths"
3
Fitting Kit EN
K723W
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K723W
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Set bars to length (revert to rear of these
instructions).
●Please check the front of this manual for
information relating specifically to your
vehicle.
5
Fitting Kit EN
K723W
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K723W

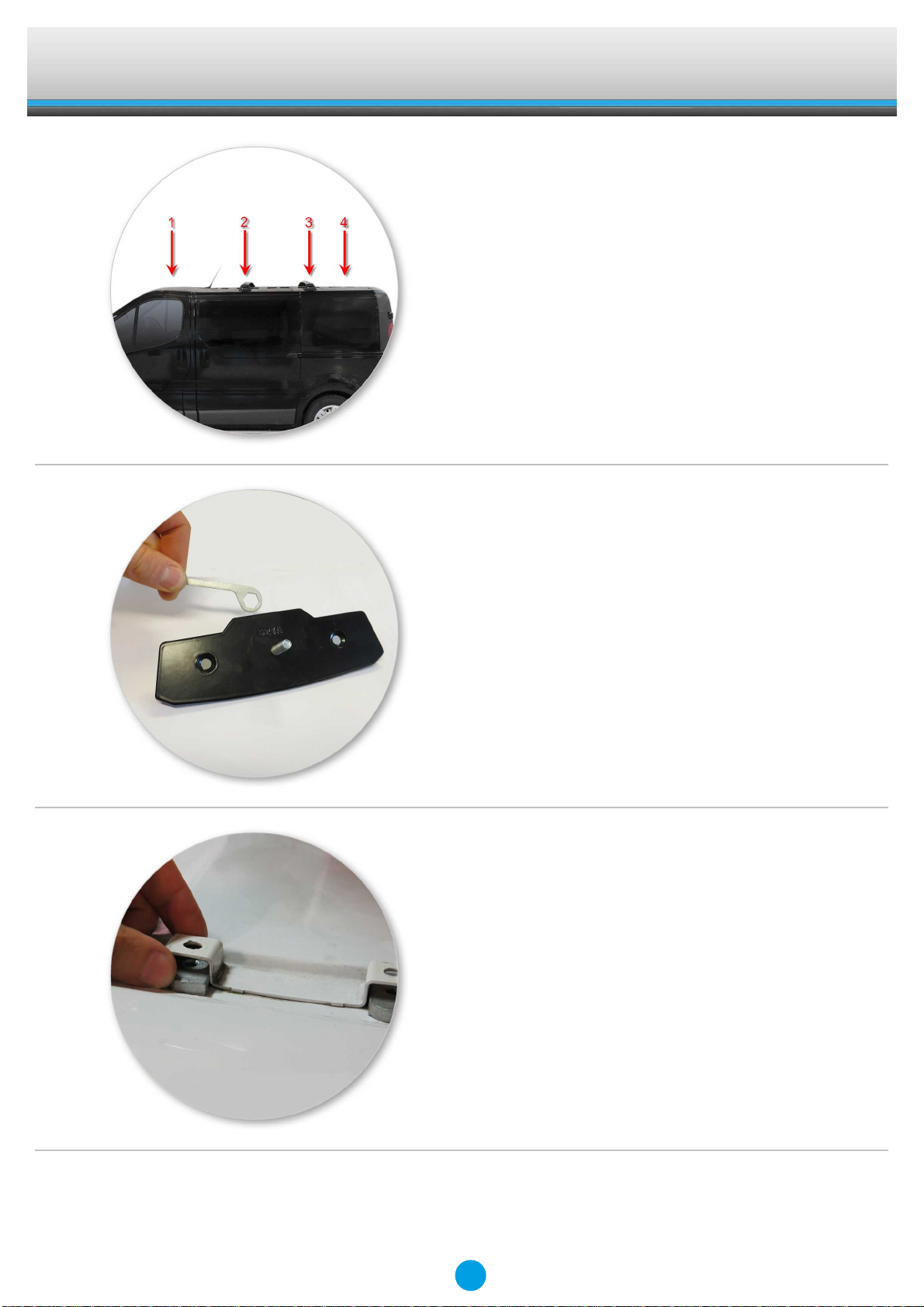

●For a two bar setup, use position 2 and 3.
For a three bar setup, use position 2,3 and
4.
●Screw bolt in base plate, make sure the
number is on the top side. Use the spanner
from inside the cover to fully tighten the
bolt.
●Slide nut under fixed-point mount
7
Fitting Kit EN
K723W
●Place mounting block into position as
shown.
●Place screws into position.
●Tighten both screws evenly.
●Place crossbar foot over grubscrews.
8
Fitting Kit EN
K723W
●Tighten the plastic knob.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9
Fitting Kit EN
K723W
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
