Whispbar K440 Manuale utente
Fitting Kit
K440
ES
ESES
ES
Instrucciones de montaje para el
sistema de transporte.
F
FF
F
Instructions de montage pour Basic
Carrier
GB
GBGB
GB
Fitting Instructions for Basic Carrier
x 4 x 4 x 1 x 4
x 1 x 4 x 4
1
Revision No: 1.2B
Fitting Kit
K440
GB

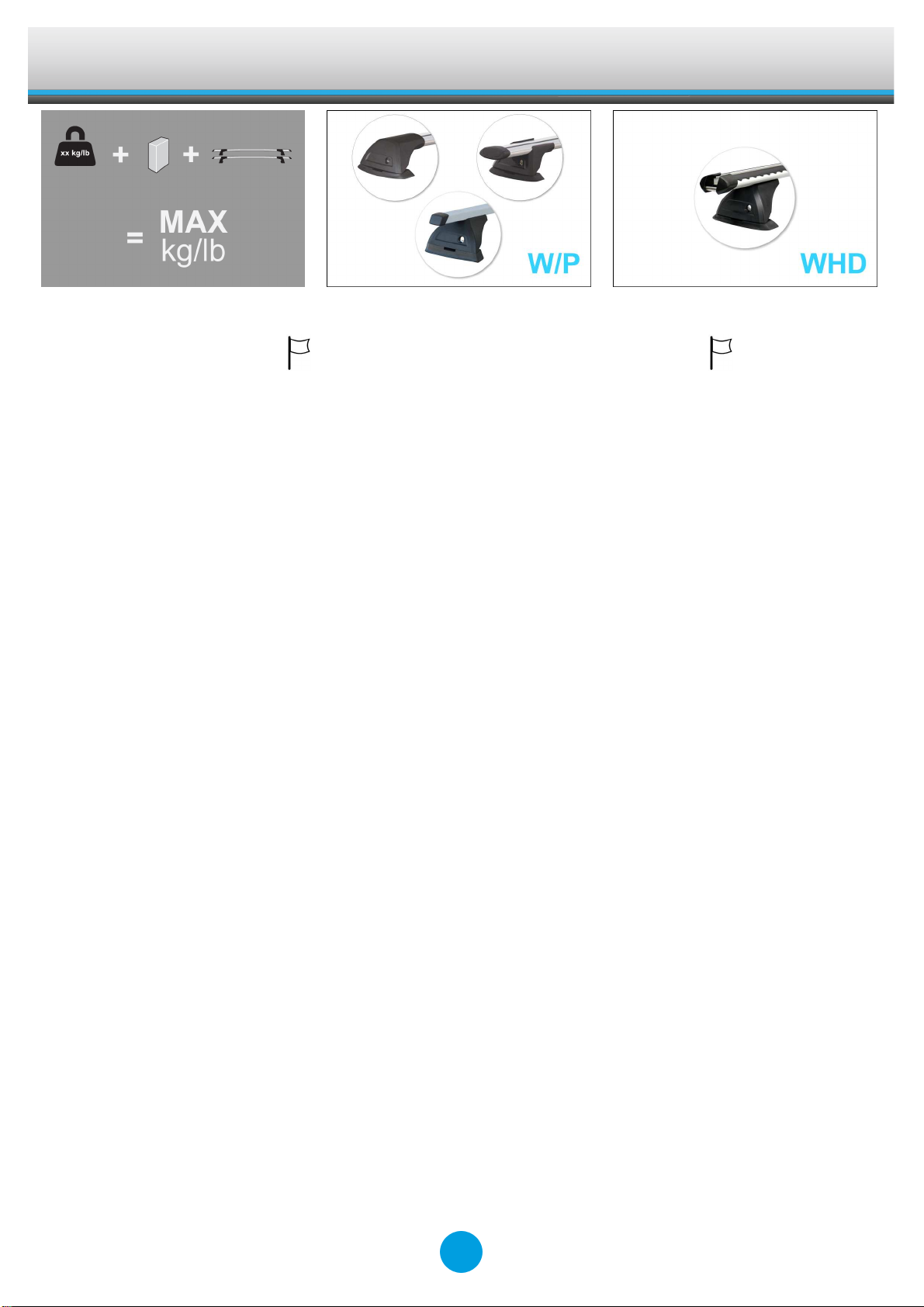

MAX lbs
MAX lbs
W/P WHD W/P WHD
Ford
Transit Connect, 5dr Van 09-+ US 165 165 Transit Connect, 5dr Van 09-+ EU 165 165
Volkswagen
Caddy , 4dr Van 04-+ EU 165 220 Caddy , 4dr Van 04-+ NZ 165 220
Caddy , 4dr Van 04-+ AU 165 220 Caddy Maxi, 5dr Van 08-+ ZA 165 220
Caddy Maxi, 5dr Van 08-+ EU 165 220 Caddy Maxi, 5dr Van 08-+ NZ 165 220
Caddy Maxi, 5dr Van 08-+ AU 165 220
2
Fitting Kit
K440
GB

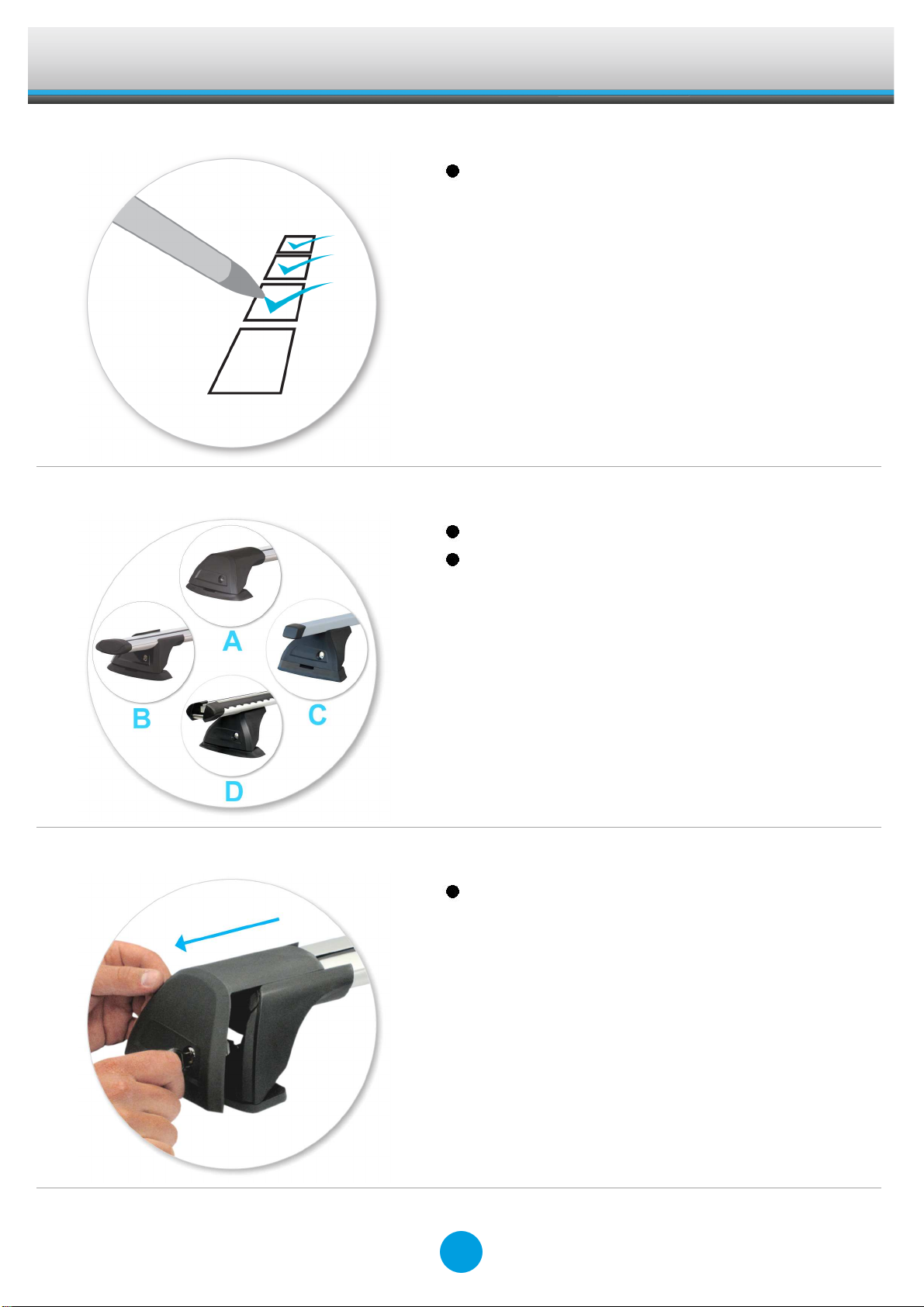

First Time Installation
Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
This kit fits type A, B, C and D.
These instructions show type A crossbar
fitted. They also apply to type B, C and D.
Use keys to remove covers.
3
Fitting Kit
K440
GB
Use hex screwdriver to reverse adjusting
screw 10 turns.
Press adjusting screw and pull crossbar legs
out. Refer to the crossbar instructions for
crossbar adjustment.
Ensure each end of the crossbar is adjusted
equally.
Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
Attaches to factory-fitted mounting points
Please check the rear of this manual for
information relating specifically to your
vehicle.
4
Fitting Kit
K440
GB
Tighten adjusting screw to 5 Nm (3.7 ft lb).
Remove clamp block by pressing backwards.
Select plastic internal block (from fitting kit)
and insert into foot.
5
Fitting Kit
K440
GB
Fit rubber pad (supplied with crossbar) to
foot.
Make sure the pad fits into the holes
underneath the foot.
Repeat for all legs.
Fitment
Open or remove fixed-point covers.
Fit the adaptor (A) to grubscrew (B).
6
Fitting Kit
K440
GB
Fit nylon washer onto adaptor.
Screw adaptor with grubscrew assembly into
roof. Tighten firmly.
Repeat for all four positions.
Place crossbar foot over grubscrews.
Tighten the red plastic knob. The side with
the nut showing should be facing up.
7
Fitting Kit
K440
GB
Ensure the red plastic knob is in the position
shown when fully tightened.
Repeat for all four positions.
Check crossbar is securely attached to the
vehicle.
Use keys to fit and lock covers
CAUTION:
CAUTION:CAUTION:
CAUTION:
Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is
applied to the crossbars.
applied to the crossbars.applied to the crossbars.
applied to the crossbars.
Regularly check screws are tight.
Regularly check screws are tight.Regularly check screws are tight.
Regularly check screws are tight.
8
Fitting Kit
K440
GB
Maintenance
Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
Set crossbars a minimum distance of 700mm
(27 4/8") apart where no other distance is
specified in the fitting instructions. This is
especially important when carrying long
loads.
Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
Some sunroofs and radio antennae cannot
be used when the product is fitted.
Do not modify this product.
Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the fitting
instructions.
Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
Objects with pointed ends (skis) should be
carried with the pointed ends to the rear of
the vehicle.
Remove all loose or removable objects from
the load prior to loading.
Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
9
Fitting Kit
K440
GB
A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds, changing
of direction, and braking performance. Avoid
rapid acceleration and deceleration. Drive
carefully.
Note that the total height of the vehicle
increases when upright loads are carried.
Products should be locked during transport if
they have locks fitted.
Check and replace worn out or defective
parts.
Keep the product clean and maintained.
Never drive into a car wash with the roof rack
system fitted.
Lubricate locks and adjusting screws at
regular intervals.
Remove the products from the vehicle when
not in use. Make sure all loose parts are
stored safely.
Yakima Products, Inc.
15025 SW Koll Pkwy.
Beaverton, OR 97006-6056
USA
www.whispbar.com
