Whispbar K543W Manuale utente

K543W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 8 x 2

x 2 x 4 x 2 x 2

x 4 x 2 x 2

Revision No: 2C 1

Fitting Kit K543W

MAX kgs (lbs)

W/P WHD

Kia

Sportage , 5dr SUV 10-+ AU 60 kgs (132 lbs) 60 kgs (132 lbs)

Sportage , 5dr SUV 10-+ ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

Sportage , 5dr SUV 10-+ NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Sportage , 5dr SUV 10-+ US 60 kgs (132 lbs) 60 kgs (132 lbs)

Sportage , 5dr SUV Aug 10-+ EU 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit EN

K543W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K543W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Clamps onto flush roof rail. Pins locate on

inside of rail.

Fitting Kit EN

K543W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

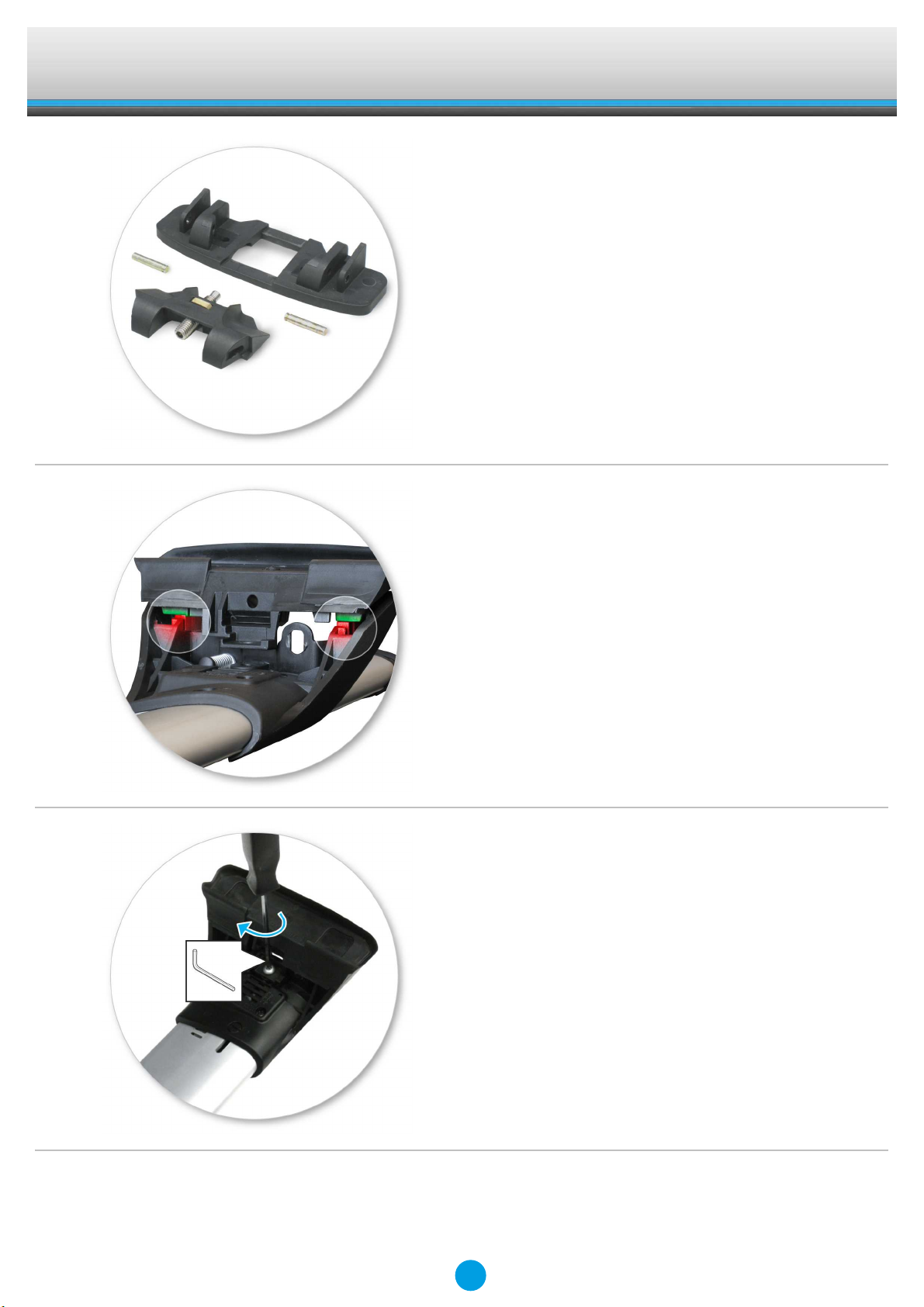

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K543W

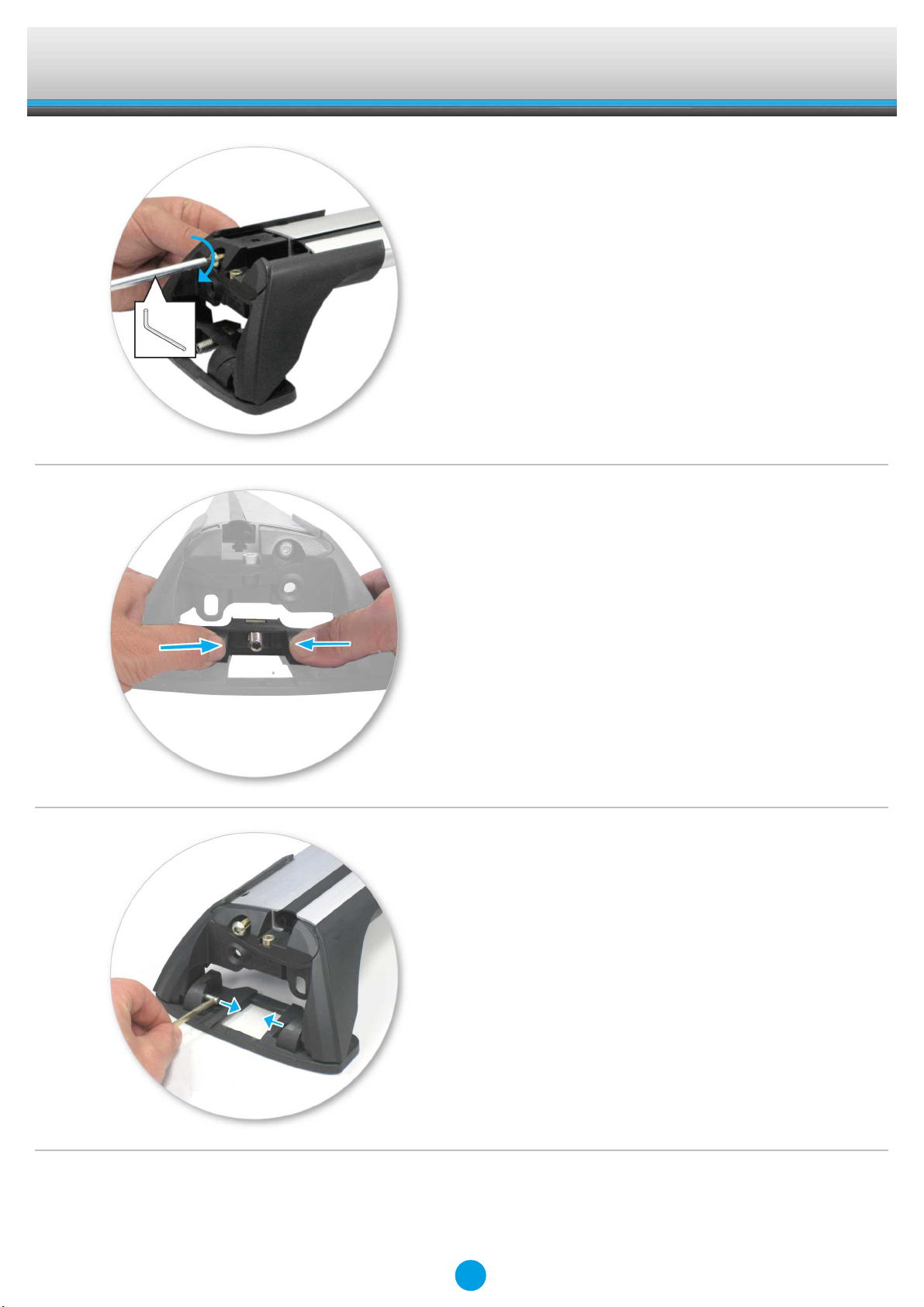

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Select four feet assemblies and match the

left and right assemblies to the left and

right roof rack legs.

●Assemble foot from kit into leg by pressing

it down.

●Ensure foot interlocks with leg.

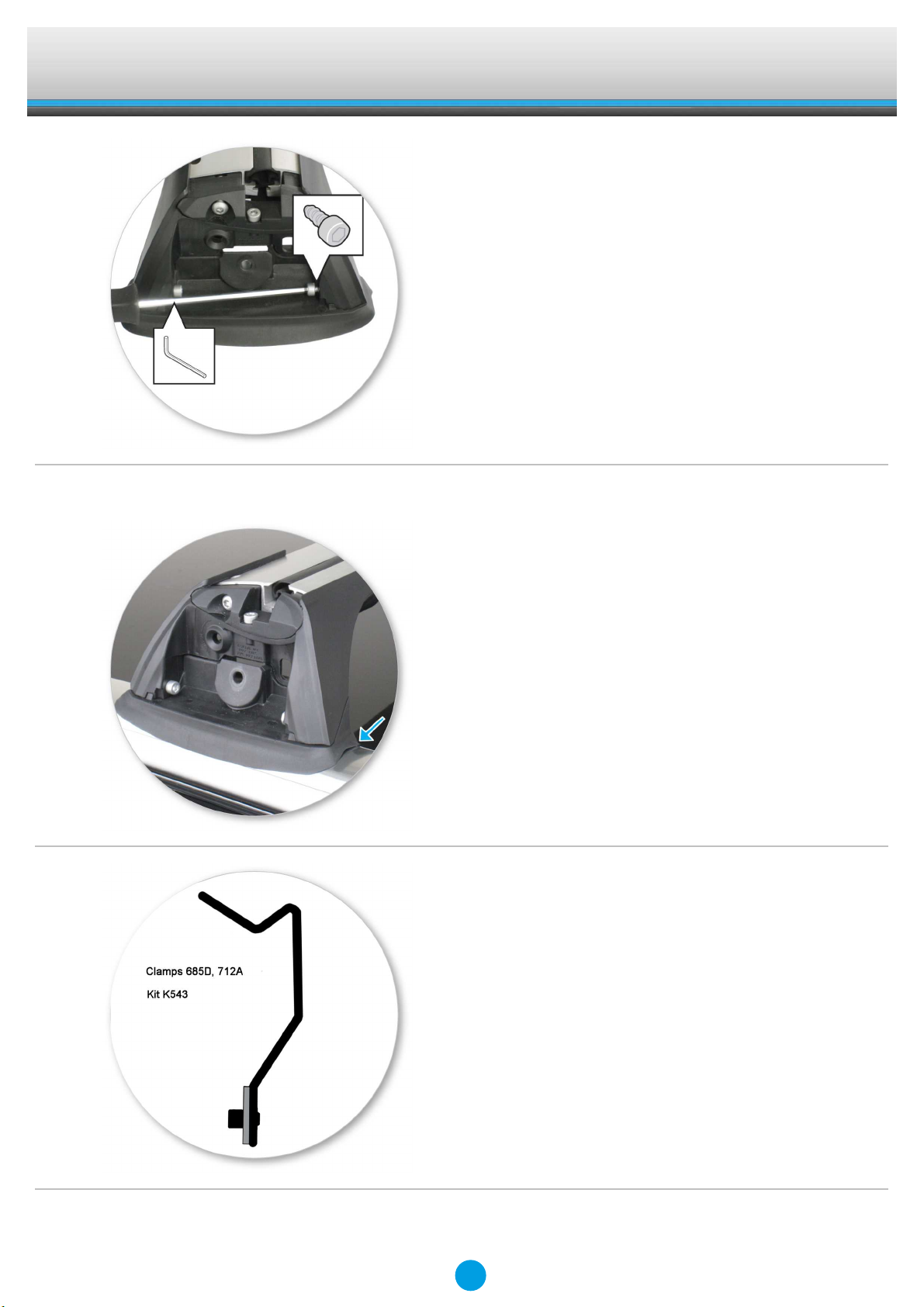

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Do not over tighten.

●Repeat for all legs.

Fitting Kit EN

K543W

●Use two M5 x 12 mm self tapping screws to

secure the assembly onto the leg.

●Do not over tighten.

Fitment

●Locate two holes at each position along the

inside of the roof rails.

●Place crossbars approximately above

these holes on roof rails.

●Ensure back edge of foot sits flush with the

back edge of vehicle roof rail.

●Apply protective strip as shown.

Trim if required.

Fitting Kit EN

K543W

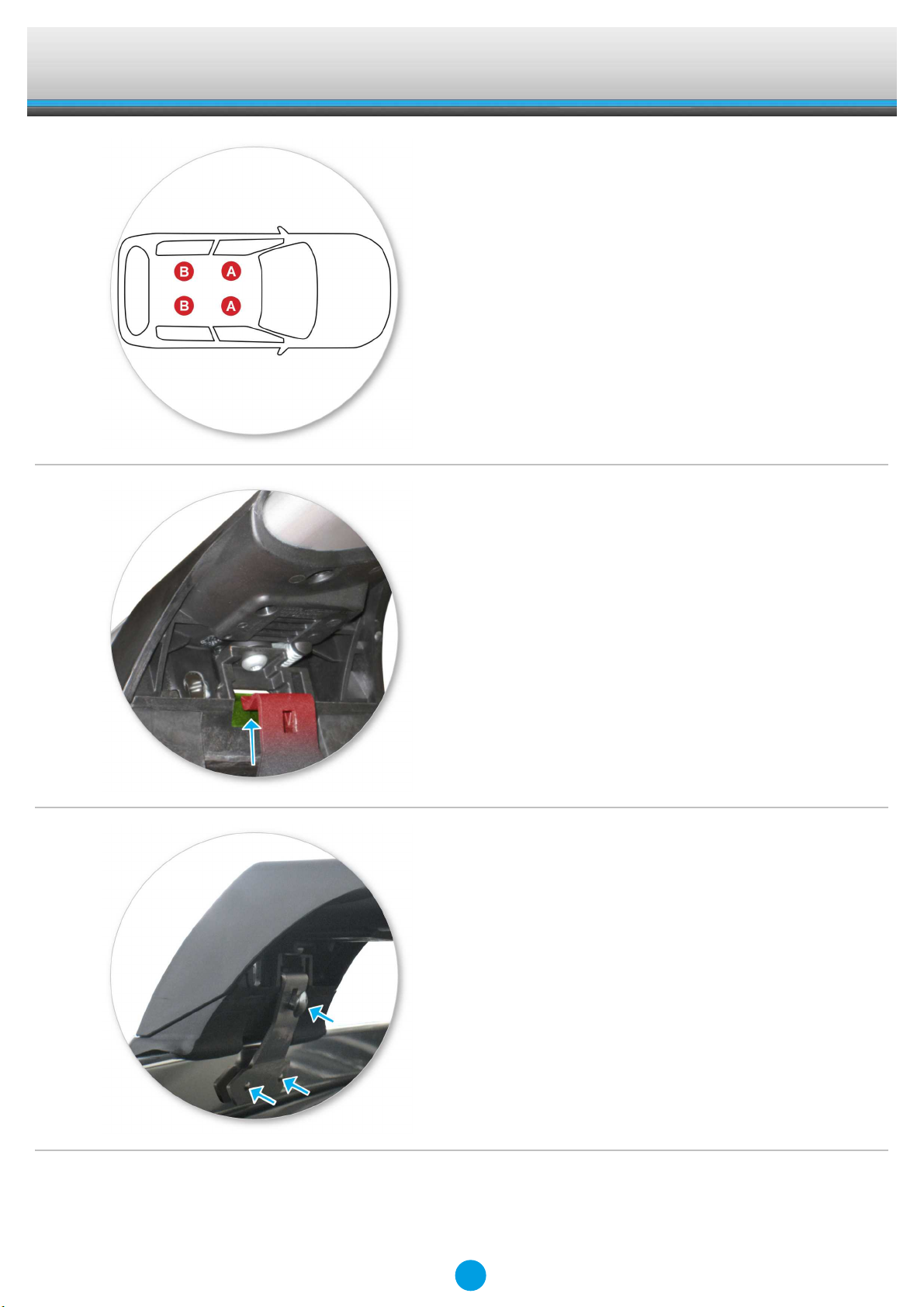

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 685D

B = 712A

●Place one hand on the leg and apply

downward pressure.

●Slide clamp through opening in leg.

●Ensure the pins of the clamps engage

correctly with the holes in the roof rail.

●Thread the coach bolt through the clamp

and the leg.

Fitting Kit EN

K543W

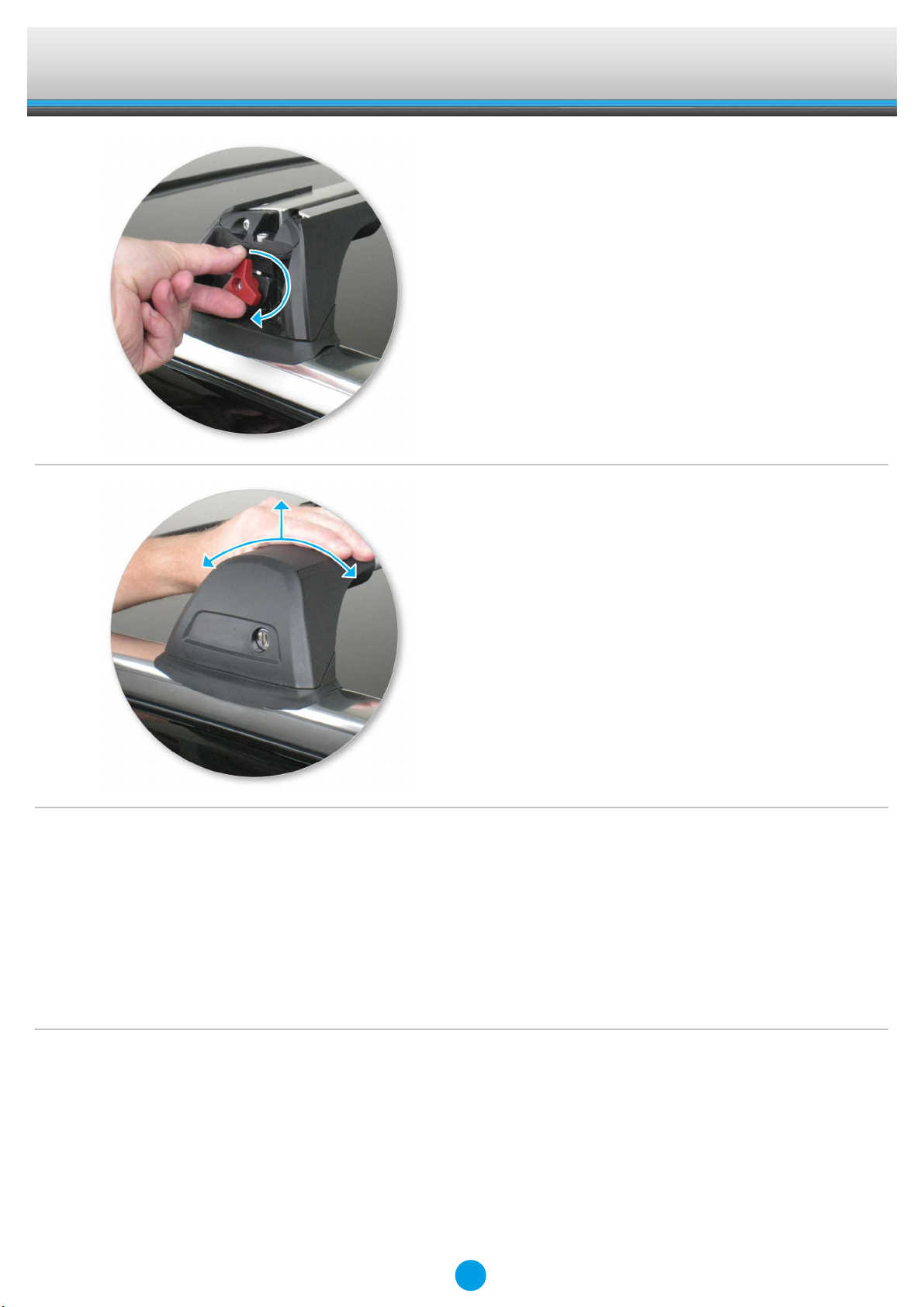

●Tighten the plastic knob.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Do not over tighten.

●Repeat for all four positions.

●Ensure the clamp engages correctly on

inside of roof rail.

●Use keys to fit and lock covers

●Check crossbar is securely attached to the

vehicle.

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Fitting Kit EN

K543W

Maintenance

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.
