Whispbar K916W Manuale utente

K916W

Fitting Kit

EN Fitting Instructions for Basic Carrier

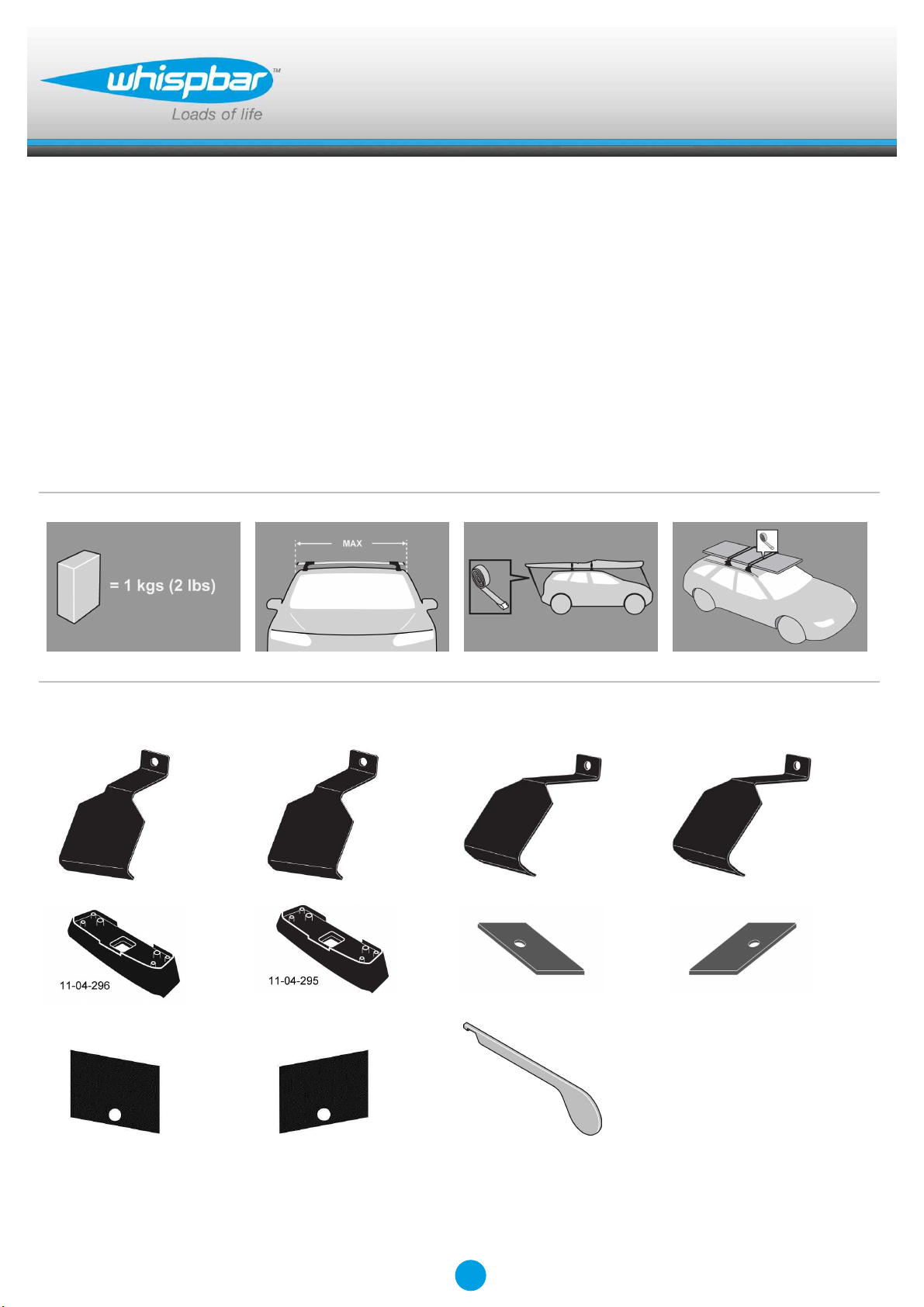

x 1 x 1 x 1 x 1

x 2 x 2 x 1 x 1

x 1 x 1 x 1

Revision No: 3C 1

Fitting Kit K916W

MAX kgs (lbs)

W/P WHD

Audi

A8, 4dr Sedan 10-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

A8, 4dr Sedan 10-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

A8, 4dr Sedan 10-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

A8, 4dr Sedan 10-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

A8, 4dr Sedan 10-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K916W

X

A B C 1 2 3

A8, 4dr Sedan 10-+ (NZ) -280mm 410mm - 910mm 900mm -

-11" 16 1/8ths" - 35 13/16ths" 35 7/16ths" -

A8, 4dr Sedan 10-+ (AU) -280mm 410mm - 910mm 900mm -

-11" 16 1/8ths" - 35 13/16ths" 35 7/16ths" -

A8, 4dr Sedan 10-+ (EU) -280mm 410mm - 910mm 900mm -

-11" 16 1/8ths" - 35 13/16ths" 35 7/16ths" -

A8, 4dr Sedan 10-+ (ZA) -280mm 410mm - 910mm 900mm -

-11" 16 1/8ths" - 35 13/16ths" 35 7/16ths" -

A8, 4dr Sedan 10-+ (CN) -280mm 410mm - 910mm 900mm -

-11" 16 1/8ths" - 35 13/16ths" 35 7/16ths" -

3

Fitting Kit EN

K916W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K916W

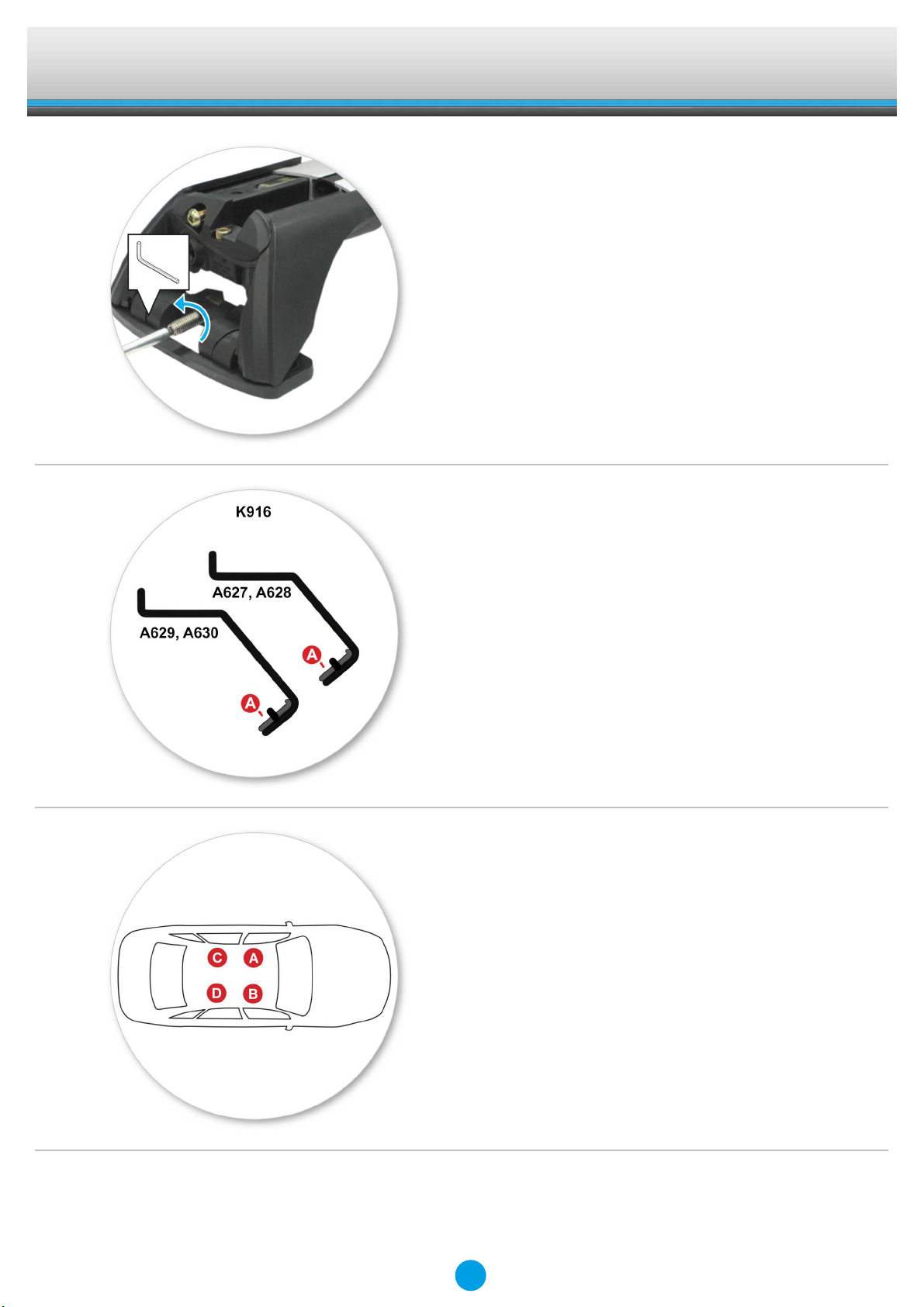

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K916W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Grey

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A627

B = A628

C = A629

D = A630

6

Fitting Kit EN

K916W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

7

Fitting Kit EN

K916W

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 295A

B = 296A

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

8

Fitting Kit EN

K916W

Fitment

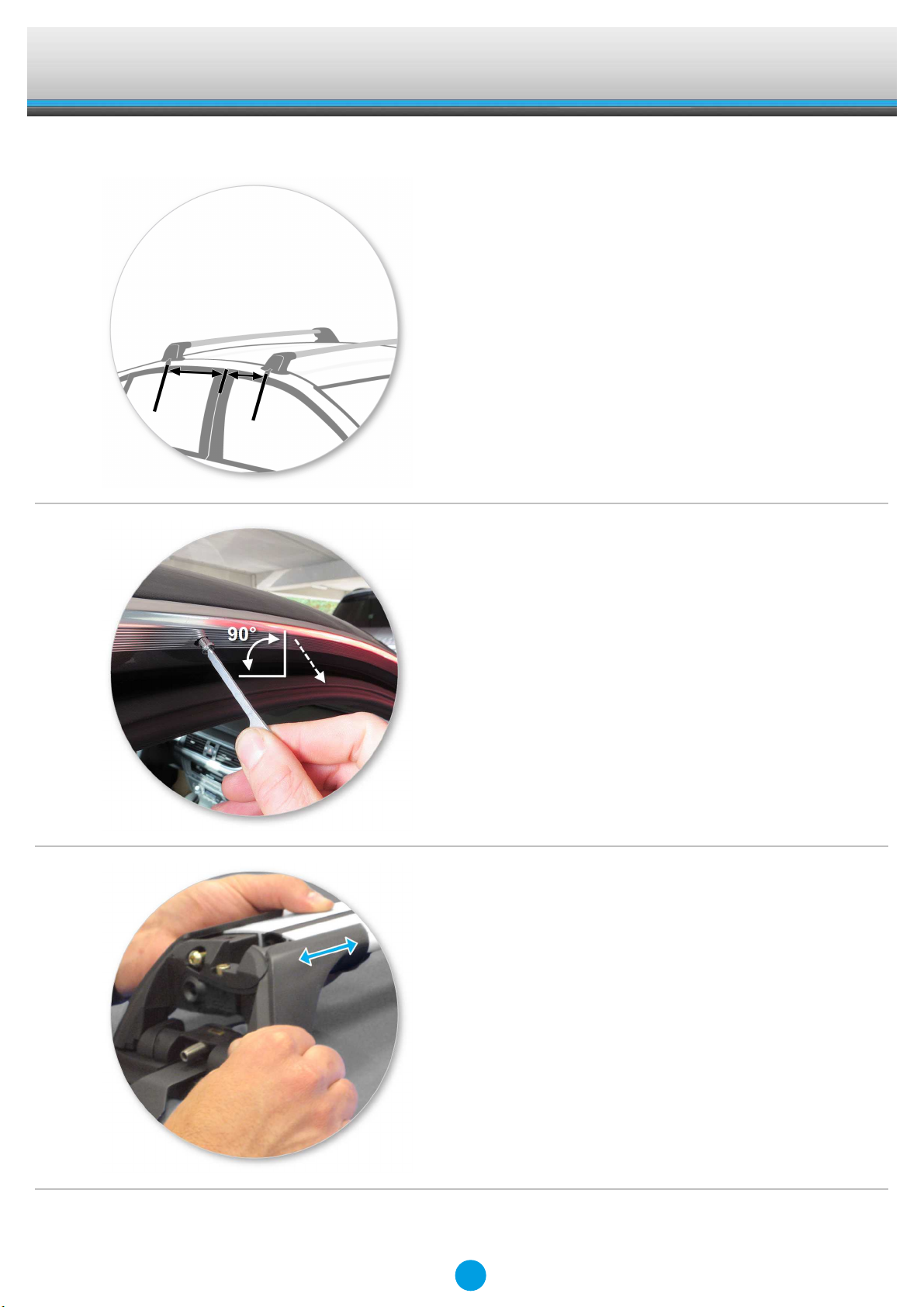

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Remove as shown.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

9

Fitting Kit EN

K916W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

2.5 Nm (1.8 ft lb).

●Check crossbar is securely attached to the

vehicle.

10
