Whispbar K671W Manuale utente
K671W
Fitting Kit
EN Fitting Instructions for Basic Carrier CAUTION: Professional
installation recommended
DMontageanleitung für Basisträgersystem ACHTUNG! Installation durch
Fachpersonal empfohlen.
ES Instrucciones de montaje para el sistema
de transporte ATENCIÓN: Se recomienda la
instalación por parte de un
profesional.
FInstructions de montage pour Basic Carrier ATTENTION : Il est
recommandé de faire appel aux
services d'un professionnel pour
cette opération.
NO Monteringsanvisning for takstativ Advarsel: Profesjonell
installasjon anbefales.
PT Instruções de Montagem para sistema de
transporte. ATENÇÃO: Aconselha-se a
instalação por profissionais.
RU Установочные Инструкции для
Поперечных Балок ВНИМАНИЕ! Рекомендуется
профессиональная установка.
Revision No: 9J 1

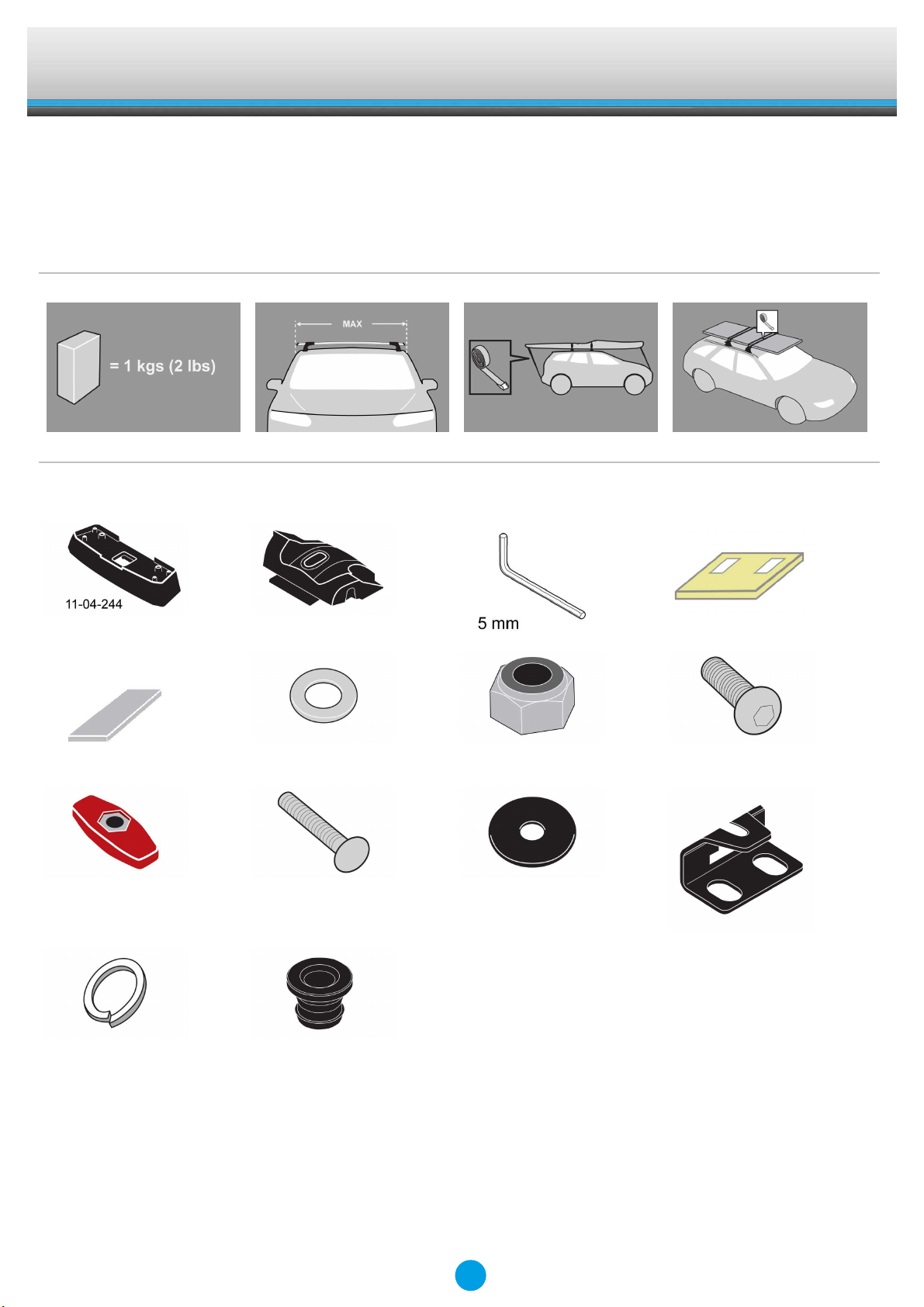

Fitting Kit K671W
x 4 x 4 x 1 x 4
x 8 x 8 x 4 x 4
x 4 x 4 x 4 x 4
x 4 x 4
2
Fitting Kit K671W
MAX kgs (lbs)
W/P WHD
Holden
Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
Chevrolet
Colorado Crew Cab LT/LTZ, 4dr Ute 13-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
Colorado CrewCab LT/LTZ (Mexico), 4dr Truck 13-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)
Isuzu
D-Max Eiger, 4dr Ute 12-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
D-Max LS Double Cab, 4dr Ute 12-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)
D-Max LS-T Crew Cab, 4dr Ute Jul 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
D-Max LS-U Crew Cab, 4dr Ute Jul 12-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)
D-Max LX Double Cab, 4dr Ute 13-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)
D-Max Yukon, 4dr Ute 12-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)
3
Fitting Kit K671W
X
A B C 1 2 3
Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
Colorado Crew Cab LT/LTZ, 4dr Ute 12-+ (AU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
Colorado Crew Cab LT/LTZ, 4dr Ute 13-+ (EU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
Colorado CrewCab LT/LTZ (Mexico), 4dr Truck 13-+ (US) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max Eiger, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max LS Double Cab, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max LS-T Crew Cab, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max LS-U Crew Cab, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max LX Double Cab, 4dr Ute 13-+ (ZA) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
D-Max Yukon, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -
-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -
4
Fitting Kit EN
K671W
CAUTION:
●Professional installation recommended.
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.

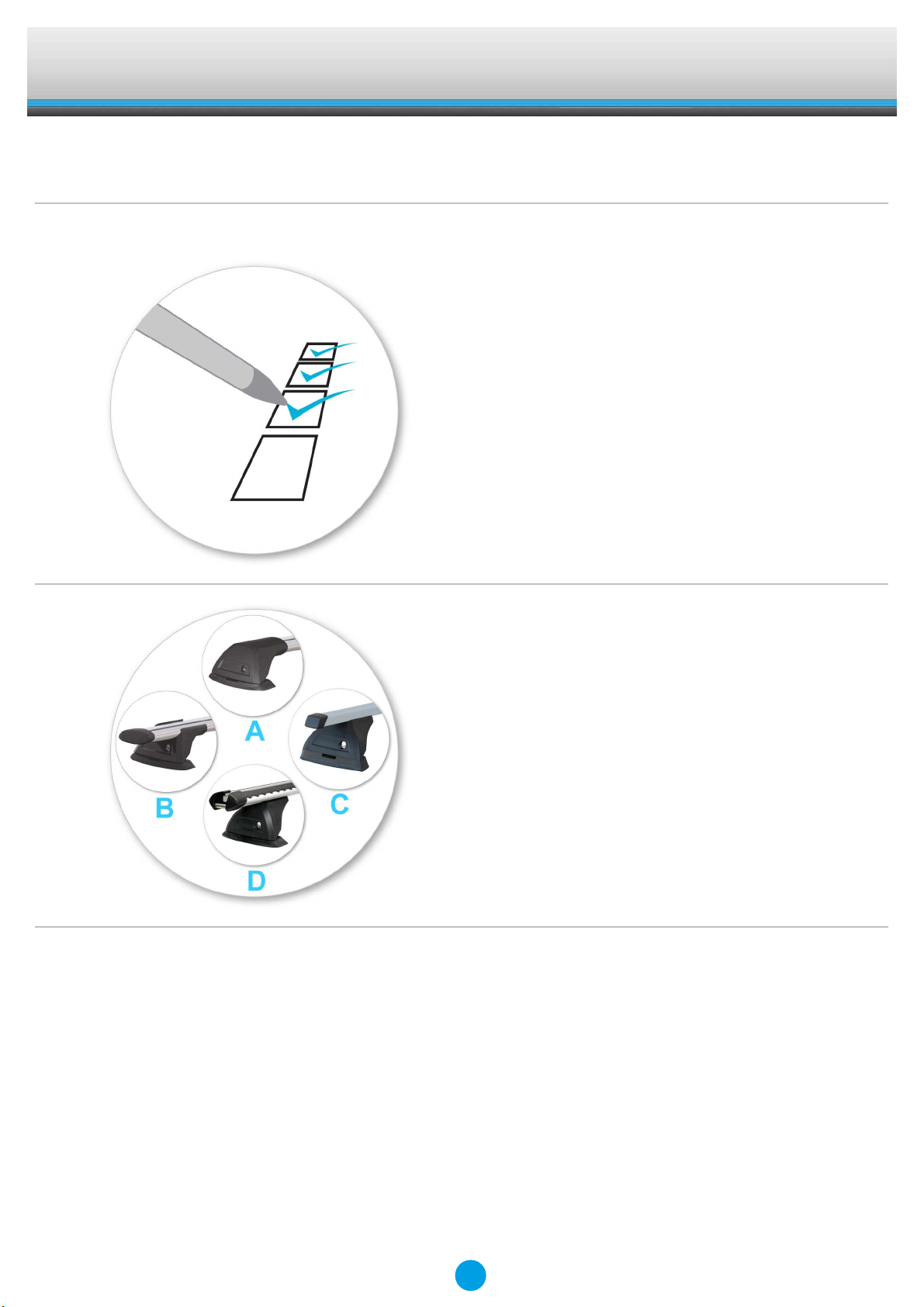

●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
5
Fitting Kit EN
K671W

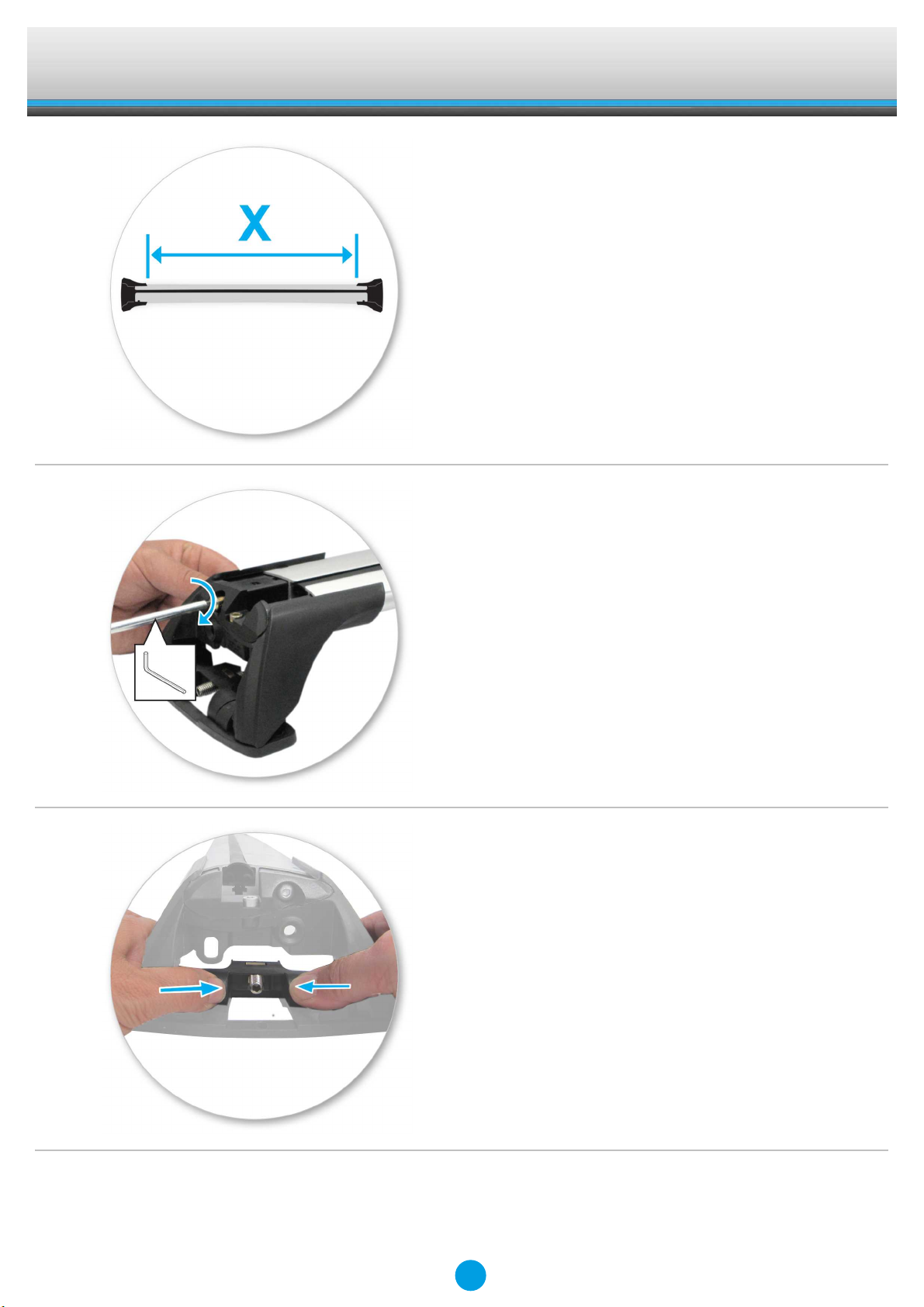

●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
6
Fitting Kit EN
K671W
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
7
Fitting Kit EN
K671W
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
Fitment
●There are 4 concealed mounting points
hidden by the vehicles rubber insert on the
roof.

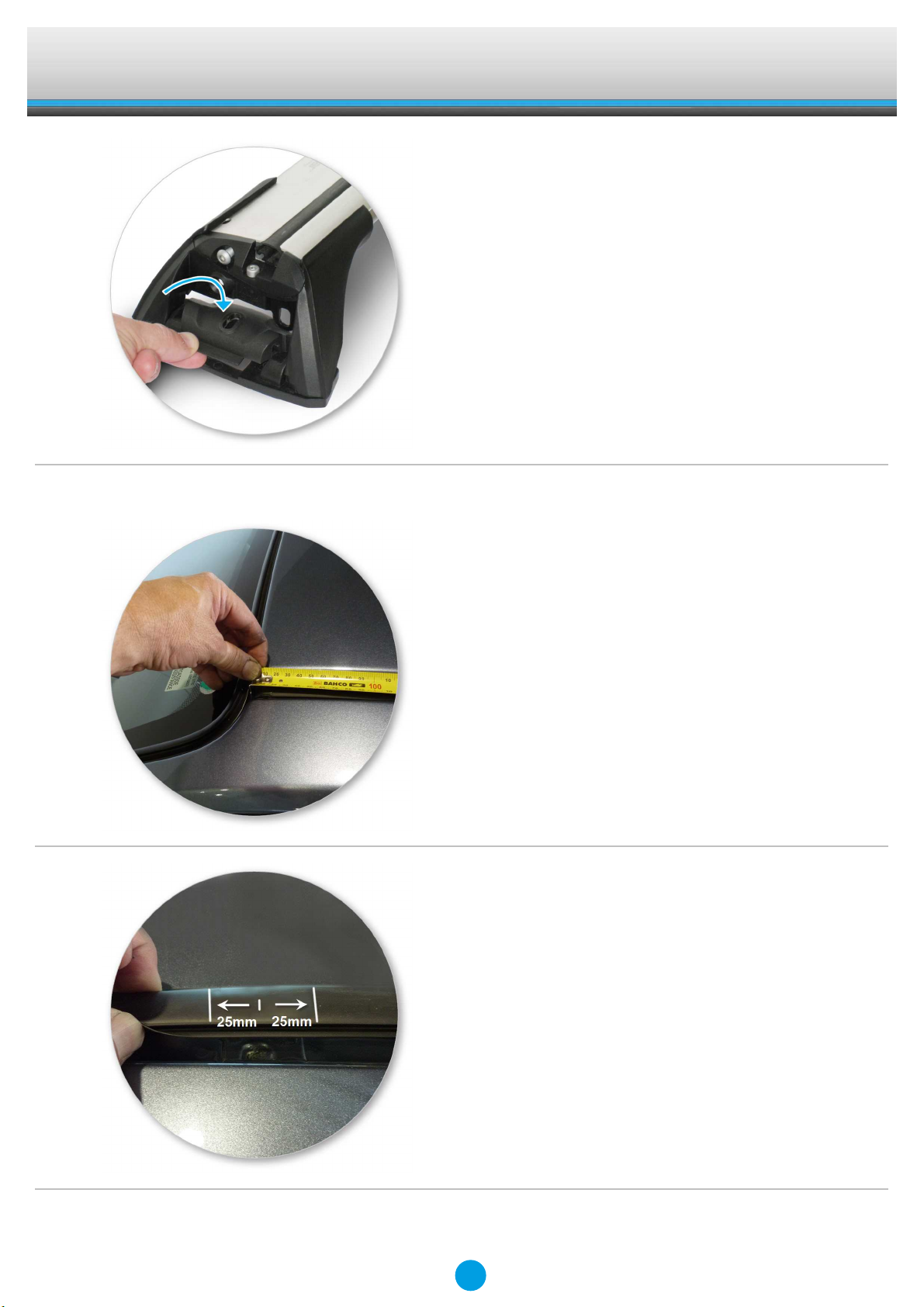

●Measure from the front of the rubber insert
and make a mark at 355mm and 1245mm.
●From these 2 marks measure 25mm
forward and 25mm back and mark a line
across the rubber insert.
●Carefully lift the rubber insert by hand to
reveal the mounting points as shown, only
lift the minimum amount required to reveal
the mounting point.
●Note: Do not use sharp objects or tools to
lift the rubber moulding.
●Note: Take care when lifting the rubber
insert not to kink or bend it.
●Note: The mounting points are covered
with sealant.
8
Fitting Kit EN
K671W

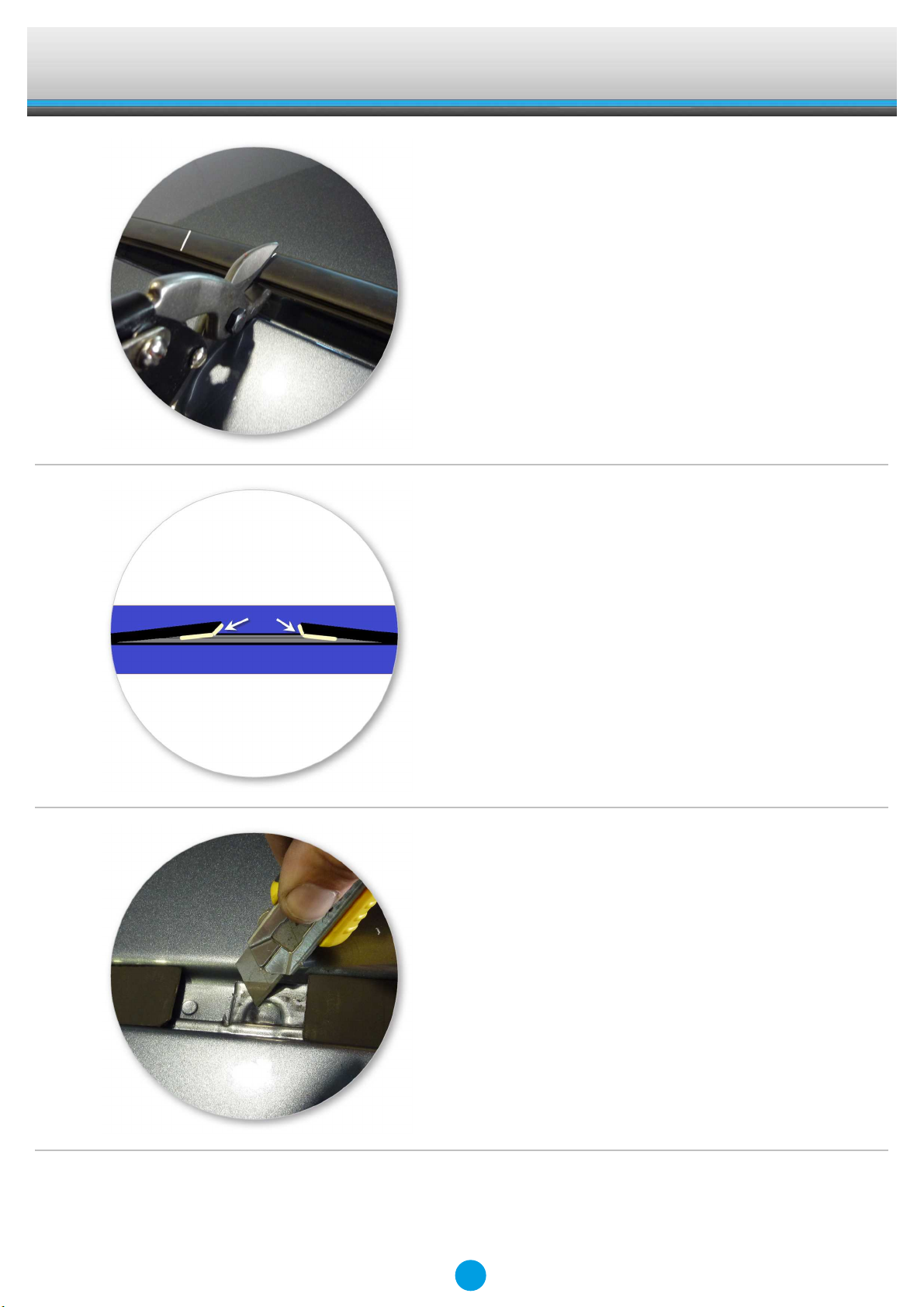

●Now cut the rubber insert at the 2 lines you
marked in the earlier instruction. Once cut
you should end up with 4 x 50mm pieces of
the rubber insert.
●Note: Be careful of sharp edges after
cutting the rubber insert.
●Remove one side of adhesive tape
backing. Apply to underside of rubber
insert as shown. Remove second backing,
then apply downward pressure onto
vehicle.
●To reveal the screw thread in the mounting
points, remove the sealant covering them
with a sharp tool.
9
Fitting Kit EN
K671W

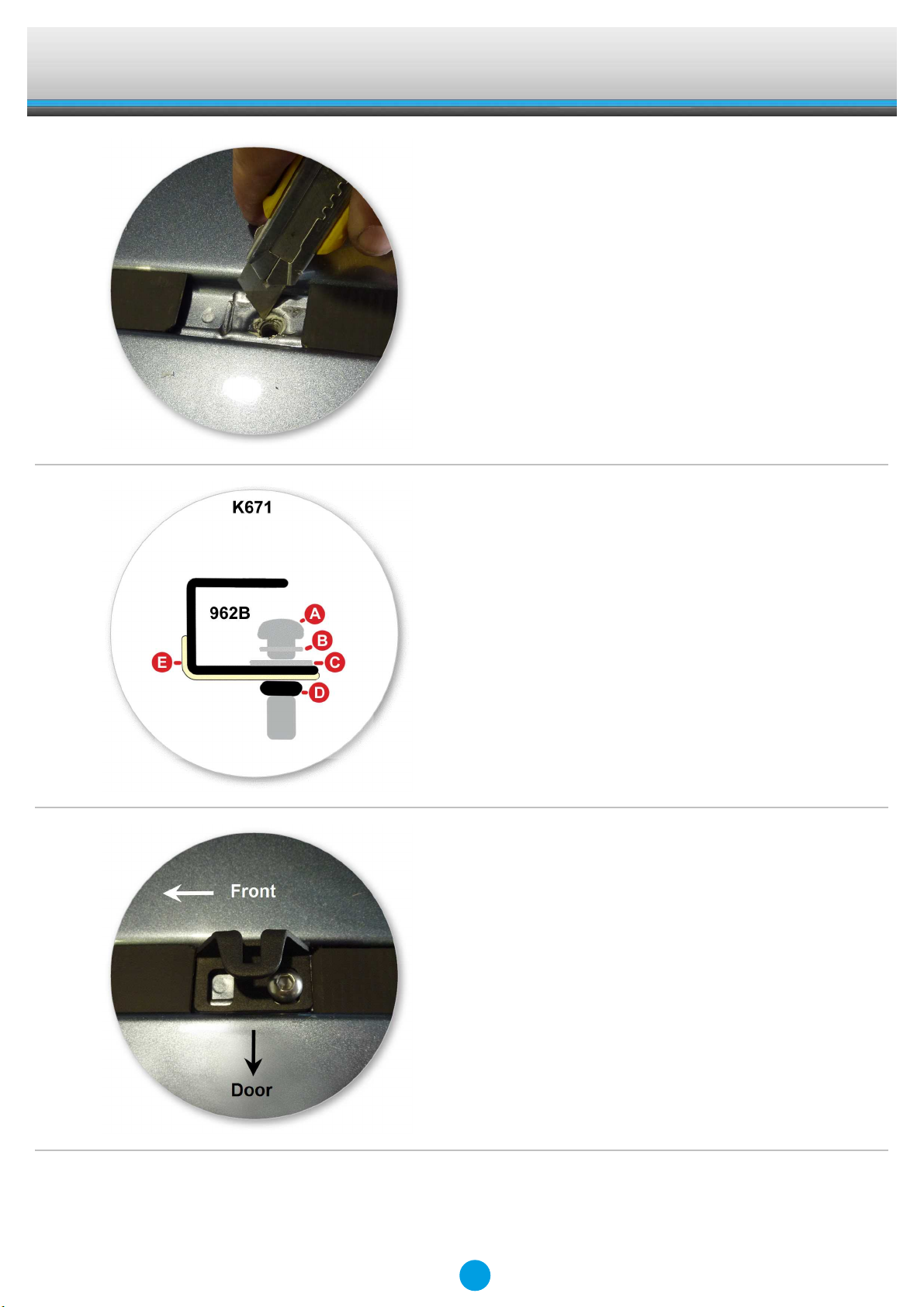

●Remove sealant as shown.
●Apply protective strip as shown.
Trim if required.
●Assemble as shown.
●A = 8mm bolt
B = Spring washer
C = Flat washer
D = Rubber seal
E = Protective strip
●Place rubber seal over bolt thread as
shown.
●Place the clamps into position as pictured
at the 4 points, ensure the clamp is
orientated the right way in the vehicle
channel.
●Using 5mm hex key supplied with this kit,
fully tighten the M8 dome head bolt and
washer supplied to 5Nm (3.7 ft lb) hand
tight.
