Whispbar K892W Manuale utente

K892W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 2 x 2 x 4 x 4

x 4 x 4 x 1 x 1

x 4

Revision No: 1A 1

Fitting Kit K892W

MAX kgs (lbs)

W/P WHD

Honda

HR-V , 5dr SUV 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

HR-V , 5dr SUV 15-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

HR-V , 5dr SUV 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K892W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K892W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K892W

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K892W

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble foot from kit into leg.

●Insert pins through foot into leg.

Fitting Kit EN

K892W

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Refer to the top side of the pad for the part

number.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 244

B = 245

Fitting Kit EN

K892W

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitment

●Open or remove fixed-point covers.

●Remove screws from the vehicle's fixed

points

Fitting Kit EN

K892W

●Attach hex nut adaptor to stud as shown.

Tighten with the spanner provided.

●Repeat for all four positions.

●Select grubscrews and screw into the

vehicle's fixed points.

●Repeat for all four positions.

●Place crossbar foot over grubscrews.

Fitting Kit EN

K892W

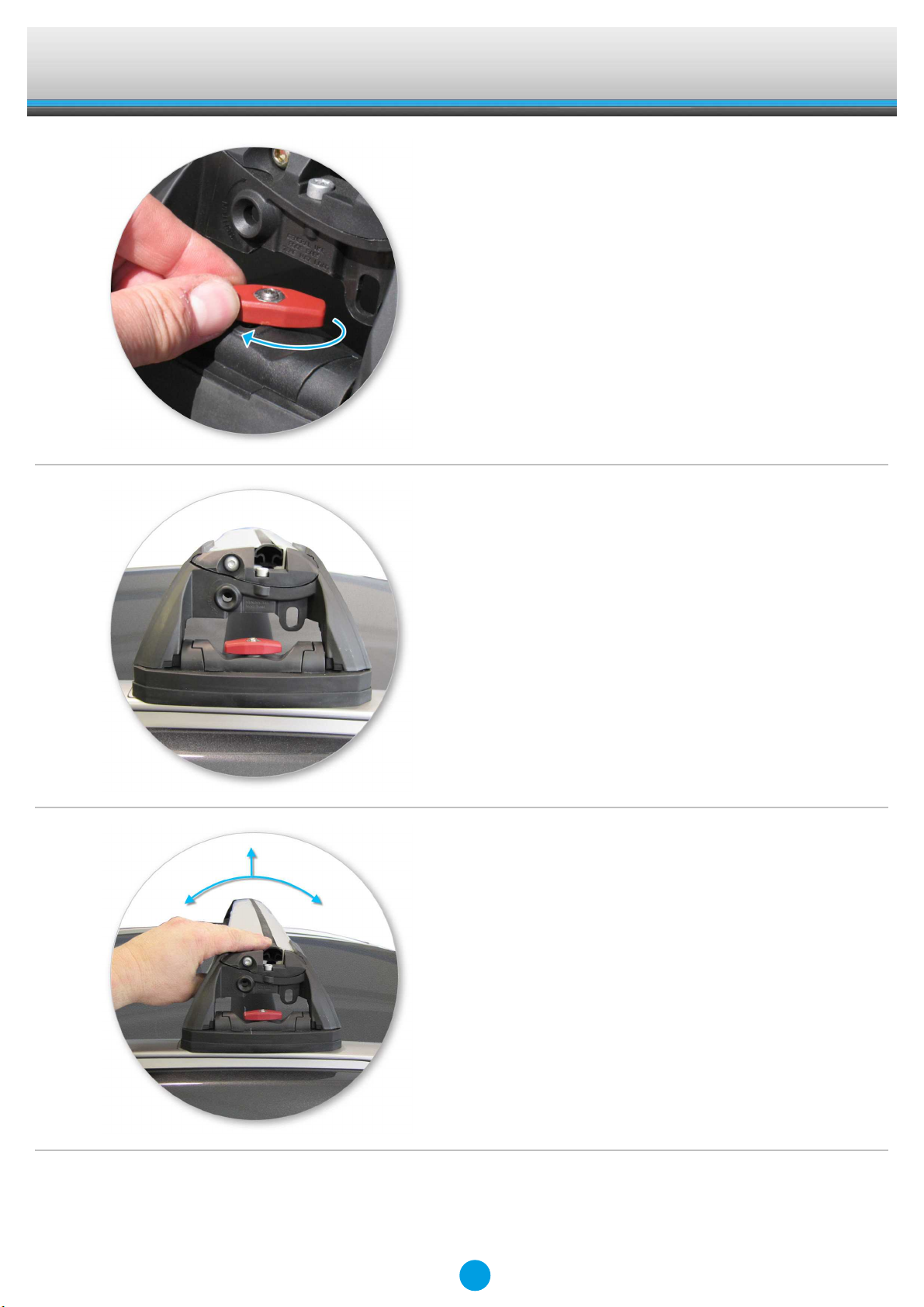

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.
