Whispbar K918W Manuale utente

K918W

Fitting Kit

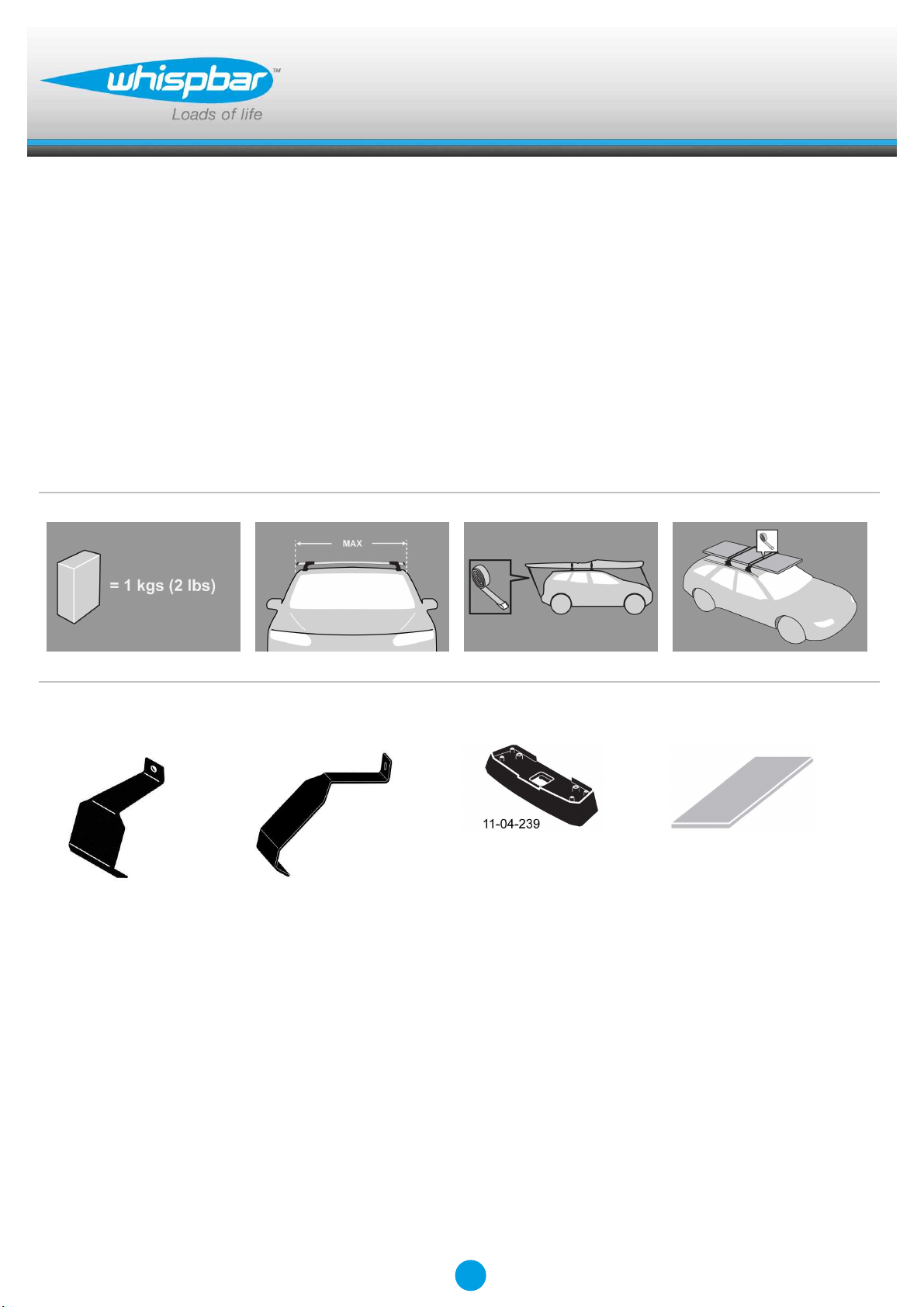

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 4

Revision No: 4D 1

Fitting Kit K918W

MAX kgs (lbs)

W/P WHD

Land Rover

Discovery Sport, 5dr SUV 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Discovery Sport, 5dr SUV 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Discovery Sport, 5dr SUV 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Discovery Sport, 5dr SUV 14-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Discovery Sport, 5dr SUV 14-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K918W

X

A B C 1 2 3

Discovery Sport, 5dr SUV 14-+ (NZ) -195mm 555mm - 995mm 990mm -

-7 -11/16ths" 21 7/8ths" - 39 3/16ths" 39" -

Discovery Sport, 5dr SUV 14-+ (AU) -195mm 555mm - 995mm 990mm -

-7 -11/16ths" 21 7/8ths" - 39 3/16ths" 39" -

Discovery Sport, 5dr SUV 14-+ (EU) -195mm 555mm - 995mm 990mm -

-7 -11/16ths" 21 7/8ths" - 39 3/16ths" 39" -

Discovery Sport, 5dr SUV 14-+ (ZA) -195mm 555mm - 995mm 990mm -

-7 -11/16ths" 21 7/8ths" - 39 3/16ths" 39" -

Discovery Sport, 5dr SUV 14-+ (CN) -195mm 555mm - 995mm 990mm -

-7 -11/16ths" 21 7/8ths" - 39 3/16ths" 39" -

3

Fitting Kit EN

K918W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K918W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K918W

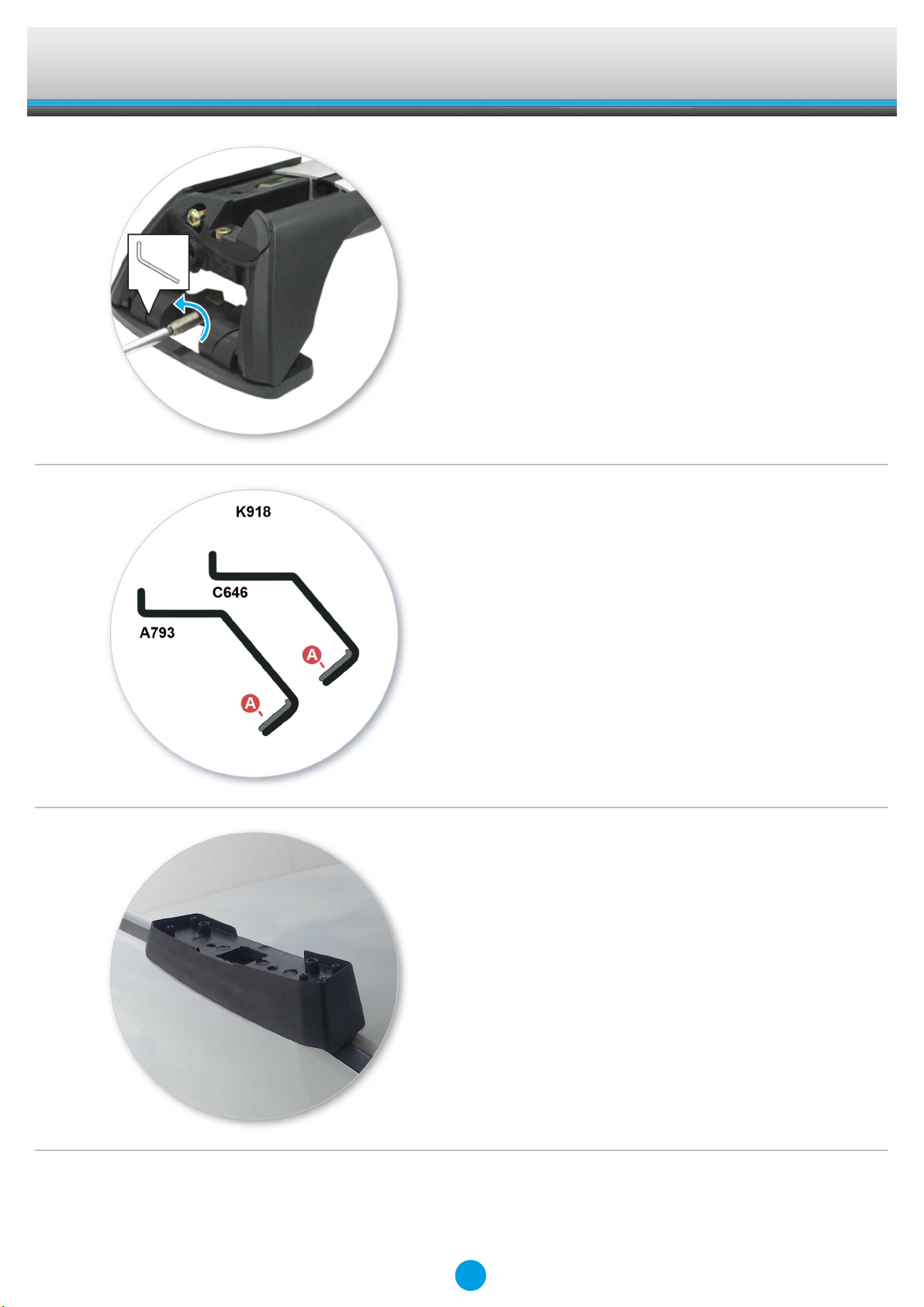

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●A = Grey

●Place rubber pads (supplied with fitting kit)

on the vehicle roof. Pad may vary in shape

to that shown.

6

Fitting Kit EN

K918W

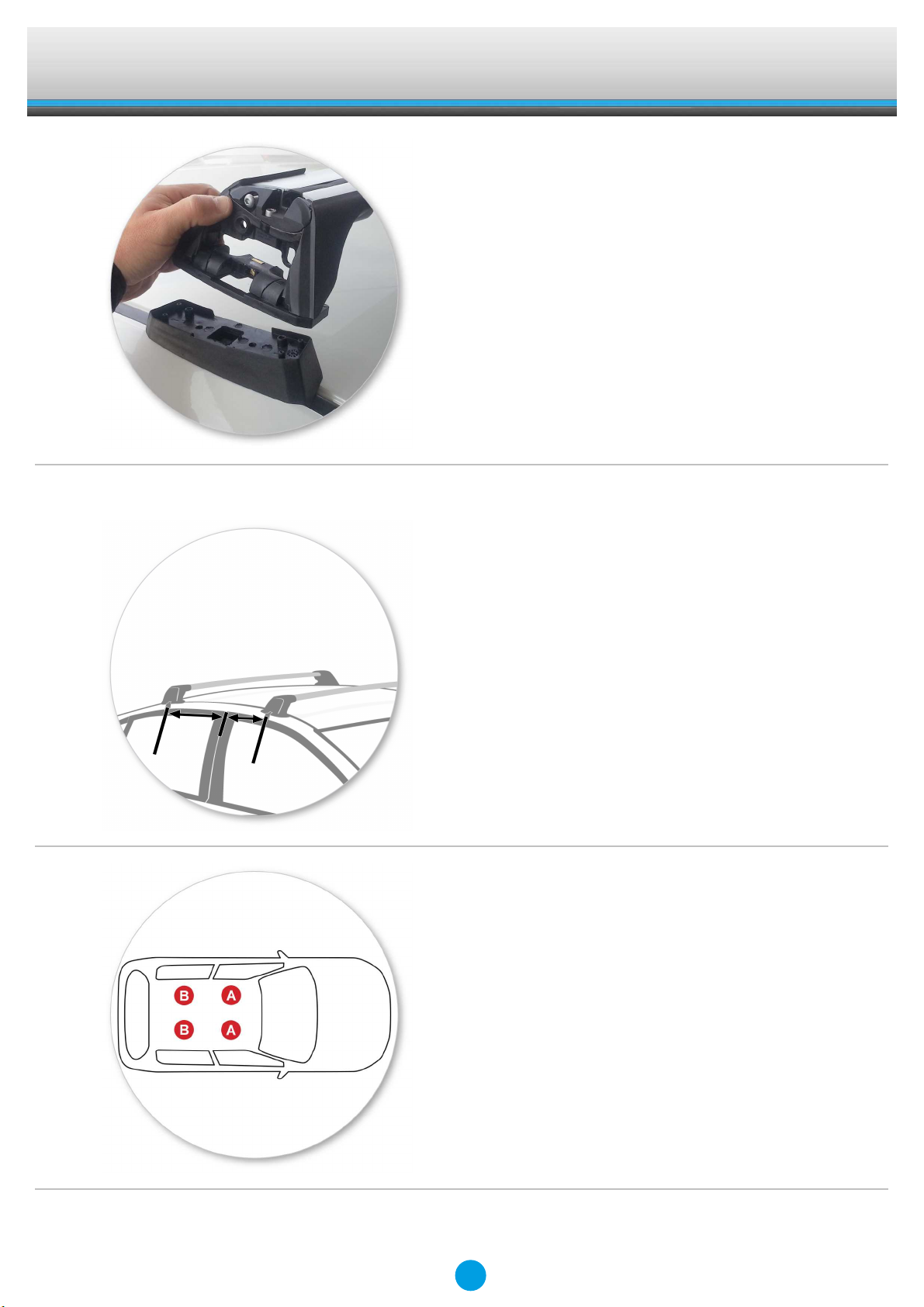

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A793

B = C646

7

Fitting Kit EN

K918W

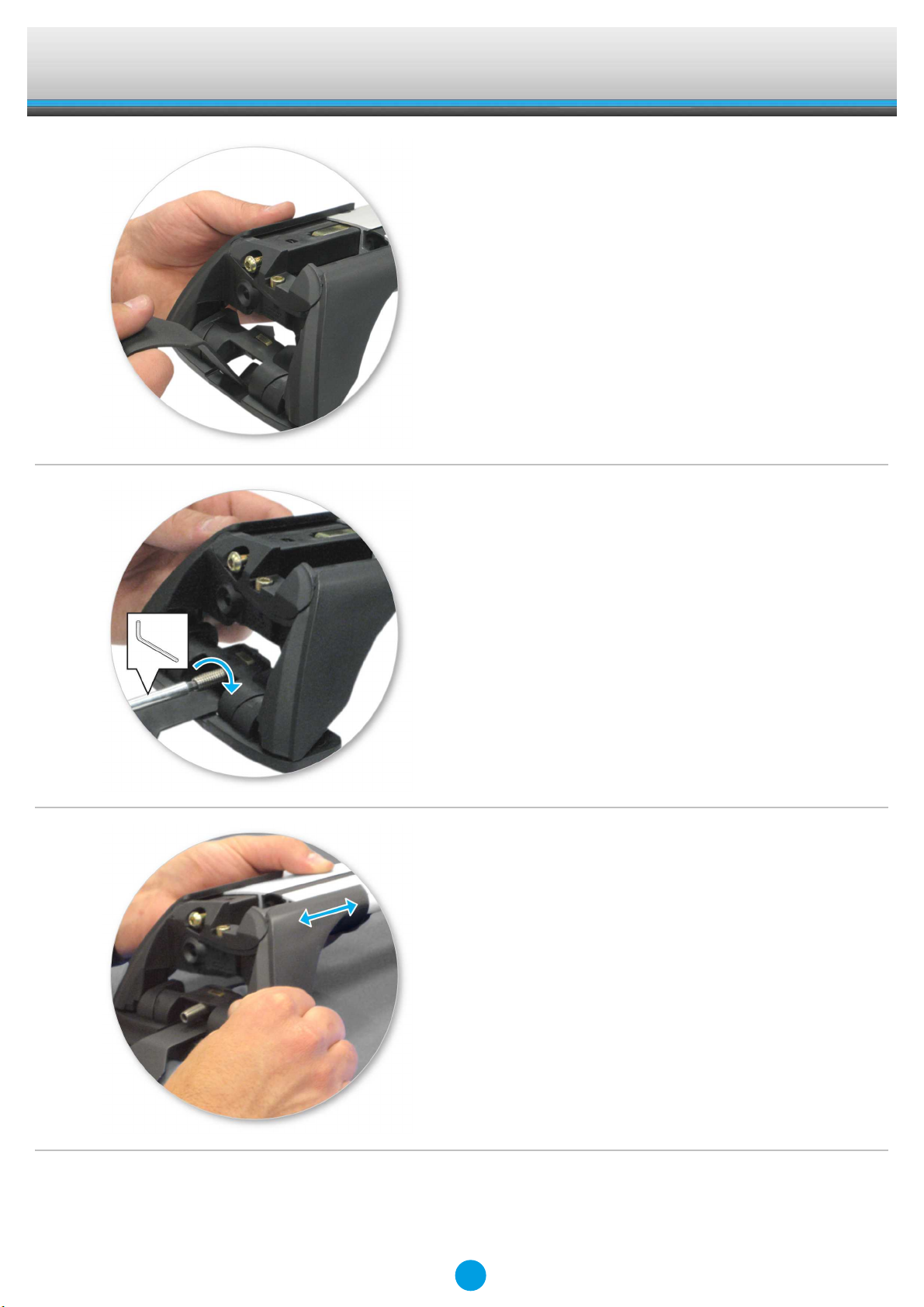

●Attach clamp to each leg.

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

8

Fitting Kit EN

K918W

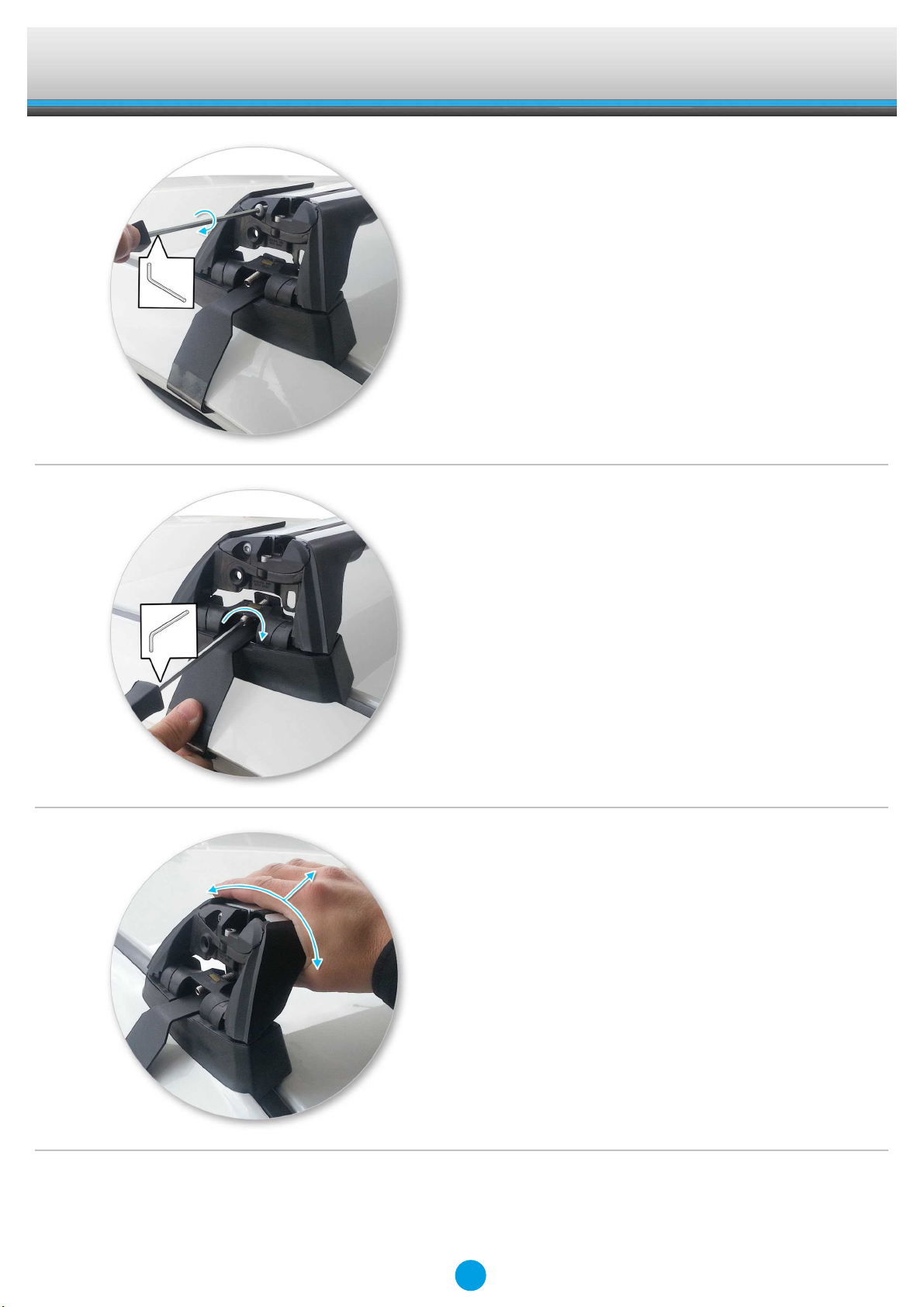

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

2.5 Nm (1.8 ft lb).

●Check crossbar is securely attached to the

vehicle.

9

Fitting Kit EN

K918W

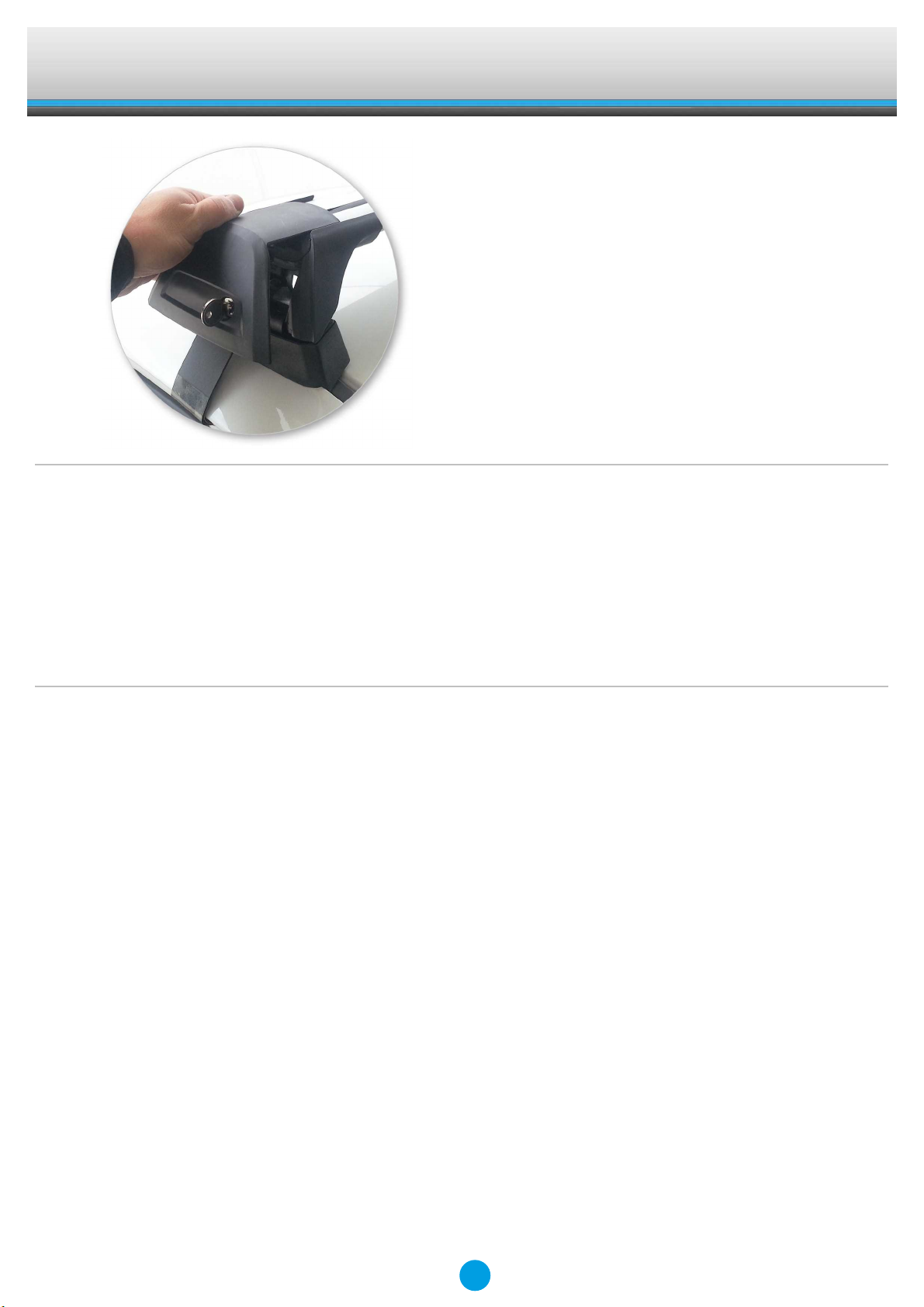

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
