Whispbar K498W Manuale utente

K498W

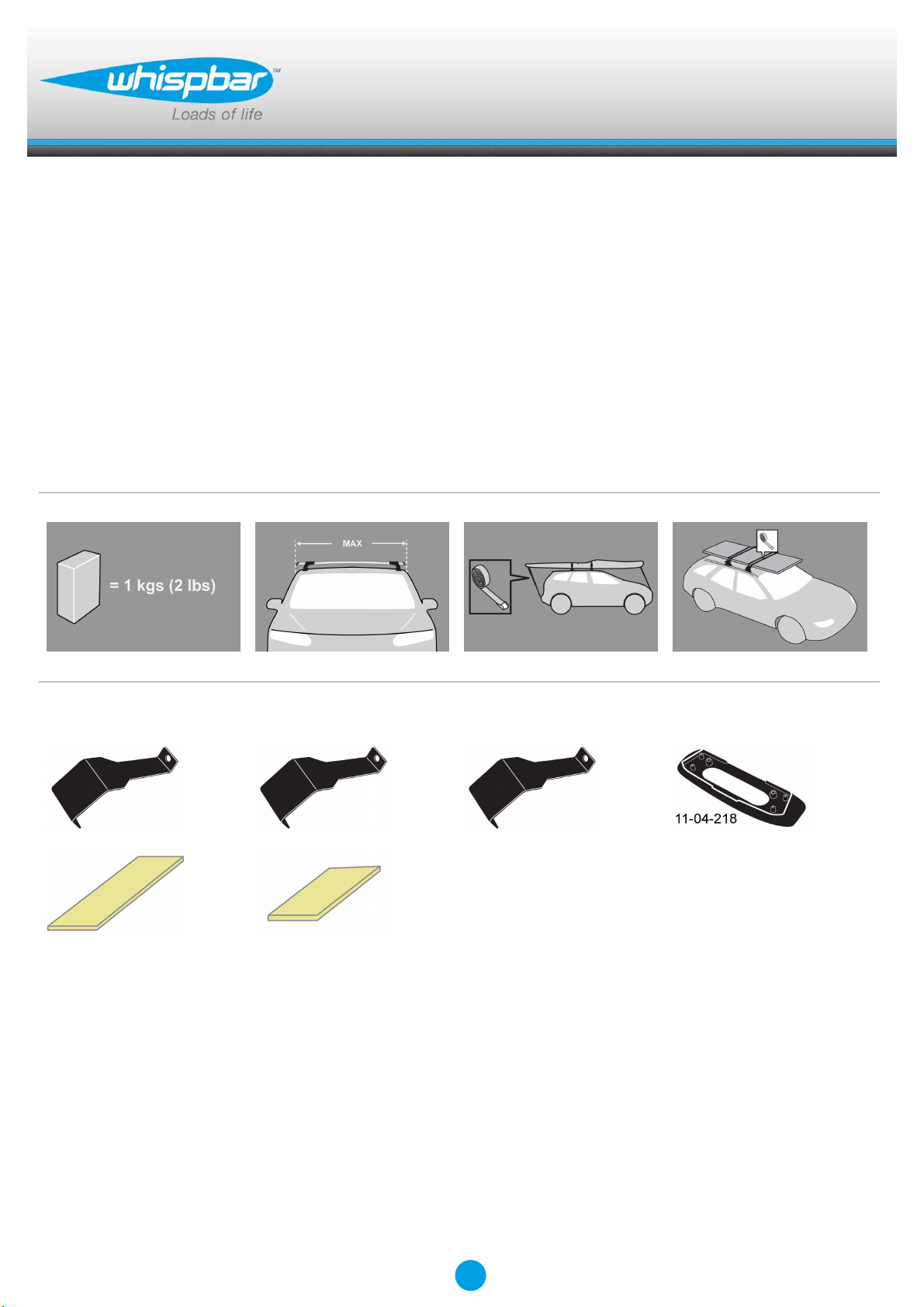

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 1 x 1 x 4

x 2 x 2

Revision No: 5E 1

Fitting Kit K498W

MAX kgs (lbs)

W/P WHD

Jaguar

XF, 4dr Coupe 08-15 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

XF, 4dr Coupe 08-15 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

XF, 4dr Coupe 08-15 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

XF, 4dr Coupe 08-15 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

XF, 4dr Coupe 08-15 CN 50 kgs (110 lbs) 50 kgs (110 lbs)

XF, 4dr Coupe 09-15 US 50 kgs (110 lbs) 50 kgs (110 lbs)

2

Fitting Kit K498W

X

A B C 1 2 3

XF, 4dr Coupe 08-15 (AU) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

XF, 4dr Coupe 08-15 (EU) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

XF, 4dr Coupe 08-15 (ZA) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

XF, 4dr Coupe 08-15 (NZ) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

XF, 4dr Coupe 08-15 (CN) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

XF, 4dr Coupe 09-15 (US) -300mm 400mm - 875mm 864mm -

-11 -13/16ths" 15 3/4ths" - 34 7/16ths" 34" -

3

Fitting Kit EN

K498W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K498W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K498W

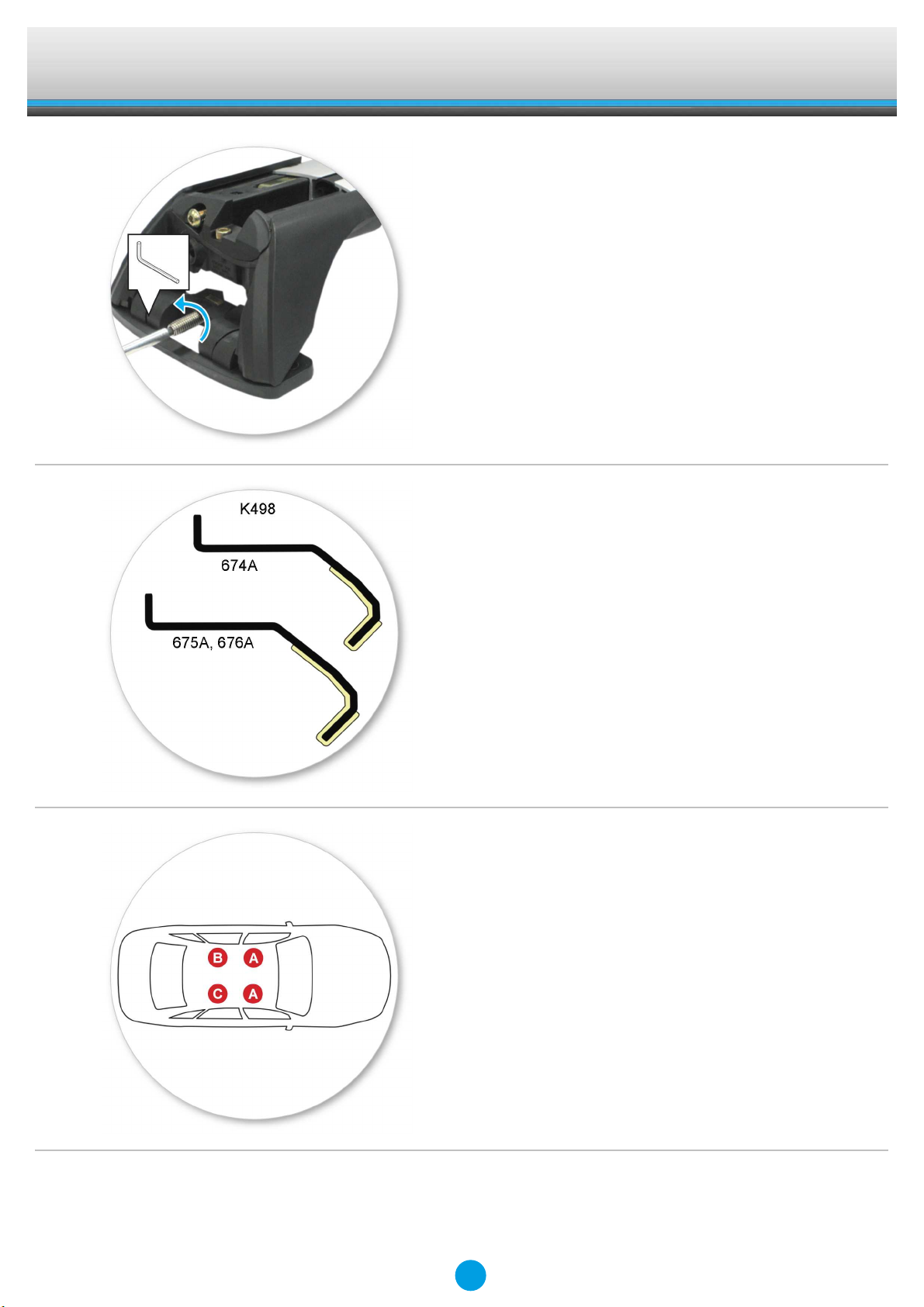

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 674A

B = 675A

C = 676A

6

Fitting Kit EN

K498W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

7

Fitting Kit EN

K498W

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

8

Fitting Kit EN

K498W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

9

Fitting Kit EN

K498W

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
