INSTALLATION INSTRUCTIONS

AND OWNER'S MANUAL

LOG SET FOR UNVENTED

GAS LOG HEATER

VENTED DECORATIVE APPLIANCE

MODELS

LS-18B2-1

LS-24B2-1

LS-30B2-1

Birch Logs

WARNING: If not installed, operated and main-

tained in accordance with the manufacturer's

instructions, this product could expose you to

substances in fuel or from fuel combustion which

can cause death or serious illness.

Log sets comply with ANSI Z21.11.2 Unvented

Heaters and also comply with ANSI Z21.60

Decorative Vented Appliances for Solid Fuel

Burning Fireplaces. State or local codes may only

allow operation of log sets in a vented conﬁguration.

Check your state or local codes.

WARNINGS

– Do not store or use gasoline or other ﬂammable

vapors and liquids in the vicinity of this or any

other appliance.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your gas supplier from

neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

ﬁre department.

– Installation and service must be performed

by a qualiﬁed installer, service agency or the

gas supplier.

If the information in this manual is not fol-

lowed exactly, a ﬁre or explosion may result

causing property damage, personal injury or

loss of life.

The White Mountain Log Collection

EFFECTIVE DATE

JULY 2006

INSTALLER: Leave this manual with the appli-

ance.

CONSUMER: Retain this manual for future

reference.

Page 2 21088-2-0706

Section Page

Important Installation Guidelines ..................................................................................3

General Information ......................................................................................................4

Birch Log Placement .....................................................................................................5

Ember Placement LS-18B2-1 Photos ...........................................................................6

Ember Placement LS-24B2-1 Photos ...........................................................................7

Ember Placement LS-30B2-1 Photos ...........................................................................8

Birch Parts List and Parts View ....................................................................................9

How to Order Repair Parts ............................................................................................9

TABLE OF CONTENTS

Page 321088-2-0706

Proper Log Placement

Log placement is critical to proper burner performance. Logs

must be correctly positioned onto the burner. The photos in this

manual show the proper pinned position for logs on this set.

Owners need to be shown proper log placement and instructed

not to move the logs.

Logs must ﬁt ﬁrmly onto the burner when positioned as shown

in the photos. Malformed logs or logs with sloppy pin holes must

be replaced.

Proper Placement of Rock Wool and Decorative Lava Rock

Rock wool can be added to burners for a glowing ember effect.

It must be positioned only on the front portion of the burner. The

photos in this manual show the proper placement of rock wool.

Decorative lava rock or small wood pieces should never be placed

on the burner. These items are only for placement on the ﬂoor of

the ﬁreplace or ﬁrebox.

Proper Primary Airﬂow into Burner

For proper burner operation and ﬂame appearance, the ﬂow of

primary air into the venturi tube, located on the rear of the burner,

must not be reduced. This ﬂow of air is reduced if dirt, lint or other

obstructions build-up around or inside the venturi. Any obstruction

in the venturi tube area must be removed. The ﬂow of air into the

venturi is also reduced if the gas oriﬁce isn’t centered in the venturi

inlet and/or is not aligned with the venturi. Any misalignment of

the burner oriﬁce may be corrected by bending the shutter cap

holding the oriﬁce to the inlet of the venturi tube.

Ceiling Fans, Portable Fans or Logs Installed Near Cold Air

Returns

Ceiling fans or oscillating ﬂoor type fans need to be monitored

during the operation of vent-free logs. If the air blows directly

into the ﬂame causing it to impinge on the log set, or ﬁrebox, it

should be turned off or redirected. Ceiling fans could be reversed

to possibly eliminate ﬂame impingement, and the ﬂoor fan could

be redirected. Upon installation, be aware of any cold air returns

or vents in the proximity of the log set. Any draft created around

a vent-free log set can cause the ﬂame to impinge on the log and

create a sooting situation.

WARNING: Do not allow fans to blow directly into the ﬁreplace.

Avoid any drafts that alter burner ﬂame patterns.

WARNING: Do not use a blower insert, heat exchanger insert or

other accessory not approved for use with this heater.

Candles

Avoid the use of scented or decorative candles while the log set

is in operation. Candles produce a residue in the air that creates a

soot like substance. Burning candles while the log set is operating

magniﬁes the problem. It should be noted that candles, in general,

produce soot. The amount of time burned and the quantity of

candles burned will determine the amount of soot produced and

deposited.

Make Owners Aware of Proper Log Set Operation

Properly installed and properly maintained log sets do not deposit

soot on the logs. If users see soot appear on a log, call for service.

Do not continue to operate the log set.

Sunken Fireplace

If installing this unit into a sunken ﬁreplace, you must raise the ﬂoor

to insure adequate airﬂow and guard against sooting. Raise ﬁreplace

ﬂoor using a non-combustible material, which is secure.

Glass Doors

Make sure that glass doors are open during all operations of the log

set. The opening of the glass door frame should be the dimension

used for the minimum front opening of the ﬁrebox.

Woodburning Fireplaces

The interior of the ﬁrebox and the chimney should be cleaned and

free of all creosote before installing a gas burning log set. Creosote

will soften when heated and can drop on the log set causing odors

and possibly sooting.

WARNING: Before installing in a solid-fuel burning ﬁreplace,

the chimney ﬂue and ﬁrebox must be cleaned of soot, creosote,

ashes and loose paint by a qualiﬁed chimney cleaner.

IMPORTANT INSTALLATION GUIDELINES

Page 4 21088-2-0706

Qualiﬁed Installing Agency

Installation and replacement of gas piping, gas utilization equip-

ment or accessories and repair and servicing of equipment shall

be performed only by a qualiﬁed agency. The term "qualiﬁed

agency" means any individual, ﬁrm, corporation, or company

that either in person or through a representative is engaged in and

is responsible for (a) the installation, testing, or replacement of

gas piping or (b) the connection, installation, testing, repair, or

servicing of equipment; that is experienced in such work; that is

familiar with all precautions required, and that has complied with

all the requirements of the authority having jurisdiction.

The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.1/

NFPA54.*

*Available from the American National Standards Institute, Inc. 11 West 42nd

St., New York, N.Y. 10018.

State of Massachusetts: The installation must be made by a

licensed plumber or gas ﬁtter in the Commonwealth of Mas-

sachusetts.

Sellers of unvented propane or natural gas-ﬁred supplemental

room heaters shall provide to each purchaser a copy of 527

CMR 30 upon sale of the unit.

In the State of Massachusetts, unvented propane and natural

gas-ﬁred space heaters shall be prohibited in bedrooms and

bathrooms.

GENERAL INFORMATION

Page 521088-2-0706

Before you begin: Do not, handle these logs with your bare hands!

Always wear gloves to prevent skin irritation. After handling logs,

wash your hands gently with soap and water.

All Logs

The positioning of the logs is critical to the safe and clean

operation of this heater. Sooting and other problems may result if

the logs are not properly and ﬁrmly positioned in the appliance.

Refer to Figure 1 and Figure 1A for the following warning.

Warning: Failure to position the parts in accordance with

this diagram or failure to use only parts speciﬁcally approved

with this appliance may result in property damage or personal

injury.

PROPER INSTALLATION SEQUENCE:

LS-(18,24,30)B2-1:

(Figure 1)

1. Place rear (#1) log onto two (2) pins on rear log support.

2. Place left, front (#2) log onto two (2) left, front pins on burner

pan.

3. Place right, front (#3) log onto two (2) right, front pins on

burner pan.

4. Place Y Branch (#4) onto two (2) pins on rear log.

5. Compare the completed log installation with the appropriate

photo from pages 7 through 9. Review previous steps to make

any necessary adjustments.

6. Log placement is completed.

Replacement Loose Material (glowing embers) Part

Number

Note: A single layer of embers is to be used when applying

Platinum Bright Embers (alone or in combination with production

embers) to the burner.

Log Placement LS-(18,24,30)B2-1

Figure 1

The following WARNING applies when log set is installed onto

an unvented gas burner assembly.

WARNING: This appliance is equipped for (natural or

propane) gas. Field conversion is not permitted.

LS-18B 15999

LS-24B 15970

LS-30B 15970

Platinum Bright Embers PE-20-1

BIRCH LOG PLACEMENT

Page 6 21088-2-0706

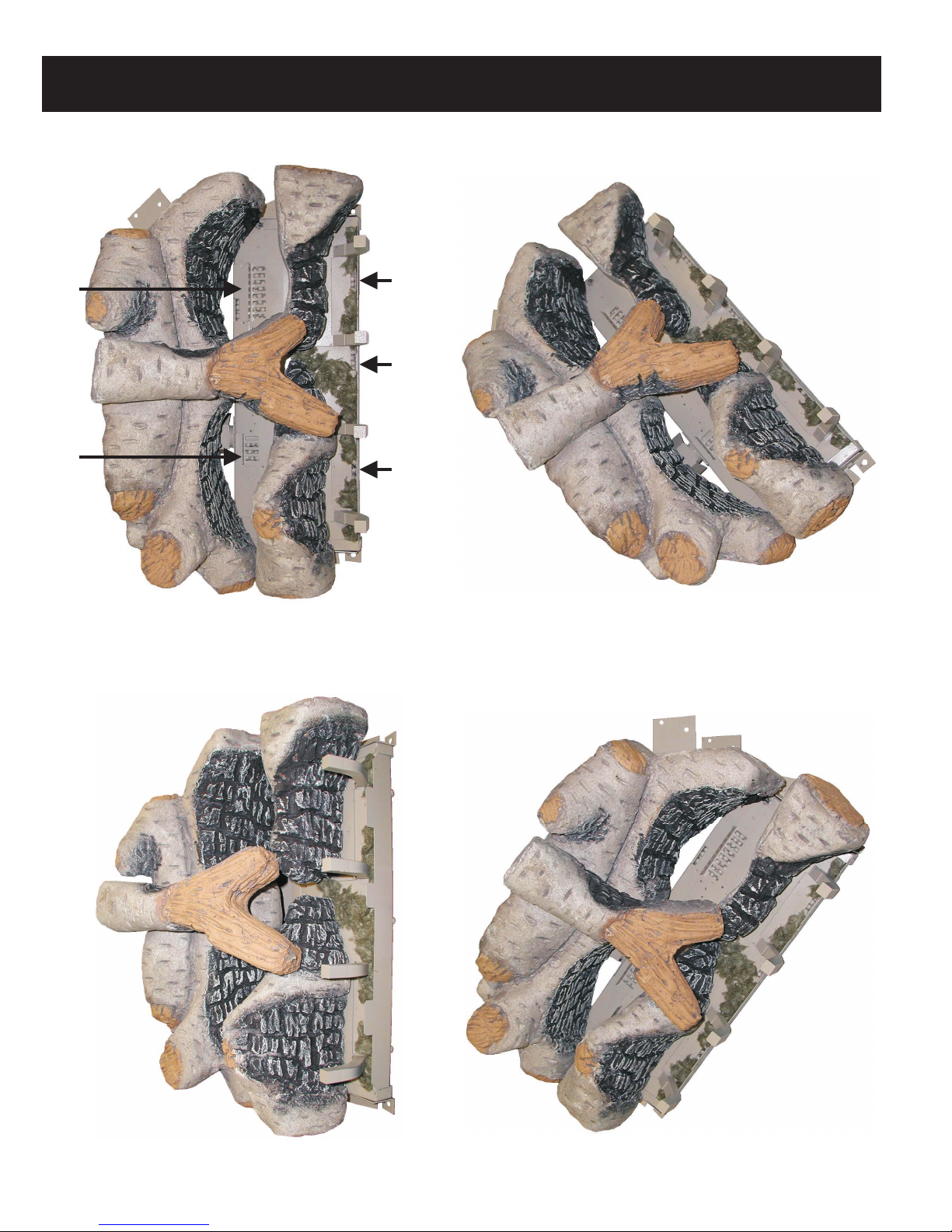

Photo 1

Photo 2

Photo 3 Photo 4

Do not cover any large rear ports with

loose material (glowing embers)

Do not cover any large front ports with

loose material (glowing embers)

EMBER PLACEMENT LS-18B2 PHOTOS

Page 721088-2-0706

Photo 1

Photo 2

Photo 3 Photo 4

Do not cover any large rear ports with

loose material (glowing embers)

Do not cover any large front ports with

loose material (glowing embers)

EMBER PLACEMENT LS-24B2 PHOTOS

Page 8 21088-2-0706

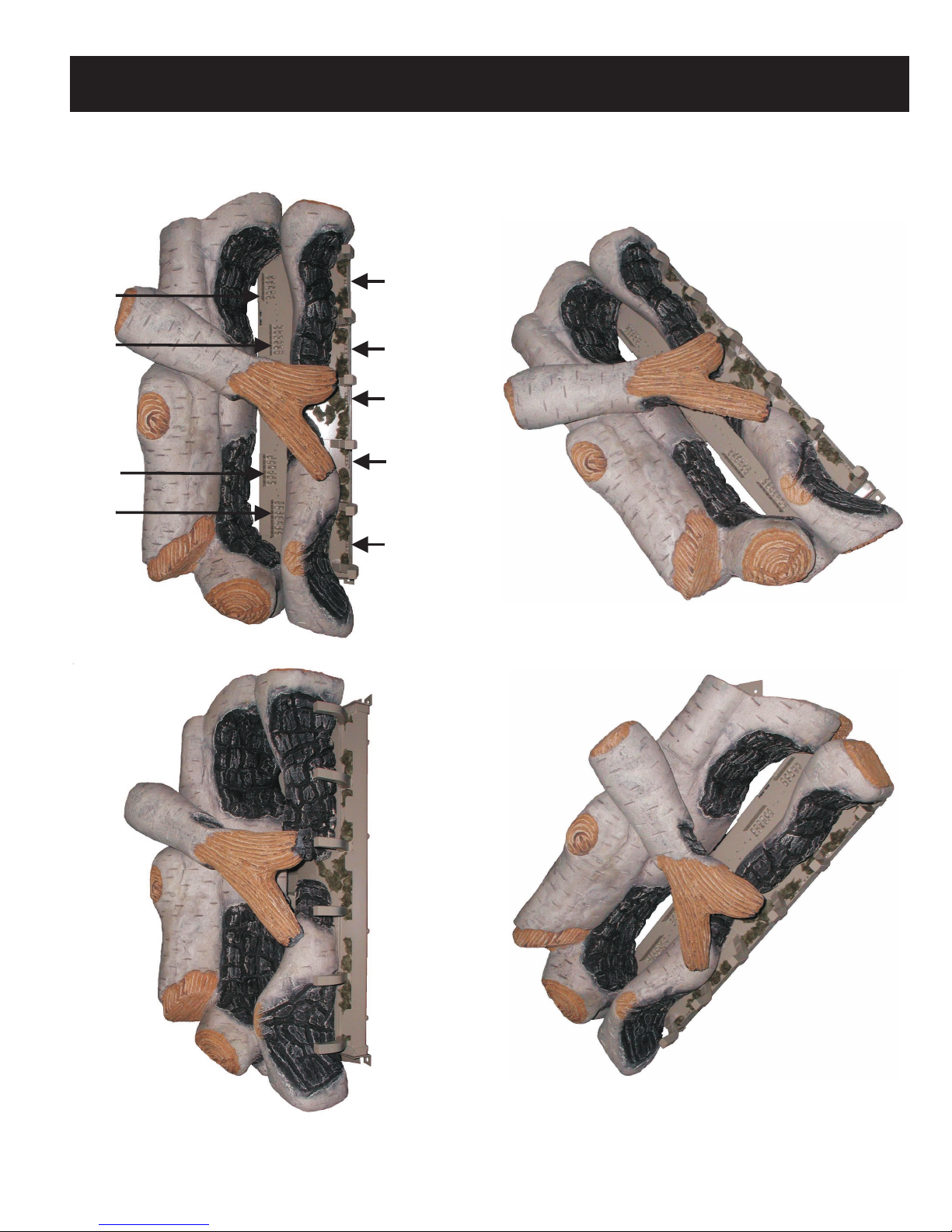

Photo 1 Photo 2

Photo 3 Photo 4

Do not cover any large rear ports with

loose material (glowing embers)

Do not cover any large front ports with

loose material (glowing embers)

EMBER PLACEMENT LS-30B2 PHOTOS

Page 921088-2-0706

Attention: When ordering parts, it is very important that part number and description of part coincide.

USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH.

Index

No.

Part

Number Description

BIRCH LOG SETS

LS-18B2

1 R8331 Rear Log

2 R8329 Left Front Log

3 R8330 Right Front Log

4 R8332 Y Branch

LS-24B2

1 R8335 Rear Log

2 R8333 Left Front Log

3 R8334 Right Front Log

4 R8336 Y Branch

LS-30B2

1 R8288 Rear Log

2 R8337 Left Front Log

3 R8338 Right Front Log

4 R8339 Y Branch

Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts through the distribu-

tor. Parts can be shipped directly to the service person/dealer.

All parts listed in the Parts List have a Part Number. When ordering parts, ﬁrst obtain the Model Number from the name plate on your equipment. Then

determine the Part Number (not the Index Number) and the Description of each part from the following appropriate illustration and list. Be sure to give

all this information . . .

Appliance Model Number Part Description

Appliance Serial Number Part Number

Type of Gas (Propane or Natural)

Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.

Shipments contingent upon strikes, ﬁres and all causes beyond our control.

BIRCH PARTS LIST & PARTS VIEW

HOW TO ORDER REPAIR PARTS

Page 10 21088-2-0706

NOTES

Altri manuali per LS-18B2-1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali White Mountain Hearth Riscaldatore a gas

White Mountain Hearth

White Mountain Hearth VFP32FP20LN-1 Guida rapida

White Mountain Hearth

White Mountain Hearth Canyon LX-24CF-1 Guida rapida

White Mountain Hearth

White Mountain Hearth PONDEROSA LS-18P-2 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-16C-2 Guida rapida

White Mountain Hearth

White Mountain Hearth ROCK CREEK LSU18RR-2 Guida rapida

White Mountain Hearth

White Mountain Hearth LSU24RR-1 Guida rapida

White Mountain Hearth

White Mountain Hearth WHISKEY RIVER VFDR18LBW10N-1 Istruzioni per l'installazione

White Mountain Hearth

White Mountain Hearth VFDR18LB10N-1 Guida rapida

White Mountain Hearth

White Mountain Hearth VFDR18LB Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18FAC-1 Guida rapida

White Mountain Hearth

White Mountain Hearth STONE RIVER LSU18SF-2 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18H-1 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18P-1 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18RS-1 Guida rapida

White Mountain Hearth

White Mountain Hearth VFDR18LBW10N Guida rapida

White Mountain Hearth

White Mountain Hearth ROCK CREEK LSU18RR-2 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18C2-1 Guida rapida

White Mountain Hearth

White Mountain Hearth LS-18RS-1 Guida rapida

White Mountain Hearth

White Mountain Hearth VFSR-16-3, VFSR-18-3, VFSR-24-3, VFSR-30-3, VFSV-16-3, VFSV-18-3, VFSV-24-3, VFSV-30-3, VFSM-18-3, VFSM-24-3,... Guida rapida

Manuali Riscaldatore a gas popolari di altre marche

Superior

Superior BGE18NV Manuale utente

Dru

Dru Room-sealed atmospheric gas-fired heating... Manuale utente

klover

klover TKR 35 Manuale utente

Rothenberger Industrial

Rothenberger Industrial 035984 Manuale utente

New Buck Corporation

New Buck Corporation 34 Manuale utente

Hargrove

Hargrove Timberland Glow Guida rapida

Kinder

Kinder Cameo BF Manuale utente

Qlima

Qlima GH 438 B-2 Manuale

Desa

Desa 125-R Manuale utente

Gasmate

Gasmate AH100 Series Manuale utente

Medallion

Medallion MBP20TLB Guida rapida

Clarke

Clarke DEVIL 910SS Manuale utente

Superior

Superior BGE18NR Manuale utente

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Istruzioni per l'installazione

L.B. White

L.B. White Therma Grow HW220 Manuale

Sealey

Sealey LP35.V5 Manuale utente

Italkero

Italkero Falo Evo Manuale utente

Desa

Desa 30LP Manuale utente
