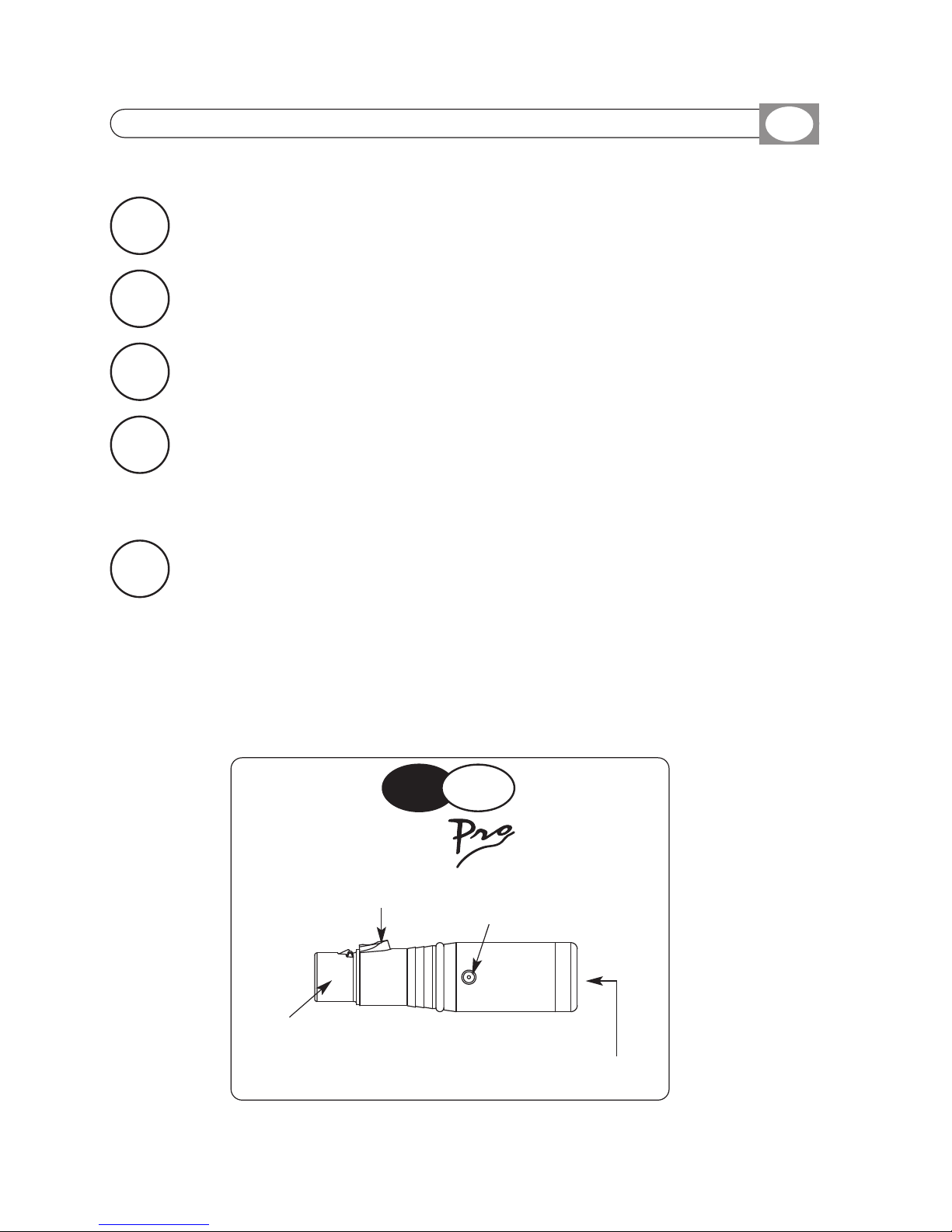

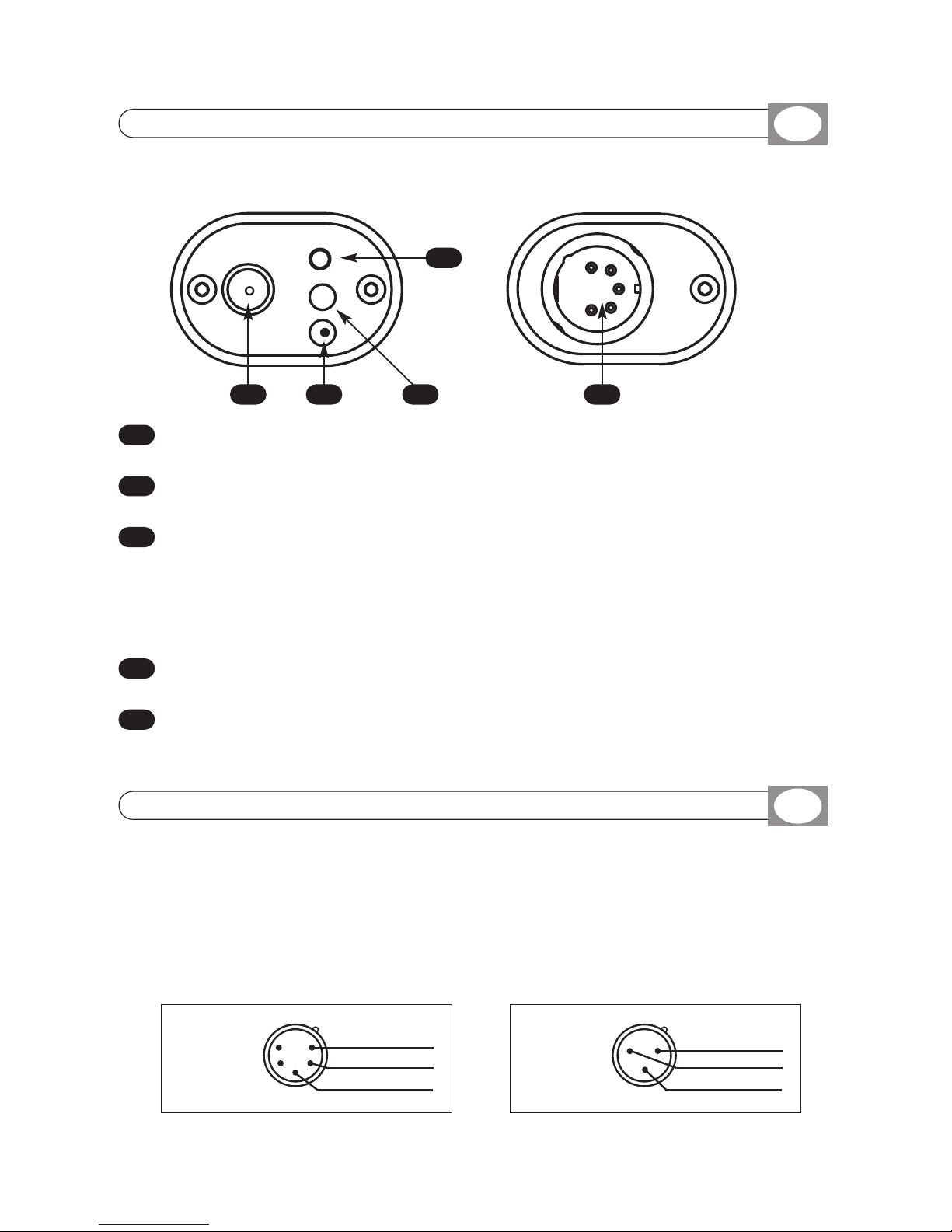

DESCRIPTION OF THE PANELS
GB
MAKING A DMX 512 SIGNAL CABLE
GB
1
2
2 3 5
4
Power input 5 Vdc 650 mA (included)
1
SMA antenna connector
5
Standard DMX 512 signal INPUT with a 3/5-pole XLR connector.
4
Red Button for change channel and pairing operation
3
Blue led :
Slow blinking: Transmitter OOKK, no DDMMXX551122signal.
Switched on : Transmitter OOKK, DDMMXX551122signal OOKK..
Wi DMX pro has a DMX 512 input that use standard XLR 5-pin or XLR 3-pin con-
nectors.
For the connection refer to the underlying picture
15
3
42
Common
DMX
-
DMX
+
XLR 5-pin
1
3
2
Common
DMX
-
DMX
+
XLR 3-pin
