Wildgame L20B20-7 Manuale utente
Invisible IR Digital Scouting Camera
User’s Manual Model # L20B20-7
NOTE: Flextime Player Software is optional. Flextime files can
be played by using most media players
page 1
Includes
User Manual
Flextime Player
Software
Camera Unit
Adjustable Strap
RESOLUTION
FLASH
FLASH RANGE
SENSOR
SENSOR RANGE
IMAGE FORMAT
MEMORY
USB
IMAGE RESOLUTION
POWER SUPPLY
BATTERY LIFE
ONBOARD POWER
HOUSING
MOUNTING
MAX: 20 MP
56 pc High Intensity Invisible IR LED’s
up to 100 feet
Passive Infrared Sensor (PIR) Motion and Heat
up to 60 feet
JPEG - Digital Stills/ AVI-Digital Video
up to 32GB SD Card (not included and required)
Class 6 and above recommended
5-PIN Micro USB style - (not included)
High (20 MP)
Medium (10 MP)
Low (5 MP)
8 AA batteries (not included and required)
Alkaline recommended
Estimated up to 1 Year or 30,000 photos
Built in capacitor to retain Date and Time
Weather resistant with rubber gaskets
Adjustable Strap - included
Note: Battery life will vary depending on camera settings as well as environmental
conditions. Camera settings such as shorter delay periods or even using
Flextime mode are examples of settings that can reduce overall battery life.
Environmental conditions such as extreme cold can also influence battery life.
page 2
Features

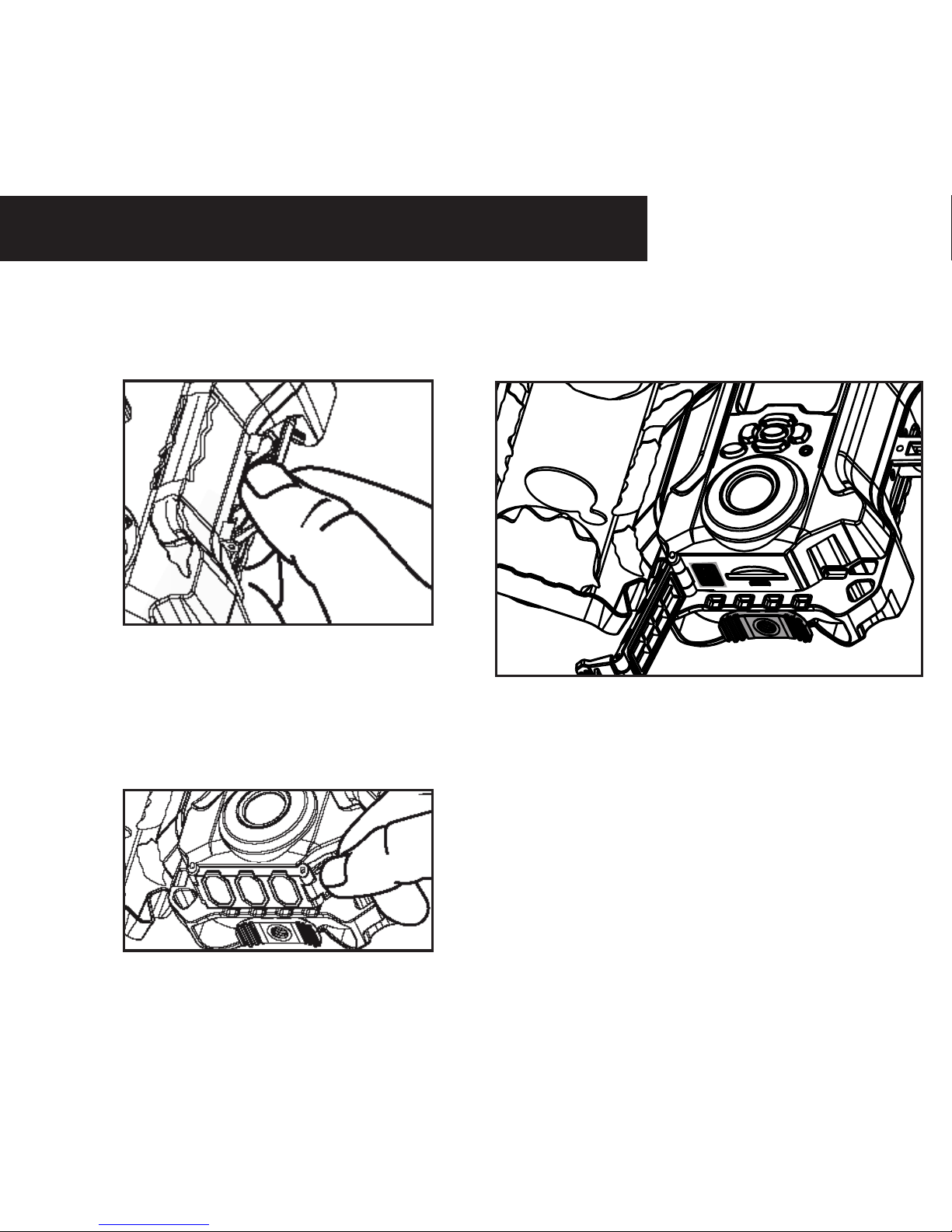

1. Open the door on the right of
the camera and PULL the tab
towards you. 3. Push the battery latch up to unlock.
At the same time grab the battery
compartment out.
page 3
Installing Batteries
With the camera facing up, open
the compartment door.
2. Open the door on the bottom of
the camera and PULL the tab
towards you.
With the camera facing up, open
the compartment door.
page 4
4. Make sure to insert the AA-cell
batteries based on the direction
labeled on the inside of each com-
partment. Match minus “-” sign
with the marked negative on the
battery and the plus “+” sign with
the marked plus sign on the battery.
5. Load SD memory card (up to 32GB not
included) into the SD CARD slot with the
connectors facing down.
IMPORTANT:
Make sure the camera is powered off before
removing or installing an SD card.
If you are using an SD card from other cam-
eras, please make sure to format the SD card in
your computer prior to use in your camera. New
cards are ok to use straight from the package.
_
+
_
_
_
+
+
+
_
+
_
+
page 5
1. To turn the unit ON press and
release the power button.
2. Check the battery level icon to ensure
the batteries just installed contain
the proper charge level. If so, you are
ok to proceed with camera use.
1. LCD Ready Mode: The camera will
automatically enter Ready Mode if a
button is not pressed for greater than
30 seconds. The status lights will
illuminate for a total of 2 minutes.
2. PIR LED Status Light: During the
first 2 minutes of Ready Mode, the
red light will illuminate when a PIR
event is triggered. The red light will
blink for 2-3 seconds when photo
is taken during this first 2 minutes.
After 2 minutes all indicator lights
will turn off until a button is pressed.
Power On Test Mode
TIME / DATE
LOCATION
IMAGE TYPE
EXPOSURE
TRIGGER
PIC RESOLUTION
VID RESOLUTION
PIR SENSITIVITY
ACTIVE TIME
FLEXTIME
DELAY
PICTURES TAKEN
PICTURES REMAINING
LOC1
STILL - WIDE
LOW
BOTH
HIGH
REGULAR
MED
24 HOURS
OFF
15S
0000
0000
MENU
00:00 PM 00/00/00
page 6
1. After 30 seconds without any buttons
being pushed, the LCD will turn off
and camera enters into Power Save
or Ready Mode.
2.The LCD screen can be awakened by
pressing the Power button briefly.
Note: The LCD will not “wake up”
when camera is writing to memory.
1. To change Date & Time, enter
MENU and press the UP,DN,L or R
buttons to navigate to the DATE &
TIME icon and press ENTER.
2.Press the UP or DN navigation
button to go up or down in
sequence. Press L or R to move
to the next digit.
3.When the Time & Date are set,
press ENTER to save and press
ENTER again to go back to the
MENU.
Power Save Date/Time
TIME / DATE
LOCATION
IMAGE TYPE
EXPOSURE
TRIGGER
PIC RESOLUTION
VID RESOLUTION
PIR SENSITIVITY
ACTIVE TIME
FLEXTIME
DELAY
PICTURES TAKEN
PICTURES REMAINING
LOC1
STILL - WIDE
LOW
BOTH
HIGH
REGULAR
MED
24 HOURS
OFF
15S
0000
0000
MENU
00:00 PM 00/00/00
ENTER
RESET
BACK
ACTIVE TIME
LOCATION TRIGGER
DELAY
PIR SENSITIVITY FLEXTIME
+
™
+
DATE & TIME
30
PLAY BACK
IMAGE TYPE
VIEW ASSIST
DATE & TIME
30
ENTER
RESET
ENTER
RESET
ENTER
RESET
page 7
1. To change Image Type, enter
MENU and press the UP,DN,L or
R buttons to navigate to the Image
Type icon and press ENTER.
2.Press the L, R button to select
STILL and press ENTER. Then
select the Resolution and press
ENTER. Select the Exposure and
press ENTER. Then select the
aspect and press ENTER.
3.When the Image Type is set, press
ENTER to save and press ENTER
again to go back to the MENU.
Location Image Type: Still
1. To change Location, enter MENU
and press the UP,DN,L or R buttons
to navigate to the LOCATION icon
and press ENTER.
2.Press the UP or DN navigation
button to go up or down in
sequence. Press L or R to move to
the next digit.
3.When the Location is set, press
ENTER to save and press ENTER
again to go back to the MENU.
Save the location of the area the camera
was installed. This is for your reference and
is optional. If you do not wish to name your
location skip to the next step.
ENTER
RESET
ENTER
RESET
ENTER
RESET
ENTER
RESET
ENTER
RESET
ENTER
RESET
page 8
1. To change Image Type, enter
MENU and press the UP,DN,L or
R buttons to navigate to the Image
Type icon and press ENTER.
2.Press the L, R button to select
VIDEO and press ENTER. Then
select the Resolution and press
ENTER. Then select the length
and press ENTER.
Image Type: Video Trigger
1. To change Trigger, enter MENU
and press the UP,DN,L or R
buttons to navigate to the Trigger
icon and press ENTER.
2.Press the L, R button to select
Trigger Mode. Then select the
ENTER to save. If PIR is selected
press ENTER again to go back to
the MENU. If FlexTime or Both is
selected you will be redirected to
the Flextime Menu (see page 11).
TRIGGER:
PIR MODE: Takes a photo only when the PIR
sensor is triggered.
FLEXTIME(Time Lapse): Takes time lapse images
at set intervals during the key movement
periods of the day, depending on your Flextime
settings.
BOTH: Both PIR and Flextime are active.
This setting allows you to choose the mode in
which the camera will be capturing images.
3.When the Image Type is set,
press ENTER to save and press
ENTER again to go back to the
MENU.
ENTER
RESET
ENTER
RESET
ENTER
RESET
ENTER
RESET
ENTER
RESET
page 9
PIR Sensitivity
PIR ACTIVE:
24 HR: The PIR can be active at all times.
DAY: The PIR can be active in daylight hours
only.
NIGHT: The PIR can be active in nighttime hours
only.
1. To change PIR Sensitivity, enter
MENU and press the UP,DN,L or
R buttons to navigate to the PIR
Sensitivity icon and press ENTER.
2.Press the L, R button to select
the sensitivity and press ENTER
to save. Then press ENTER again
to go back to the MENU.
ENTER
RESET
ENTER
RESET
1. To change the Active Time, enter
MENU and press the UP,DN,L or
R buttons to navigate to the Active
Time icon and press ENTER.
2.Press the L, R button to select
the active time and press ENTER
to save. Then press ENTER again
to go back to the MENU.
Active Time
ENTER
RESET
ENTER
RESET
PIR SENSE:
HI: The PIR detects the smallest movement.
MED: (Default) The PIR detects most common
size movements.
LO: The PIR detects only larger movements.
