Willfine 2.8C Manuale utente

USER’S MANUAL

Scouting Trail Camera

Contents

1. Whole View and Details of Camera.......................................................................................- 1 -

Front View of Camera............................................................................................................. - 1 -

Camera Screen Display (Test Mode Main Interface).............................................................. - 2 -

2. Camera Menu List Introduction.............................................................................................- 3 -

3. Quick Start.............................................................................................................................. - 4 -

Power On Camera................................................................................................................... - 4 -

Manual Photographing/ Video Recording..............................................................................- 4 -

Enter Menu for Setup Functions............................................................................................ - 4 -

Power Off Camera...................................................................................................................- 4 -

Camera Operation Flow Chart................................................................................................ - 5 -

4. Detail Setups...........................................................................................................................- 6 -

Camera Modes (Default Settings)...........................................................................................- 6 -

Photo Settings (Default Settings)............................................................................................- 7 -

Video Settings(Default Settings)............................................................................................. - 8 -

Camera Settings (Default Settings)......................................................................................... - 9 -

Software Upgrade................................................................................................................. - 11 -

USB Connection.................................................................................................................... - 12 -

5. MicroSD Card Selection & Battery Life Test Report............................................................- 13 -

MicroSD Card Selection........................................................................................................ - 13 -

Battery Life Test Report for Reference..................................................................................- 13 -

6. Specification......................................................................................................................... - 14 -

7. Warranty............................................................................................................................... - 16 -

- 1 -

1. Whole View and Details of Camera

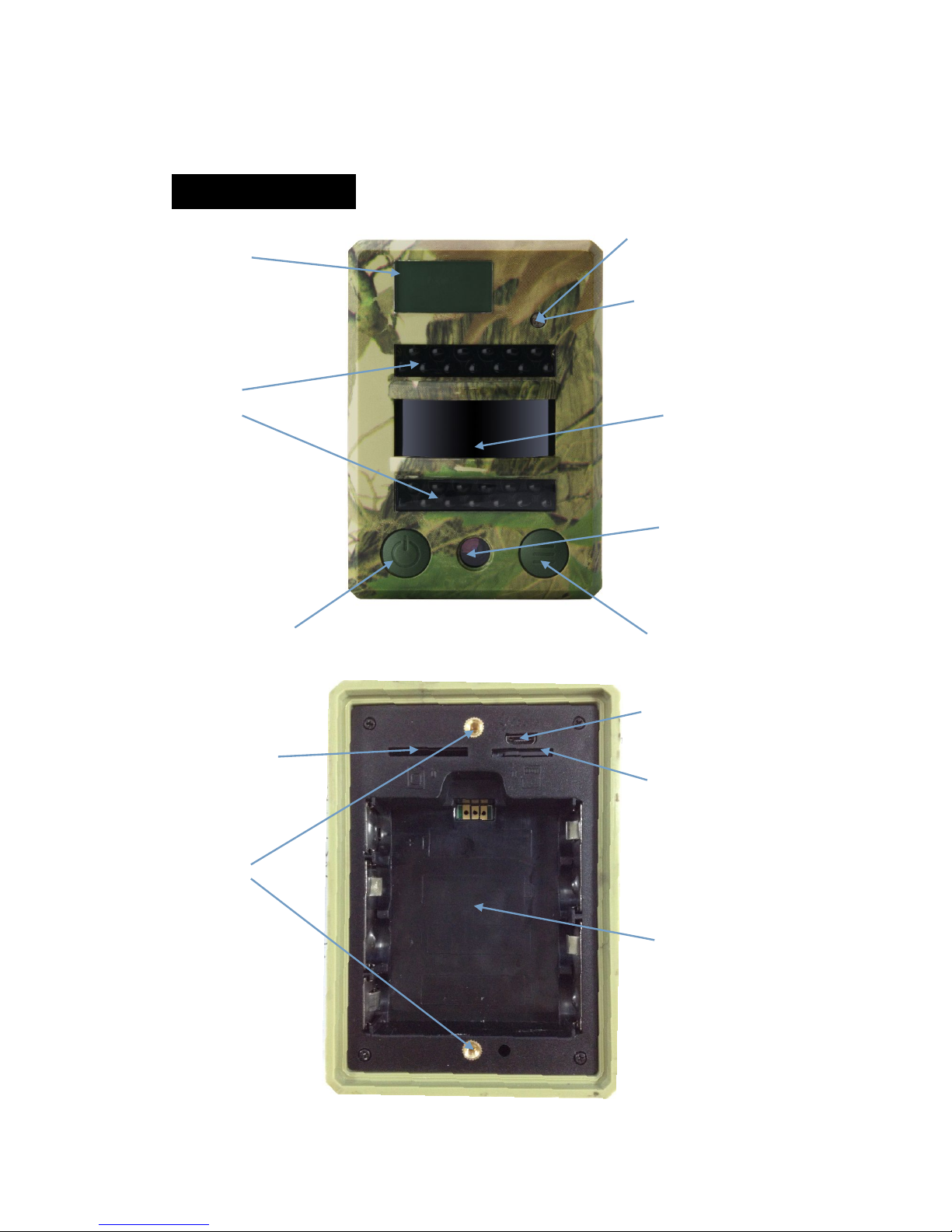

Front View of Camera

Light Sensor

LCD Screen day/night

Indicator Light

13 IR LEDs

13 IR LEDs PIR Sensor

Lens

Power/Navigation Button Menu/OK Button

USB Port/ DC in

SIM Card Slot

Invalid Currently MicroSD Card Slot

Screw Slot

Battery Slot

- 2 -

Camera Screen Display (Test Mode Main Interface)

Photo Mode Interface

Photographing hour/min/sec

Photo Resolution

Multi Shot Number

0001: recorded file number of photos & video clips

9998: estimated available file number based on left memory space in memory card

Video Recording

Video Mode Interface

Video FPS

Video Resolution

Year/month/date Battery Left Volume

Photo + Video Mode Interface

Note: camera support camera, video, camera + video three different working modes;

screen display will be different based on different working mode.

- 3 -

2. Camera Menu List Introduction

1) First Navigation Menu

2) Second Navigation Menu: Settings：

3) Third Navigation Menu

Photo Settings Video Settings

Back to

Delete

Settings

Photo+Video

Video

Camera ID


Camera Sound

Stamp

Time Lapse

Video


SD Cycle

Delay

Timer

PIR Sensitivity

Date/Time

GPRS ON/OFF

Password

Reset

Back to

Multi Shot

Photo Size

Video

Frame

Video

Resolution

Video

Length

Frequency

Video

Sound

- 4 -

3. Quick Start

1. Open back cover to insert MicroSD Card and batteries;

Power On Camera

2. Press and hold Power/Navigation button for 3 sec; camera will enter PIR Auto Working

mode after indicator flashes 5 times;

3. Press Menu/OK button once to wake up camera LCD screen to enter TEST Mode;

Manual Photographing/ Video Recording

4. Test Mode Main Interface, press Power/Navigation button again to shoot photos,

videos, or photo + video based on camera settings; stop video recording by pressing again

Power/Navigation button

Enter Menu for Setup Functions

5. Test Mode Main Interface, press Menu/OK button to enter settings menu; now

button is always for navigation; button is always for OK to save/confirm needed

setup;

6. Press and hold button for 3 seconds to return Test Mode Main Interface (Camera Modes

Menu) after all settings are done;

7. Test Mode Main Interface, press and hold button for 3 seconds to enter PIR Auto

Working Mode; (indicator LED will flash 5 times, Screen will be off.)

Power Off Camera

8. Press and hold button for 5 seconds to turn off camera.

- 5 -

Camera Operation Flow Chart

Press and hold Power / Navigation button for

3 sec; camera will enter PIR Auto Working mode

after indicator flashes 5 times;

In PIR Auto Working Mode, press Menu / OK

button once to wake up camera LCD screen

to enter TEST Mode;

Press and hold Power / Navigation button

for 5 seconds to turn off camera.

In TEST Mode, press Menu/OK button to

enter settings menu; now button is always

for navigation; button is always for OK to

save/confirm needed setup;

Press and hold button for 3 seconds to

return back to First Navigation Menu after all

settings are done

In First Navigation Menu, press and hold button

for 3 seconds to enter PIR Auto Working Mode;

1. Set Camera, or Video, or Camera + Video

First Navigation Menu

,press Menu / OK button ; camera is in camera mode;

, press Menu / OK button ; camera is in video mode;

, press Menu/OK button ; camera is in Cam+Video mode

2. After configuration above, press and hold button for 3

seconds to return back to TEST Mode main interface; then press

Power/Navigation button ; camera now is recording photo/

video/ photo + video;

3. Press Power/Navigation button again to stop video

recording;

Note:

1) To ensure camera functions well; plz adjust camera to be with correct time;

2) Plz don’t turn on Time Lapse and Delay at the same time;

3) Camera can be turned off by pressing and holding button any time.

PIR Auto

Working Mode

TEST Mode

Power Off

ON/OFF Camera

(PIR Auto, TEST, OFF)

Manual Recording

Functions

Setup

Configuration

Return to First

Navigation Menu

Enter PIR Auto Working

Mode from Test Mode

- 6 -

4. Detail Setups

Camera Modes (Default Settings)

Camera ID OFF

Photo 2MP

Video VGA (640*480)

Photo+Video OFF

Settings

Delete

Back to Previous Page

If wanted setting icon is not showing on camera LCD screen, press repeatedly until

it appears.

Camera ID

a. Set up

1）Press to enter configuration page, press to choose

ON; press again to enter configuration page;

2）Press to choose wanted digit/alphabet, press to

confirm and move to the next;

3）Press again to confirm combination to exit.

b. How does this work?

Selected 4 digits/ alphabets will show on the photo stamp.

Such function can help user to identify photos are from where

and which camera.


a. Set up

Press to enter Photo mode; icon OK appears at right bottom

of interface

b. Take a Photo

Press and hold button for 3 seconds to return back to TEST

Mode

main interface; then press to take a photo

Video

a. Set up

Press to enter Video mode; icon OK appears at right bottom

- 7 -

of interface

b. Start Recording

Press and hold button for 3 seconds to return back to TEST

Mode main interface; then press to take a video

clip; press again to stop recording.

Photo + Video

a. Set up

Press to enter Photo + Video mode; icon OK appears at right

bottom of interface

b. Start Recording; Photo(s) First, then Recording Video

Press and hold button for 3 seconds to return back to TEST

Mode main interface; then press to start

recording; press again to stop recording.

Settings

Press to enter camera detail settings.

Delete

Set up

1) Press to enter configuration page, press to choose

to delete One or All recorded file(s), or Format SD card;

2) Press choose Yes/ No, press again to confirm

deletion/ Format.

Note: 1) Menu will stay in Yes/No interface in deleting One file; plz

press “No” to get back to previous interface.

This is designed to enable user to delete several files together

without pressing more buttons. 2) If all files are deleted, camera will

get back to TEST Mode Main Interface automatically.

Press to get back to TEST Mode main interface

Photo Settings (Default Settings)

Image Size 2M

Multi-shot 1P

If wanted setting icon is not showing on camera LCD screen, press repeatedly until

it appears.

Image Size

Set up

Press to enter configuration page, press to

choose desired Photo Size; press to confirm

- 8 -

setting.

(8MP/5MP/2MP: 3264x2448, 2560x1920,

1920x1080)

Multi-shot

Set up

Press to enter configuration page, press to

choose desired Photo Burst number; press to

confirm setting.

(Support 1~7 photos per burst/ trigger.)

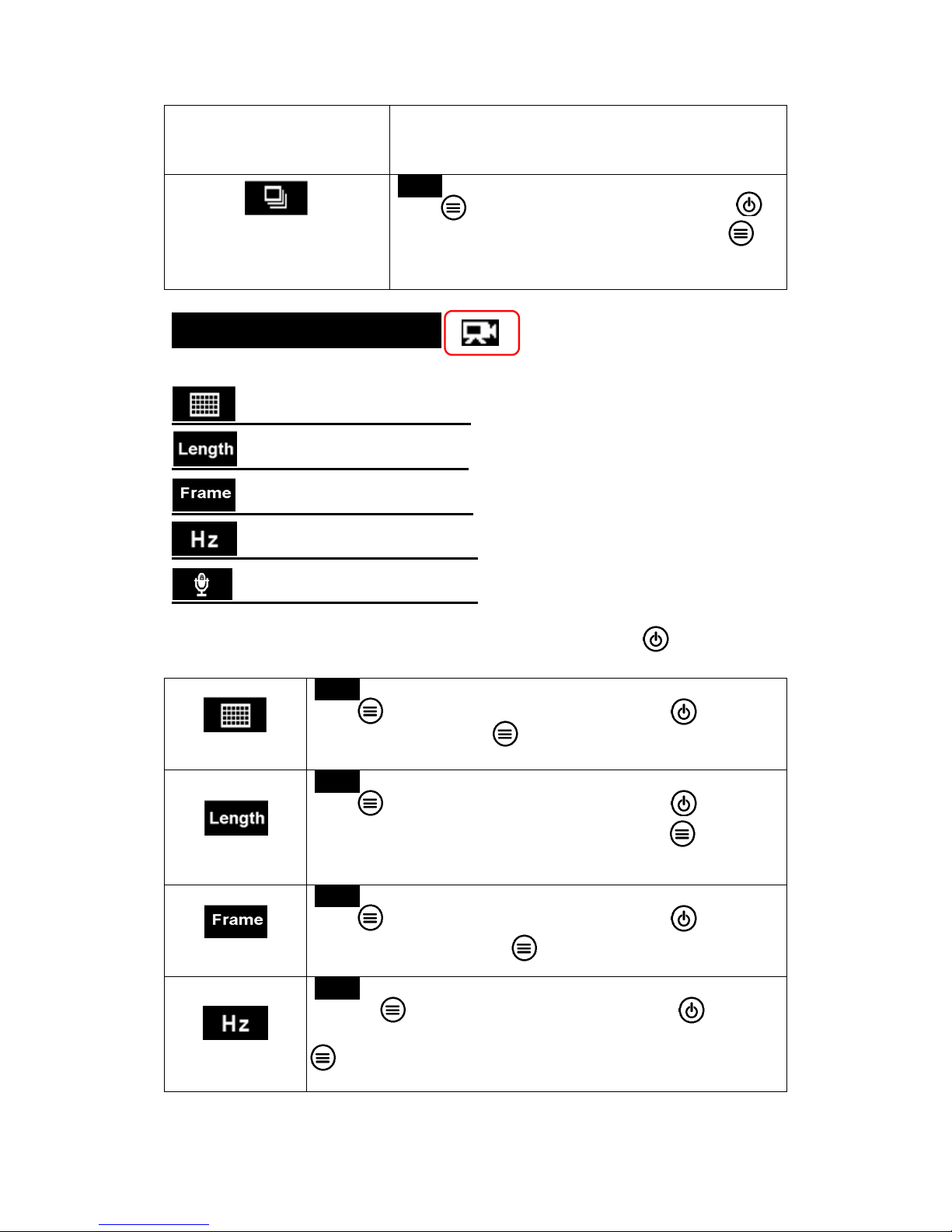

Video Settings(Default Settings)

Video Size VGA

Video Length 5s

Video Frame 30FPS

Frequency 50Hz

Audio Recording ON

If wanted setting icon is not showing on camera LCD screen, press repeatedly until

it appears.

Video Size

Set up

Press to enter configuration page, press to choose

desired Video Size, press to confirm setting.

(720P/VGA/CIF: 1280x720/640x480/320x240)

Video Length

Set up

Press to enter configuration page, press to choose

desired Video Length per Burst/ Trigger; press to confirm

setting.

(Support 5~60 seconds)

Video Frame

Set up

Press to enter configuration page, press to choose

desired Video Frame; press to confirm setting.

(Optional 15FPS and 30FPS)

Frequency

Set up

Press to enter configuration page, press to choose

desired Frequency based on local Country Frequency; press

to confirm setting.

(Optional 50HZ and 60HZ)
