Installation Guide
ENTERPRISE =
In-Building Cell Signal Amplifier withMulti-
Tower Targeting (MTT) Technology
In-Building Cellular
Connectivity. Amplified
Commercial-grade solutions for improving
cell signal coverage.
1
2
4
5
9
18
33
40
41
42
Index
Package Contents
About The Enterprise A8000
Additional Features
Installation Diagram
Menu System
WilsonPro Cloud
Local Amplifier Configuration Utility
Safety Guidelines
Specifications
Warranty
ENTERPRISE A8000 IN-BUILDING CELL SIGNAL AMPLIFIER
1
Enterprise A8000
Amplifier
Type G Power Cable &
E/F Power Cable
Enterprise A8000
Package Contents
IN-BUILDING CELL SIGNAL AMPLIFIER ENTERPRISE A8000
2
Frequency-specific “split mode”
option, facilitating separate outdoor
antennas for dierent bands, resulting
in improved indoor coverage.
Covers E-UTRA Cell Bands 1, 3, 7, & 8.
High max downlink power (up to +25
dBm EIRP) and greater than 100,000 sq.
ft. coverage with a strong “5 bar”
outside signal.
Remote system monitoring. Connects
to WilsonPro Cloud service via
Ethernet interface.
Enterprise A8000
In-Building Cell Signal Amplifier System
ENTERPRISE A8000 IN-BUILDING CELL SIGNAL AMPLIFIER
3
The Enterprise A8000 cell signal amplifier systems provide significantly enhanced 4G
LTE and 5G coverage inside buildings where cell signals may not otherwise penetrate.
Installation of an Enterprise A8000 cell signal amplifier system results in fewer dropped
calls, improved voice quality, uninterrupted texts, and faster data speeds—along with
better audio and video streaming. The Enterprise A8000 is certified by the European
Telecommunications Standards Institute (ETSI) for operation on cellular bands 1,3,7, & 8.
In South Africa it is certified by ICASA.
For installers and integrators, subscribing to the WilsonPro Cloud means you can sell
your clients extended service plans, generating recurring revenue streams for your
business. And for your clients, the WilsonPro Cloud provides ultra-high system reliability
and guaranteed uptime. The Enterprise A8000 amplifier connects to the WilsonPro
Cloud right out of the box via a standard Ethernet port.
The Enterprise A8000 cell signal amplifier systems also incorporate Wilson
Electronics’ state-of-the-art XDR (eXtended Dynamic Range) technology that prevents
signal overload conditions which can, in accordance with regulations, force the
amplifier to shut down. When the Enterprise A8000 cell signal amplifier systems
sense that any incoming cell signal is too strong and threatens to overload the system,
XDR automatically reduces amplifier gain to compensate while maintaining signal
coverage throughout the building. The Enterprise A8000 cell signal amplifier systems
incorporate an easy-to-use color LCD touch screen, and all antenna ports are located
on the same side of the unit for simple installation. Like all WilsonPro cell signal
amplifiers, the Enterprise A8000 cell signal amplifier systems are universal: they work
for all cellular devices.
IN-BUILDING CELL SIGNAL AMPLIFIER ENTERPRISE A8000
4
Extended Dynamic Range (XDR) for continuous connectivity:
XDR allows the Enterprise A8000 system to make automatic,
real-time adjustments so it never shuts down due to a strong
outside signal.
Remote Connectivity and Monitoring: Unit can be remotely
monitored and cell bands turned on and o (internet connection
to unit is required).
Onboard Software for Better Control: The amplifier is
automatically controlled with built-in onboard software, ensuring
reliable connectivity throughout large spaces and multi-story
buildings. The amplifier will adjust its gain level up or down as
required by the conditions of the immediate signal environment.
Color LCD Touch Screen: The Enterprise A8000 systems utilize
a color LCD touch screen, for assessing amplifier performance
and viewing amplifier configuration.
Independently Controlled Ports: Four independently controlled
indoor antenna ports facilitating up to 100,000 sq. ft. of
indoor coverage.
4
Additional
Features
ENTERPRISE A8000 IN-BUILDING CELL SIGNAL AMPLIFIER
5
Note: A Wilson Lightning Surge Protector is recommended for all building installations. Make sure the
protector is installed outside the building at point of entry connected to a suitable ground and in line
between the Outside Antennas and the Signal Amplifier.
Common mode can be used for an installation in which cell towers for dierent bands
are located in the same direction .
Outside Antennas
900-2700 MHz
Cell Tower
Inside Antenna
Amplifier
Inside Antenna
Inside Antenna
Inside Antenna
Common
Note: The Enterprise A8000 is configured to common mode by default.
Installation
Diagram
The Enterprise A8000 supports up to four inside antennas and are capable of
operating in traditional Common Mode, in which all amplifier cell bands use the same
outdoor antenna, or Split Mode, in which cell bands use separate outdoor antennas.
IN-BUILDING CELL SIGNAL AMPLIFIER ENTERPRISE A8000
6
(INSTALLATION DIAGRAM cont.)
Split mode is advantageous for an installation in which cell towers for dierent bands
are located in dierent directions. Outdoor directional antennas can be pointed to
provide maximum cell coverage for each band.
Inside Antenna
Outside Antennas
2500-2700 MHz
Cell Tower
900 MHz
Cell Tower
1700-2200 MHz
Cell Tower
Inside Antenna
Amplifier
Inside Antenna
Inside Antenna
Split Mode
ENTERPRISE A8000 IN-BUILDING CELL SIGNAL AMPLIFIER
7
Fasten a sheet of 4’x4’x ¾” plywood utilizing 4x 3/16” x 3” toggle bolts with a
minimum tensile rating of 35 lbs, then use 4x #12 x ¾” Pan Head Wood Screws
to secure the booster to the plywood.

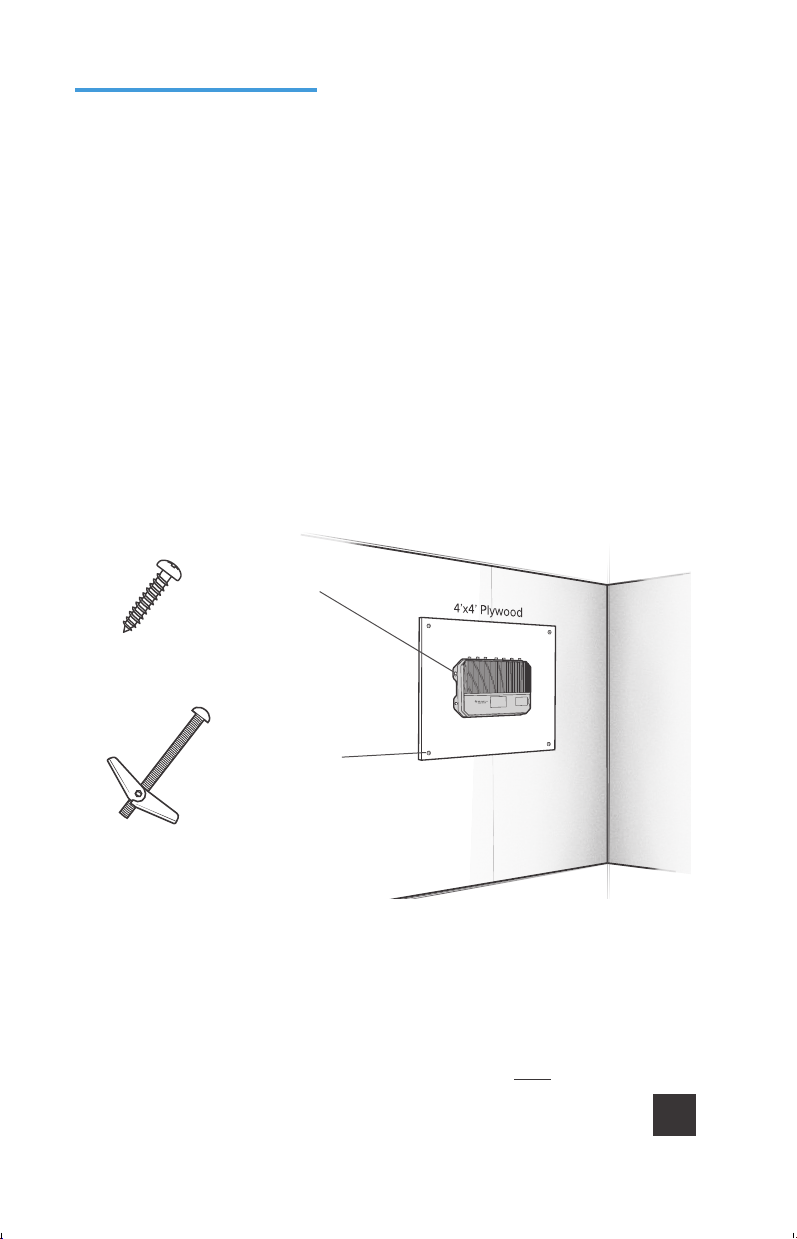

Before assembling and mounting on the wall mount, please reference the
below diagram:
WARNING: Proper installation environment to reduce risks related to the environment, the unit must
be installed indoors only. It is the consumer’s responsibility to ensure that structural engineering
requirements for potential seismic activity are met per your local requirements. This may require
wall reinforcement. Do not install near sources of high heat or steam or where condensation is likely
to occur, such as near air conditioners. Inspect mounting location conditions to ensure proper wall
thickness and no signs of moisture or molding, etc. Do not install on a structure that is prone to
vibration or movement. The unit must be plugged into an earthed outlet ONLY.
Wall Mounting Installation
(for most situations)
Mounting
Specifications
#12 x ¾” Pan Head
Wood Screws
3/16” x 3” Toggle Bolts
