Wilson Electronics Weboost DRIVE REACH OTR FLEET Manuale utente

ENGLISH

FRANÇAIS

Installation Guide

Cell Signal Booster For Fleet Trucks

DRIVE REACH OTR FLEET

A WILSON ELECTRONICS BRAND

NEED HELP? weboost.ca 1.866.294.1660

______

Index

Package Contents 1

STEP 1: Select Mounting Location 2

STEP 2: Assemble The Antenna 3

STEP 3: Mount Outside Antenna 5

STEP 4: Mount Inside Antenna 7

STEP 5: Connect Coax Cables To Booster 8

STEP 6: Connect Power Supply To Booster 9

Light Patterns 10

Troubleshooting 11

Safety Guidelines 12

Speciﬁcations 14

Warranty 15

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 1

ENGLISH

________

Package

Contents

Booster

& Bracket

Outside

Antenna

Inside

Antenna

Power

Supply

33 cm & 45.7 cm

Mast Extensions

& Side Exit Adapter

3-Way Antenna

Mount

Antenna

Spring

Thread

Lock

Cable

Adapter

2CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

ENGLISH

______

Step 1: Select Mounting

Location

Depending on the type of truck, there may be built-in antenna

mounting points. If the vehicle does not have built-in mounting

points, the outside antenna includes a 3-way mount that will

work on vehicles with mirror rails. The outside antenna will also

work with third party CB antenna mounts.

Select mounting location on vehicle. The outside antenna

can be mounted in any CB mount or antenna mounting point

on the vehicle. For best performance mount the outside

antenna above the metal cab (it does not need to be above

cab wind deﬂector).

Typical Antenna

Mounting Points

NOTE: Mount at least 12 inches from any other antennas. Free of obstructions.

NOTE: If the vehicle is using two CB antennas with co-phase wiring, removing

one antenna will cause reduced performance of the remaining CB antenna.

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 3

ENGLISH

______

Step 2: Assemble The

Antenna

Mast

Extension

Mast

Extension

Mast

Extension

Outside

Antenna

Side Exit

Adapter

cable

from Outside

Antenna

Outside

Antenna

Once you have determined the

best location for the outside

antenna and have determined

if mast extensions are needed,

insert cable through mast.

If using mast extension(s) add

thread locker (provided) to thread

point(s). Screw into place.

Add thread locker (provided) to

thread point and screw on the

side exit adapter.

NOTE: Mast extensions may not be

needed depending on your mounting

point.

NOTE: Be sure the antenna is the correct

height before applying thread locker.

NOTE: When adding the side exit adapter

hold the outside antenna vertically and

screw the side exit adapter from the

bottom up. This reduces cable twisting.

4CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

ENGLISH

______

(STEP 2 cont.)

13 in.

Mast

13 in.

Mast 13 in.

Mast

18 in.

Mast

Side Exit

Adapter

Antenna Spring

(can be used

optionally)

DO NOT USE

Antenna Spring

with 2 Mast Extensions

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 5

ENGLISH

______

Step 3: Mount Outside

Antenna

The cable is strong enough

that it may be shut in most

vehicle doors without

damaging the cable.

These are some typical antenna mounting points. If the vehicle

does not have built-in mounting points, a 3-way mount is

included that will work on vehicles with mirror rails.

3-Way

Antenna Mount

Mount disc washer

with lip in the

DOWN position

Fasten nut with lip

in the UP position

mirror rail

or bird perch mount

Side Exit

Adapter

Mast

Top of Mirror Mirror ArmUpper Side

3-Way Mount

on bird perch

6CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

ENGLISH

______

(STEP 3 cont.)

Side Exit Adapter must be

used with Antenna Spring

Add thread lock on

all threads with tube

provided

Mount disc washer with

lip in the DOWN position

Fasten nut with lip in

the UP position

If installing with the antenna spring, assemble the 3-way

mount as shown below.

Side Exit

Adapter

Antenna

Spring

DRIVE REACH OTR FLEET CELL SIGNAL BOOSTER 7

ENGLISH

______

Step 4: Mount Inside Antenna

Identify a place to mount the inside antenna, either on the side

of the seat or on the dash and mount. The location should be

at least 46 cm but no more than 91 cm from where the cellular

device will be used. Use the Velcro® adhesive strip/adhesive

strip provided and attach to desired location.

Inside

Antenna

Inside

Antenna

Velcro®

8CELL SIGNAL BOOSTER DRIVE REACH OTR FLEET

ENGLISH

______

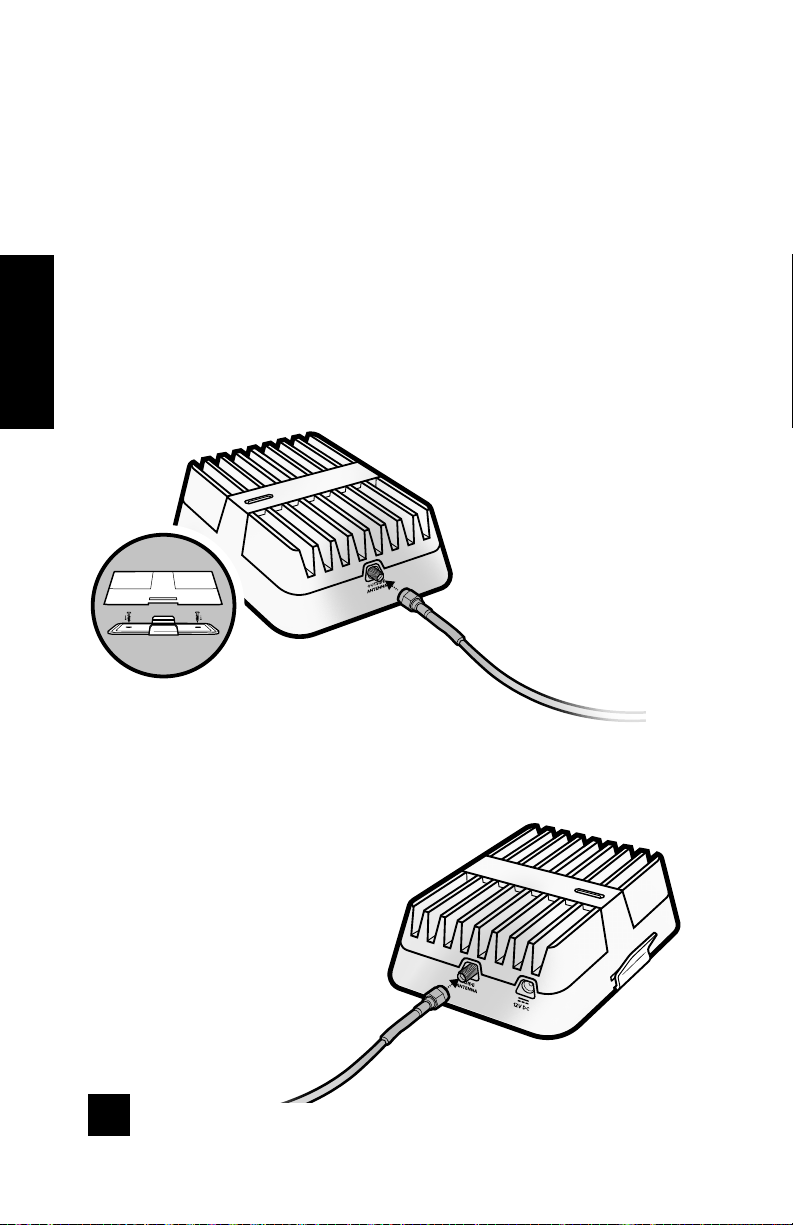

Step 5: Connect Coax Cables

To Booster

Fasten adapter to end of cable from the outside antenna and

connect to the port labeled “Outside Antenna” on the Drive

Reach booster.

Connect the cable from the in-vehicle antenna to the port

labeled “Inside Antenna” on the booster.

from Outside Antenna

from Inside Antenna

NOTE: Bracket can be used to fasten booster in a speciﬁc location if desired.

bracket

Drive Reach
