THE PROJECTOR
USER MANUAL
S26
English
Deutsch
Français
Español
Italiano
日本語
01-25
26-50
51-75
76-100
101-125
126-147
LANGUAGE
Foreword
Warnings
Precautions
Structural Diagram
Package Lists
Projector Specications
Multimedia Supported Files
Product Overview
Remote Control
Installation
Installing the Projector
How to clean the “ Black Spot”?
Projector Setting
Projection Distance&Size
04
04
05
06
06
06
07
07
08
09
09
09
10
12
Starting the Projector
Power On/Power Off
Language Setting
Keystone Correction & Focus & Digital Zoom
Signal Source & Multimedia Connection
Wireless Connection
Screen Mirroring ( For iOS System)
Screen Mirroring ( For Android System)
Bluetooth Connection
Main Menu Function
Factory Reset
System upgrade
Scheduled Shutdown
Power On Option
FAQ
Contact US
12
12
13
13
16
17
17
19
21
23
23
24
24
24
25
26
Content
15
4
EN
Foreword
Warnings
Dear Customer,
Luckily, your projector is already in your hands! Let's start enjoying the unique movie night with your family.
Please read this manual thoroughly before using the projector.
Do you have any questions on how it works? Are you satised with your projector? If you have any issues, send
email to [email protected], attaching your order number and the description of you issue. We will x your
issues as soon as possible.
Customers sometimes can meet some confusion when using the projector. Rather than trying to communicate
directly with us, many buyers instead just leave a comment on the product page. However, most negative comments
are caused by non-standardized use rather than a defect in the product itself. Actually, many problems can be
easily solved by setting, such as no signal, no sound, etc. We promise all the projectors have been carefully checked
and packaged before shipping. Therefore, if you have any questions, please contact us and give us an opportunity
to improve it. We guarantee that we will provide you with the most satisfactory solution.
Thanks for your understanding!
Best regards,
WiMiUS Brand Team
1. High brightness lamp! Please don’t look directly into the lamp.
2. Adjusting the contrast, brightness and focal length according to different input signals is the key to make the
picture clear; otherwise, the picture will be blurred;
3. There is high voltage inside the projector. Please don’t open the cover and touch the internal parts of the
machine.
15
5
EN
Precautions
1. Clean
When cleaning this projector, please pull out the power cable. Use a wet cloth to clean, don’t use any detergent that
may damage the unit.
2. Accessory
Please use our recommended accessory. Or it will damage the projector.
3. Correct environment
Do not place the projector in a wet environment, like a damp basement or near the swimming pool, etc.
4. Ventilation
The ventilation is equipped for the projector to work stably. Do not put anything around the vents. Or it will cause
the projector to heat up.
5. Power
Please make sure the power is within the required power range.
6. Thunder
For thunder day, please unplug the power cable from the projector.
7. Repair
Due to high voltage inside, please do not open or try to repair the projector by yourself. Don't disassemble the
projector without our suggestion, otherwise, any warranty will be invalid. Seek help from an authorized agent or
qualied professionals when needed.
8. Keep away from heat device
Please make sure the projector is far away from any heat devices which will damage the projector.
15
6
EN
Structural Diagram
Package Lists
Projector Specications
Projector x 1 Remote Control x 1 Power Cable x 1 AV Signal Cable x1 HDMI Cable x1
Portable Bag x1 User Manual x1 Cleaning Swab x2 Screwdriver x1
R
E
Model No.S26
Display Technology LCD Light Source LED
Resolution Native 1920x1080P Focus Manual
Installation Type Front/Rear/Ceiling/Desktop Aspect Ratio 16:9/4:3
Product Size 234×192×94mm Product Weight 1.6kg
Input Interface HDMI/USB/AV/3.5mm audio Output Interface Audio out
15
7
EN
Multimedia Supported Files
Files Support Doesn't Support
Audio Format MP3, AAC, WAV, WMA, M4A, OGG,
FLAC Dolby AC3, DTS, DivX, VC1, RM, RMVB, FLV, etc
Image Format JPG, PNG, BMP, JPEG
Video Format MP4, MKV, WMV, 3GP, MPG, TP, TS,
F4V, DAT, FLV, TRP MSVC / CRAM , MP42, GMC, IV32, RLE, cvid, RV20,
DivX, RM, RMVB, VC1, FLV
File Format TXT, XLSX, DOCX, PPT
If play the above les, the projector still can’t work properly, please don’t hesitate to contact us via
Product Overview
1
23456 7 8
1. Arrow Keys /Conrm
2. Power
3. Back
4. Source
5. Earphone/3.5mm
Audio Out
6. Audio, Video Input
7. USB Input
8. HDMI Input
15
8
EN
Remote Control
1. Power
2. Signal Source
3. Arrow keys
4. Menu
5. Home page
6. Volume+
7. Volume-
8. Mute
9. Flip
10. Conrm
11. Back
12. Previous
13. Next
1
29
310
411
13
12
5
6
7
8
1. Install 2 pieces of AAA batteries(not included) into the remote before using it. Do not combine new batteries with
old ones in remote controller, which can cause operation failure due to insufcient power supply.
2. When using the remote control, please make sure that the signal transmitter of the remote controller aims at
infrared signal of the projector.
3. When you are not using the remote controller for a long period. Please take out the batteries to prevent it from
leakage.
NOTE:
15
9
EN
Installation
Installing the Projector
How to clean the “ Black Spot”?
Keep the projector vertical and towards the mid of projector screen, keep the projection image at on the screen.
The S26 has special clean door to help you clean the inner lens, it will greatly extend your use lifespan and
enhance the movie enjoyment!
1. To adjust the tilt base, unscrew the support rod at the bottom of the projector, see below picture.
2. For Ceiling mount, there are 4 holes at the bottom of the projector (M5*10mm). Please slowly unscrew the 4 black
rubbers, then you can nd the holes for ceiling mount, see below picture.
NOTE: The hanging bracket or ceiling mount stand is not packaged.
12 3
1. Support base thread Adjust the height of the projector
2. Rubber Pads/Holes Fix with M5x10mm Screws
3. Dusting Mouth Cover Dismantle it to clean the screen inside
Please Kindly Note: Any electrical appliances will automatically inhale dust during operation, so man dust falls
into the projector lens, it will have "Black dots" in the screen, it will make bad enjoyment to your use!
15
10
EN

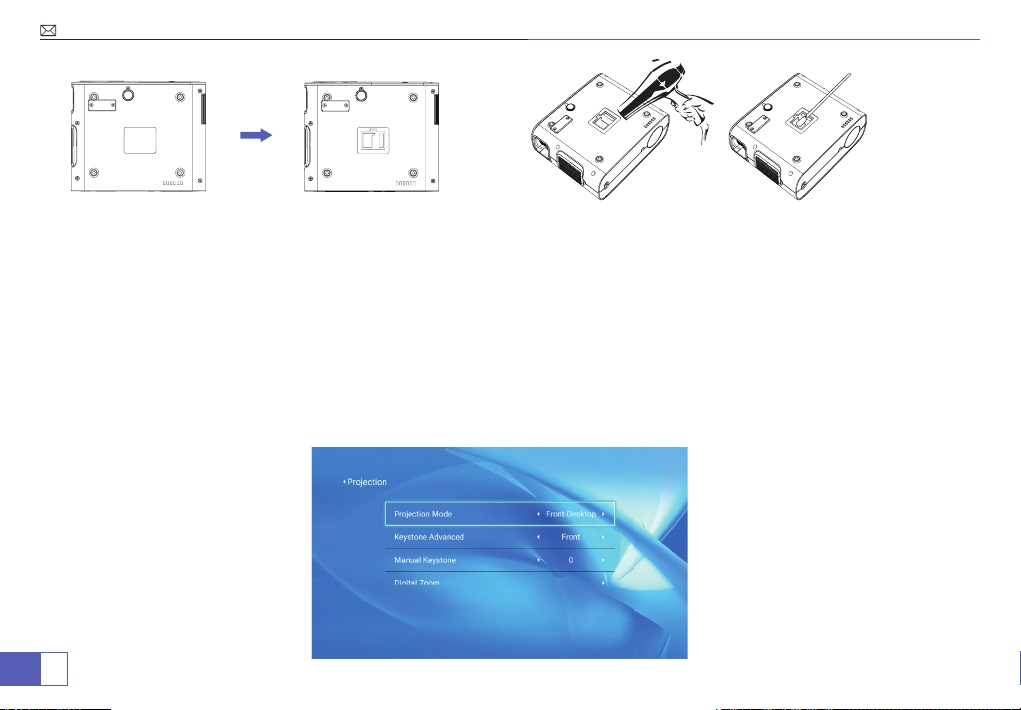

Tear off the bottom label, dismantle the Dusting Mouth Cover with a screwdriver(Included).
Method 1: Use the cold wind to blow the dusting mouth.
Method 2:(The most effective method): Use the cleaning swab (Included) to reach inside to clean the inner screen.
(We offer cleaning video!)
NOTE: Please contact our e-mail [email protected] for a video if you need detailed steps!
Projector Setting
Select Projection Mode to obtain a front and upward image:
Menu>Settings>Projection Image Setting>Projection Mode.
Press arrow key to select and press “OK” to conrm.
