Windsor Automatic Scrubber 86221970 Manuale utente
86221970 17” SCRUBBER 01/03/07

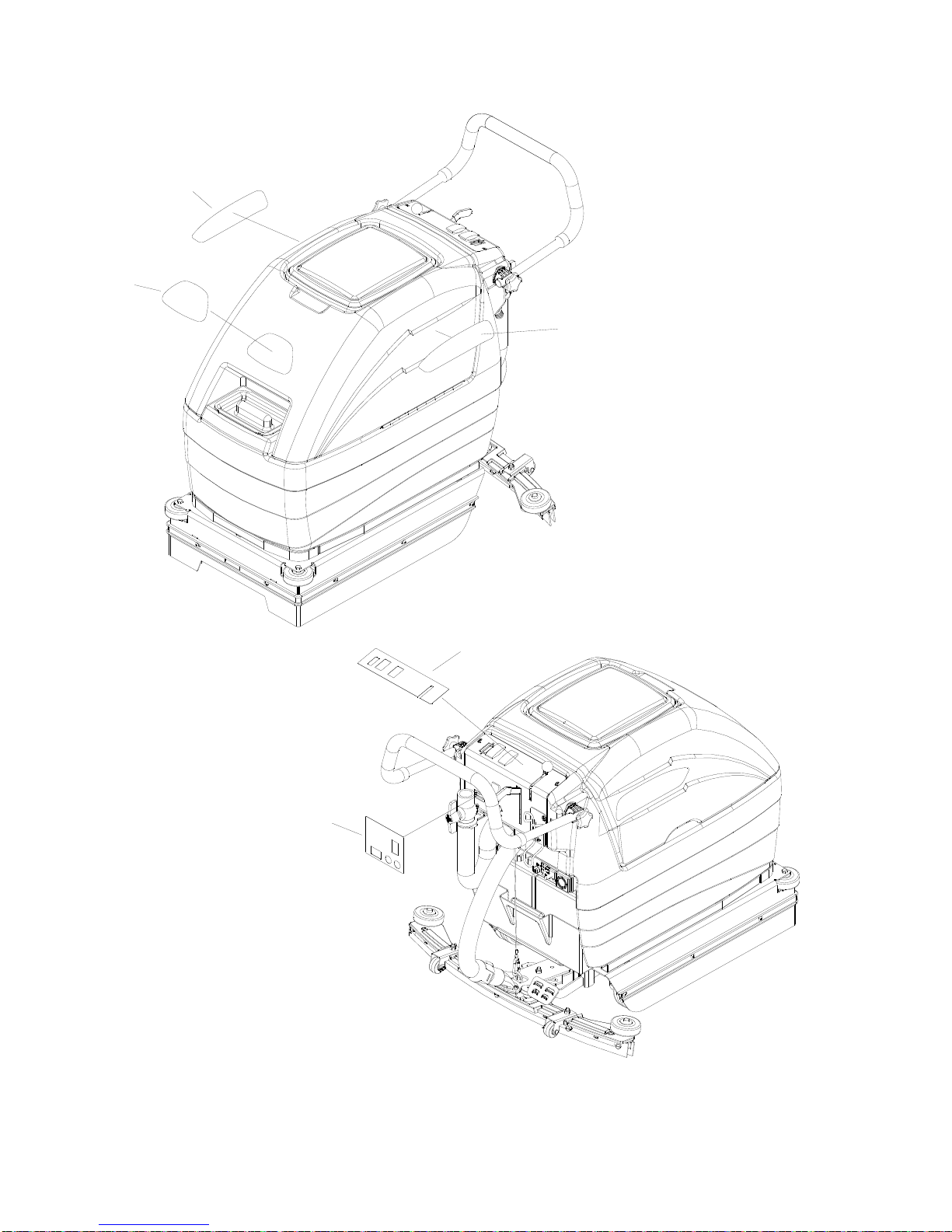

17” SCRUBBER
PARTS LIST
DECAL
86221970 17” SCRUBBER 01/03/07
5-1
5
4
3A
2A
1A
1B
3B
2B
2C
1C
3C
DECAL
86221970 17” SCRUBBER 01/03/07 5-2
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1A 86243040 500301 1 LABEL, MAIN (RIGHT) SCC172, QSCC172,
SCHC172, SCH172,
QSC172
1B 86244000 500789 1 LABEL, MAIN (RIGHT) HCC172
1C 86220990 501086 1 LABEL, MAIN, AS17 (RIGHT) AS17, AS17B, AS17T,
AS17TH, AS17E, AS17I
2A 86243050 500302 1 LABEL, MAIN (LEFT) SCC172, QSCC172,
SCHC172, SCH172,
QSC172
2B 86244010 500790 1 LABEL, MAIN (LEFT) HCC172
2C 86221000 501087 1 LABEL, MAIN, AS17 (LEFT) AS17 ALL MODELS
3A 86004970 50990 1 LABEL, LOGO DOMED SCC172, QSCC172,
SCHC172, SCH172,
QSC172
3B 86244020 500794 1 LABEL, LOGO DOMED HCC172
3C 86244520 501110 1 LABEL, LOGO DOMED AS17 ALL MODELS
4 86220670 501027 1 LABEL, CIRCUIT BREAKER
5 86220660 501026 1 LABEL, PANEL 17 IN

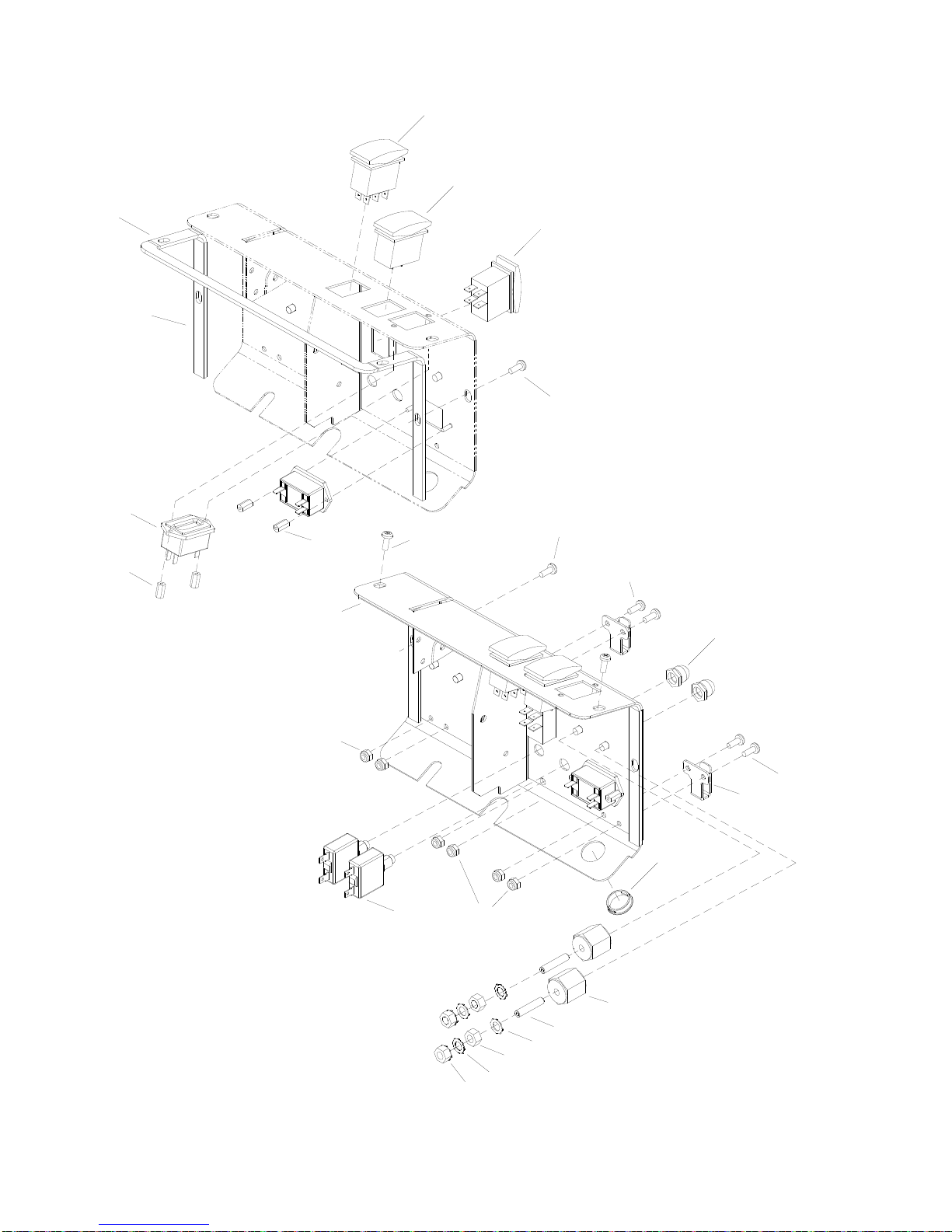

CONTROL PANEL- W/CHARGER
86221970 17” SCRUBBER 01/03/07
5-3
CONTROL PANEL – W/CHARGER
86221970 17” SCRUBBER 01/03/07 5-4
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86007130 72128 1 SWITCH, DPDT 2-POSITION ROCKER
2 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
3 86257090 72181 1 SWITCH, DPST 2-POSITION ROCKER
4 86276820 70740 6 SCR, 10-32 X 1/2 PTHMS BLK NP
5 86218800 41540 1 HANGER, CHARGER CORD 172
6 86215420 140888 2 BOOT, M12 CIRCUIT BREAKER
7 86215860 140913 1 BRKT, HOSE HOOK
8 86231240 140429 1 BUSHING, .75 ID X .25 H
9 86255910 73659 2 STANDOFF, 1/4-20 X 1.0 HEX INS
10 86006850 70393 2 SET SCR, 1/4-20 X 1.25 L
11 86222310 57311 3 NUT, 1/4-20 UNC
12 86005640 57030 4 NUT, 10-32 HEX NYLOCK
13 86215680 140931 2 BREAKER, 25A, 250VAC 50VDC
14 86005680 57047 2 NUT, 1/4-20 HEX NYLOCK
15 86274290 70162 2 SCR, 10-32 X 3/8 PPHMS SS
16 86222490 61480 1 PANEL, SCRUBBER 17 IN
17 86010660 87025 5 WASHER, 1/4 LOCK EXT STAR SS
18 86224880 730365 4 STANDOFF, HEX BRASS 6-32 THRD
19 86246970 54192 1 METER, 24V BATTERY W/OUTPUT
20 86251420 67610 1 RELAY, 24VDC 40A /BRKT
21 86218070 35358 2 GASKET, ELECTRIC COVER SIDE
22 86218080 35359 1 GASKET, ELECTRICAL COVER
CONTROL PANEL- SCHC172 W/CHARGER
86221970 17” SCRUBBER 01/03/07
5-5
17
20
21
18
18
19
22
13
11 10 9
8
1
15 17
17
11
16
12
12
23
714
4
6
4
4
5
2
3
4
CONTROL PANEL SCHC172 W/CHARGER
86221970 17” SCRUBBER 01/03/07 5-6
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86007130 72128 1 SWITCH, DPDT 2-POSITION ROCKER
2 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
3 86257090 72181 1 SWITCH, DPST 2-POSITION ROCKER
4 86276820 70740 6 SCR, 10-32 X 1/2 PPHMS BLK NP
5 86218800 41540 1 HANGER, CHARGER CORD 172
6 86215420 140888 2 BOOT, M12 CIRCUIT BREAKER
7 86215860 140913 1 BRKT, HOSE HOOK
8 86231240 140429 1 BUSHING, .75 ID X .25 H
9 86255910 73659 2 STANDOFF, 1/4-20 X 1.0 HEX INS
10 86006850 70393 2 SET SCR, 1/4-20 X 1.25 L
11 86222310 57311 4 NUT, 1/4-20 HEX UNC BLACK C
12 86005640 57030 4 NUT, 10-32 HEX NYLOCK SS
13 86215680 140931 2 BREAKER, 25A, 250VAC, 50VDC
14 86274290 70162 2 SCR, 10-32 X 3/8 PPHMS SS
15 86005680 57047 2 NUT, 1/4-20 HEX NYLOCK
16 86222490 61480 1 PANEL, SCRUBBER
17 86010660 87025 5 WASHER, 1/4 LOCK EXT STAR SS
18 86224880 730365 4 STANDOFF, HEX BRASS 6-32 THRD
19 86246970 54192 1 METER, 24V BATTERY W/OUTPUT
20 86251420 67610 2 RELAY, 24VDC 40A W/BRKT
21 86218070 35358 2 GASKET, ELECTRICAL COVER SIDE
22 86218080 35359 1 GASKET, ELECTRICAL COVER
23 86251400 67495 1 RELAY, BATTERY METER OUTPUT
CONTROL PANEL – SCH172
86221970 17” SCRUBBER 01/03/07
5-7
CONTROL PANEL- SCH172
86221970 17” SCRUBBER 01/03/07 5-8
REF PART NO. PRV NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1 86007130 72128 1 SWITCH, DPDT 2-POSITION ROCKER
2 86007140 72130 1 SWITCH, SPST 2-POSITION ROCKER
3 86257090 72181 1 SWITCH, DPST 2-POSITION ROCKER
4 86276820 70740 4 SCR, 10-32 X 1/2 PTHMS BLK NP
5 OPEN - - -
6 86215420 140888 2 BOOT, M12 CIRCUIT BREAKER
7 86215860 140913 2 BRKT, HOSE HOOK
8 86231240 140429 1 BUSHING, .75 ID X .25 H
9 86255910 73659 2 STANDOFF, 1/4-20 X 1.0 HEX INS
10 86006850 70393 2 SET SCR, 1/4-20 X 1.25 L
11 86222310 57311 2 NUT, 1/4-20 HEX UNC BLACK C
12 86005640 57030 6 NUT, 10-32 HEX NYLOCK SS
13 86215680 140931 2 BREAKER, 25A, 250VAC, 50VDC
14 86251400 67495 1 RELAY, BATTERY METER OUTPUT
15 86005680 57047 2 NUT, 1/4-20 HEX NYLOCK
16 86222500 61482 1 PANEL, SCRUBBER DRILLED
17 86010660 87025 4 WASHER, 1/4 LOCK EXT STAR SS
18 86224880 730365 4 STANDOFF, HEX BRASS 6-32 THRD
19 86246970 54192 1 METER, 24V BATTERY W/OUTPUT
20 86274290 70162 6 SCR, 10-32 X 3/8 PPHMS SS
21 86218070 35358 2 GASKET, ELECTRICAL COVER SIDE
22 86218080 35359 1 GASKET, ELECTRICAL COVER
23 86231500 80882 1 BUZZER-PIEZO, 6-28 VDC
24 86070500 140658 1 BRKT, BATTERY ALARM
CONTROL PANEL-QSC172
86221970 17” SCRUBBER 01/03/07
5-9
14
4
4
7
16
18 4
5
12
12
13
11 10 9
8
6
3
2
1
17
15 17
14
19
18
20
