Winegard HD6055P Manuale utente

High Denition (HD)

Platinum Antennas

The Winegard Company warrants this product against any defects in materials

or workmanship within 90 (ninety) days from date of purchase. No warranty claim

will be honored unless at the time the claim is made, you present proof of purchase

to an authorized Winegard dealer (if unknown, please contact Winegard Company,

3000 Kirkwood St., Burlington, IA 52601-2000, 800-288-8094).

Winegard Company (at its option) will either repair or replace the defective

product at no charge to you. This warranty covers parts, but does not cover any

costs incurred in removal, shipping or reinstallation of the product. The warranty

does not extend to products which have been subjected to misuse, improper

installation, or damage caused by wind, lightning, ice or other occurrences over

which the manufacturer has no control.

The 90 Day Warranty is provided on the condition that the equipment is properly

delivered with all handling and freight charges prepaid to your Winegard dealer for

repair or return to our factory at the above address. Winegard dealers will arrange

for the replacement or repair and return to you, without charge, the product which

failed due to defective material or workmanship.

WINEGARD COMPANY WILL NOT ASSUME ANY LIABILITIES FOR ANY

OTHER WARRANTIES, EXPRESS OR IMPLIED, MADE BY ANY OTHER

PERSON.

ALL OTHER WARRANTIES WHETHER EXPRESS, IMPLIED, OR STATUTORY

INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE

AND MERCHANTABILITY ARE LIMITED TO THE 90-DAY PERIOD OF THIS

WARRANTY.

The foregoing shall be the sole and exclusive remedy of any person,whether

in contract, tort or otherwise, and Winegard shall not be liable for incidental or

consequential damage or commercial loss, or from any other loss or damage

except as set forth above.

Some states do not allow limitations on how long an implied warranty lasts, or

the exclusion of limitation of incidental or consequential damages, so the above

limitations or exclusions may not apply to you.

This warranty gives you specic legal rights and you may also have other rights

which vary from state to state.

90 DAY LIMITED WARRANTY

WARNING

INSTALLATION OF THIS ANTENNA NEAR POWER LINES IS DANGEROUS.

FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.

NOTE

In order to prevent damage in shipment, the second element set of elements from

the rear of the boom are folded to the reverse side. You can identify the elements

because they are tagged. Follow the directions carefully.

Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601-2000

Printed in U.S.A. © Winegard Company 2002 1450169 Rev. 7/08

INSTRUCTIONS

FM MODEL HD6055P

MODEL HD6055P

Rev. 2/08

POINT THIS END TOWARDS

STATIONS

HOW TO PROVIDE

LIGHTNING PROTECTION

FOR TV ANTENNA AND SET

Step 1. Mount the grounding block

as close as possible to where the

75 ohm coaxial cable downlead

enters the house. See Figure 3.

Step 2. The ground wires for both

the mast and the downlead should

be copper or aluminum wire,

number eight (8) or larger. See

Figure 3.

Step 3. The downlead wire from

the antenna to the grounding block

and the mast ground wire should

be secured to the house spaced

from four (4) to six (6) feet apart.

See Figure 3.

NOTE: In the case of a “ground

up” antenna installation, it may not

be necessary to ground the mast

if the mast extends four or more

feet into the earth. Consult a TV

serviceman for the proper depth in

your location.

Fig. 3

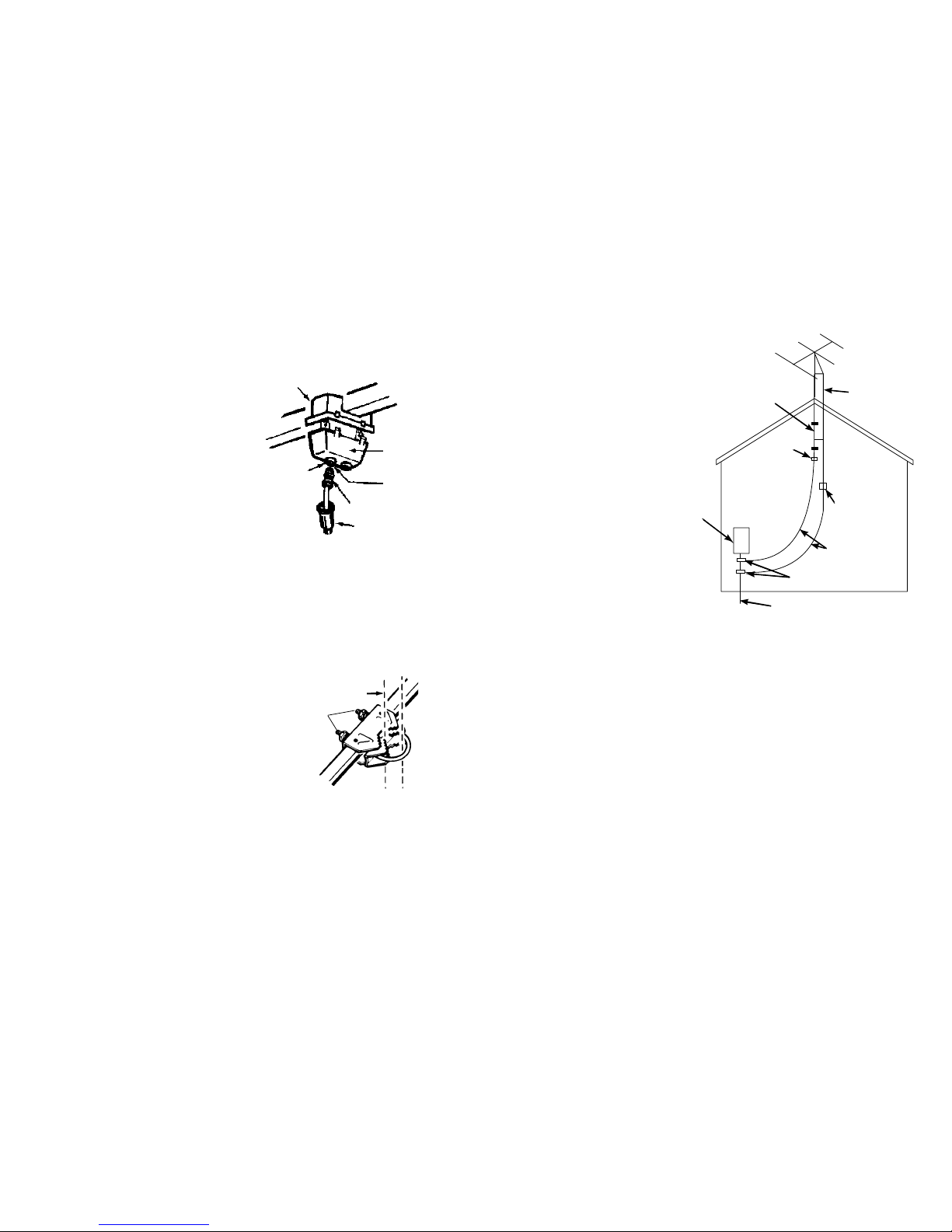

STEP 1. Remove antenna from carton

and unfold elements, making certain the

elements lock tightly into place and are

at and parallel to each other.

STEP 2. To attach the cartridge hous-

ing to the antenna, align the snaps

on the cartridge housing with the

snap holes on the cartridge housing

receptacle on the antenna and push

the housing into the receptacle until it

snaps into place. See Figure 1.

STEP 3. Slide weather boot over the

75 ohm coaxial cable. Install connec-

tor and attach the "downlead " to the

connector on cartridge housing. Slide

weather boot over connectors and

boot collar. See Figure 1.

STEP 4. Mount antenna on mast, point front

(smallend) towards stationsand tighten mast

clamp securely. See Figure 2.

STEP 5. The 75 ohm coaxial cable

downlead may be secured to the mast by

taping or use of plastic wire ties.

Fig. 2

1/4" HEX

NUTS

MASTING

2" OD MAX.

Fig. 1

CARTRIDGE HOUSING

RECEPTACLE

75 OHM COAXIAL

CABLE (DOWNLEAD)

BOOT

COLLAR

CARTRIDGE

HOUSING

DOWNLEAD

JACK

WEATHER BOOT

Antenna Lead

In Wire

Ground

Clamp

Electric

Service

Equipment

Antenna

Discharge Unit

(NEC Section 810-21)

Power Service Grounding

Electrode System

(NEC Art 250, Part H)

Ground

Clamps

NEC - National Electrical Code

Example of antenna grounding as per

National Electrical Code, ANSI/NFPA 70

Grounding Conductor

(NEC Art 250, Part H)

Antenna Mast
