WinSystems EBC-Z5xx Manuale utente
WinSystems, Inc.
715 Stadium Drive
Arlington, TX 76011
http://www.winsystems.com
WinSystems
®
EBC-Z5xx
Intel®ATOMTM Single Board Computer
PRODUCT MANUAL
110113 PRODUCT MANUAL EBC-Z5xx 2
Revision Date Code ECO Number
101001 Initial Release
101213 10-75
110113
MANUAL REVISION HISTORY
P/N 400-0364-000
110113 PRODUCT MANUAL EBC-Z5xx 3
TABLE OF CONTENTS
BEFORE YOU BEGIN 6
Visual Index - Top View (Connectors) 7
Visual Index - Top View (Jumpers & LEDs) 8
Visual Index - Bottom View (Connectors, Jumpers & LEDs) 9
Jumper Reference 10
INTRODUCTION 13
FEATURES 13
System 14
Memory 14
FUNCTIONALITY 15
I/O Port Map 15
Interrupt Map 16
Watchdog Timer 17
Real-Time Clock/Calendar 18
CONNECTOR REFERENCE 19
POWER 19
J15 - Power and Reset 19
J24 - ATX Signals 19
J40 - Push Button Reset 19
J28 - Power Supply Selection 20
BATTERY BACKUP 21
J43 - Battery Enable/Disable 21
J47 - External Battery 21
VIDEO 22
J6 - ANALOG VGA 22
J3 - LVDS 23
J5, J11 - Backlight Power 23
J10 - Panel Options 24
AUDIO 25
J2 - 5.1 Audio 25
J9 - HD Audio Extension 26
SP1 - Speaker 26
MOUSE 27
J13 - Mouse 27
MULTI-I/O 28
J39 - Multi-I/O (COM1, COM2, Keyboard, LPT) 28
J36 - COM1 Termination Resistors 29
J42 - COM2 Termination Resistors 29
SERIAL 31
J29 - COM3, COM4 31
J31 - COM3 Termination Resistors 32
J32 - COM4 Termination Resistors 32
110113 PRODUCT MANUAL EBC-Z5xx 4
USB 33
J35, J46 - USB 33
PARALLEL ATA 34
J22, J23 - PATA 34
COMPACTFLASH 34
J44 - COMPACTFLASH 34
J41 - COMPACTFLASH Master/Slave 34
ETHERNET 35
J7, J8 - Gigabit Ethernet 35
J12 - Ethernet Conguration 35
STATUS LED 36
D16 - Status LED 36
DIGITAL I/O 37
J37, J38 - Digital I/O 37
J50 - Digital I/O Power 37
Register Denitions (WS16C48) 38
PC/104 BUS 40
J45, J48 - PC/104 40
SUMITTM 41
J26, J27 - SUMIT 41
MiniPCI EXPRESS 42
J102 - MiniPCIe 42
J101 - MiniPCIe Antenna Passthrough Connnection 42
J19 - MiniPCIe Antenna 42
J53 - SIM Card Socket 42
110113 PRODUCT MANUAL EBC-Z5xx 5
BIOS SUPPLEMENTAL 43
BIOS SETTINGS STORAGE OPTIONS 68
J33 - EEPROM ENABLE 68
CABLES 70
SOFTWARE DRIVERS 71
SPECIFICATIONS 72
MECHANICAL DRAWING 73
APPENDIX - A 74
BEST PRACTICES 74
APPENDIX - B 78
POST CODES 78
WARRANTY INFORMATION 83
110113 PRODUCT MANUAL EBC-Z5xx 6
BEFORE YOU BEGIN
WinSystems offers best practice recommendations for using and handling WinSystems embedded PCs. These methods
include valuable advice to provide an optimal user experience and to prevent damage to yourself and/or the product.
YOU MAY VOID YOUR WARRANTY AND/OR DAMAGE AN EMBEDDED PC BY FAILING TO COMPLY WITH THESE
BEST PRACTICES.
Reference Appendix - A for Best Practices.
For any questions you may have on WinSystems products, contact our Technical Support Group at (817) 274-7553, Monday
through Friday, between 8 AM and 5 PM Central Standard Time (CST).
Please review these guidelines carefully and follow them to ensure
you are successfully using your embedded PC.
This product ships with a heat sink. Product warranty is void if the
heat sink is removed from the product.
110113 PRODUCT MANUAL EBC-Z5xx 7

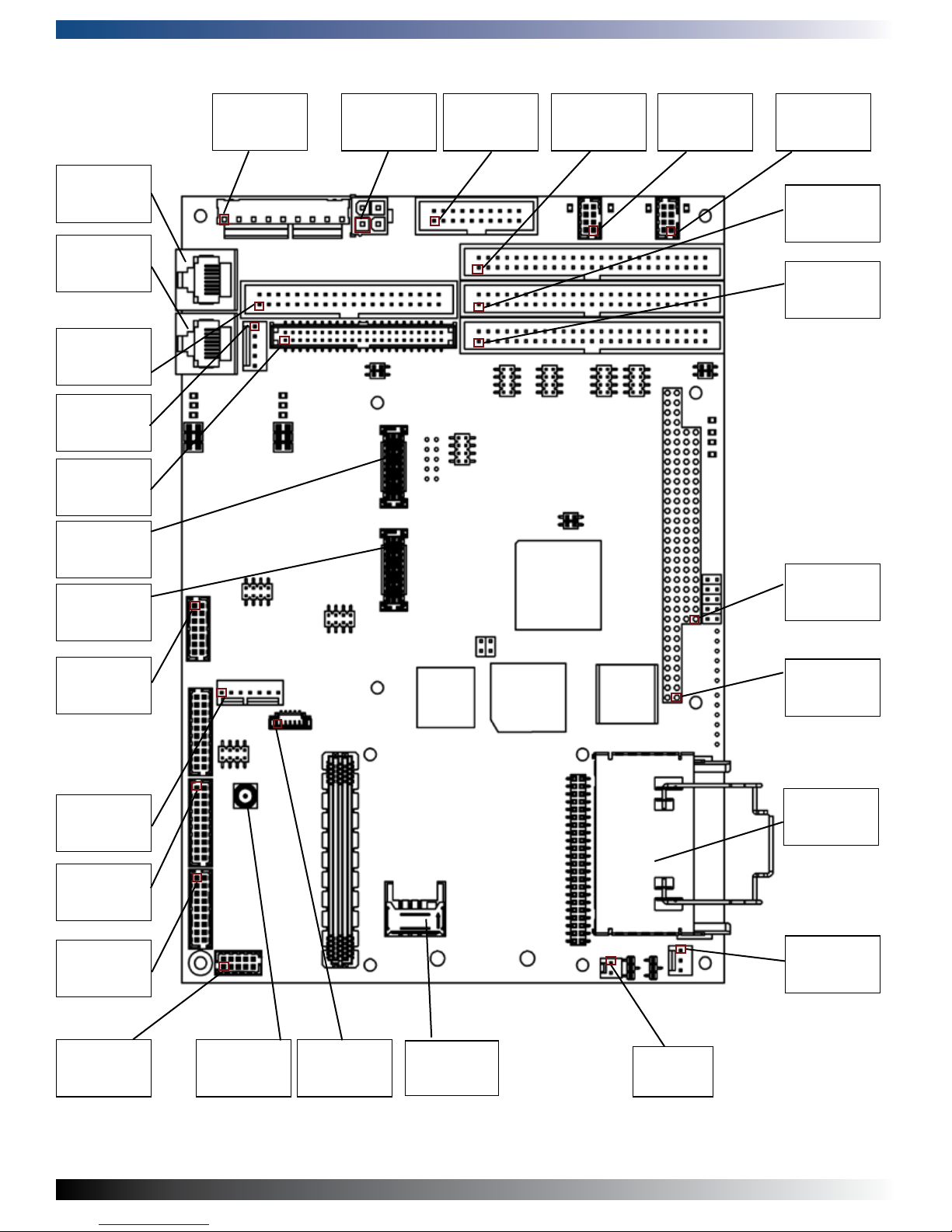

Visual Index - Top View (Connectors)
J8
Gigabit Ethernet
(Port 2)
NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
RESERVED - J4, J16, J17, J18, J20, J21, J24, J34, J44, J51, J52, J54, J103, D111, D112
J7
Gigabit Ethernet
(Port 1)
J13
Mouse
J11
Legacy Backlight
Power
J3
LVDS
J2
5.1 Audio
J9
HD Audio
Extension
J27
SUMIT-A
J26
SUMIT-B
J39
Multi-I/O
(COM1/2,
Keyboard, LPT)
J35
USB (0/1)
J46
USB (2/3)
J38
Digital I/O
(Ports 3/4/5)
J48
PC/104 (C/D)
J45
PC/104 (A/B)
J47
External Battery
J40
Push Button
Reset
J29
Serial I/O
(COM3/4)
J5
Backlight Power
J23
PATA
J22
PATA
J6
Analog VGA
J15
Power and Reset
J37
Digital I/O
(Ports 0/1/2)
J44
CompactFlash
J19
MiniPCIe
Antenna
J24
ATX Signals
J53
SIM Card Socket
for MiniPCIe slot
110113 PRODUCT MANUAL EBC-Z5xx 8

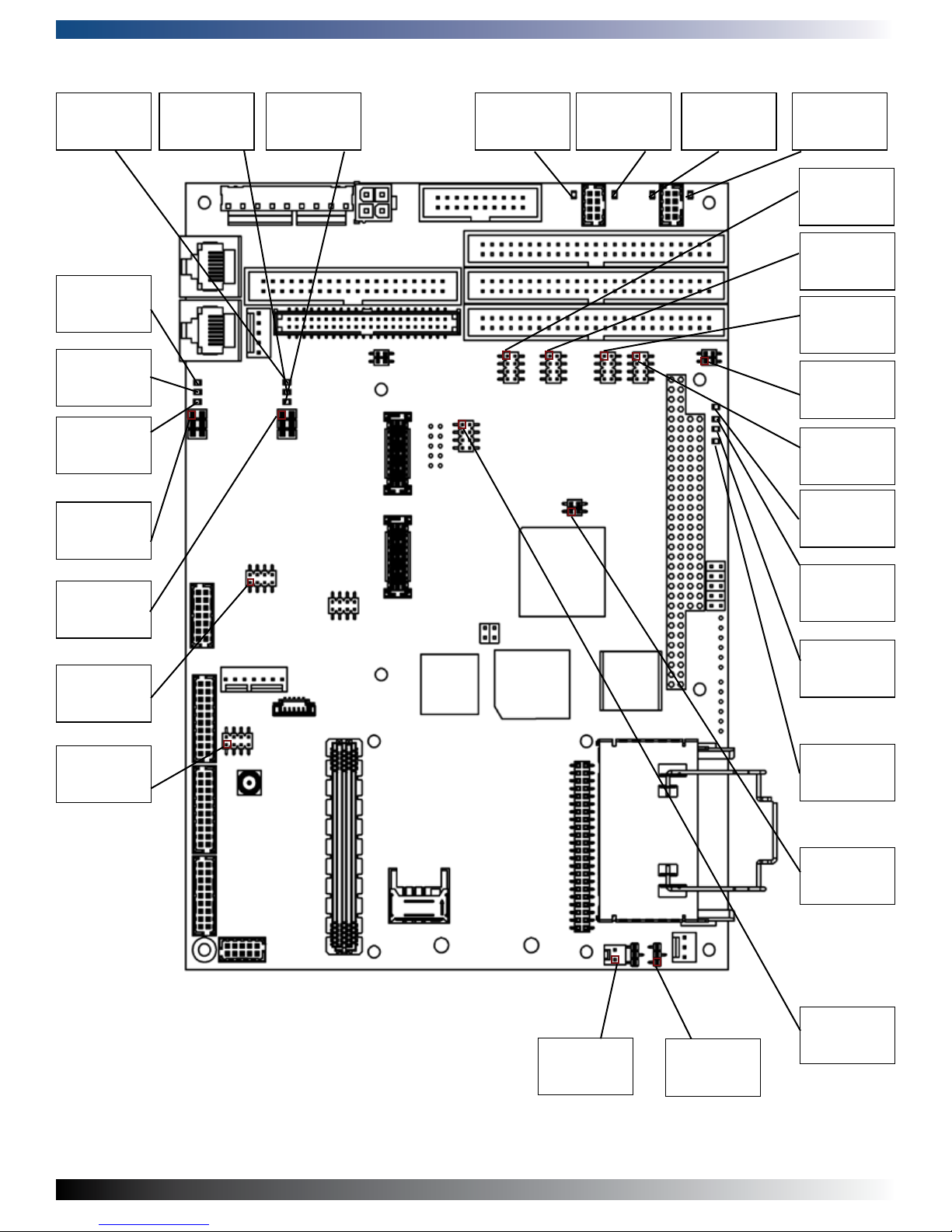

Visual Index - Top View (Jumpers & LEDs)
NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
RESERVED - J4, J16, J17, J18, J20, J21, J24, J34, J44, J51, J52, J54, J103, D111, D112
D3
LED Link_1000
(Port 1)
D2
LED Link_100
(Port 1)
D7
LED Link_100
(Port 2)
D6
LED Activity
(Port 2)
D9
USB1 Power LED
D10
USB0 Power LED
D11
USB3 Power LED
J31
COM3
Termination
J36
COM1
Termination
J50
Digital I/O
Power
J28
Power Supply
Selection
D16
Status LED
D15
+5V Power LED
D13
PATA Activity
J43
Battery Enable/
Disable
J1
Ethernet LEDs
(Port 1)
D1
LED Activity
(Port 1)
D8
LED Link_1000
(Port 2)
D14
+5 VSB Power
LED
J32
COM4
Termination
J42
COM2
Termination
D12
USB2 PowerLED
J12
Ethernet
Conguration
J10
Panel Options
J14
Ethernet LEDs
(Port 2)
J33
EEPROM Enable
J41
CompactFlash
Master/Slave
110113 PRODUCT MANUAL EBC-Z5xx 9

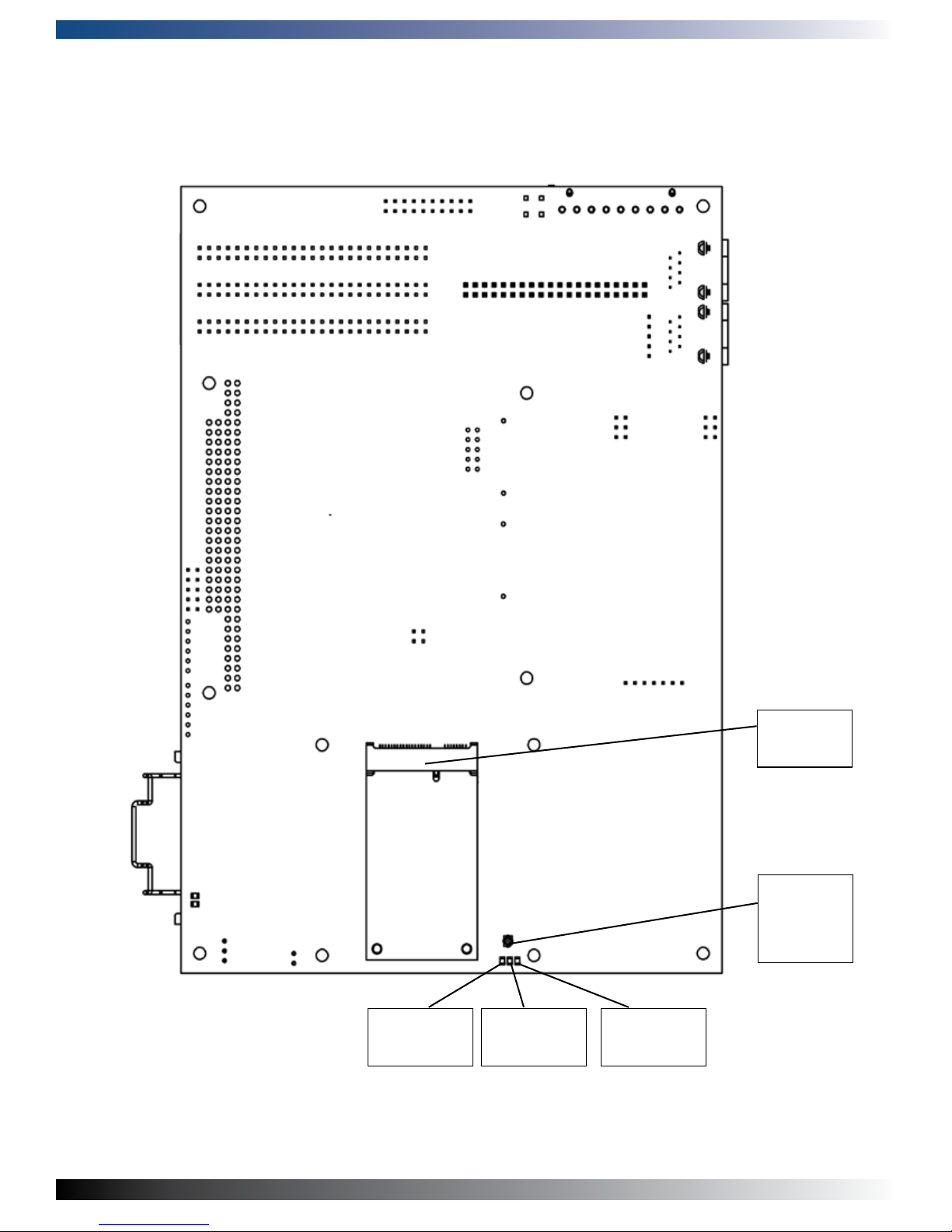

Visual Index - Bottom View (Connectors, Jumpers & LEDs)
NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
RESERVED - J4, J16, J17, J18, J20, J21, J24, J34, J44, J51, J52, J54, J103, D111, D112
J102
MiniPCIe
J101
MiniPCIe
Antenna
Passthrough
Connection to
J19
D106
PCIExpress
Status Indicator 1
D105
PCIExpress
Status Indicator 2
D103
PCIExpress
Status Indicator 3
110113 PRODUCT MANUAL EBC-Z5xx 10
Jumper Reference
CompactFlash Master 1-2
CompactFlash Slave (default) 2-3
□
□
□
J41
3
2
1
J41 - CompactFlash
NOTE: Jumper Part# SAMTEC 2SN-BK-G is applicable to all jumpers. These are available in a ten piece kit from
WinSystems (Part# KIT-JMP-G-200).
J12 - Ethernet Conguration
Ethernet Port 1
Non-Volatile Memory Protection
(Install Jumper to Disable Protection) 1-2
Auxiliary Power Present
(Remove Jumper when powered in ATX Mode -
Default Installed)
3-4
Ethernet Port 2
Non-Volatile Memory Protection
(Install Jumper to Disable Protection) 5-6
Ethernet Port 2 Present
(If Ethernet Port 2 is not installed, remove jumper) 7-8
J12
1 3 5 7
2 4 6 8
□ □ □ □
□ □ □ □
J31 - COM3, J32 - COM4, J36 - COM1, J42 - COM2
RS-422/RS-485 Termination and Biasing Resistors
TX (100): Places a 100Ω Resistor across the TX+/TX- pair 3-4
RX (100): Places a 100Ω Resistor across the RX+/RX- pair 7-8
TX/RX(300):
Places a 100Ω Resistor from +5V to TX/RX+ 1-2
Places a 100Ω Resistor between TX/RX+ and TX/RX- 3-4
Places a 100Ω Resistor from Ground to TX/RX- 5-6
□ □
□ □
□ □
□ □
2
4
6
8
J31
1
3
5
7
□ □
□ □
□ □
□ □
2
4
6
8
J32
1
3
5
7
□ □
□ □
□ □
□ □
2
4
6
8
J36
1
3
5
7
□ □
□ □
□ □
□ □
2
4
6
8
J42
1
3
5
7
J33 - EEPROM
EEPROM Enable
EEPROM Enabled (default) 1-2
EEPROM Disabled 3-4
□ □
□ □
4
2
J33
3
1
