Wintal DAB17C Manuale utente

Internet Radio Adaptor with

DAB and Bluetooth

User Manual

DAB17C

(Additional powered speaker / active speaker is required to use this product)

Please read this user manual carefully before using receiver

Location of Controls

1. TFT color display

2. Infrared remote sensor

3. 3.5 mm audio out socket –

Connect external powered

speakers with 3.5 mm plug or

RCA adaptor with 3.5mm plug

4. 3.5mm antenna input socket

5. Optical Out- Digital optical

output connection

6. DC IN socket- Connect with

the AC adaptor supplied in the

package

7. Power On/OFF switch

- 1 -

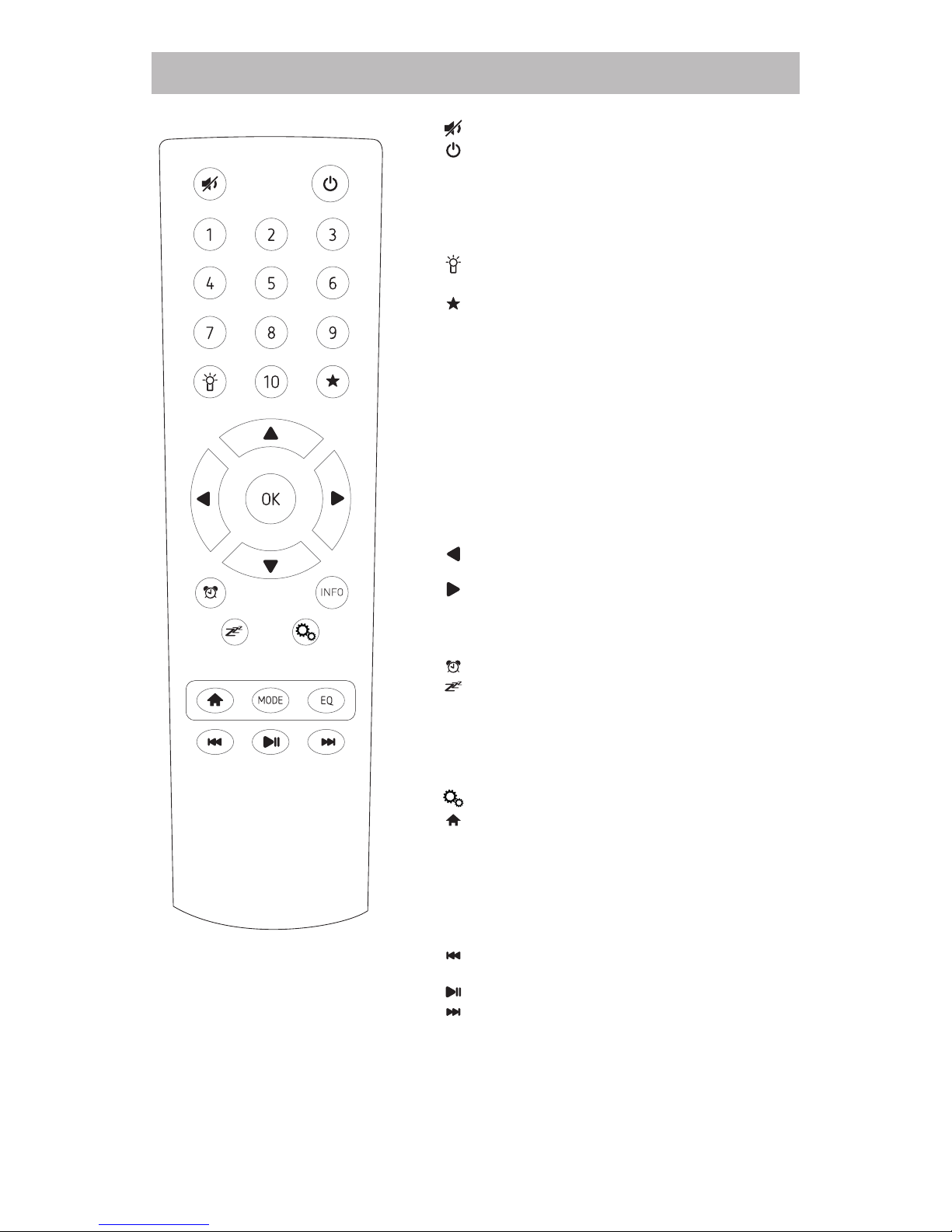

Remote control

: Press to mute the sound.

: Power on/off standby.

1-10: Preset and recall the radio station by

pressing a speciﬁc number.

Press and hold the button to store the

station.

Press brieﬂy to recall the station.

: Press to adjust the backlight, there are

three levels available.

: Long pressing to save the playing

station to a speciﬁc number at your

choice. Press it brieﬂy to recall the

preset list.

▲ / ▼: Up/Down button, press to scroll up and

down on the menu;

During playback of the radio channel:

Internet radio mode: back to the

internet radio menu.

DAB mode: press ▲ / ▼ return to the

station list.

FM mode: press ▲ / ▼ to ﬁne tune the

frequency.

: Press it to return to previous menu /

left navigation.

: Right navigation / enter into sub menu.

OK: Press to select/conﬁrm an option;

FM mode: press to auto scan the next

available station.

: Press to set the Alarm on the radio

: Set the sleep timer of the radio, press

the button repeatedly to select

The timer period you desire.

INFO: To view the detailed information of the

current playing radio station or music

stream from UPnP.

: To enter the setup wizard.

: Return to the main menu of the radio

mode you are using or exit the

operating menu to playing screen

MODE: Press to enter the menu of the radio

modes.

EQ: Equalizer, press to enter EQ list and

choose the preferred style.

: Previous song (for Bluetooth and

UPnP).

: Play/pause (for Bluetooth and UPnP).

: Next song (for Bluetooth and UPnP).

- 2 -

Before you start

Please ensure the following is ready:

* You have a broadband internet connection.

* A wireless (Wi-Fi) broadband router is connected to the internet

successfully.

The radio supports Wireless B ,G and N connection (Wireless N router

can also be used with the setting on B or G).

* You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected

Access (WPA) data encryption code/password. You need to key in the

correct code when the radio is connected to the wireless router for

network connection.

If you do not know the code/password, please contact the person /

technician who set up the router/network for you.

* The radio can work via Wireless network connection (Wi-Fi

connection)

Precautions

* The radio should not be used in a high temperature or high humidity

environment over prolonged periods of time as this may damage the

unit.

* Keep the radio away from liquids as it may get damaged. Please switch

off the radio immediately if water or liquids is spilled into the radio.

Consult with the shop you bought this radio for any question.

* Avoid using or storing the unit in dusty or sandy environment.

* Do not open and repair the radio by yourself.

* Use only the AC adaptor supplied with the radio.

Connecting a power supply with a different rating will cause permanent

damage to the radio and may be hazardous.

* Clean only with dry cloth

- 3 -

Getting started

Connect the AC adaptor supplied in the package to the DC jack at the rear

side of the radio.

The radio is an adaptor and does not have internal speaker. Prepare

a powered speaker which has the 3.5mm pin to plug in to the 3.5 mm

line out jack on the radio.

The radio supports also the optical connection. If you have a system

comes with optical input, connect to the optical out on the radio to

listen.

Switch the radio on using the Power on/off switch. The radio will power up

and the display on the front will light up and display as follow:

Select YES to start the wizard, select No to set up manually. If you select

YES, it will start setting the date and time by choosing the 12 or 24 hour

format, update the time from Network (this option is recommended) or

you can set the time manually by selecting No Update.

It will then prompt you to set the time zone, select the time zone in your

country, then select Daylight Saving is applicable and whether you want

to keep network connected:

WELCOME

- 4 -

Then choose the WLAN Region Wlan region

Australia

Europe

Connecting to the Wireless (Wi-Fi) Network

The radio will search the wireless networks which are available and

display a list of the SSID (name of the wireless router). Select your SSID

by using the <OK> button:

Then you need to enter the encryption password to access the wireless

router.

To enter the code, press ◄►▲▼buttons to choose the characters, press

<OK> button to conﬁrm and skip to the next entry. If you want to make

correction, scroll to the tab BKSP to erase the character that you just

entered. After the input is completed, scroll to the tab OK then press

<OK> button on the remote control to save the key.

The radio will start connecting to the network. If the connection is

successful, the following screen will appear.

- 5 -

If connection is failed, the radio returns to the password entry screen.

System Settings

Internet Radio

Music Player

DAB

Bluetooth

Sleep

Alarms

System settings >

Equaliser >

Network >

Time/Date >

Language >

Factory reset

Software update >

Software upgrade >

System Settings

- 6 -

- 7 -

Turning on/off the Radio

To power on/off the radio, press the Power on/off switch at the rear side of

the unit.

To turn it to Standby, press the Power button. It will switch to Standby.

It will display the clock and alarm time if it is set.

- 8 -

10/10/2009

18꞉19

22꞉00 06꞉15

To turn it ON again, do the same by pressing the Power button.

Alarms

It allows you to set and check the alarm time.

Press button to set the alarm as the screen shows below, press ▲▼ to

choose Alarm1 or Alarm2, then press OK to enter the alarm setting.

1. Enable: Press OK to set the Alarm Off, Daily, Once, Weekends, or

Weekdays.

2. Time: Press ▲ or ▼ to set the hour and then press OK to go to set the

minute.

3. Mode: You can set the alarm sound source as Buzzer, DAB, FM or

Internet Radio.

4. Preset: If you choose the sound source as DAB, FM or Internet Radio,

then there will be an extra menu “Preset” for you to choose the preset

station or last listened station.

5. Volume: You can set the alarm sound level as you want.

6. Save: Press Save to conﬁrm the alarm setting.

Sleep Timer

You can set the timer to put the radio in standby after certain time

elapsed, from 15 minutes to 60 minutes with the step of every 15 minute.

Press the button on remote control to enter the setting, press the

same button repeatedly to choose the timer option you prefer. The sleep

timer icon will display on the bottom left corner and the time remaining

before the radio goes into standby.

Mode

The radio has ﬁve modes: Internet radio, Music Player, DAB radio, FM

radio and Bluetooth.

Press <Mode> button to enter the menu of modes, display as below:

- 9 -
