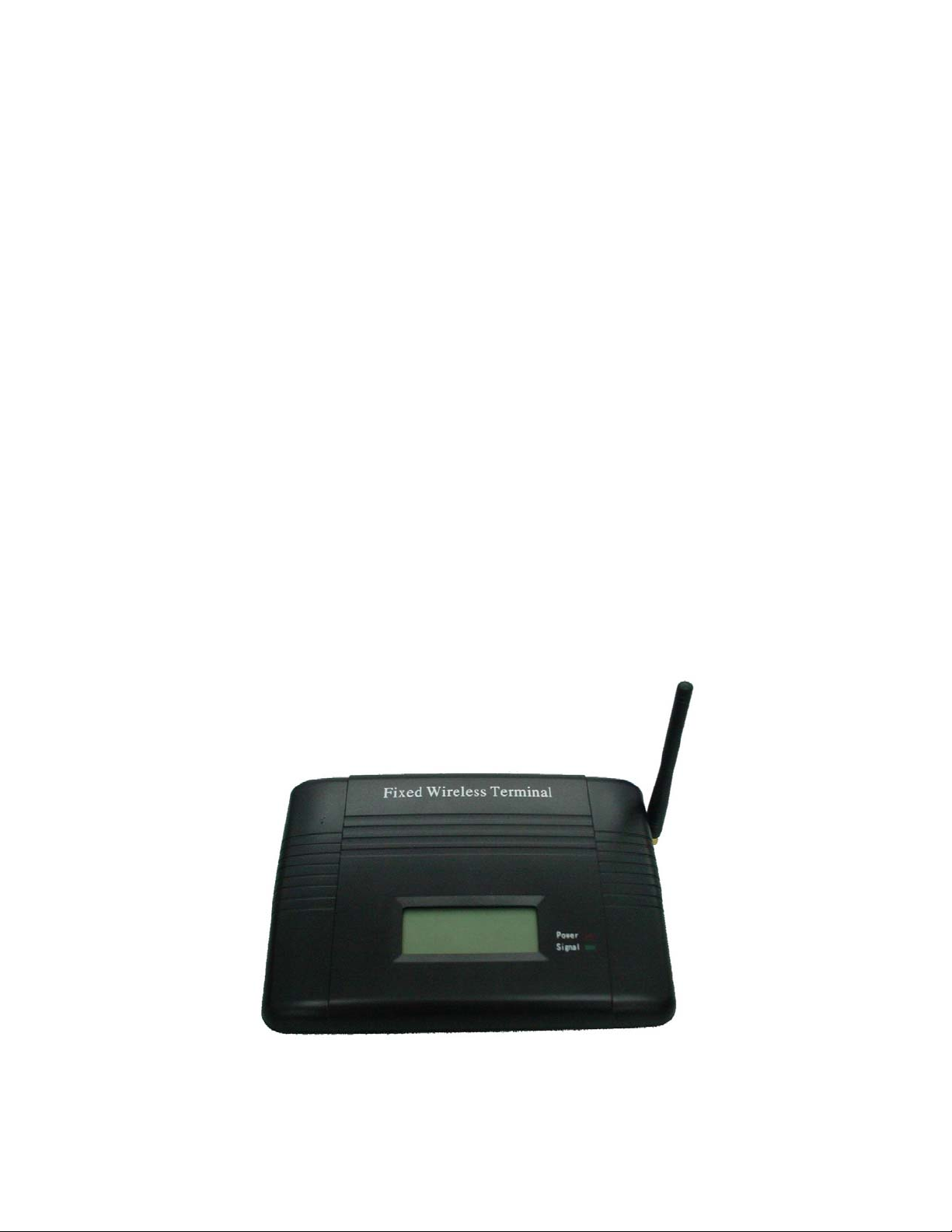

GSM Fixed Wireless Terminal

WT-1018

User’s Manual

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Contents

Main Features……………………………………………………………………………………………...….3

Caution…………………………………………………………………………………………………......…3

Storage………………………………………………………………………………………………………...3

Sketch of Fixed Wireless Terminal……………………………………………………………………..…….4

Installing SIM Card…………………………………………………………………………………………...5

Setting up the Terminal…..…………………………………………………………………………………...5

Installation for connecting to register cost equipment………………………………………………………..5

Turn on and Turn off Wireless Terminal…………………………………………………………………......6

Making Calls and Answering Incoming Calls………………………………………………………………..6

Programming Code Settings…………………………………………………………………………...……..7

Technical Specification………………………………………………………………………………….……9

Troubleshooting………………………………………………………………………………………….…..10

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Main Features

•Adopt advanced microprocessor controlling circuit, run steadily. Capability is ascendant

•Adopt high gains antenna. Signal is strong

•Be applicable for GSM900MHz/DCS1800MHz/PCS 1900MHz

•Call or called function can be set up flexibly

•The functions of locking terminal, locking SIM card, locking network and locking cell can be set up

conveniently.

•Function of displaying incoming calls.

•Provide accurate anti-polarity signal for billing equipment to charge

Caution:

1. This terminal should not be used at garage, oil storage and chemical plant or near to flammable or

explosive substance.

2. This terminal should be avoided in the hospital. It will interfere medical electronic equipments such as

pacemaker and audiphones. This terminal could only be used indoors.

3. If it is found that the terminal is not successful in login onto the network, please check whether the SIM

card and antenna are installed well or not.

4. Don’t use the SIM card that has been used in this terminal to other device. Please make sure the initial

PIN code of SIM card is 1234 and disabled when installing SIM card.

5. It is forbidden to touch the antenna when the connected telephone is being used. (being making calls or

receiving calls), otherwise the terminal will be damaged. This kind of damage is beyond the range of

warranty.

6. When the terminal is using, it should be placed where the signal of network is strong enough. In order

to ensure the quality of call voice, the terminal should be far from other electronic equipment.

7. The terminal does not identify SIM card of 5V and 1.8V, only identify 3V SIM card.

8. Don’t disassemble the terminal by yourself. If there is any problem, please contract the authorized

personnel.

9. Working voltage of wireless terminal ranges from 6.0V to 7.5V.

Storage

1. Terminal that is packed or not should piled up no more than 10 layers.

2. The terminal should be saved in ventilate and dry place.

3. Don’t knock terminal to avoid breaking the case.

4. Don’t use chemic impregnate to clean terminal, but use dry soft cloth to make it clean.

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Sketch of the Fixed Wireless Terminal

The WT-1018 Fixed Wireless Terminal

Frontal view

LED indicators

LED1 - Power indicator (it’s lit while power source is connected correctly)

LED1 - Signal indicator (Flashing once in one second indicates that the terminal is on GSM network.

Being lit for a long time indicates that the terminal has failed to login onto GSM network)

Back view

1) Antenna port: Connect the antenna to the terminal

2) TEL 1: Connecting to Telephone

3) TEL 2: Connect to PSTN Line

4) On/Off switch: Turn On/Off the terminal

5) Power port: Make the flat side of power adapter plug be upturned and push it in

6) Data port: Connect the RS232 (9-pin) cable to the terminal for GPRS functions (Optional)

Power Indicator

Network Indicator

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Installing the SIM Card

Proceed as follows:

1. Slide back the SIM door and lift it up

2. Slide the SIM card into the SIM door making sure that the clipped corner of the SIM card lines up with

the clipped corner of the SIM holder

3. Close the SIM door

4. Slide the SIM door to lock the SIM card in place

Setting up the Terminal

Installation Condition

Require 220v AC power. GSM signal can cover the area where the terminal is placed. Signal quality affects

voice quality direct.

The installation for connecting to ordinary telephone direct

1. Install the SIM card proceeding as “Installing the SIM Card” on page 3.

2. Connect one end of the telephone line to “Telephone port” and the other ends connect to a telephone.

3. Connect PSTN Line to “Line Port”.

4. Install the antenna and power supply well. The distance between telephone and terminal is 1.5m at

least.

5. Connect one end of the power adapter to “Power port” and another end connects to 220v AC power.

About 10-45 seconds later, the terminal works in gear (The login time is different according to local

network).

When the terminal is ready to use, it will display as below

WT-1018

Draw your attentions: Because there are many types of ordinary telephone and their electric parameters

are different .In order to avoid mutual disturbance between telephone and terminal and affects voice quality

.The distance between telephone and terminal must be beyond 2m.

Signal Power

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

The installation for connecting to register cost equipment

If users demand register cost during calls, register cost equipment can be connected between terminal and

ordinary telephone. Register cost equipment registers cost according to anti-polarity signal that is provided

by terminal.

Turn on and Turn off Wireless Terminal

Turn on: Connect the input end of power adapter to power socket and the output end to the port of

“DC6.5V” turn on terminal. About 15 – 45 seconds later (subject to local wireless network), the

terminal will logon successfully.

Turn off: Turn the switch to the OFF side and disconnect power adapter to turn off the terminal

Making Calls

1. Lift the handset or press “hand-free” key, you will hear dialing tone, then you can dial the telephone

numbers you want to call.

2. Dialing: dial the telephone numbers you want to call

3. On completion of dialed digits, you can press “#” to transmit telephone numbers. If you don't dial any

key for continual 6 seconds during the dialing, the terminal transmits the dialed telephone numbers

automatically.

4. If there is PSTN line input, the dialing numbers will automatically go through PSTN line. If the user

wants the dialed number to go through GSM then the user must press “*” before the destination

numbers.

5. If the user dial an International number start from “0” the dialing numbers will automatically go

through GSM.

6. When it is necessary to register cost, the terminal sends out anti-polarity signal (the signal is used to

7. If the calling party or called party hangs up, the terminal stops sending out anti-polarity signal.

8. If users dial barred numbers, telephone will give out the sound of three-time toot to ask the user to hang

up.

Answering Incoming Calls

When some calls are coming in, the telephone rings and the terminal will displays the incoming telephone

numbers on the screen. Now users can lift the handset or press “hand-free” to answer the call.

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Programming Code Setting (Have to enter Password before Start doing the Settings)

Steps:

1. Password Verification

Pick up phone, press **83211279#. If heard “du~~~” a continuous dialing tone, means the Password

enter correctly, and then will continue to go into programming setting mode. User is able to change the

settings now. If there is no continuous “du~~~”, means the Password enter not correct. And it will not

go into programming setting mode to change the settings. User can hook-on and pick up phone again to

enter the Password.

2. Programming Code

Refer to the Programming Table below. After enter the Programming Code, if you heard a busy tone

follow by the dialing tone, it means wrong programming code. If heard continuous “du~~~”, it means

the successful set up for that programming code. If just heard dialing tone, it means that the settings

area are full or enter wrong programming code.

During the setting for the programming code, user does not need to hook-on the Phone. When user

heard dialing tone after ONE setting means the user can continue the following setting.

3. To Quit from the Programming Code Setting

In Hook-on mode or Press “hand free” to quit from the setting.

No. Definition Program Code Description

1 Enter Password. Go

into Programming

Setting

**XXXXXXXX# After Password Verification, will enter

to the Programming Setting Mode.

(Initial Password for factory leaving is

sets up as “83211279”

2 Setting IP or

Gateway Number

*2*XXXXXXXXXXXX# After doing this setting, when making

calls, it will automatically dial Gateway

Number in front of the Destination

Number.

*2*# Delete the IP or Gateway Number

setting. All the calls are made will not

adding Gateway Number in front of the

Destination Number.

3 Restrict Incoming

Calls

*3*1*# Barred all Incoming Calls

*3*1*0# Cancel the setting for Barred Incoming

Calls

4 Restrict Local Calls

*3*2*# Barred all Local Calls

*3*2*0# Cancel the setting for Barred Local Calls

Restrict

International Calls

*3*3*# Barred all International Calls

*3*3*0# Cancel the setting for Barred

International Calls

5 Restrict National

Calls

*3*4*# Barred all National Calls

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

*3*4*0# Cancel the setting for Barred National

Calls

6 Setting Local Area

Code

*1*XXXXXX# When dialing Local Prefix Number, it

will automatically add Local Area Code.

Able to set up to 6 digits for Local Area

Code.

*1*# Delete Add Local Area Code.

7 Setting for adding

“0” in front of

destination number

*3*5*# After doing this setting, when making

call for International mobile phone

number, it will automatically add 0 in

front of the dialed number.

*3*5*0# Cancel the setting for adding “0”

8 Setting Local Prefix

Number Gateway

*4*1*# After doing this setting, when making

Local Calls, it will automatically dial

Gateway Number in front of the

Destination Number.

*4*1*0# Cancel dialing Gateway Number in front

of the Local Number

9 Setting

International Prefix

Number Gateway

*4*2*# After doing this setting, when making

International Calls, it will automatically

dial Gateway Number in front of the

Destination Number

*4*2*0# Cancel dialing Gateway Number in front

of the International Number

10 Setting National

Prefix Number

Gateway

*4*3*# After doing this setting, when making

International Calls, it will automatically

dial Gateway Number in front of the

Destination Number.

*4*3*0# Cancel dialing Gateway Number in front

of the International Number

11 Setting for Locking

SIM Card

*5*1*# After doing this setting, the terminal will

lock the SIM card with a password.

Note: The terminal can only lock the

SIM card if the SIM card PIN number is

1234 (default) otherwise it will display

“PIN ERROR 02”. The locked SIM

card can only be recognized by the

terminal for unlocking.

*5*1*0# Cancel Locking SIM card. After doing

this settings, terminal will unlock the

SIM card and restore the PIN number of

the SIM card to 1234 (default).

12 Setting for Locking

Terminal

*5*2*# After doing this setting, the terminal can

only accept this particular SIM card.

Only be able to use other SIM after

unlocking the phone or deleting the SIM

Card ID

*5*2*0# Cancel Locking Terminal.

13 Setting for Changing

Password

*6*XXXXXXXX# Before doing this setting, user will need

to use the default password “83211279”

to go into Programming Setting Mode to

be able to use this programming code to

change the password.

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Technical Specification

1. Working condition

Environment temperature: 0 ~ +50ºC

Relative humidity: 10%~95%

Air pressure: 86~106kpa

Environment yawp: ≤60dB (A)

2. Working frequency: GSM900MHz/GSM1800MHz

3. Stability of frequency: better than 2.5PPM

4. Signal sensitivity: -103dBM

5. Transmit power: <2w

6. Power: 220v±15% AC

7. The max distance between terminal and telephone: 100M

WT-1018 GSM Fixed Wireless Terminal___________________________________

WT-1018 – User Manual – Rev.1.2 – Technical Support: [email protected] - www.witura.com

Troubleshooting

Phenomena Trouble Trouble Shooting

Signal indicator isn’t

lit

Failed in login onto

GSM network

1. The signal is too weak Please move the terminal to the

place where signal is stronger.

2. Check whether antenna is connected well.

3. SIM card is locked. Please contact the service provider.

Signal indicator

flashes fast Signal is too weak

1. Check whether antenna is connected well.

2. The signal is too weak Move the terminal or antenna to

the place where signal is strong.

Power indicator isn’t

lit

Having not connect

to power supply or

there is some trouble

with power adapter

1. Check whether the adapter is connected well.

2. There is some trouble with the power adapter

Please contact the provider of the terminal.

Only free numbers

can be called out

The residual money

on SIM card is too

less

Add money to the SIM card subscriber

Can’t hear sound

during calls

The malfunction on

the telephone Change the connected telephone with a good one

Poor voice quality

during calls or there

is echo during calls

The voice volume is

too high or the

signal of network is

too weak.

1. Adjust voice volume to be lower.

2. The local signal is too weak. Move the terminal to the

place where signal is stronger.

3. Make the antenna is longer from the telephone

4. The voice quality of the connected telephone isn’t good.

Change the connected telephone

5. Trouble on the GSM network.

No ringing sound The malfunction on

the telephone

1. Malfunction on the connected telephone

2. Malfunction on terminal. Please contact the provider of

the terminal.

Incoming calls can’t

be answered

The connected

telephone does not

match the terminal or

forbidding answering

incoming calls is set

1. Change the connected telephone with a suitable one.

2. Forbidding answer incoming calls is set up, please

contact the service provider.

We try to keep our product information up-to-date and accurate. We cannot cover all specific applications or anticipate all

requirements. All specifications are subject to change without notice. For more information, contact Witura Corporation.

Phone: +604-2289053 Fax: +604-2289146 Address: 18-8-C, Gurney Tower, Persiaran Gurney, 10250, Penang, Malaysia.

Indice

Altri manuali Witura Terminale touch

Witura

Witura WT-204 Manuale utente

Manuali Terminale touch popolari di altre marche

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuale utente

Ingenico

Ingenico AXIUM EX4000 Manuale utente

Heisei Electronics

Heisei Electronics Q-POS 815 Manuale utente

Amano

Amano MTX-15 Manuale utente

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuale utente

Demco

Demco SP7 Manuale utente

Lathem

Lathem PC600 Series Manuale utente

Partner

Partner MF-2352 Manuale utente

NCR

NCR RealPOS 7460-2 Manuale

Simrad

Simrad MS50 Istruzioni per il montaggio

Unitech

Unitech MR350 MKII Guida rapida

Jungheinrich

Jungheinrich WMT 210 Manuale utente

Motorola

Motorola MTP850 Manuale utente

YASKAWA

YASKAWA 62H-MDC0 Manuale utente

MVG industries

MVG industries NeptuLink Manuale utente

Price Industries Limited

Price Industries Limited FDC Manuale di istruzioni

Honeywell

Honeywell TemaKey Manuale utente

EBN

EBN BPC65-B-A16G Manuale utente
